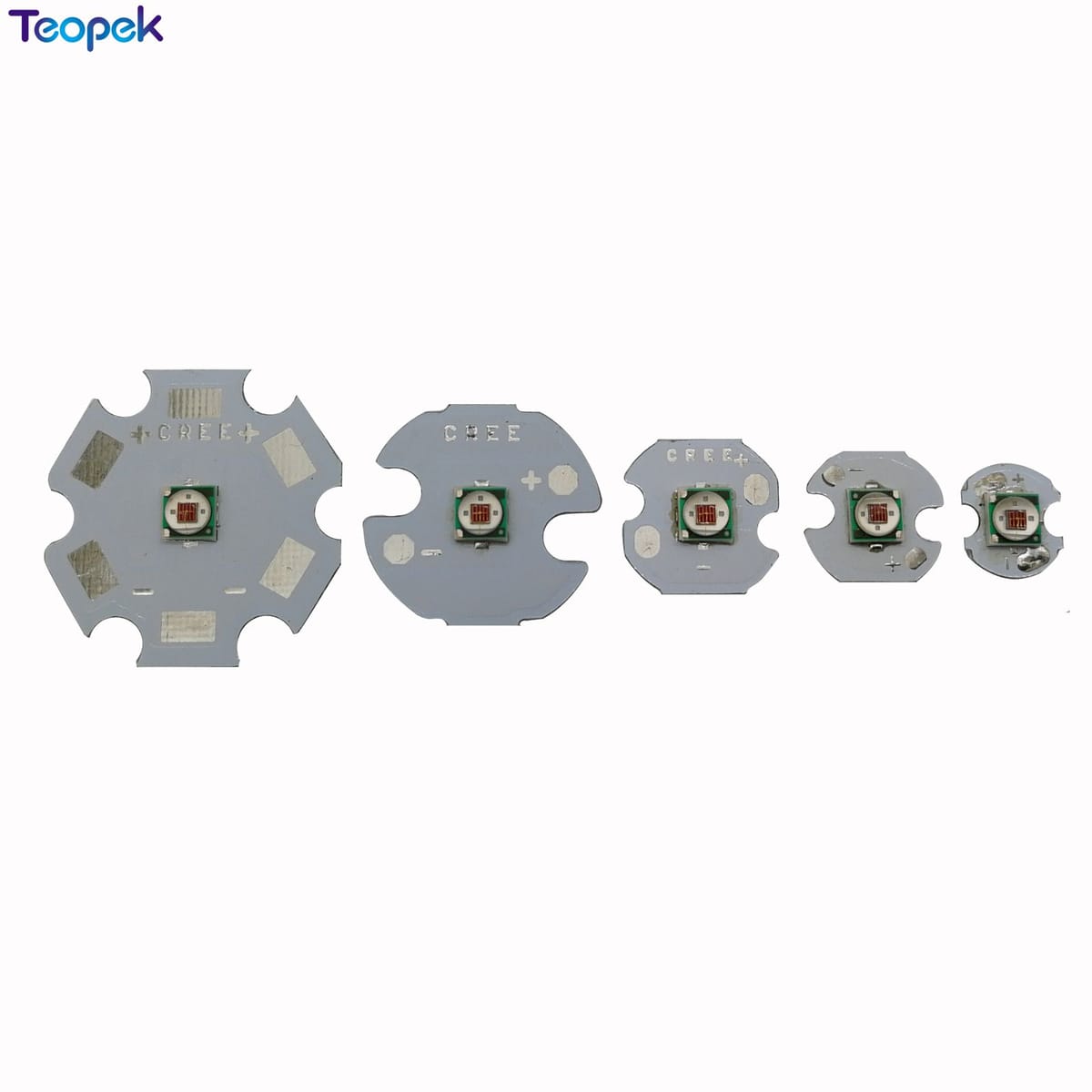

XPE2 3w Photo Red 660NM 2.1-2.5V 350-1000MA XP-E2 Led Beads Plant Grow Led Emitter Lamp Light

XPE2 3w Photo Red 660NM 2.1-2.5V 350-1000MA XP-E2 Led Beads Plant Grow Led Emitter Lamp Light


XLamp® XP-E High Efficiency White LEDs extend the light output and efficacy of the award-winning XLamp XP-E LED family, enabling luminaire designs that use up to 50 percent fewer LEDs for a lower system cost.
XLamp XP-E High Efficiency White LEDs deliver up to 148 lumens in cool white (6500K) and 114 lumens in warm white (3000K) at 1W. In addition to light output and efficacy improvements, XP-E HEW LEDs feature a reduced thermal resistance of 6 °C/W. XP-E High Efficiency White LEDs are available in the same white variations as XP-E LEDs, including Standard White, Outdoor White and 80-CRI White.

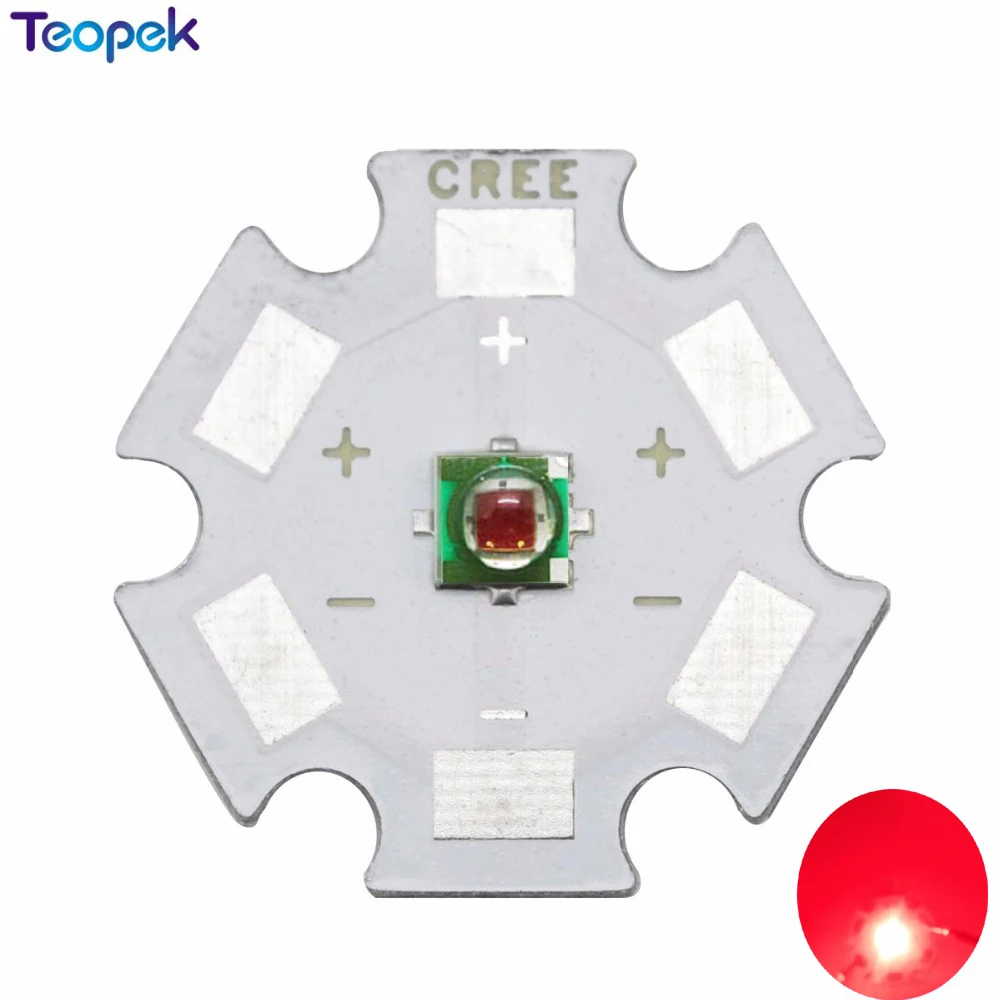

CREE XP-E Photo Red (660nm) LED
A Photo Red LED from CREE! CREE now bring their expertise to LEDs with output in the 660nm range. This wavelength is most important for plant and coral growth. The colour also aids in colouration.

Our XP-E Photo Red LED is the highest quality 660nm emitter currently available in a 3W package, with a radiant flux output of around 675mW at 700mA. And, unlike other lower quality LEDs, the XP-E Photo Red can actually be run at the rated current without fear of burning up! Also, needless to say, mounted on our highest quality stars, makes this LED even more efficient, maintaining the highest levels of light output, as well as prolonging it\'s life.



Specifications:

Colour/Bin: Photo Red 14 (650-670nm, 350mW 350mA, 25C)
Max. Forward Current (DC): 1000mA
Dominant Wavelength: 650-670nm
Forward Voltage (DC) ( 350mA): Typical: 2.1V
Forward Voltage (DC) ( 700mA): Typical: 2.3V
Radiant flux ( 350mA, 25C): 350mW
Radiant flux ( 700mA, 25C): ~675mW
Optic Viewing Angle: 130°
Thermal Resistance: 8C/W
Manufacturer\'s part number: XPEPHR-L1-P30-14-C-01
Low thermal resistance: only 9 ° C / W
The maximum junction temperature: 150 ° C
Wide viewing angle: 115 ° -130 °
Without exceeding 30 ° C/85% relative humidity, infinite life
Can reflow - meets JEDEC J-STD-020C standard Electrically neutral thermal path
Compliance with RoHS and REACh specification
UL certified components(E349212)

Attention to the heat,working temperature maintained at 50 degrees Celsius or lower as possible

Features:
Very low heat generating, saving energy, environmentally friendly.
Long service life.
Low consumption, high brightness.
Comfortable light source, harmless for skin and eyes.
Great for making light sources for fish tank, decoration light, etc
Made of high quality material, durable for daily us


Package contentment (Brand NEW) :
10pcs CREE Xpe Photo Red led as you choosed.
