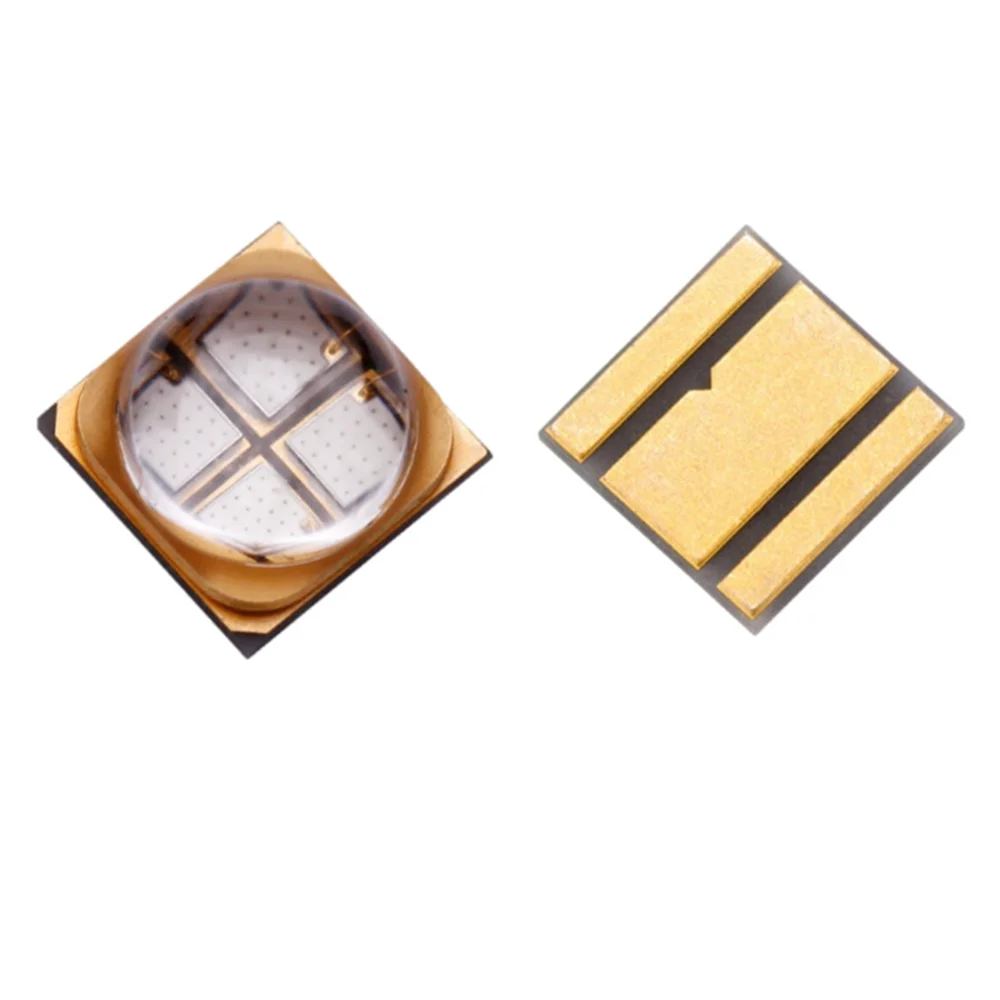

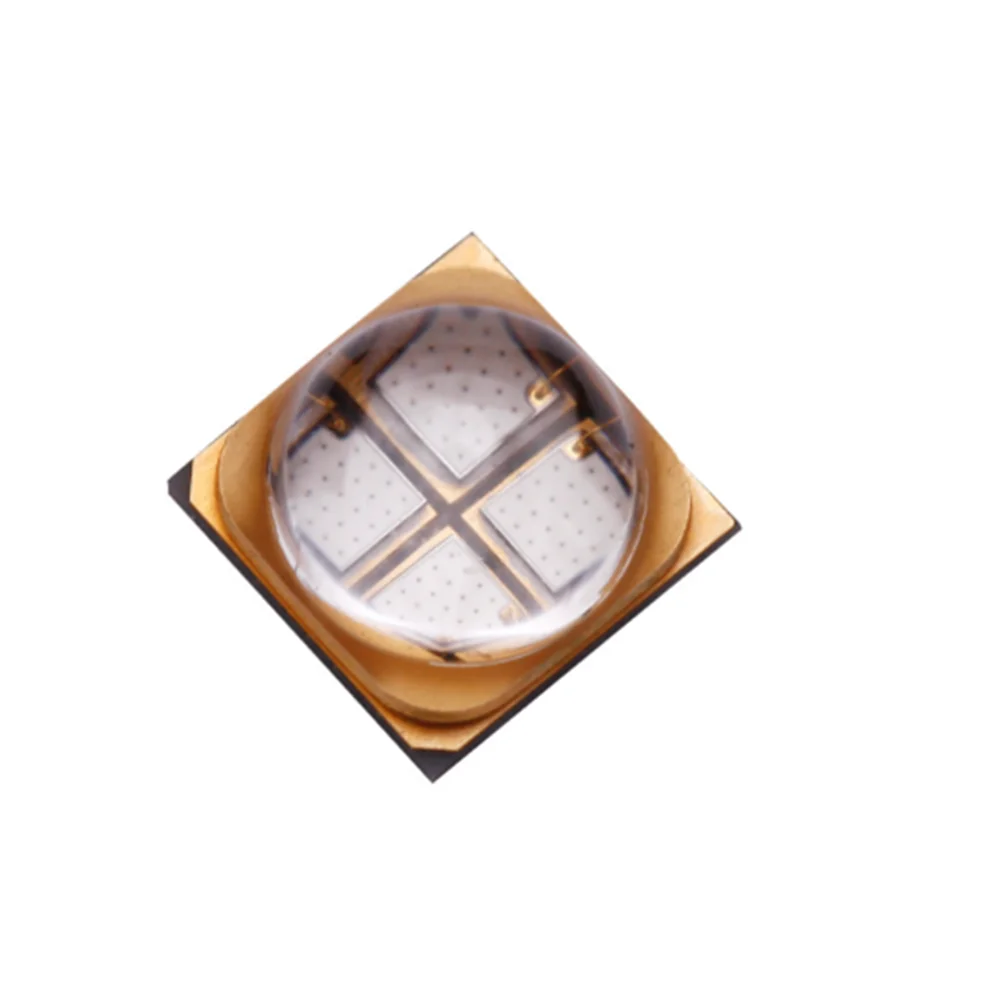

UV 10W 6-8V LED 6565 SMD Quartz Ceramic Lamp Beads COB 4 Chip 365nm 380nm 395nm 405nm Purple Light with 20mm Copper Substrate
UV 10W 6-8V LED 6565 SMD Quartz Ceramic Lamp Beads COB 4 Chip 365nm 380nm 395nm 405nm Purple Light with 20mm Copper Substrate

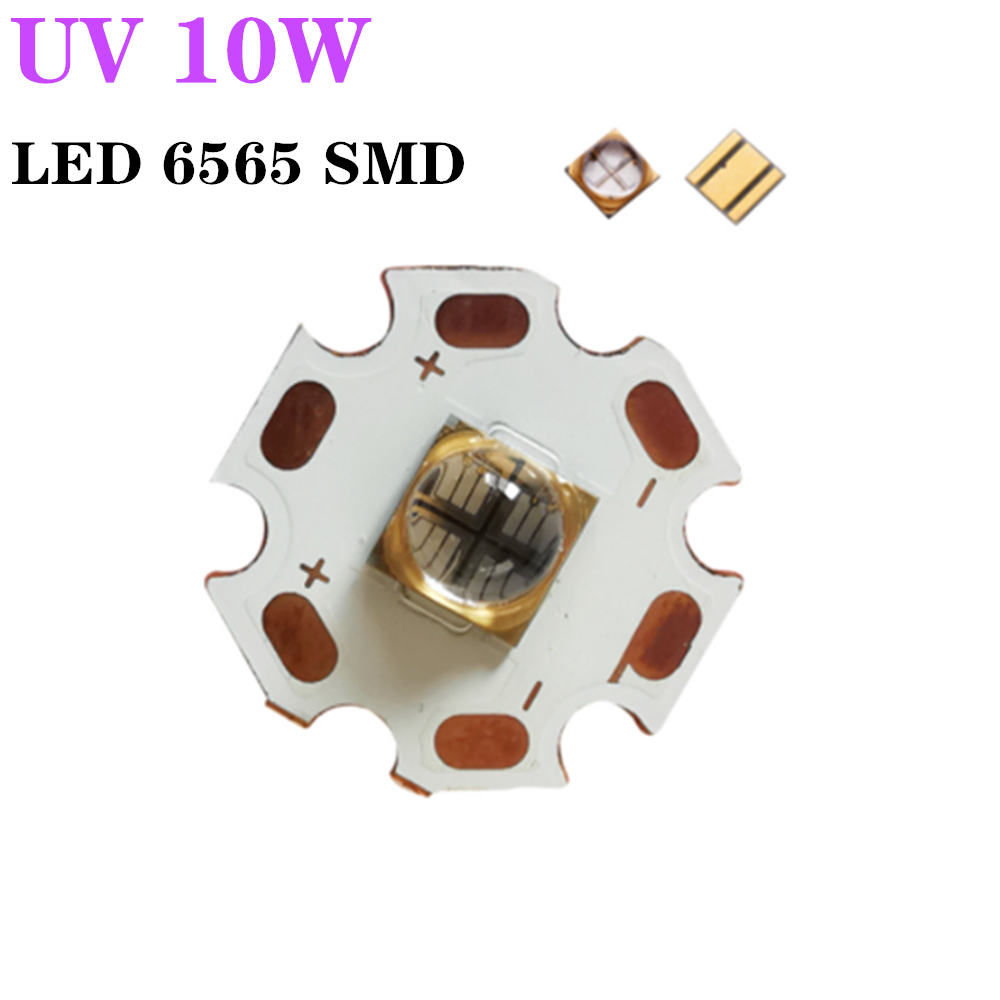

365-405nm UV LED 4-Chip COB 6565 SMD 10W 20mm Hexagonal Plate LED Flashlight Module Lamp
Product Features:
●. Ceramic eutectic welding
●. Electrostatic spraying of fluorescent powder
●. Soft silicone film top
●. Ceramic bracket lamp beams
●. 20mm pure copper substrate, it has fast heat conduction and good heat dispersion
●. The whole lamp can pass CE certification
Product specifications
●. Model: 6565-UV-10W-20mm

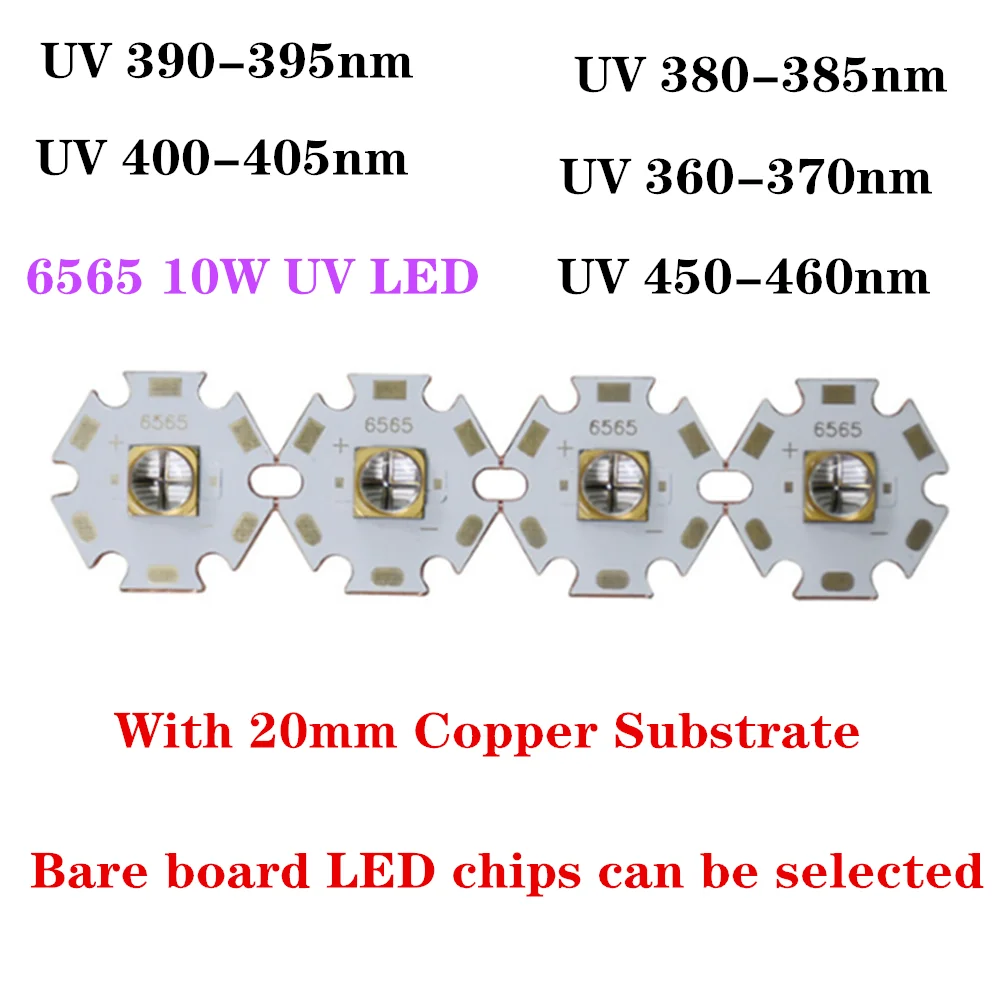

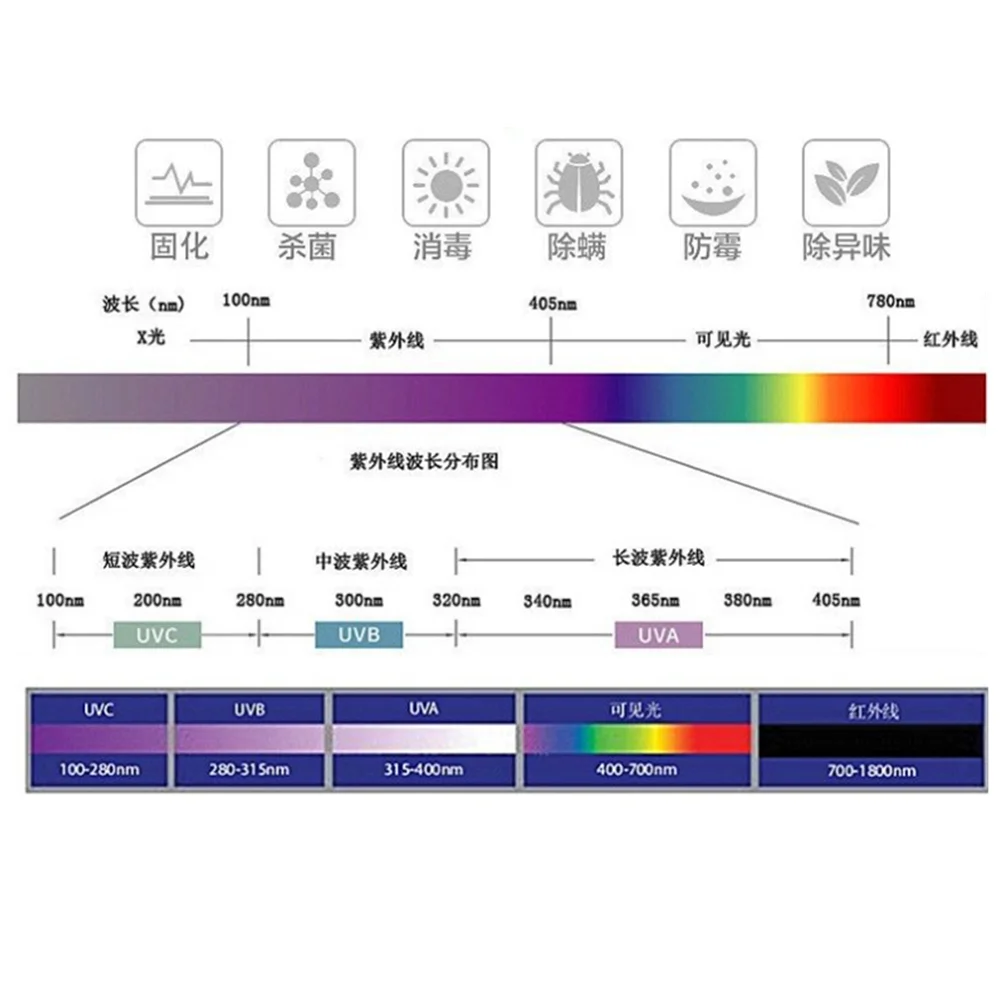

●. Wavelength: 365-405nm (optional)
●. Power: 10W
●. Luminous flux: 20-50LM
●. Voltage: 6-8V
●. Current: 1000-1500mA
●. Light angle: 60 degrees
●. Chip: 4 Chip LED
●. Material: quartz lens, ceramic bracket lamp beads
●. Chip welding: pure gold wire
●. Application scope: Printing curing, adhesive bonding, UV detection
Package List:
1 * LED 6565 Light Beads Module Plate
Kindly Reminder:
●.Light and different monitors may cause the color of the item to be somewhat different from the real thing. The allowable error of measurement is +/-1mm.
●.Constant current LED drivers are recommended for high power LED.
●.Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.

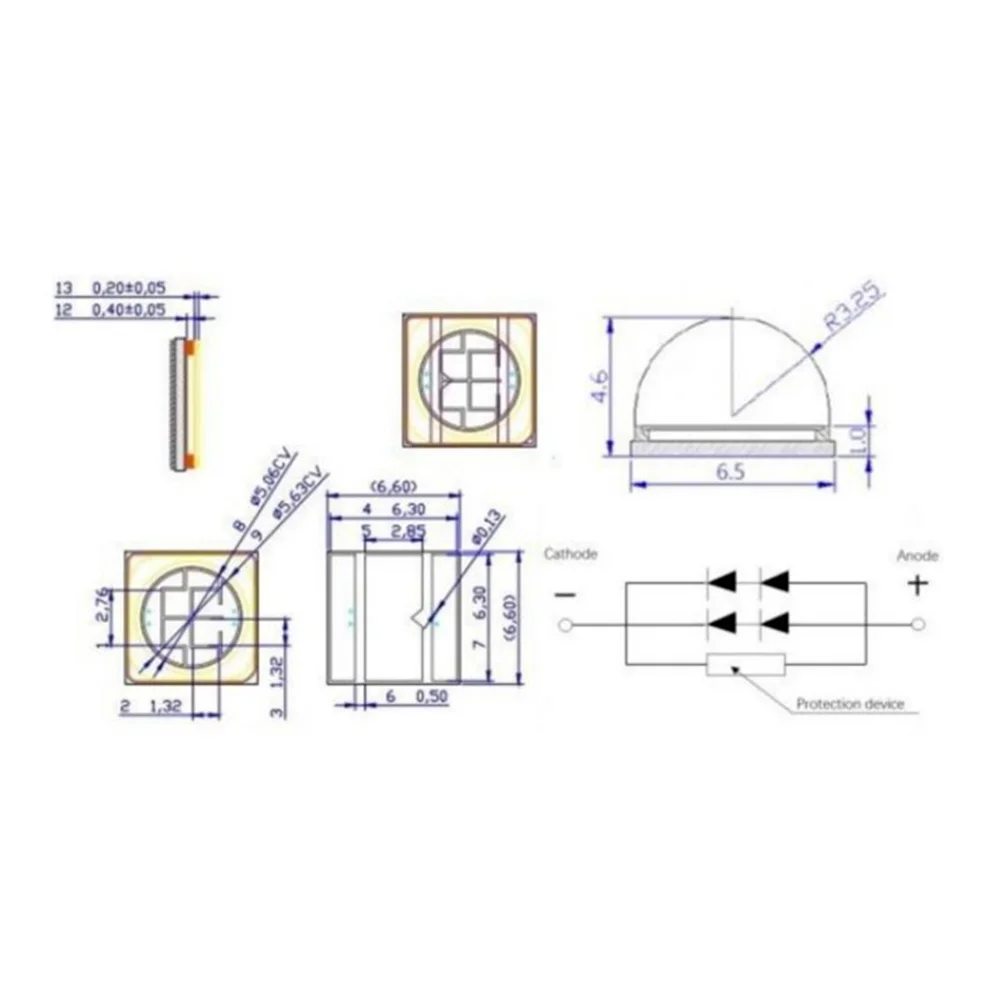

●.Please refer to the positive (anode +) and negative (cathode -) sign on Leds
,
