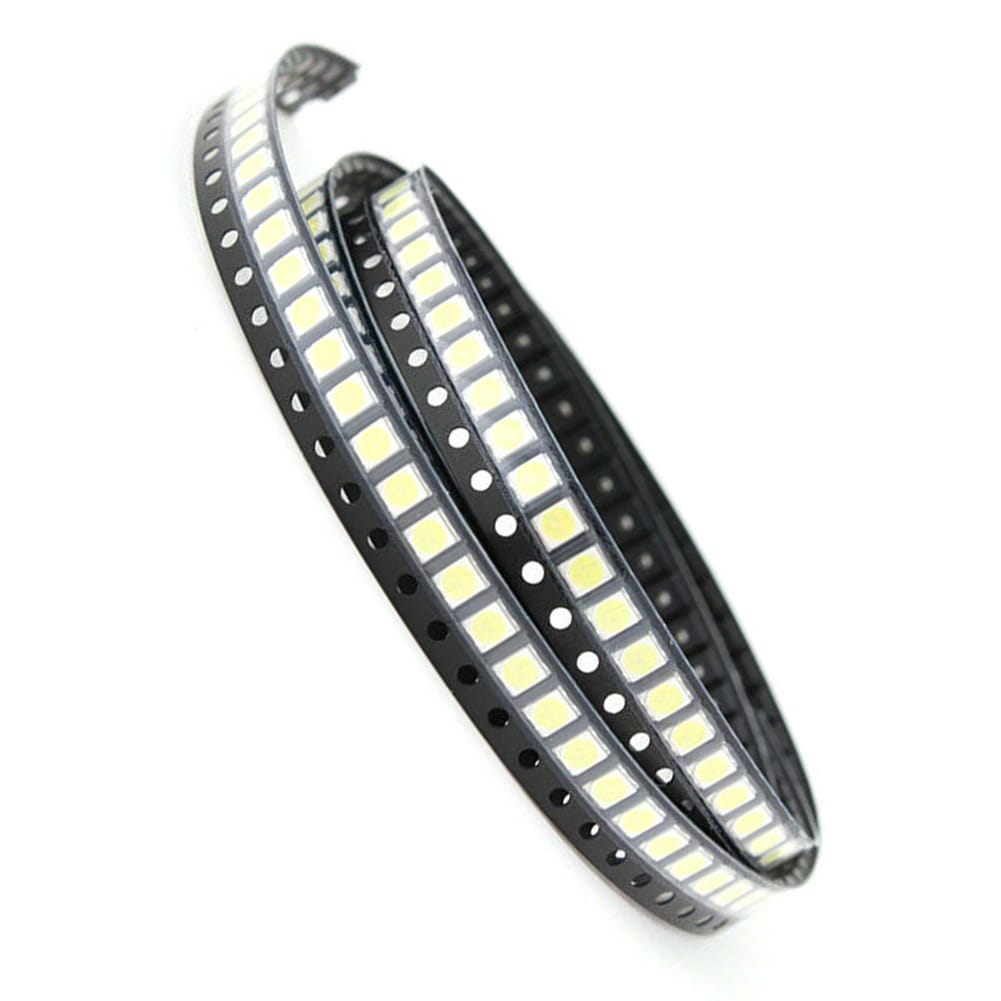

SMD LED 3535 5V LCD Backlight LED Cold White Light Chip A127CECEBUP8C-607 Light Diode Beads For LED Strip Spotlight Bulb
Features:
* Brand new and high quality
* Made of high quality materials, sturdy and practical
* Strict quality control standards to build and test.
* Stable performance and high reliability.
* SMD LED 3535 5V LCD backlight LED cold white light chip A127CECEBUP8C-607 parts
Specifications:
Part name: LED chip
Material: copper bracket
Size: standard
Color: cold white light
Forward current (IF): 350mA pulse
Forward current t1 (IFp): 500mA
Reverse current (IR): 25mA
Reverse voltage (VR): 5V (5mA)
Power consumption (PD): mW
Operating temperature (Topr): -40-+85°C
Storage temperature (Tstg): -40-+100°C

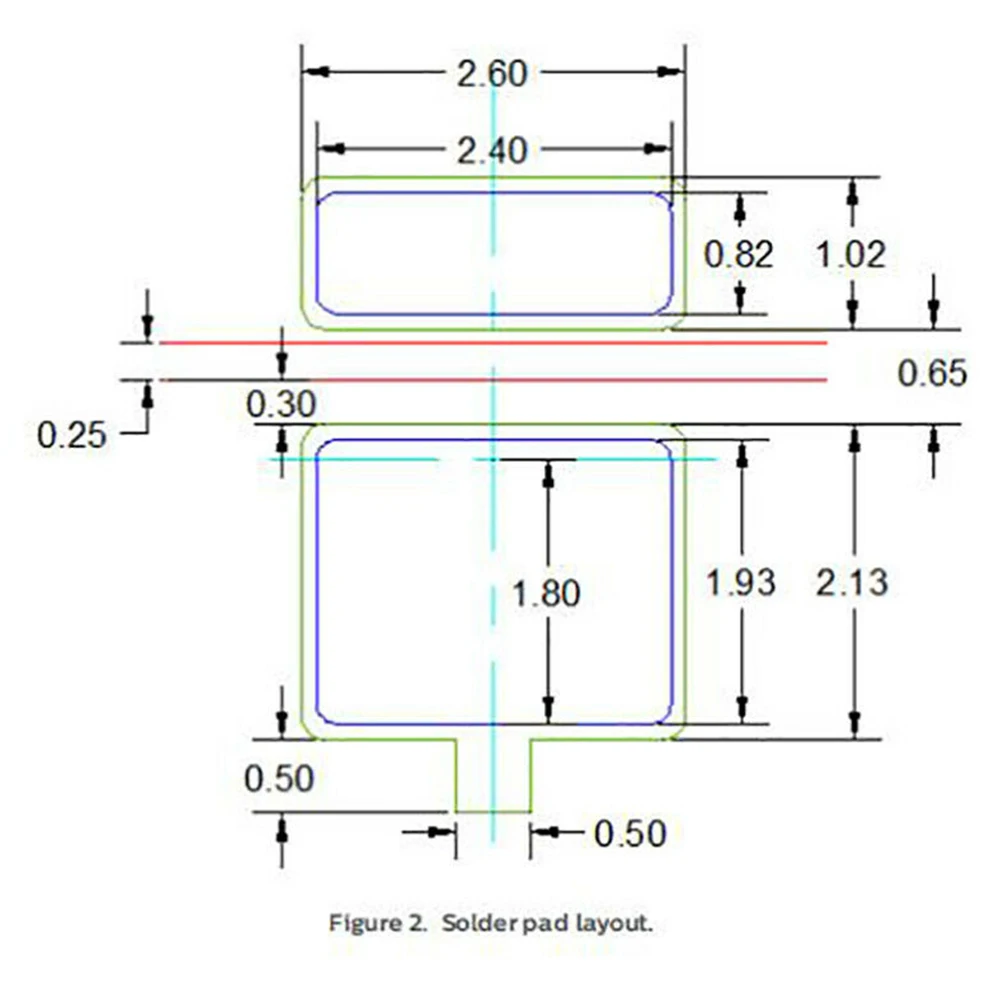

Soldering temperature (Tsld): Reflow soldering: 260°C for 10 seconds, manual soldering: 350°C for 3 seconds
Junction temperature (Tj): 110°C
Forward voltage (VF): 3.15-3.40V (350mA)
Luminous flux (LM): 120-150lm (350mA)

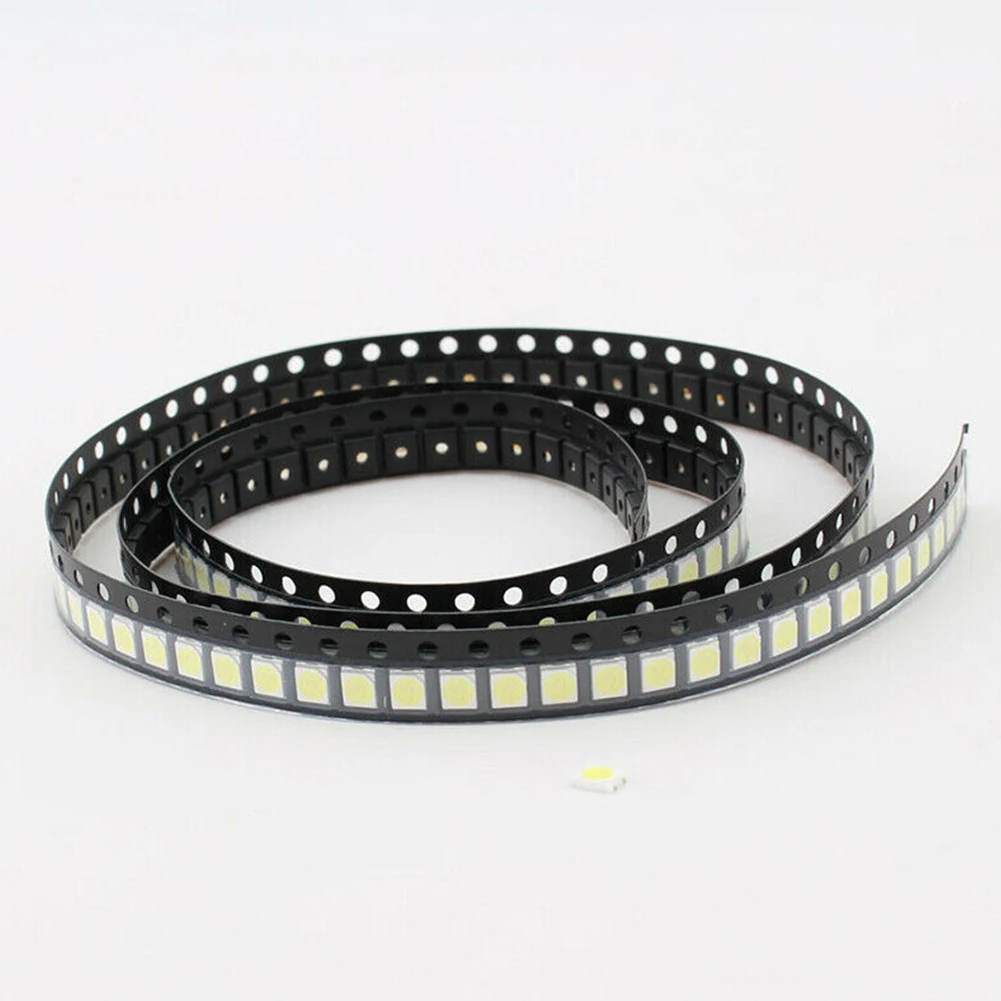

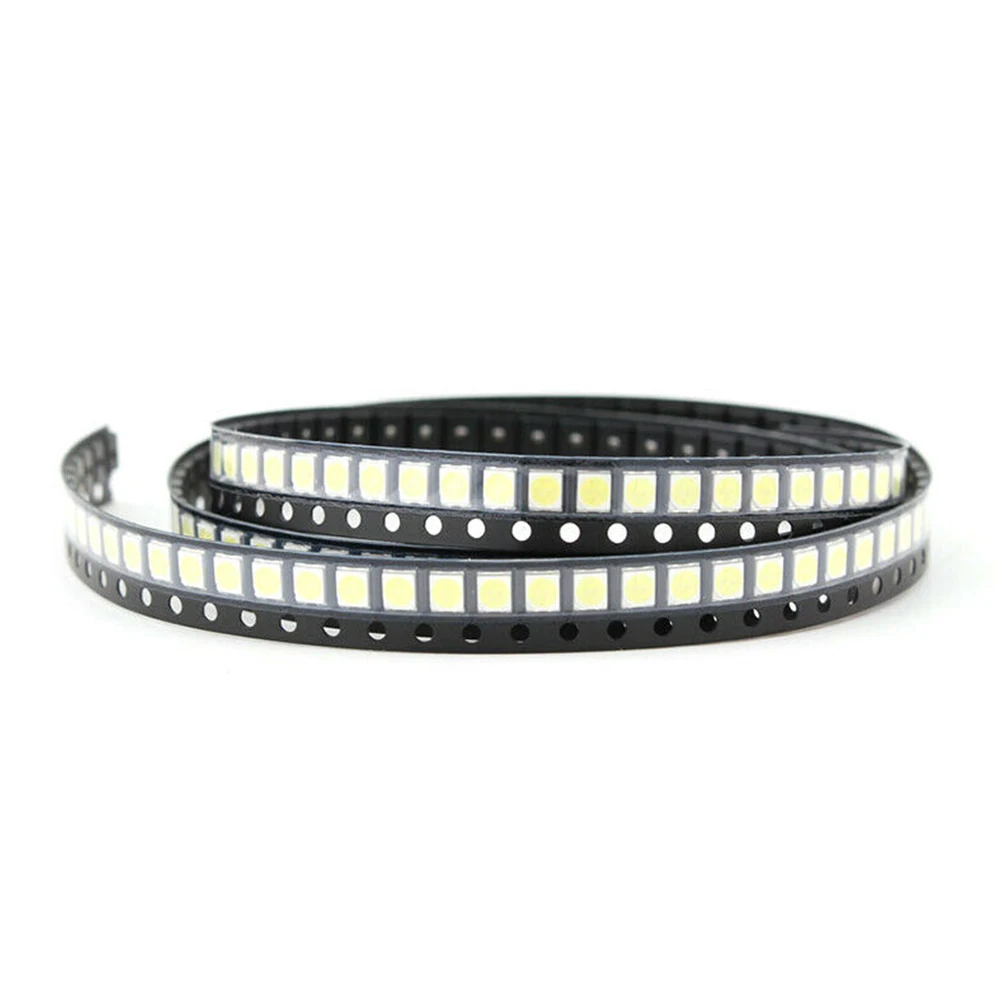

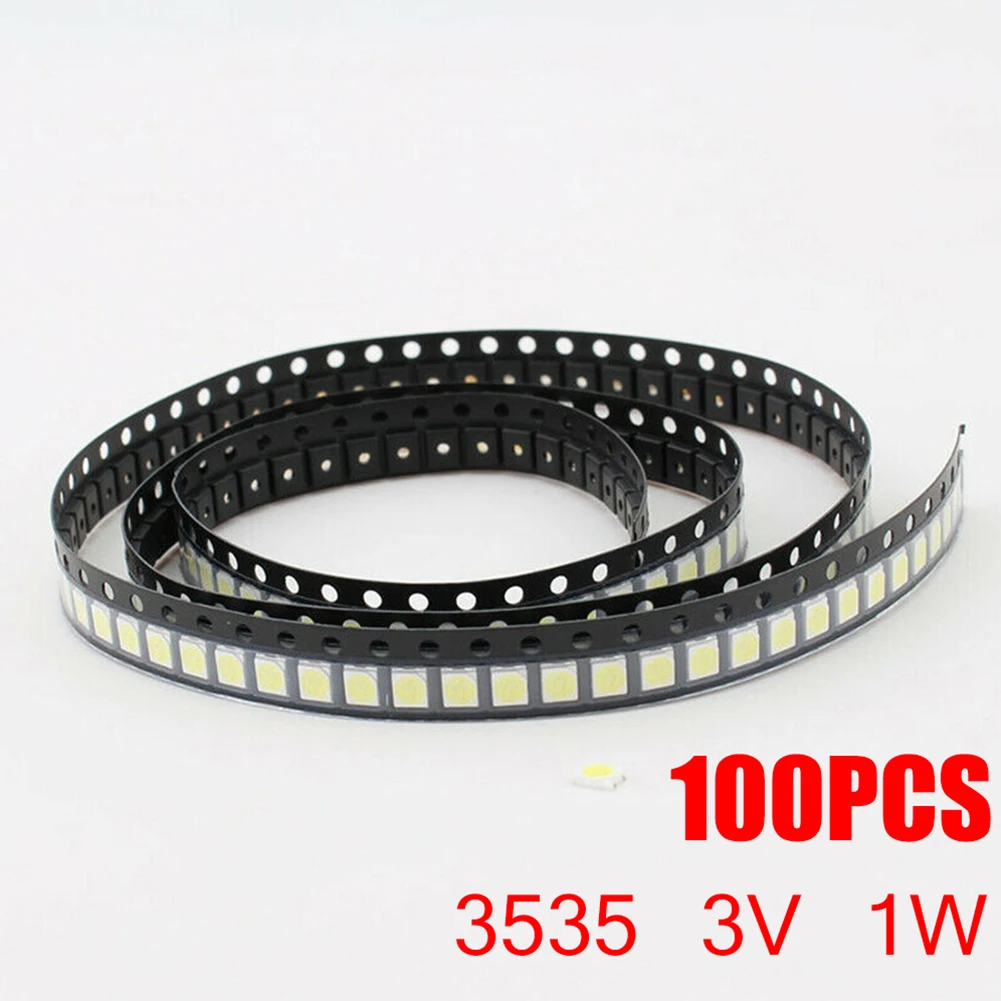

Quantity: 100pcs
Package Contents:
100 x LED Chips
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
,
