Samsung LH351D White 5700K CRI90 SMD 3535 LED Emitter Flashlight DIY EDC Light Beads Bulbs High CRI
Samsung LH351D
High efficacy and high quality color rendering makes the LH351D suitable use in a broad range of applications
Features and Benefits
- Operates at a maximum current of up to 3.0 A
- Uniform light distribution under any beam angle
- 90 CRI makes it well suited for most applications
- Hot binning @ 85 Degree
Applications
- Indoor Lighting: Spotlight, Downlight
- Outdoor Lighting: Street Light, Tunnel Light, Security Light, Area Light, Stadium/Arena Light
- Industrial Lighting: High Bay Light, Low Bay Light
- Consumer Lighting: Torch Light
Product Specifications
Forward Current: | 3000mA |
Forward Voltage: | 2.7V - 3.3V |
Viewing angle: | 128 Degree |
Operating Temperature: | - 40 Degree to 105 Degree |
Storage Temperature: | - 40 Degree to 120 Degree |
Junction Temperature: | 150 Degree |
Real thermal resistance junction/solderpoint: | 2.2 K / W |

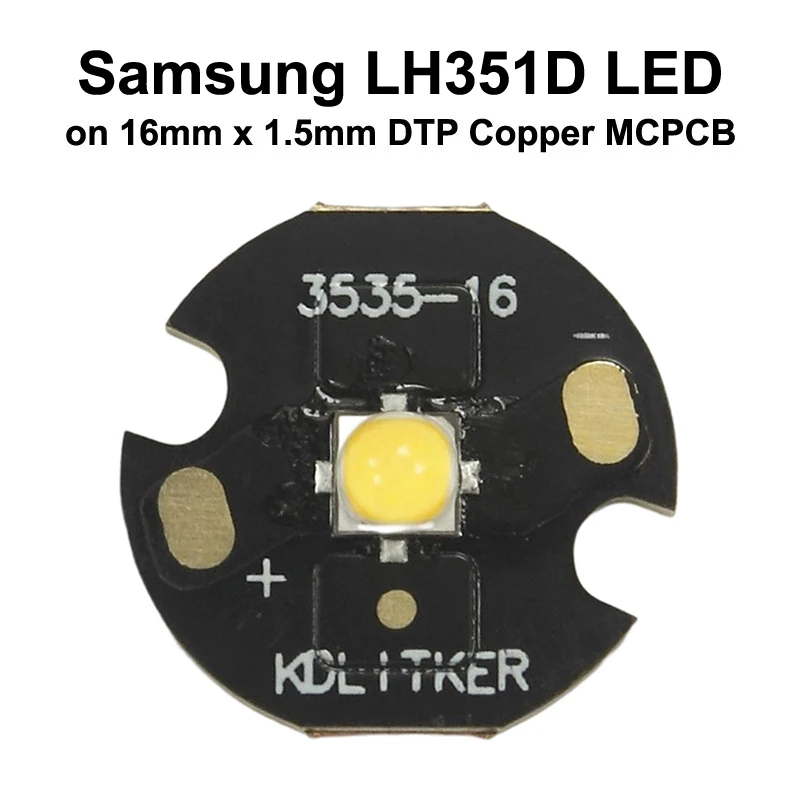

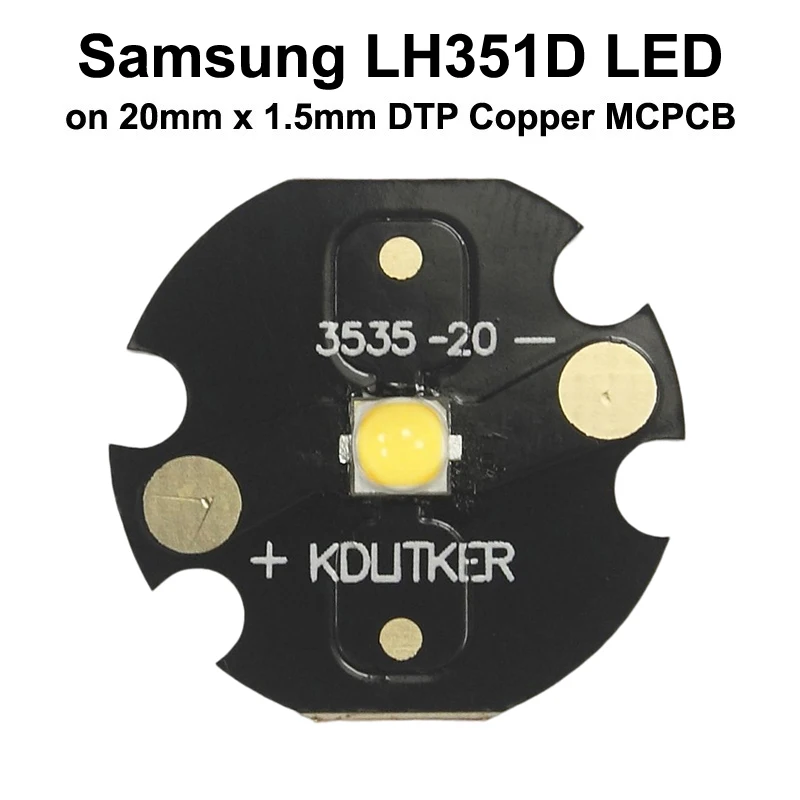

on KDLitker DTP Copper MCPCB
Product Specifications:

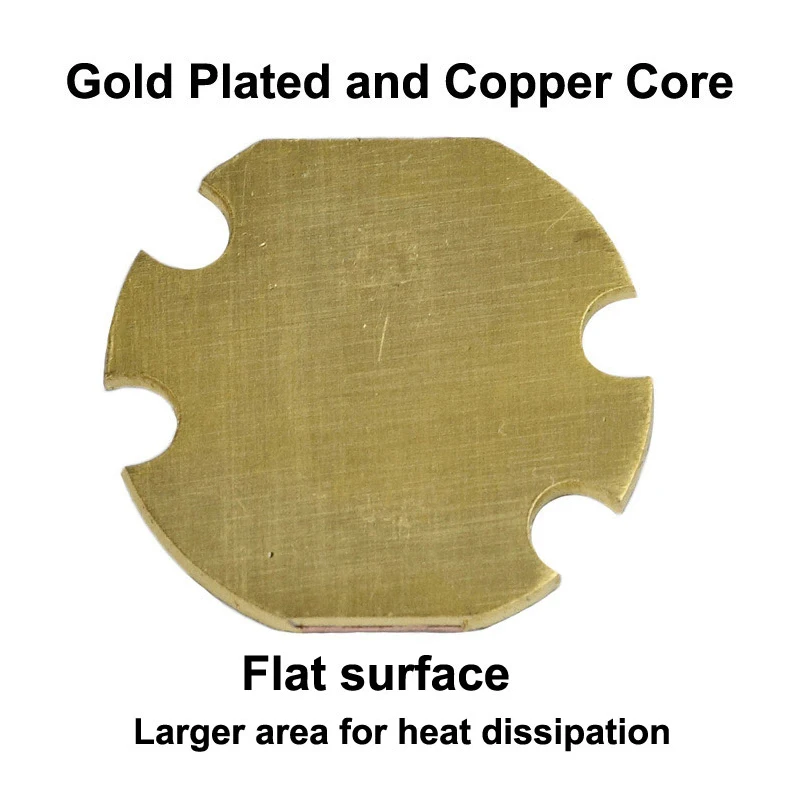

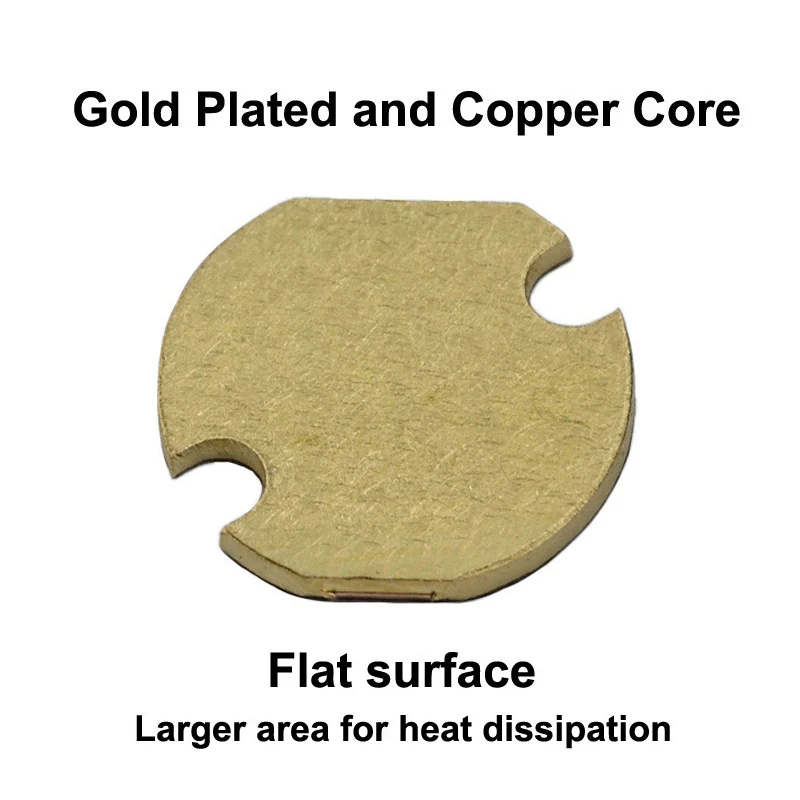

Material: | Copper |
Color Temp. | Samsung LH351D White 5700K CRI90 (options) |

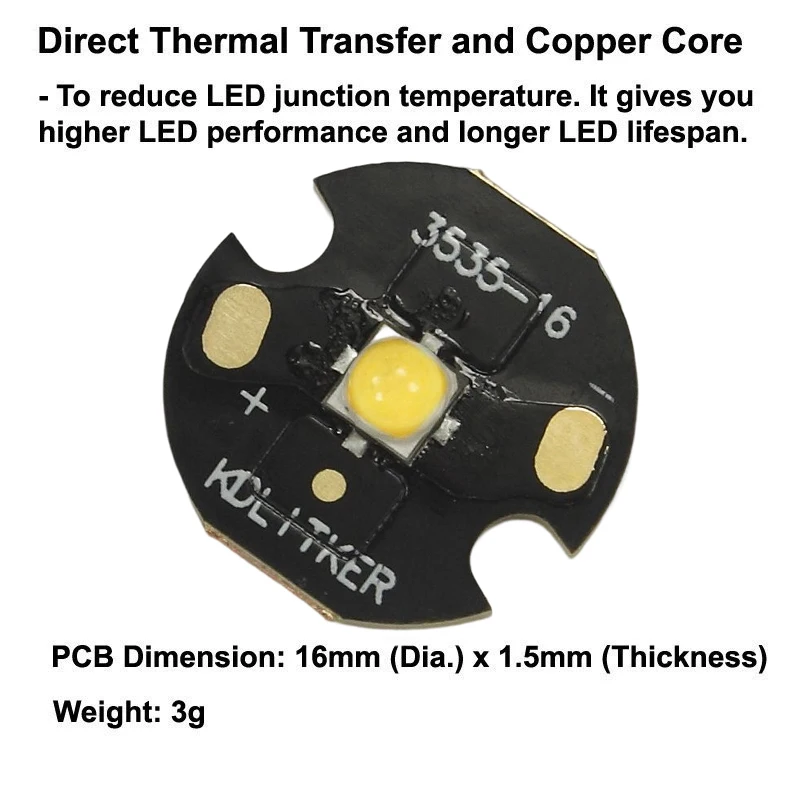

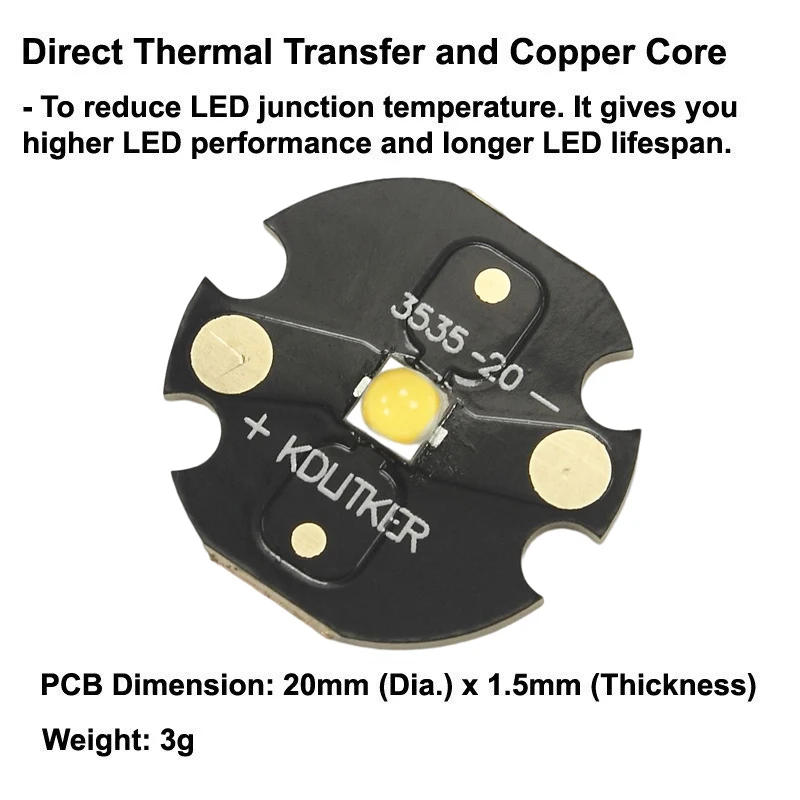

Base Plate Dim.: | 10mm (Dia.) x 1.5mm (Thickness) / 16mm (Dia.) x 1.5mm (Thickness) / 20mm (Dia.) x 1.5mm (Thickness) (options) |
Weight: | 5g |
,
