RGB High Power LED bulbs Red Green Blue 3W 10W 50W 100 Watts Lighting Beads Fountain Stage Park DIY Lamp Chips
RGB High Power LED bulbs Red Green Blue 3 10 20 50 100 Watts Lighting Beads Fountain Stage Park DIY Lamp Chips
Product Detail

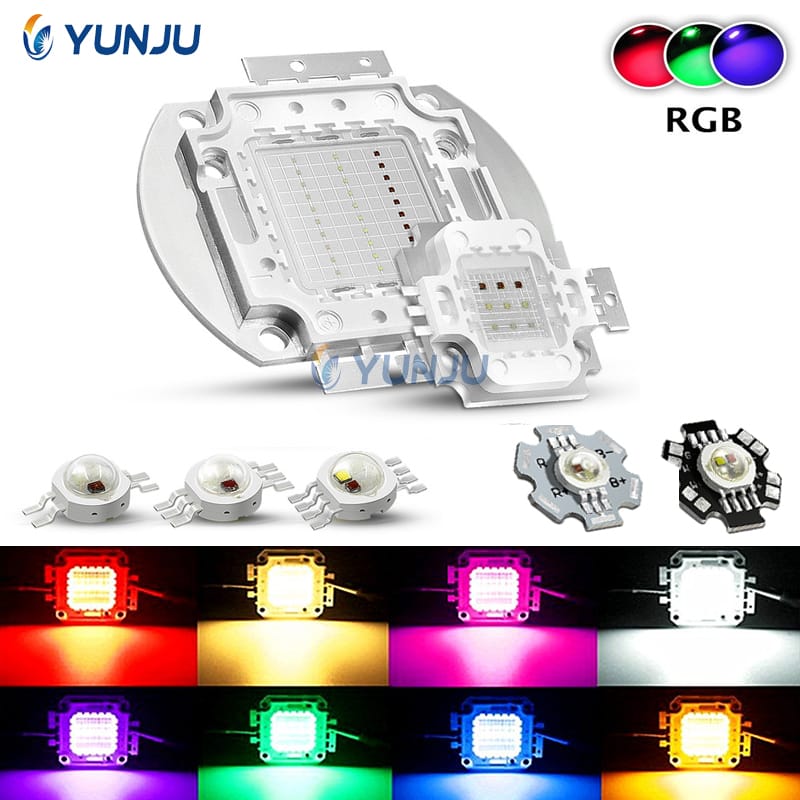

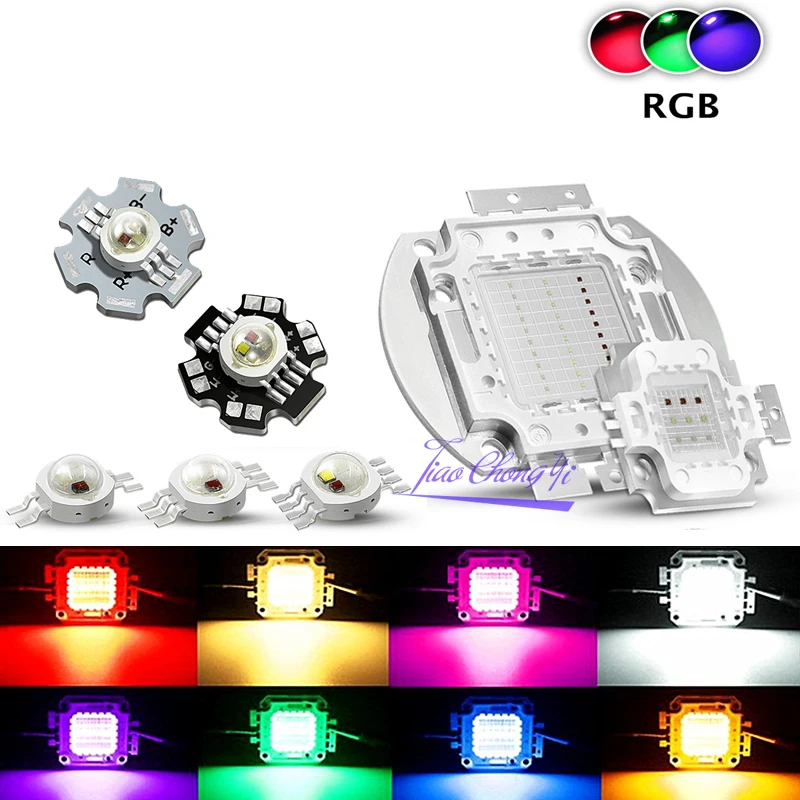

Product Name: High Power RGB LED Chip, LED Beads, LED Bulb, LED Matrix.
Rated Power: 3W 5W 10W 20W 30W 50W 100W
Chip Brand:Epistar
Chip Size: 30mil/45mil
Lighting Colors: Red Blue Green/White
Color Wavelength: Red 625-630Nm/Blue 455-460Nm/Green 520-525Nm/White 6000-6500K
Current: 600-700mA(3W/5W/20W), 900-1000mA(10W/30W), 1600-1700mA(50W), 3200-3500mA(100W)
Beam Angle: 120 degree
Sealing Material: 2-99%Golden Wires, Copper bracket.
Weight:3W-5W(0.65g), 10W(5.1g), 20W-100W(27.5g).
Certification: CE/RoHS/FCC
Working life: 50000hrs
Operating temperature: -30 to +85 degree centigrade
Welding temperature: 120°Centigrade in 5 second
| Color |
Color Temperature Wavelength |
Power |
Voltage |
Current |
Luminous flux |
Chip Size |

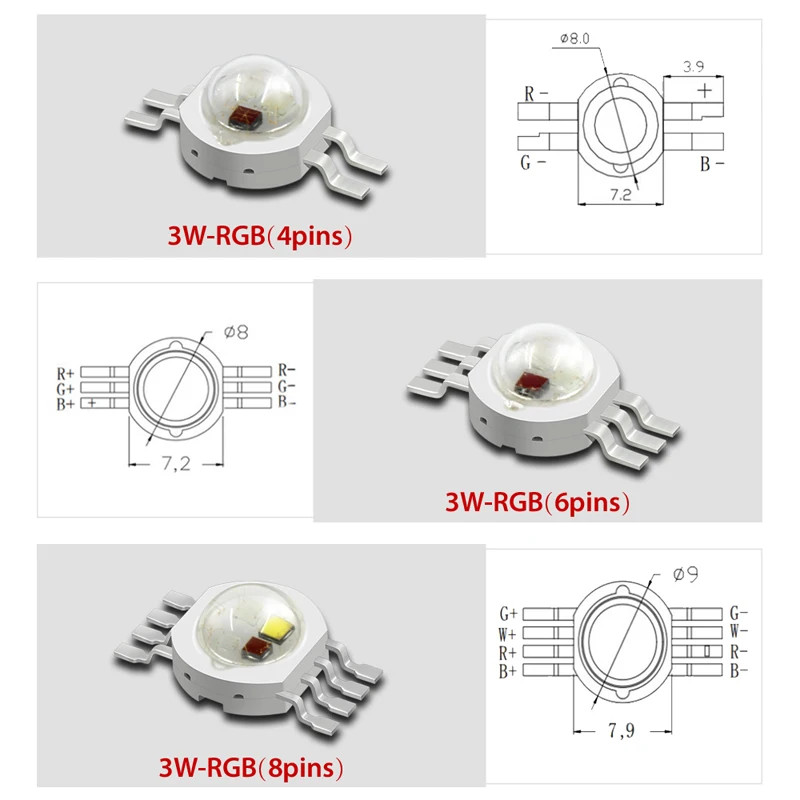

| RGB 4/6pins |
R:620-625Nm G:520-525Nm B:460-470Nm |
3W |
R:2-2.2V G:3-3.2V B:3-3.2V |
280-350mA |
R:40-50LM G;70-80LM B:30-40LM |
45mil |
| RGB/W |
R:620-625Nm G:520-525Nm B:460-470Nm W:6000-6500K |
3W |
R:2-2.2V G:3-3.2V B:3-3.2V W:3-3.2V |
280-350mA |
R:40-50LM G:70-80LM B:30-40LM W:100-110LM |
45mil
|
| RGB |
R:620-625Nm G:520-525Nm B:460-470Nm |
3W |
R:2-2.2V G:3-3.2V B:3-3.2V |
280-350mA |
R:40-50LM G:70-80LM B:30-40LM |
45mil |

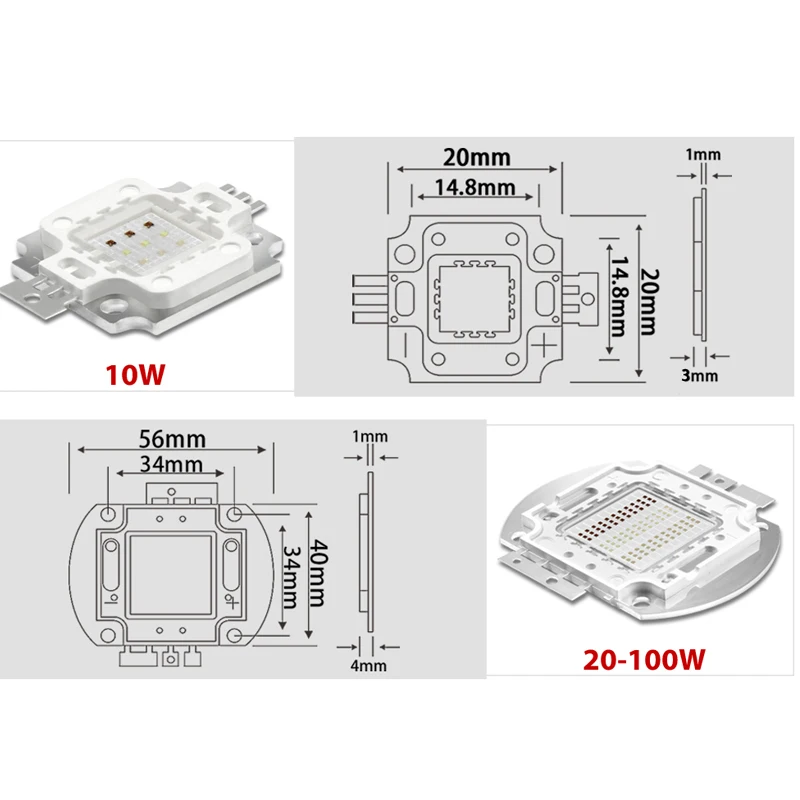

| 10W |
R:6-7V G:9-11V B:9-11V |
280-350mA |
R:90-100LM G:120-130LM B:30-40LM |
30mil |
||
| 20W |
R:12-14V G:18-21V B:18-21V |
280-350mA |
R:180-200LM G:250-300LM B:60-80LM |
30mil |
||
| 30W |
R:20-22V G:30-32V B:30-34V |
280-350mA |
R:350-400LM G:600-800LM B:90-100LM |
30mil |
||
| 50W |
R:16-18V G:18-21V B:18-21V |
560-700mA |
R:500--600LM G:1000-1200LM B:150-180LM |
30mil |
||
| 100W |
R:22-24V G:30-34V B:30-34V |
840-1000mA |
R:1000-1200LM G:2000-2400LM B:300-400LM |
30mil |
,
