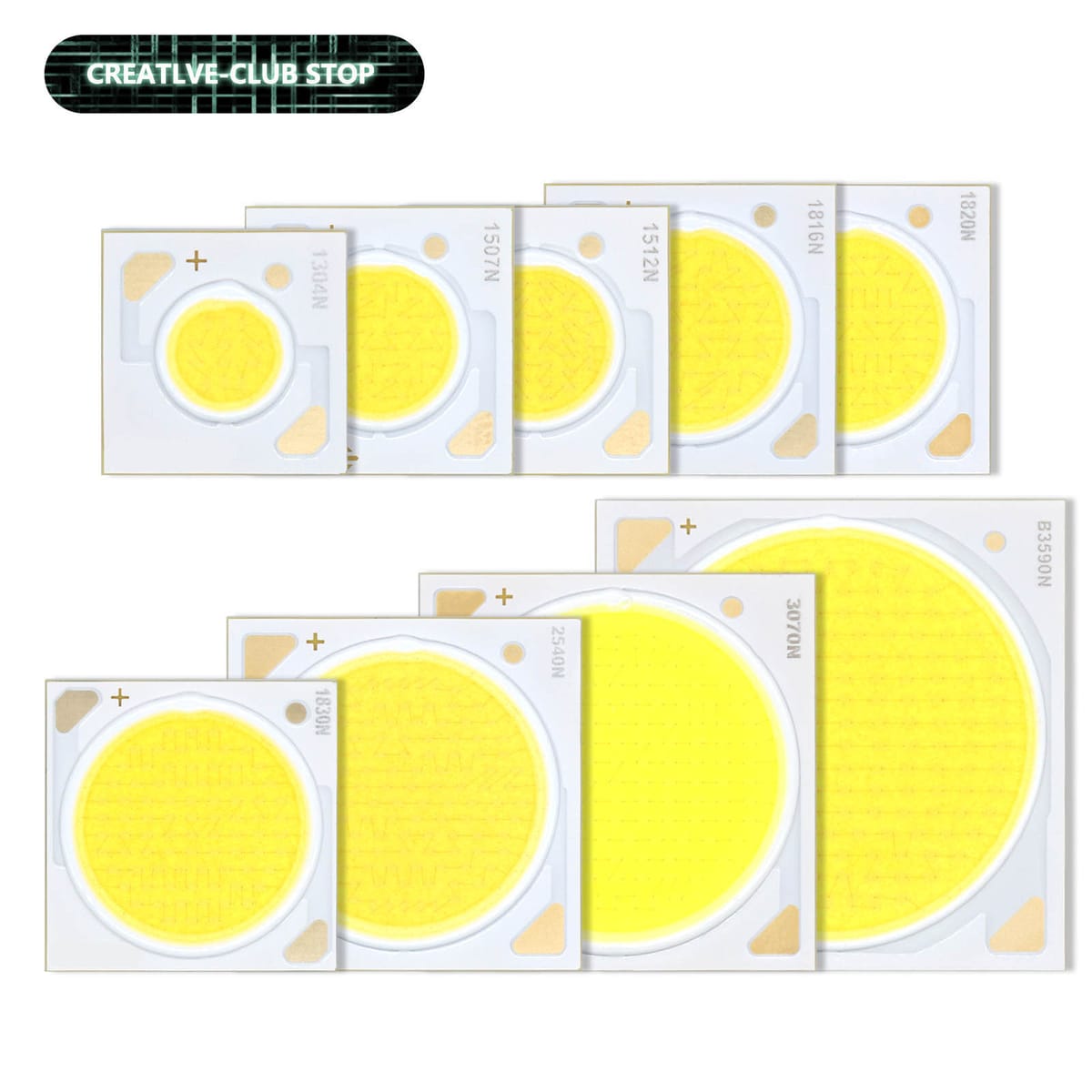

Original XLamp 1304 1507 1512 1816 1820 1830 2540 3070 3590 LED Emitter Lamp Beads White White LED COB Chip For LED Light
Product Details

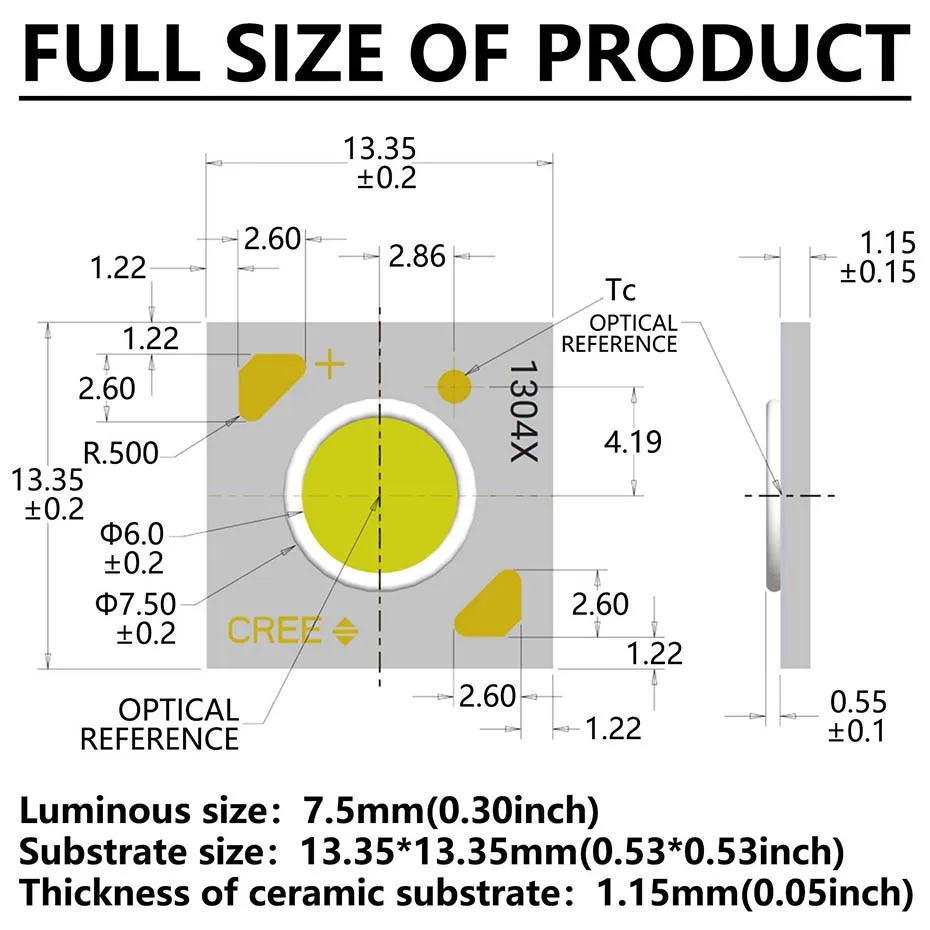

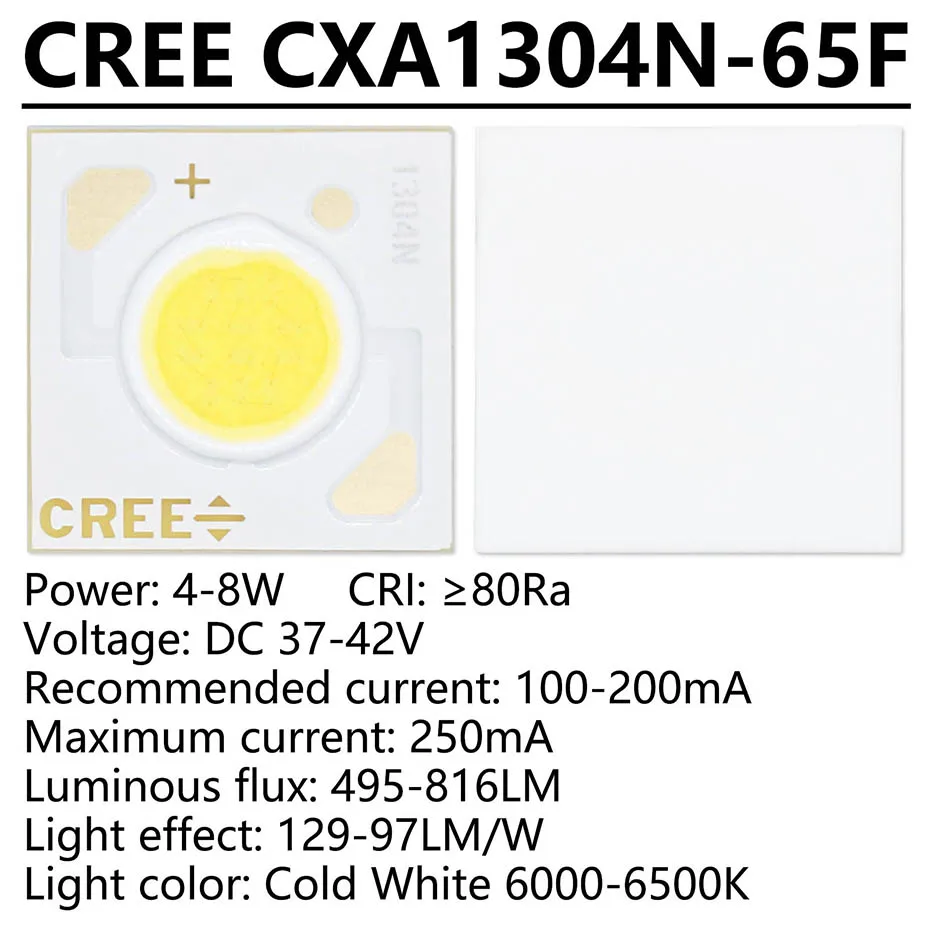

Model：CXA1304N-65F
Power：4-8W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：100-200mA
Maximum current：250mA
Luminous flux：495-816LM
Light effect：129-97LM/W

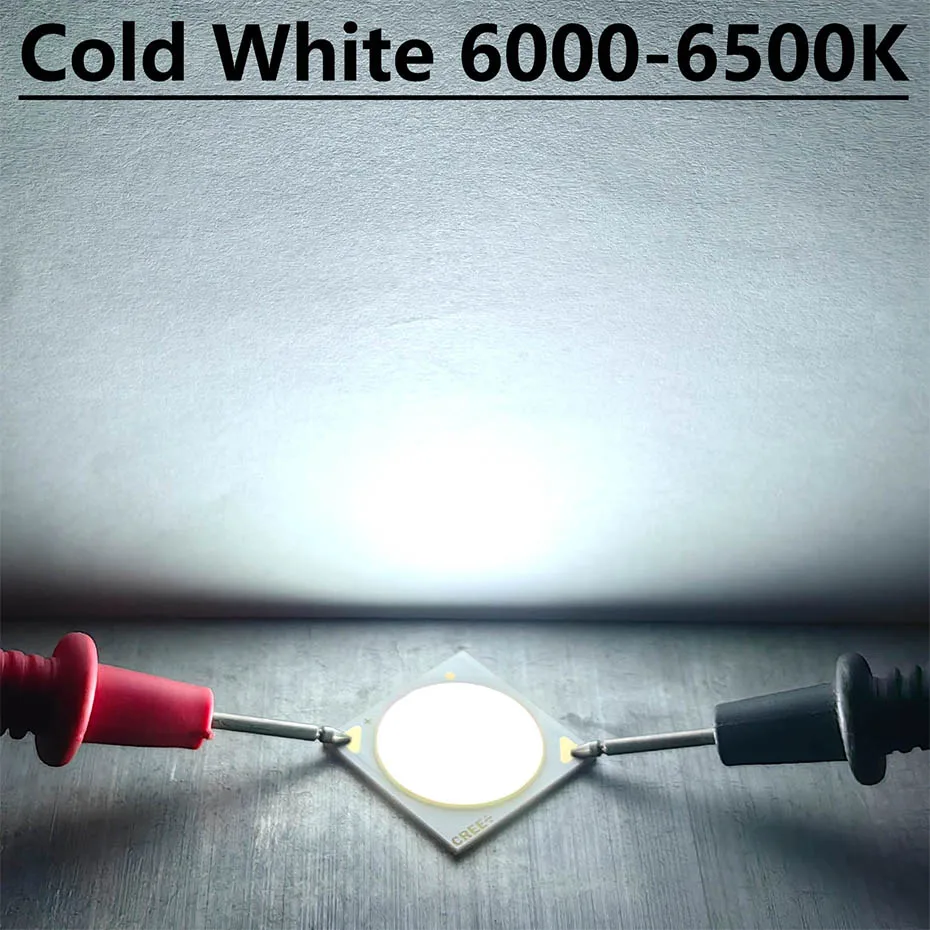

Light color：Cold White 6000-6500K
Luminous size：7.5mm(0.30inch)
Substrate size：13.35*13.35mm(0.53*0.53inch)

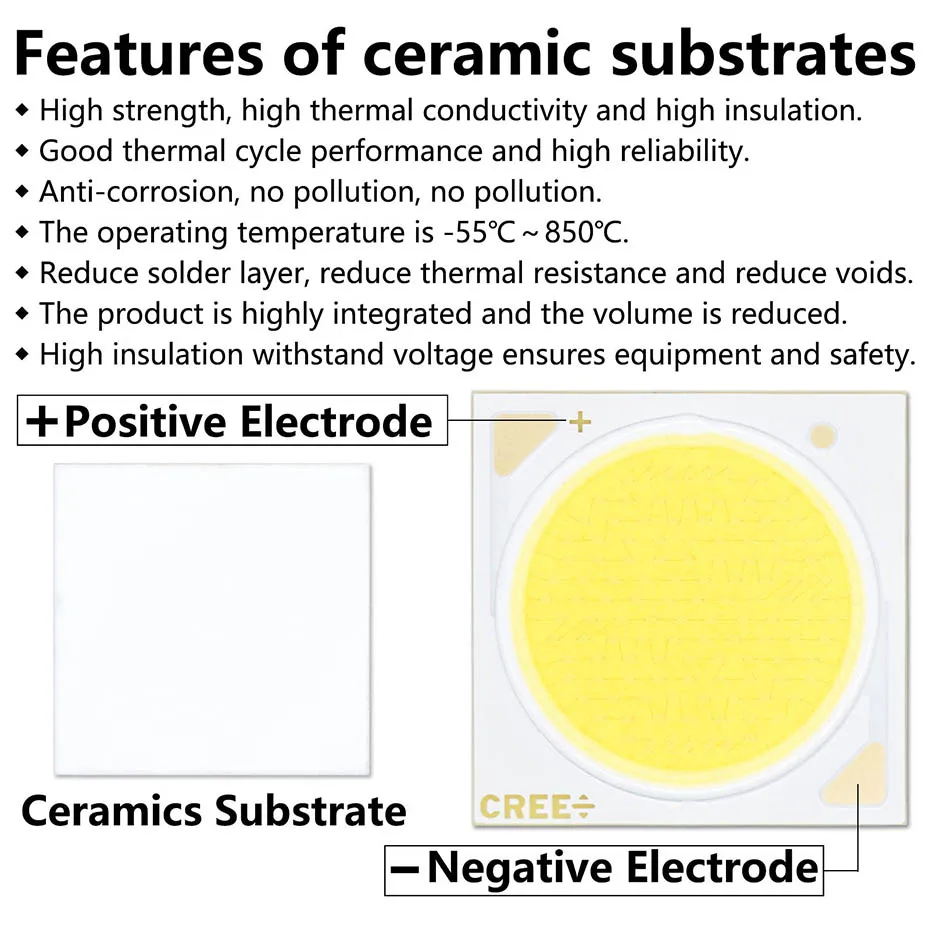

Thickness of ceramic substrate：1.15mm(0.05inch)

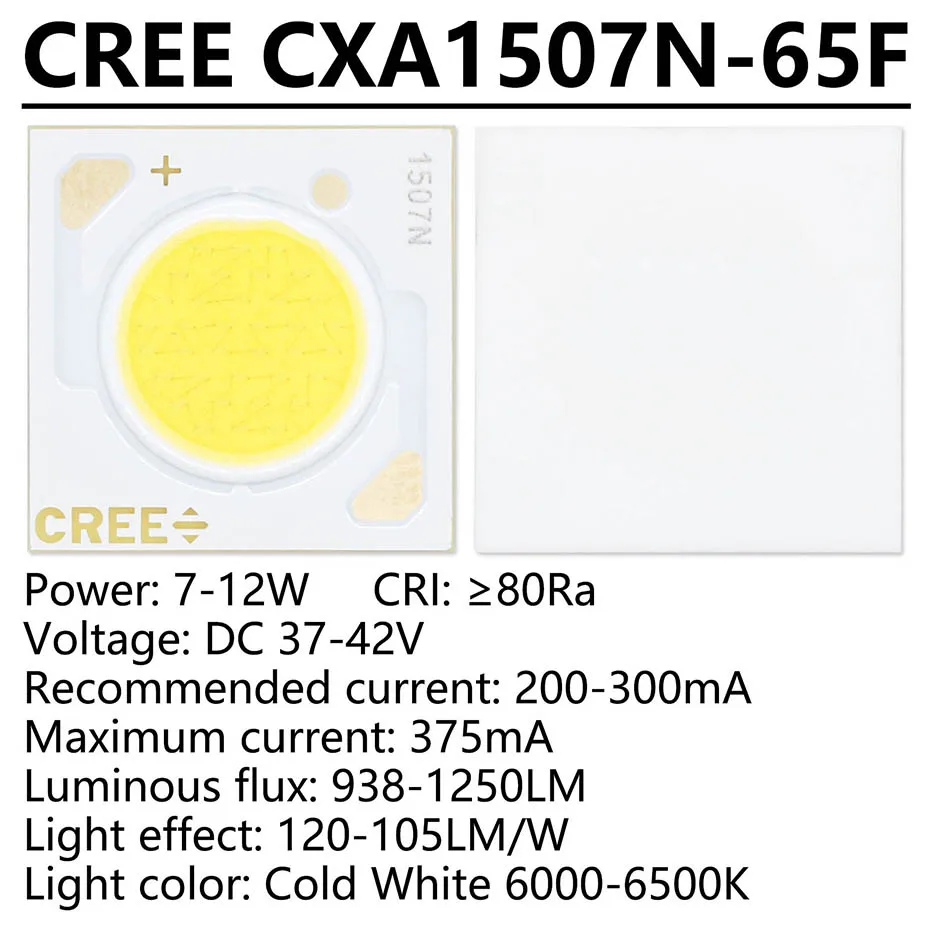

Model：CXA1507N-65F
Power：7-12W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：200-300mA
Maximum current：375mA
Luminous flux：938-1250LM
Light effect：120-105LM/W
Light color：Cold White 6000-6500K

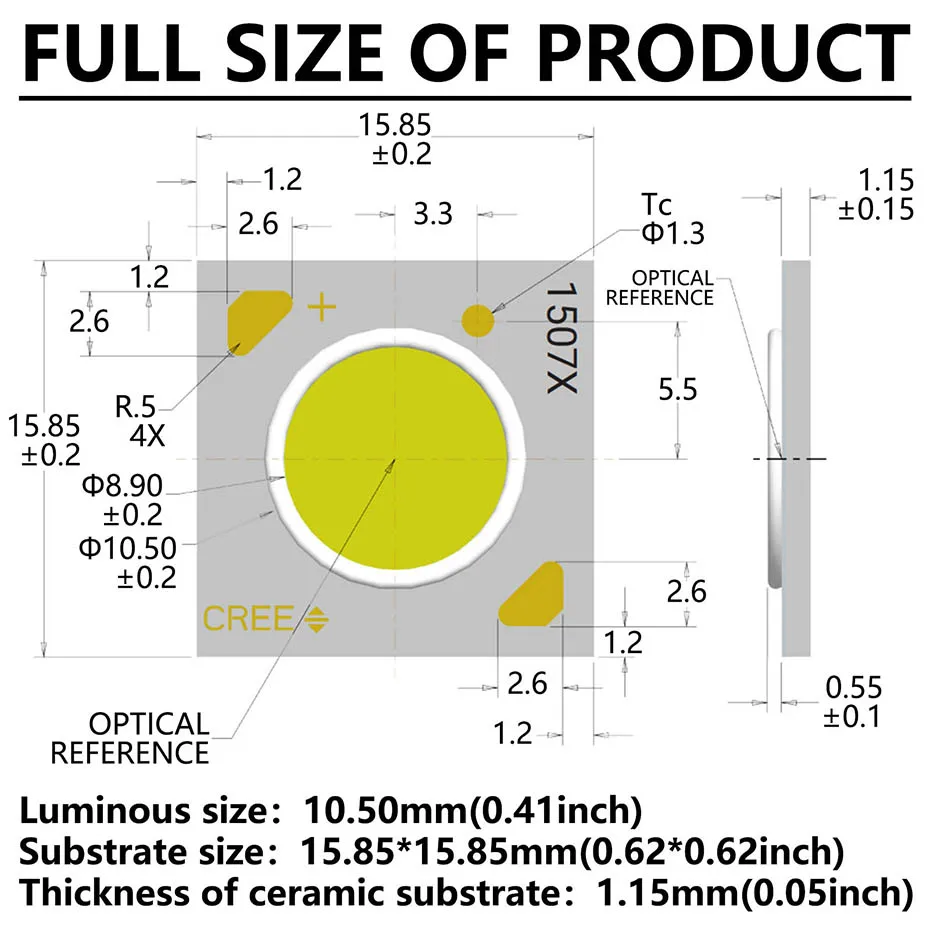

Luminous size：10.50mm(0.41inch)
Substrate size：15.85*15.85mm(0.62*0.62inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

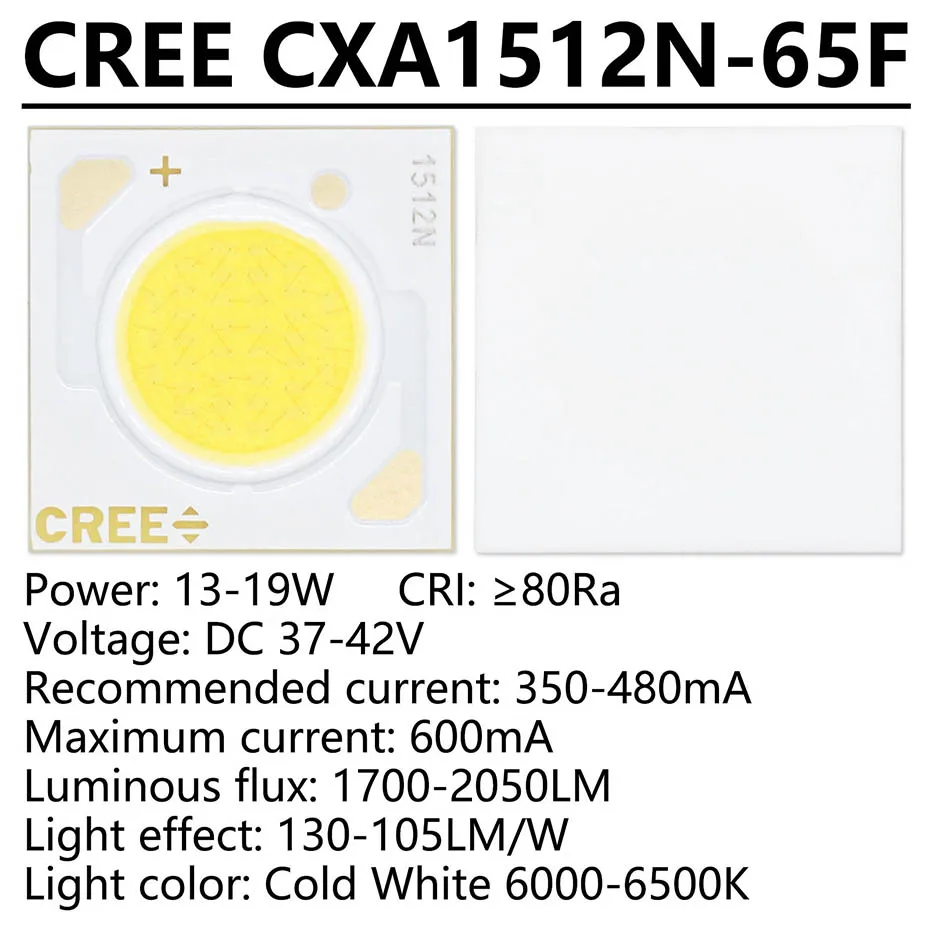

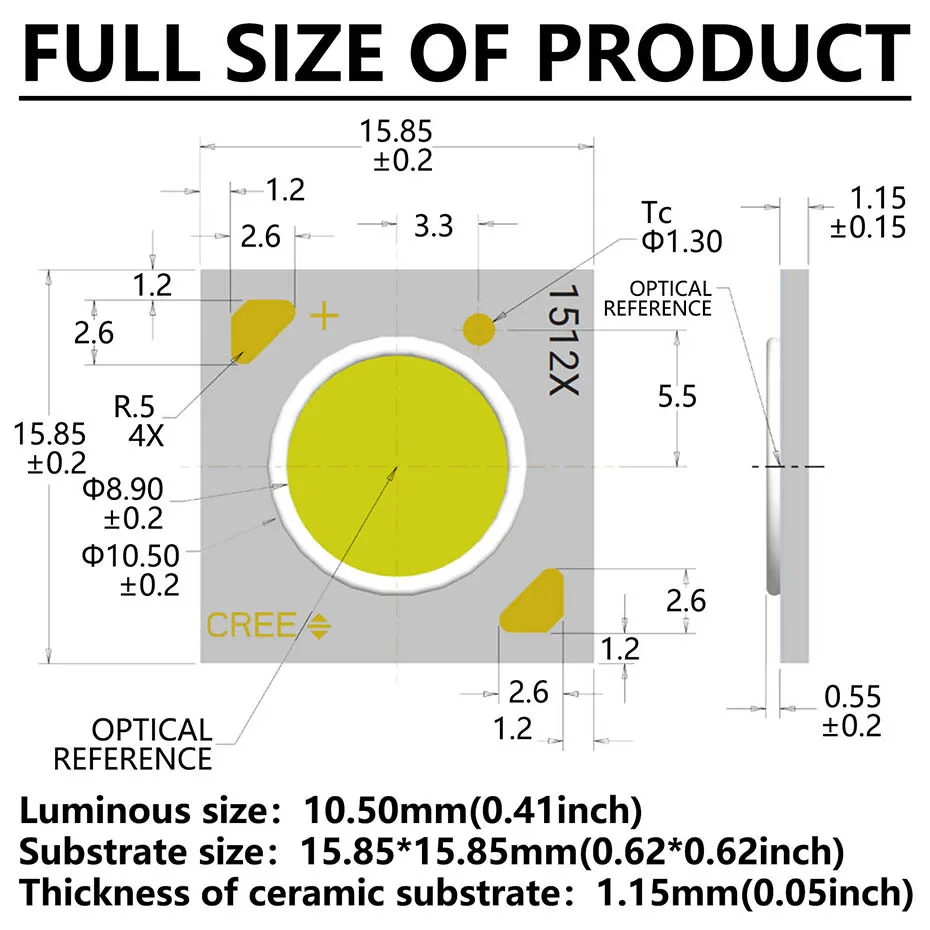

Model：CXA1512N-65F
Power：13-19W
CRI：≥80Ra
Voltage：DC 37-42V
Recommended current：350-480mA
Maximum current：600mA
Luminous flux：1700-2050LM
Light effect：130-105LM/W
Light color：Cold White 6000-6500K
Luminous size：10.50mm(0.41inch)
Substrate size：15.85*15.85mm(0.62*0.62inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

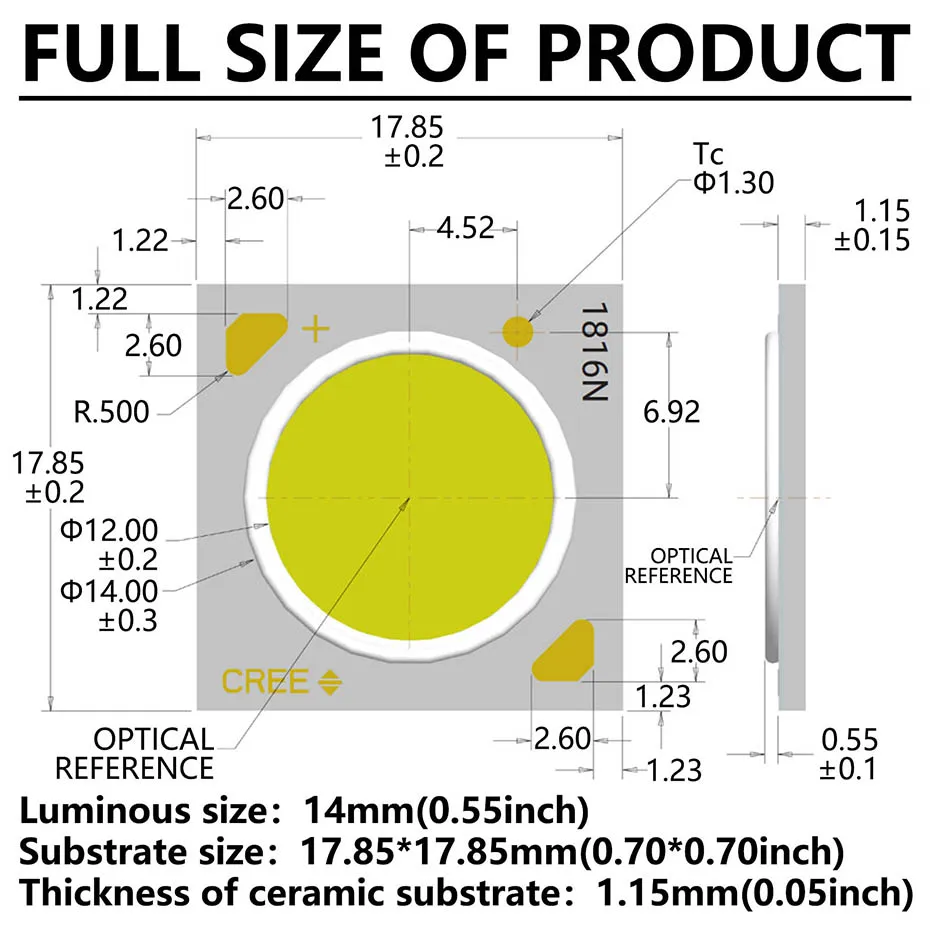

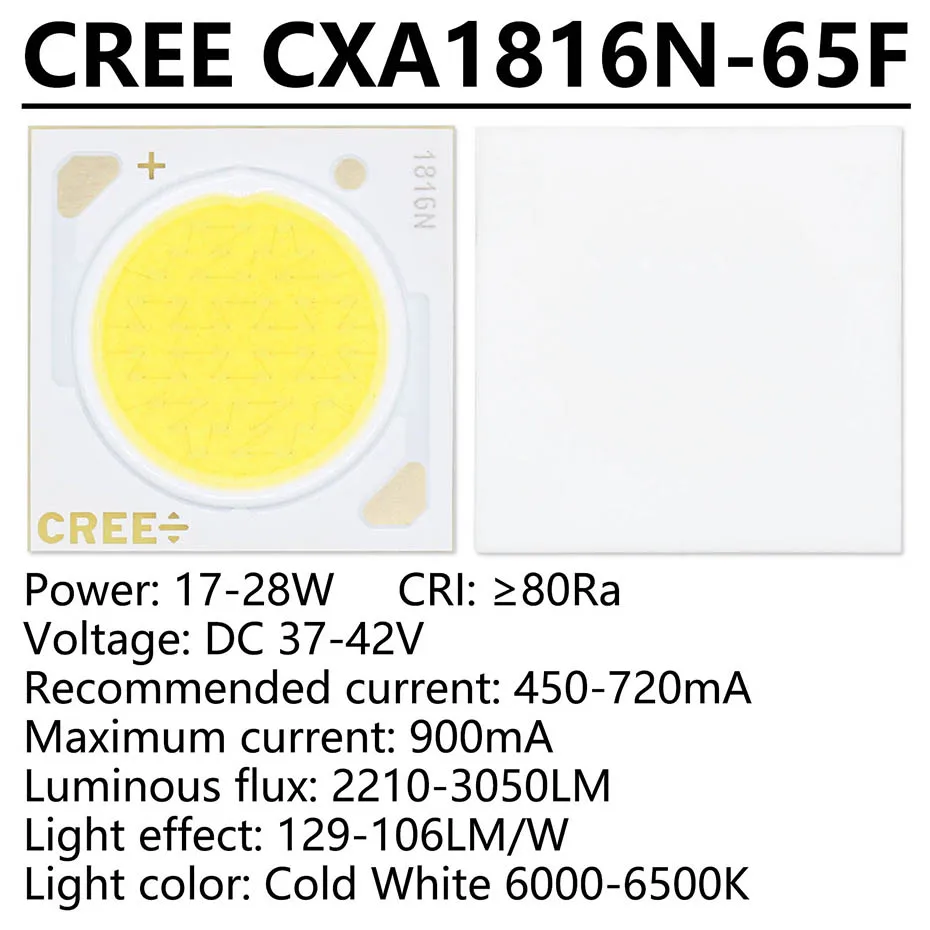

Model：CXA1816N-65F
Power：17-28W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：450-720mA
Maximum current：900mA
Luminous flux：2210-3050LM
Light effect：129-106LM/W
Light color：Cold White 6000-6500K
Luminous size：14mm(0.55inch)
Substrate size：17.85*17.85mm(0.70*0.70inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

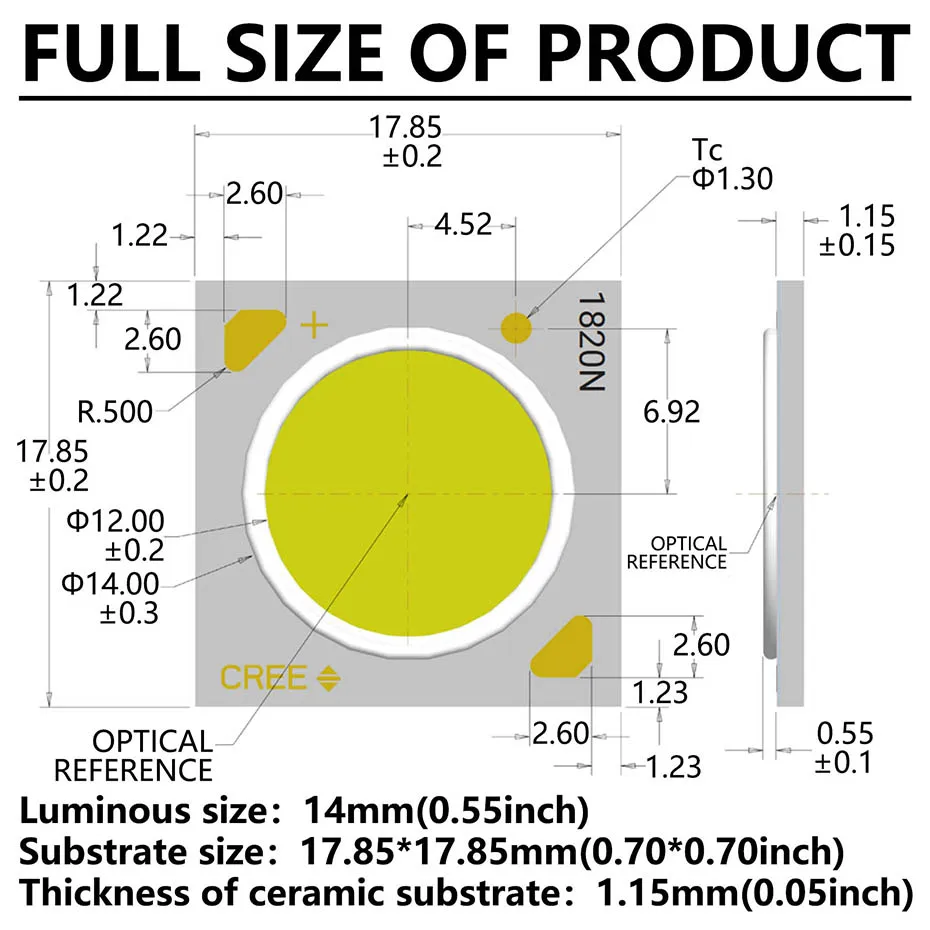

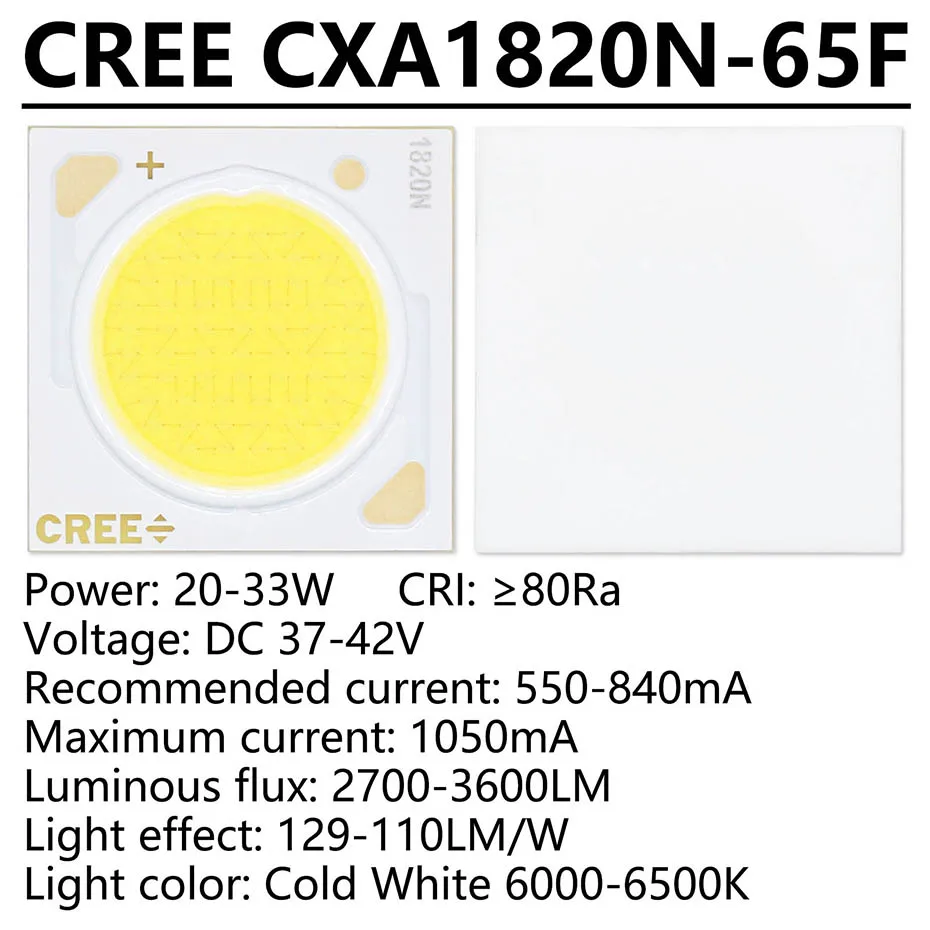

Model：CXA1820N-65F
Power：20-33W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：550-840mA
Maximum current：1050mA
Luminous flux：2700-3600LM
Light effect：129-110LM/W
Light color：Cold White 6000-6500K
Luminous size：14mm(0.55inch)
Substrate size：17.85*17.85mm(0.70*0.70inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

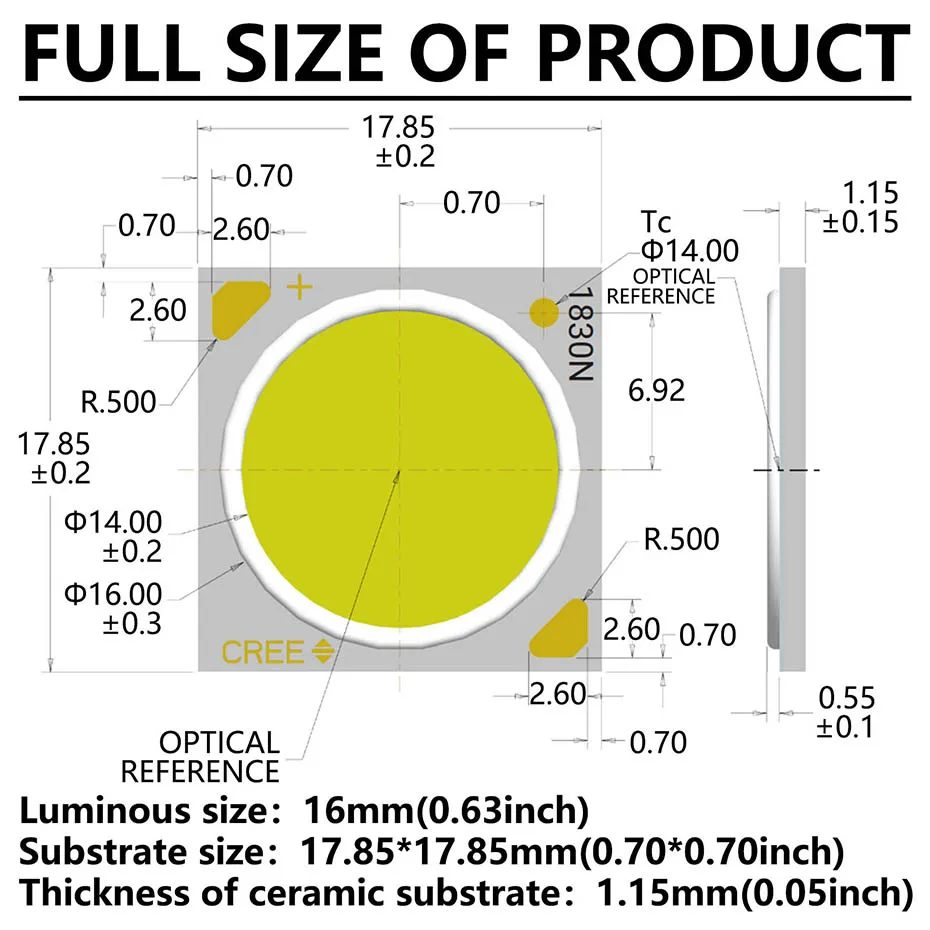

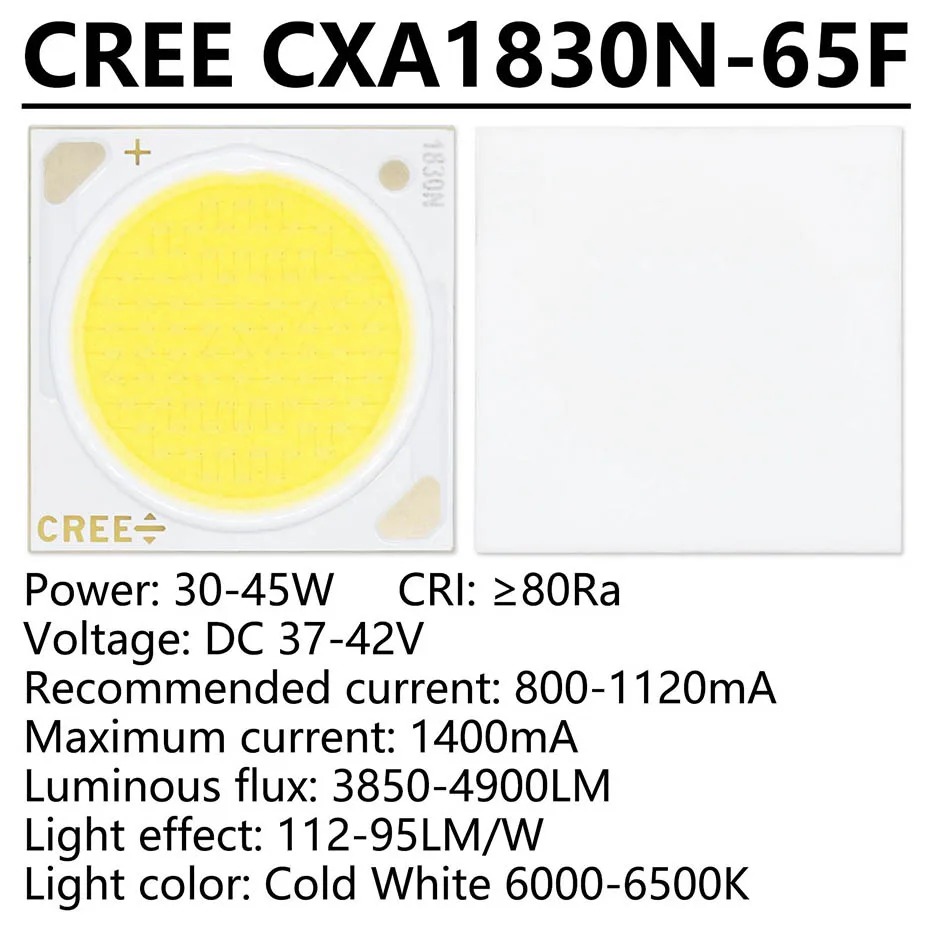

Model：CXA1830N-65F
Power：30-45W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：800-1120mA
Maximum current：1400mA
Luminous flux：3850-4900LM
Light effect：112-95LM/W
Light color：Cold White 6000-6500K
Luminous size：16mm(0.63inch)
Substrate size：17.85*17.85mm(0.70*0.70inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

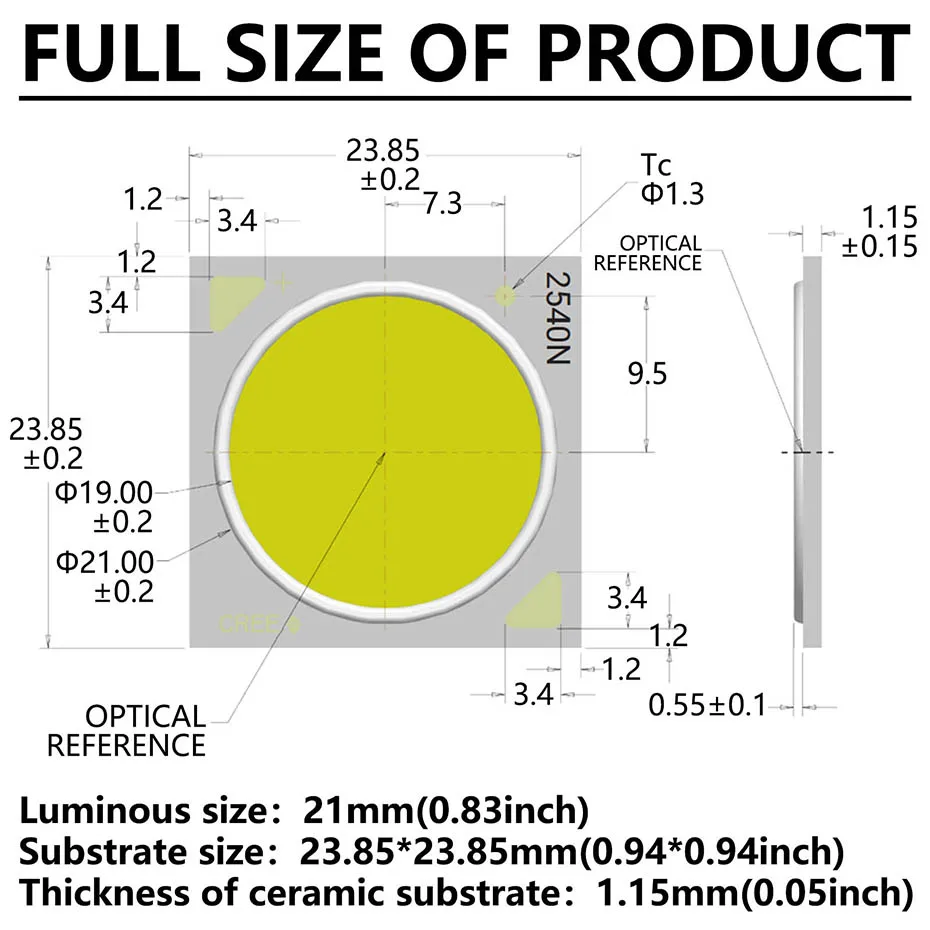

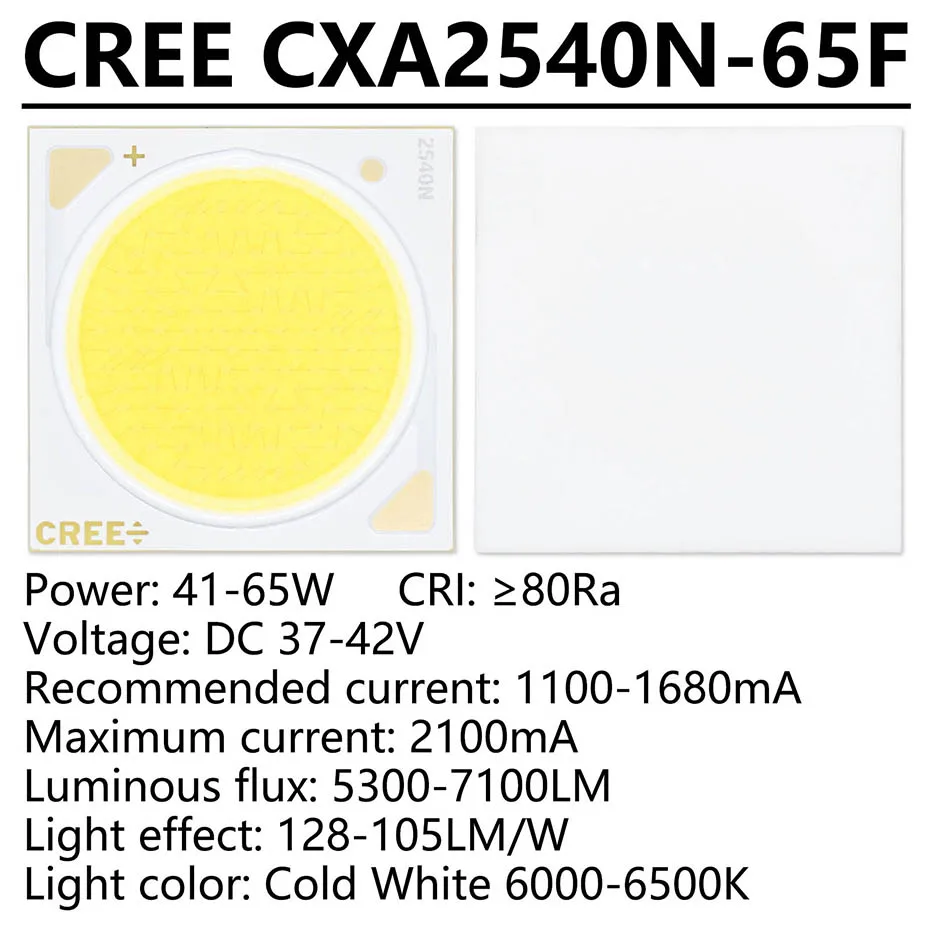

Model：CXA2540N-65F
Power：41-65W
CRI：≥80Ra
Voltage：DC37-42V
Recommended current：1100-1680mA
Maximum current：2100mA
Luminous flux：5300-7100LM
Light effect：128-105LM/W
Light color：Cold White 6000-6500K
Luminous size：21mm(0.83inch)
Substrate size：23.85*23.85mm(0.94*0.94inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

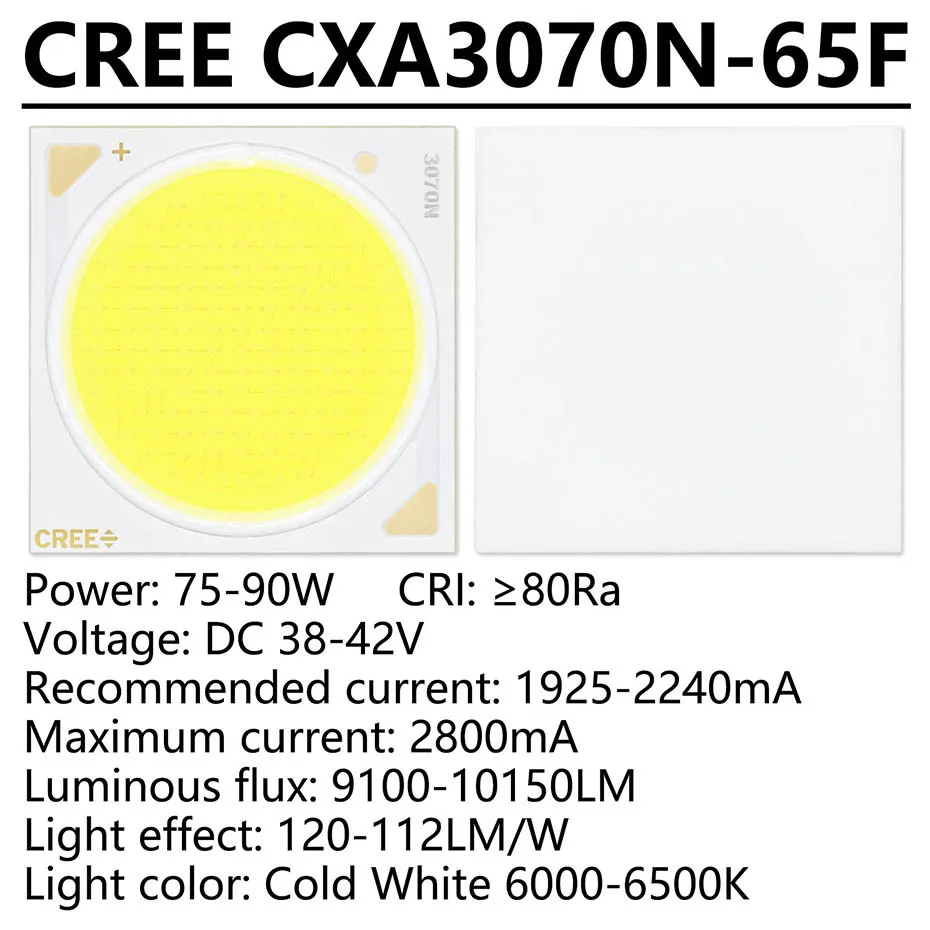

Model：CXA3070N-65F
Power：75-90W
CRI：≥80Ra
Voltage：DC38-42V
Recommended current：1925-2240mA
Maximum current：2800mA
Luminous flux：9100-10150LM
Light effect：120-112LM/W
Light color：Cold White 6000-6500K

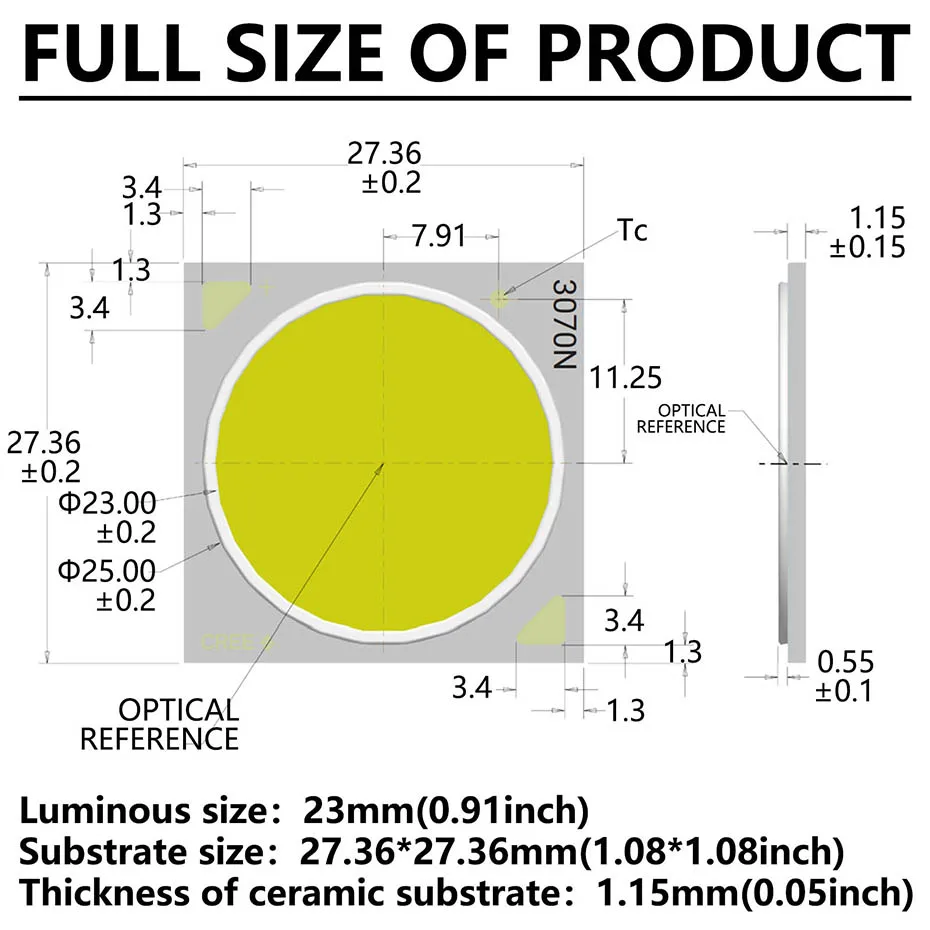

Luminous size：23mm(0.91inch)
Substrate size：27.36*27.36mm(1.08*1.08inch)
Thickness of ceramic substrate：1.15mm(0.05inch)

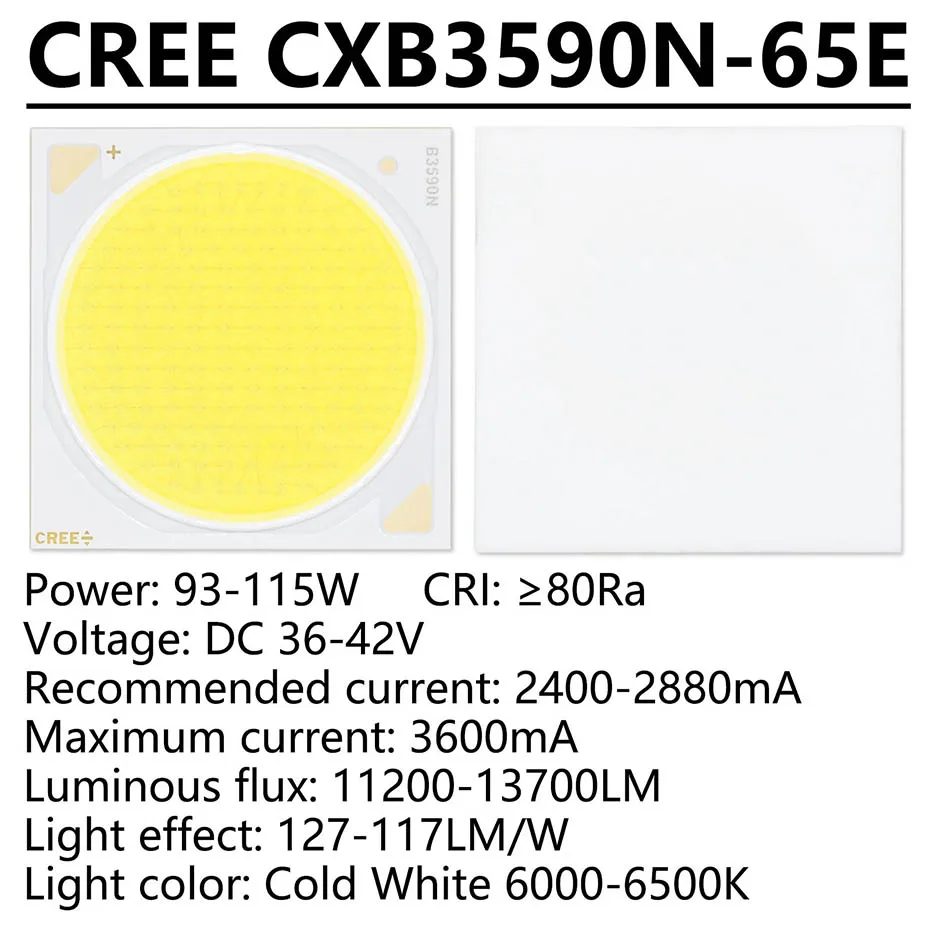

Model：CXB3590N-65E
Power：93-115W
CRI：≥80Ra
Voltage：DC36-42V
Recommended current：2400-2880mA
Maximum current：3600mA
Luminous flux：11200-13700LM
Light effect：127-117LM/W
Light color：Cold White 6000-6500K

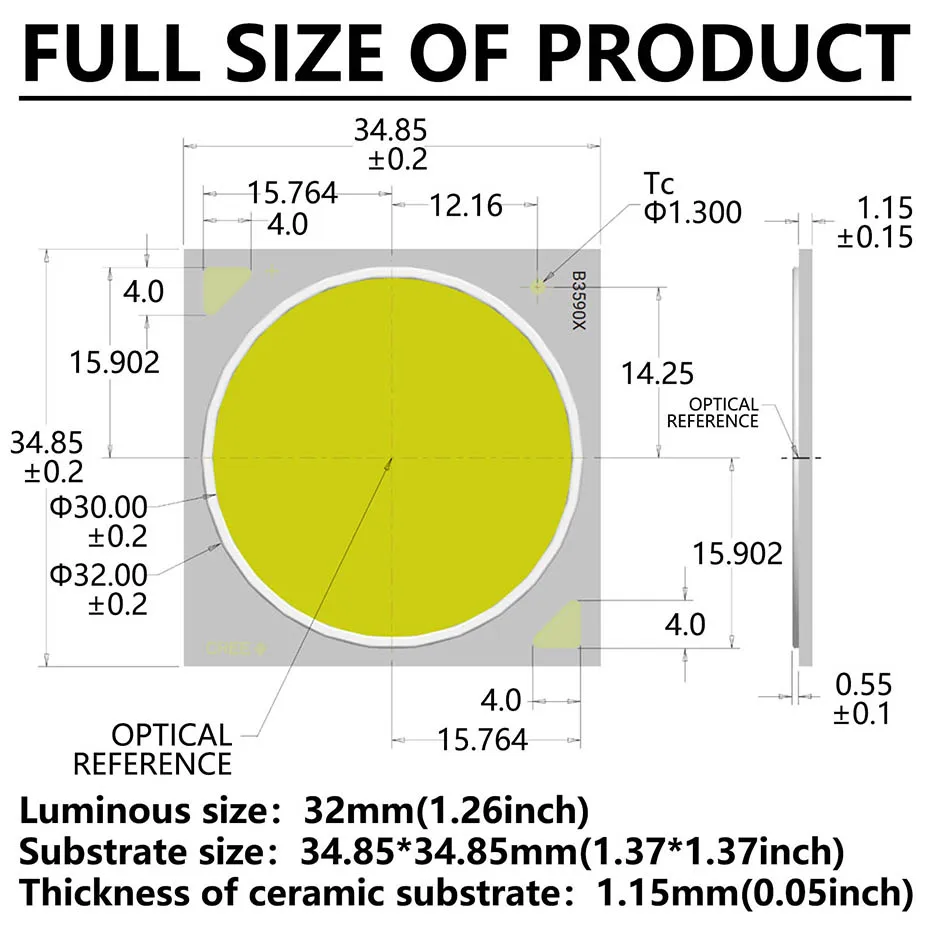

Luminous size：32mm(1.26inch)
Substrate size：34.85*34.85mm(1.37*1.37inch)
Thickness of ceramic substrate：1.15mm(0.05inch)
,
