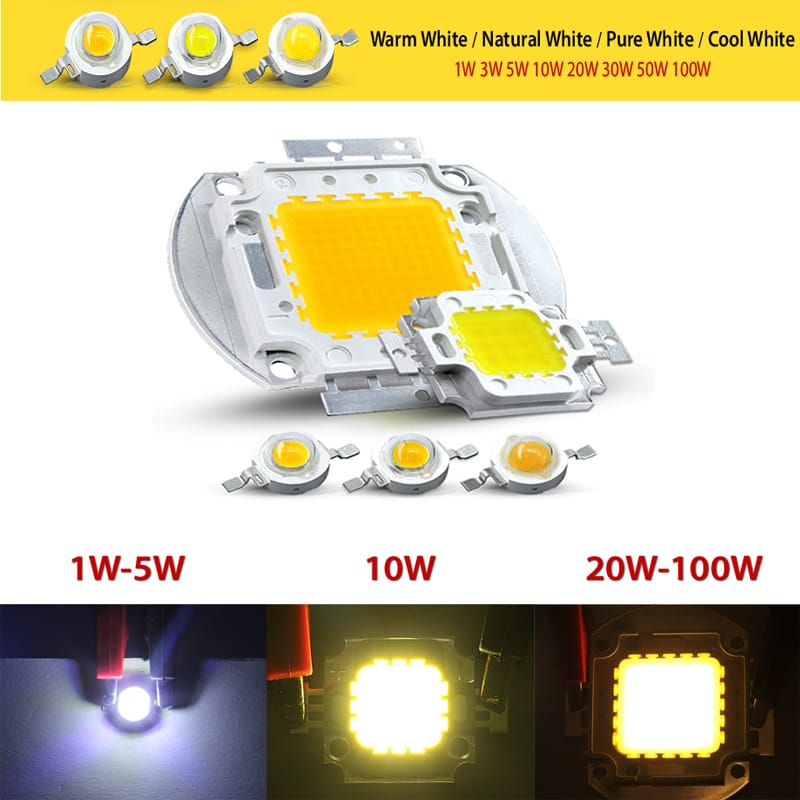

New Hot High Power LED Chip Warm Pure Cold White Lighting Beads 1W 3W 5W 10W 20W 30W 50W 100W Integrated Matrix Bulb COB Lamp
High Power LED Chip Warm Pure Cold White Lighting Beads 1W 3W 5W 10W 20W 30W 50W 100W Integrated Matrix Bulb COB Lamp
Product Detail

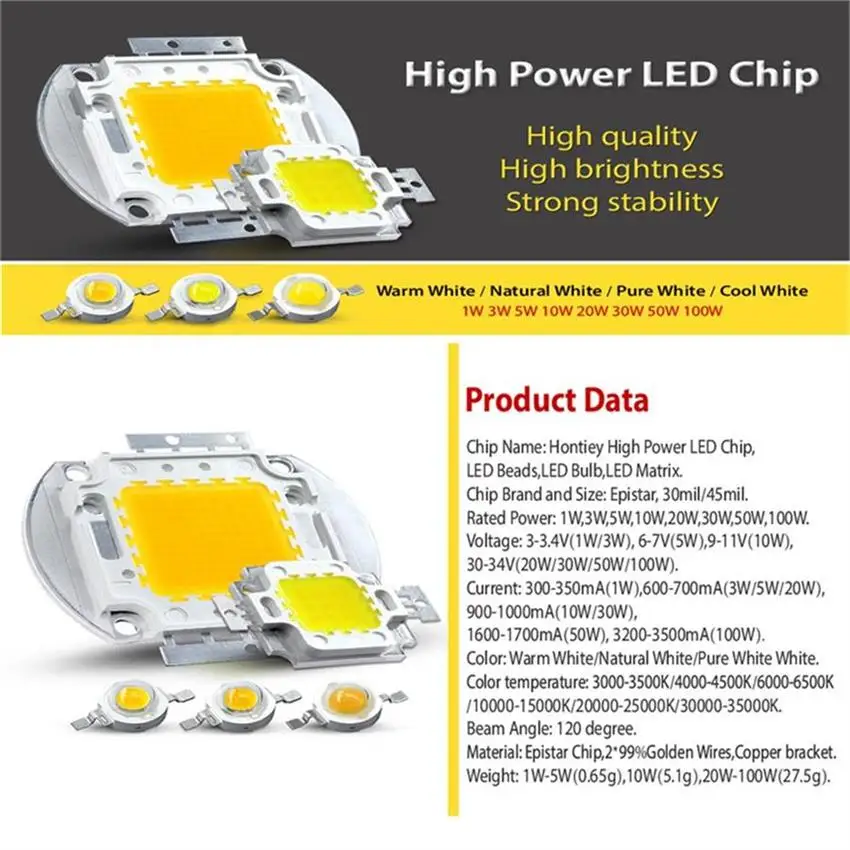

- Product Name: Hontiey High Power LED Chip, LED Beads, LED Bulb, LED Matrix.
- Rated Power: 1W 3W 5W 10W 20W 30W 50W 100W
- Chip Brand:Epistar
- Chip Size:30mil/45mi

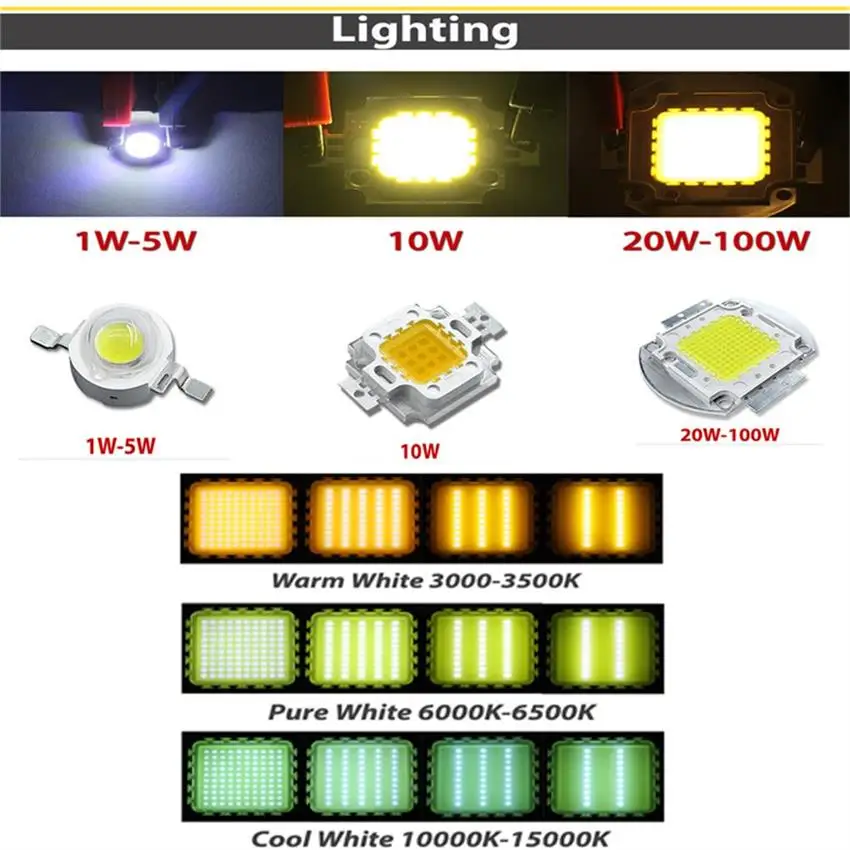

- Lighting Colors: Warm White/Natural White/Pure White/Cold White.
- Color Wavelength:3000-3500K/4000-4500K/6000-6500K/10000-15000K/20000-25000K/30000-3500

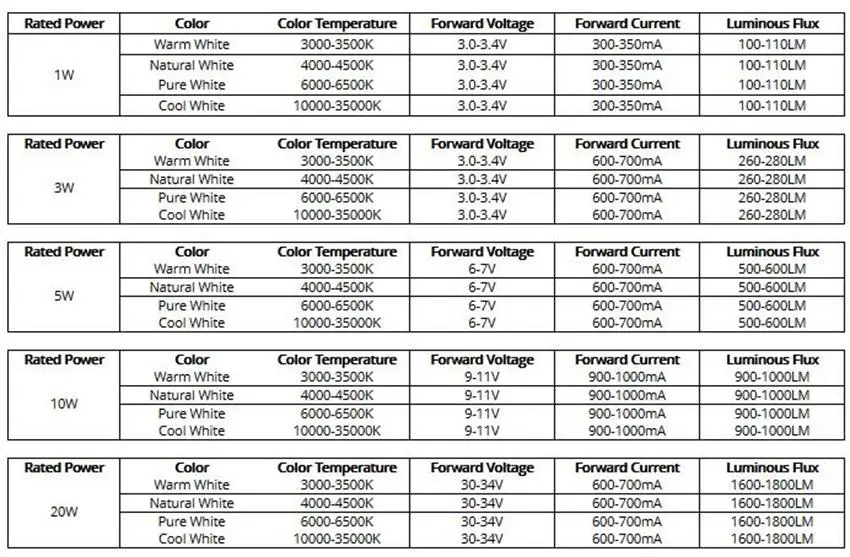

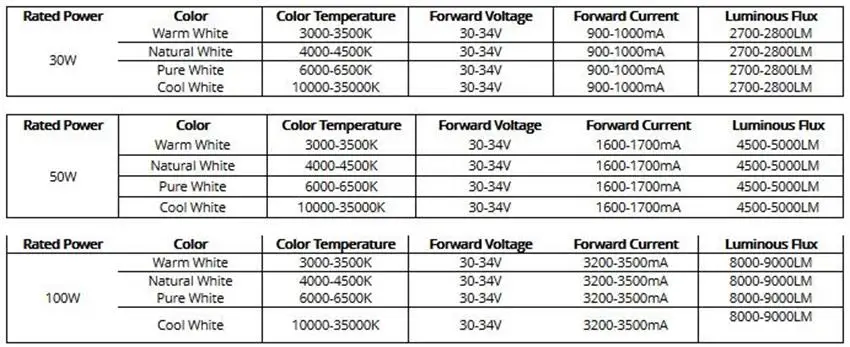

- Current:300-350mA(1W), 600-700mA(3W/5W/20W), 900-1000mA(10W/30W), 1600-1700mA(50W), 3200-3500mA(100W)
- Voltage: 3.0V-3.4V(1W-3W),6V-7V(5W),9V-11V(10W),30V-34V(20W/30W/50W/100W)
- Beam Angle:120 degree

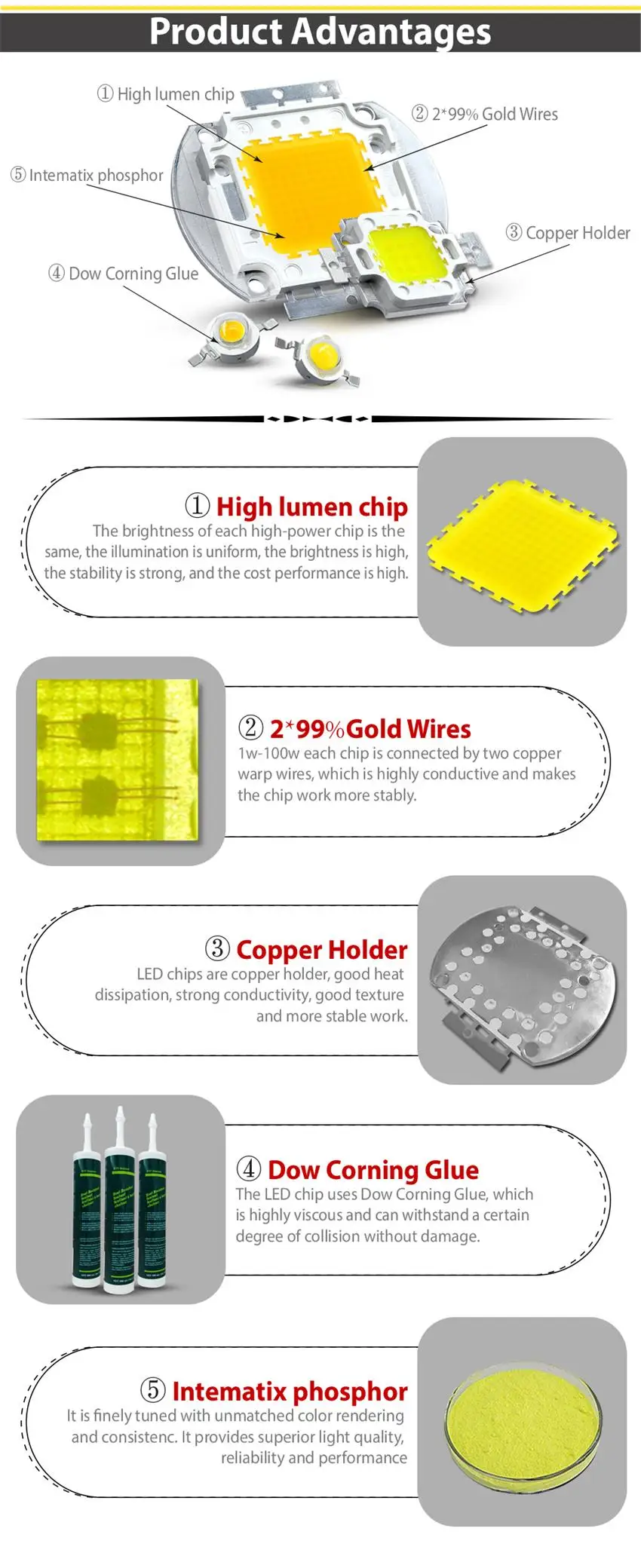

- Sealing Material:2-99%Golden Wires, Copper bracket.
- Weight:1W-5W(0.65g), 10W(5.1g), 20W-100W(27.5g).
- Certification:CE/RoHS/FCC
- Working life:50000hrs
- Operating temperature: -30 to +85 degree centigrade
- Welding temperature: 120°Centigrade in 5 seconds
,
