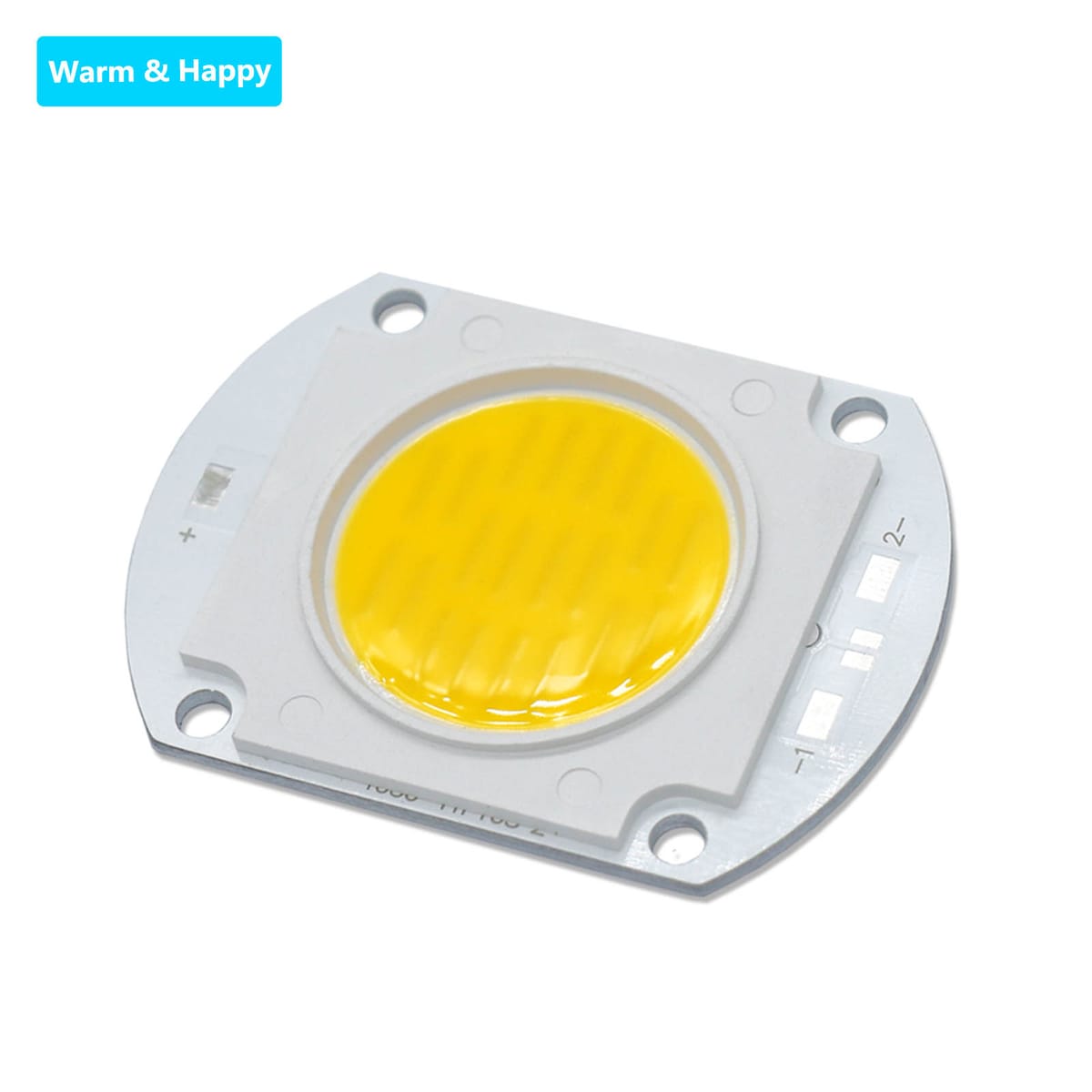

New 100w LED COB Beads DC30-32V 1400-1500mA Outdoor Advertising Projection Lamp Lighting Light Source Bulb

Specifications

Power: 50W+50W=100W

Voltage: DC30-32V

Current: 1400-1500mA

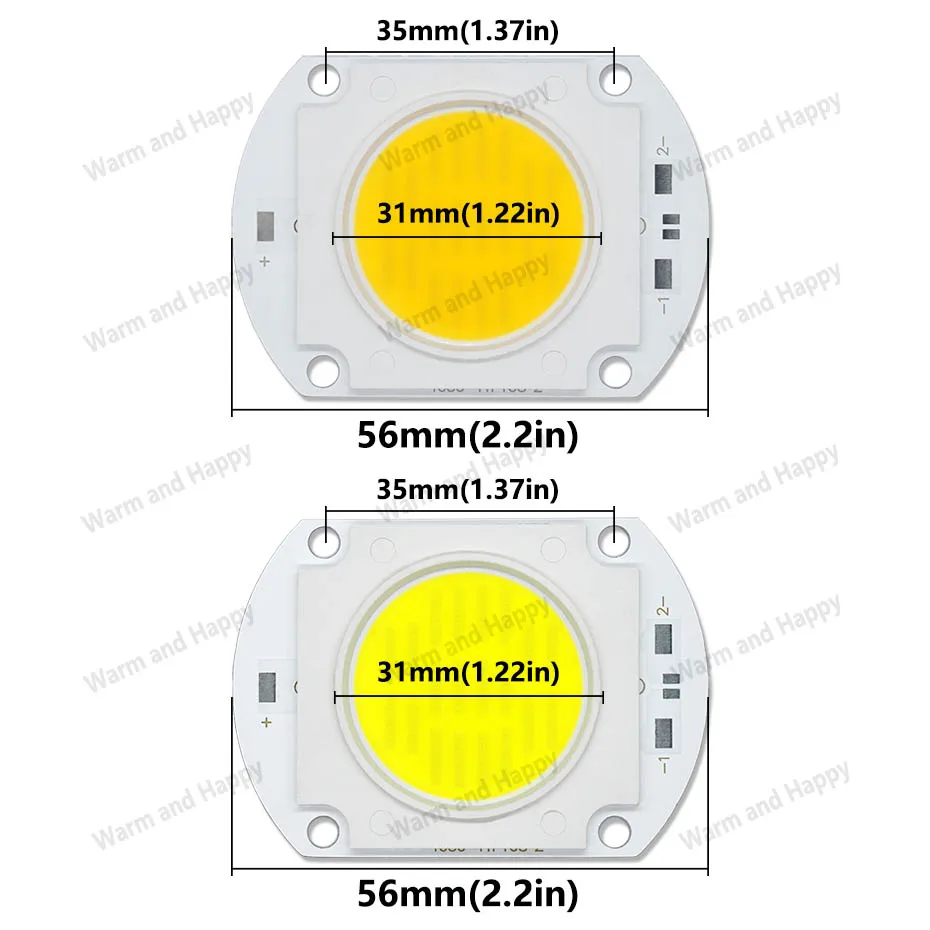

Size: 56 * 40mm

Thickness: 1.5mm

Material: Aluminum

Display value: Ra ≥ 70

Chip crystal size: 13 * 32mil

Luminous surface size: 31mm

Application: Spotlight/Floodlight

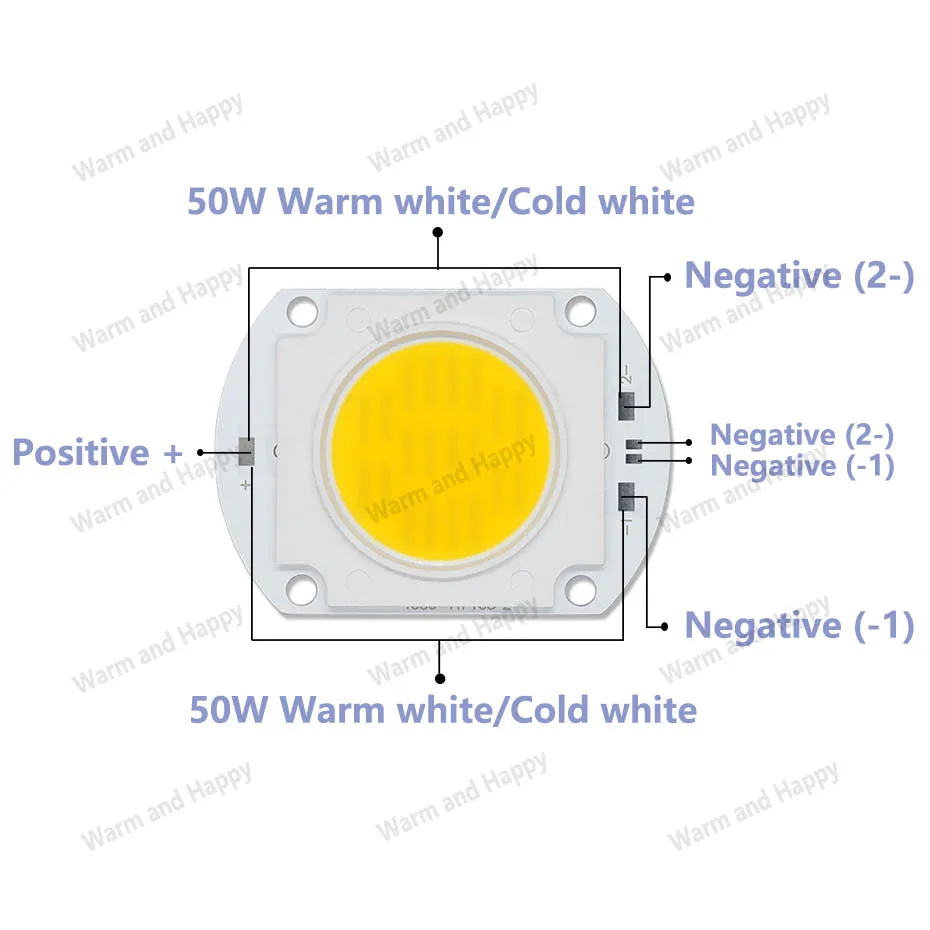

Series parallel: 11 parallel 10 series * 2

Thermal conductivity: Aluminum plate 2W/M · K

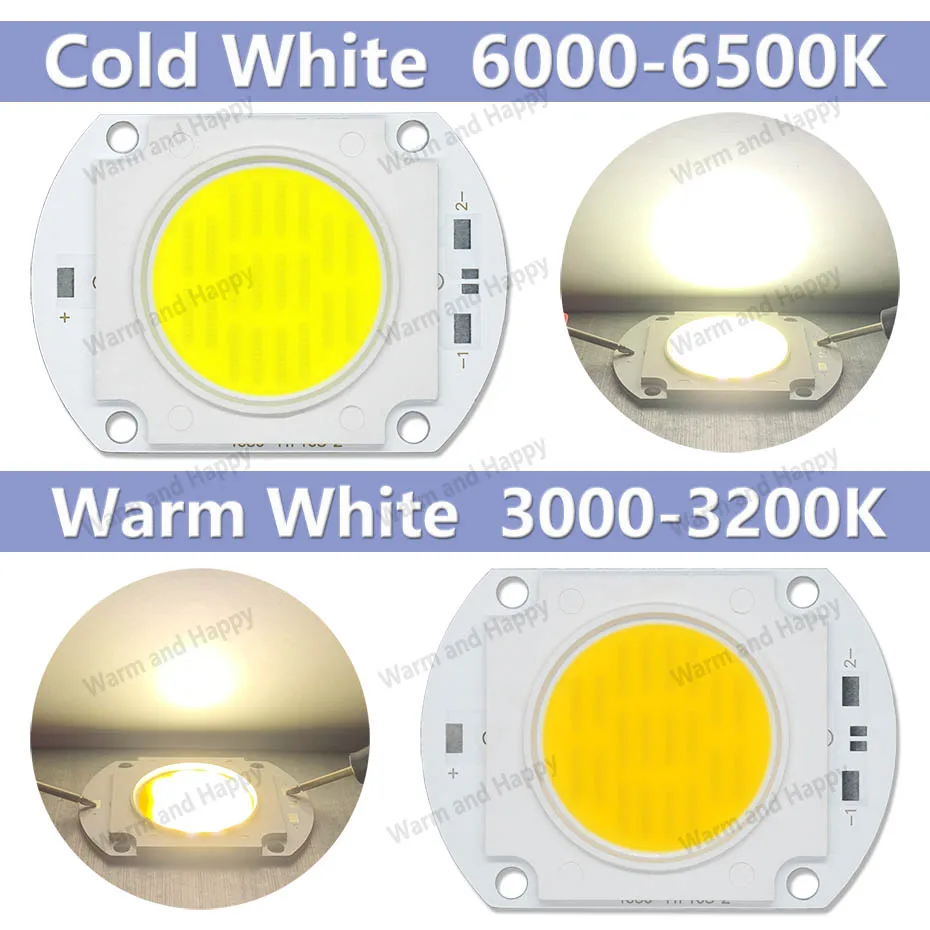

Color：Cold White 6000-6500K / Warm White 3000-3200K

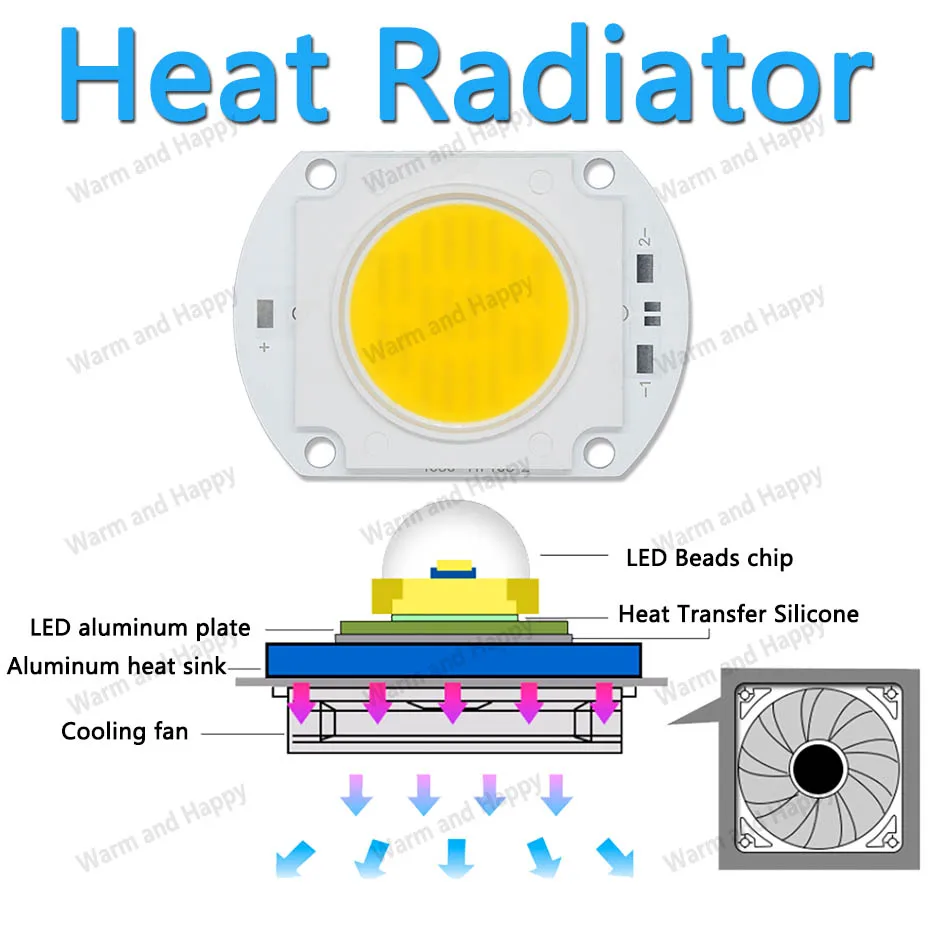

Usage temperature: LED requires a heat sink, the temperature at the center of the lamp bead cannot exceed 100 degrees, and the temperature of the aluminum shell of the heat sink cannot exceed 80 degrees.

Welding conditions: The temperature of the electric soldering iron is 400 degrees Celsius, and the welding time is ≤ 2 seconds.

,
