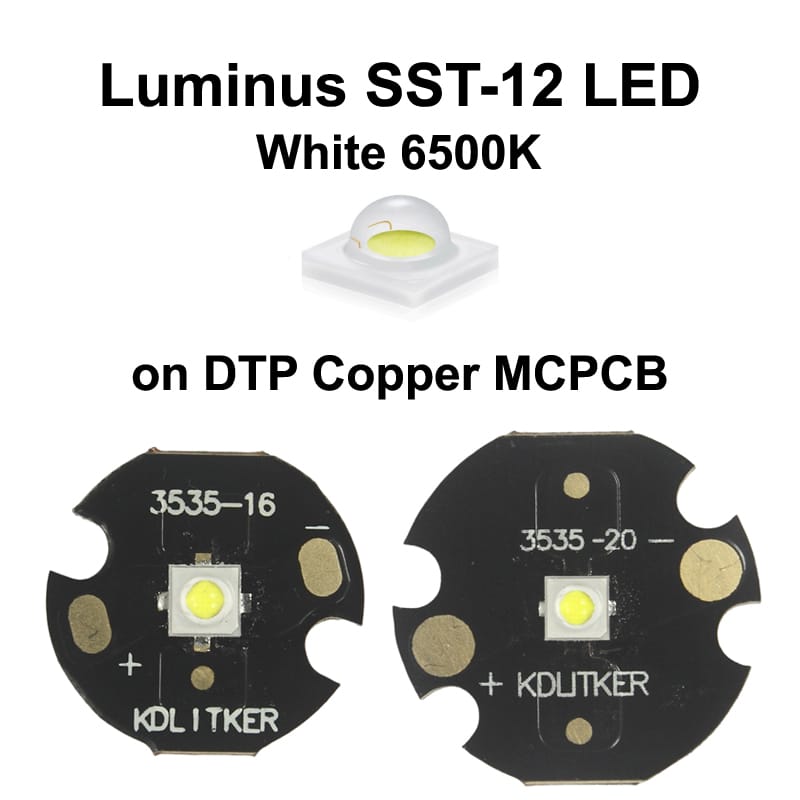

Luminus SST-12 White 6500K SMD 3535 LED Emitter on KDLITKER DTP Copper MCPCB Flashlight DIY Light Bead

Features:

- Round light emitter delivers superior beam quality and higher optical efficiency than square emitters for collimating optics

- High lumen density of monolithic emitter reduces the optics’ size while maximizing the light intensity and beam distance

- Maximum Drive Current: 1.8 A

- Luminous Efficacy: typ. 174 lm/W @ 350 mA, 85°C (6500K)

- Color Temperature: 5000K, 5700K, 6500K

- Color Rendering Index: min. 65, typ. 70

- Low thermal resistance: 4.9°C/W

- ANSI-compatible chromaticity bins

- Electrically isolated thermal path

- 8 kV HBM ESD rating per ANSI/ESDA/JEDEC JS-001

- RoHS and REACH compliant

Applications:

- Compact Portable Lights

- Bicycle Lights

- Automotive Auxiliary Lights

- Stage & Studio Lighting

- Outdoor Lighting

- LED Work Lights

(Remarks: General description from Luminus official description)

Package Content:

1 x Luminus SST-12 LED

on KDLITKER DTP Copper MCPCB

Product Specifications:

,
