LES 6 LEDs Chip 4W-9W 18V COB 570lm Beads CXM-6-50-80-18-AA00-F2-2 5000K LED Diode for Shop Lighting Spotlights Track Lights
High lumen output and efficacy typical• Over 520 lm, 120 LPW @ 3000K, 25ºC• Over 570 lm, 131 LPW @ 5000K, 25ºC
2-step and 3-step MacAdam Ellipse color binning accuracy
Excellent optical emission uniformity and color over angle consistency
Exceptional long term color stability
Superior thermal conductivity for uniform heat spreading
Environmentally friendly: RoHS and REACh compliant
4W-9W small LES COB LED
LES diameter of 6.3mm ( Light emitting surface)
- Item name: Luminous Small Les led chip (Original)

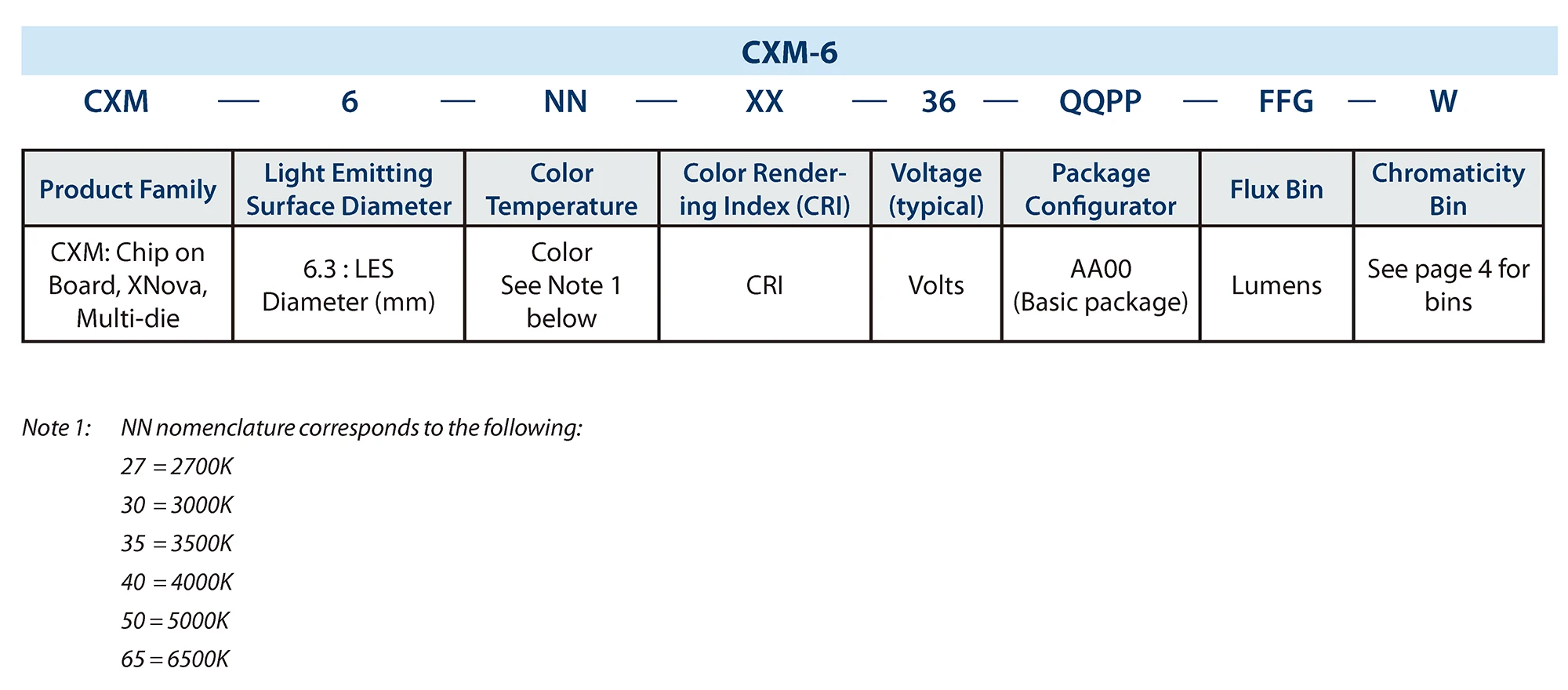

- Code: CXM-6-50-80-18-AA00-F2-2
- Emitting color temp.: 5000K
- LEDs type: COB LED
- Recommend power: 4W-9W
- Voltage: 18V
- Current(Typ.): 240mA

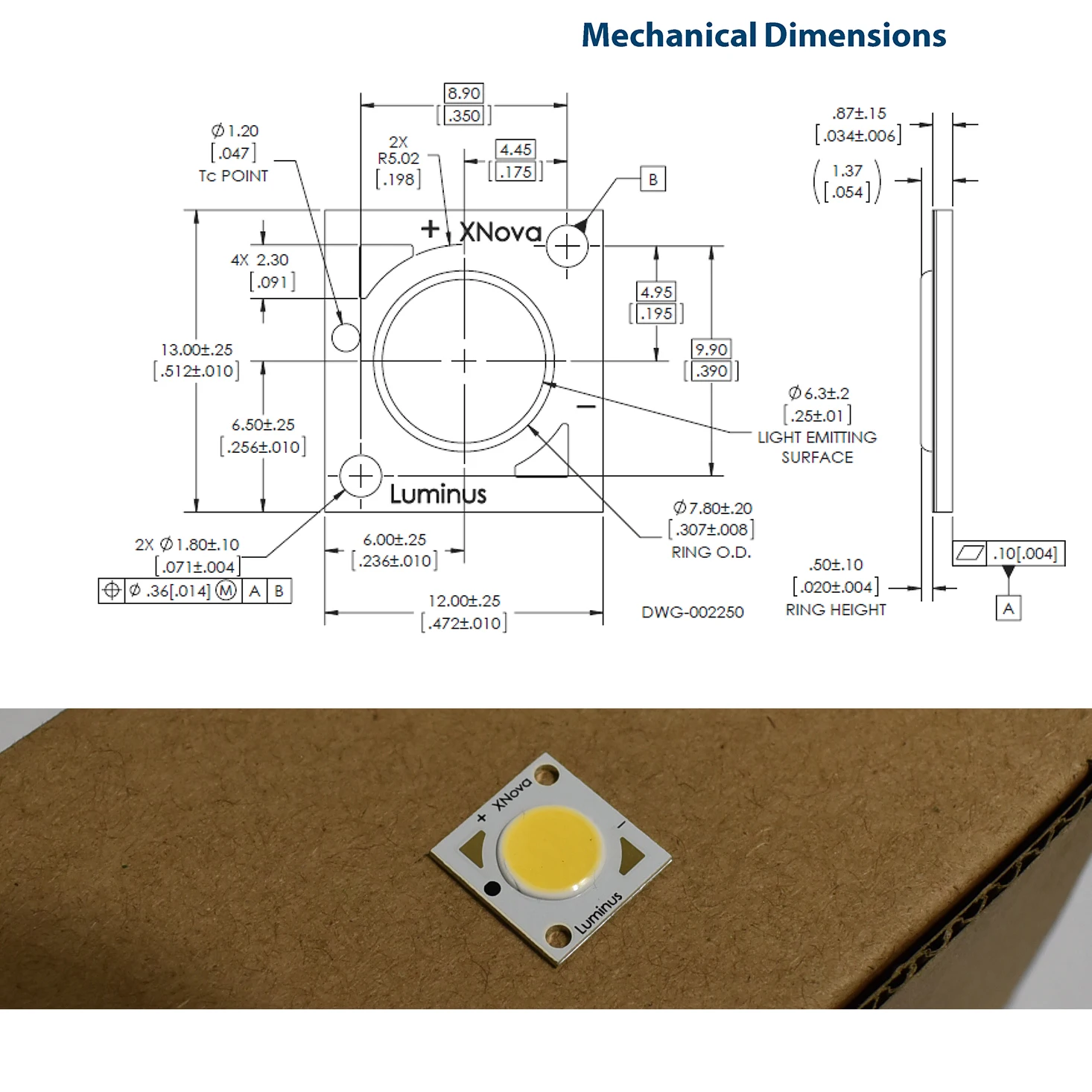

- LED sizes: 13x12mm (See the following diagram)
- LES: Diameter of 6.3mm
- Viewing angle: 120 degree
- Luminous flux : 570lm
- CRI: 80a+
- Base material: The mirror aluminum
- LED junction temperature: 125°
- ESD: 2000V
Absolute Maximum Ratings
Operating Temperature -30℃ To +75℃
Storage Temperature -30℃ To +75℃
Case Temperature 85℃
Junction Temperature 140℃ (Max.)
Soldering Temperature 350℃± 10℃ For 5 Seconds
ESD Sensitivity 2000V HBM
Applications:
Spotlights/Track Lights
Downlights
Replacement lamps
Shop Lighting
Hospitality Lighting
Architectural and Specialty
,
