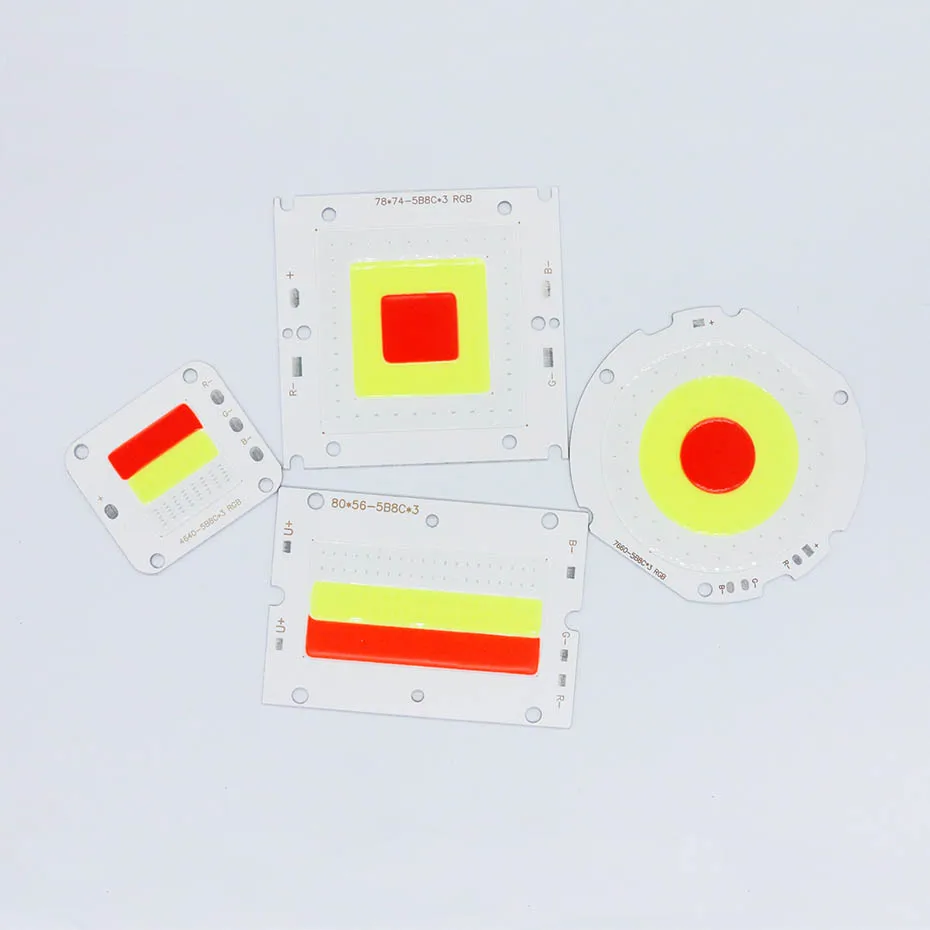

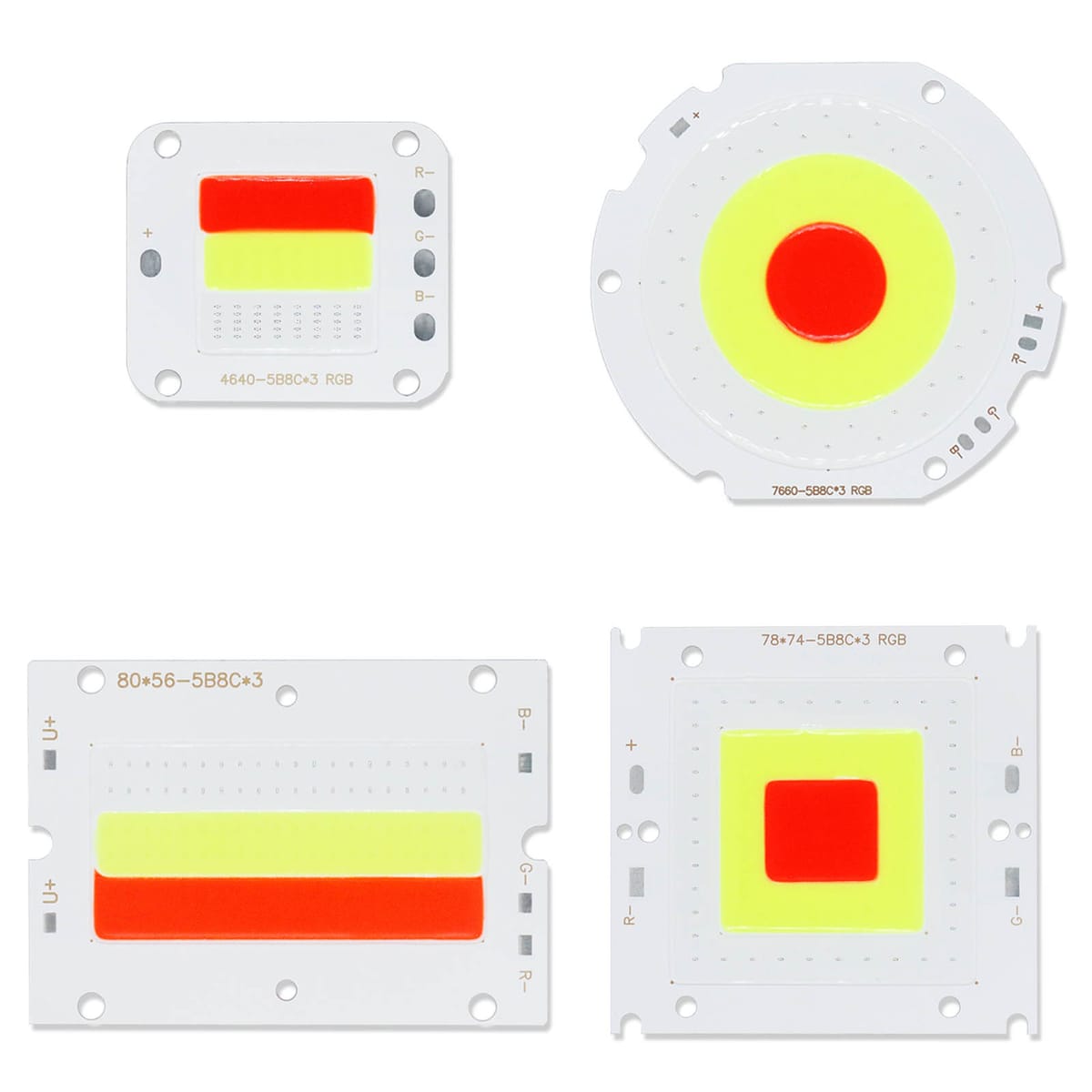

LED Stage Lighting RGB 50W DC24-25V LED COB Flash Beads 600mA Four Sizes Red Blue Green Holiday Bar Outdoor Lighting Decoration
Specifications
Power: 50W (Blue light 15W/Red light 15W/Green light 15W)
Series parallel: 5B8C * 3
Voltage: DC24-25V
Current: 600mA
Lumen: 80lm/w
Display value: Ra ≥ 70
Chip crystal size: 10 * 21mil
Material: Aluminum
Thickness: 1mm
Thermal conductivity: aluminum plate 2W/M · K

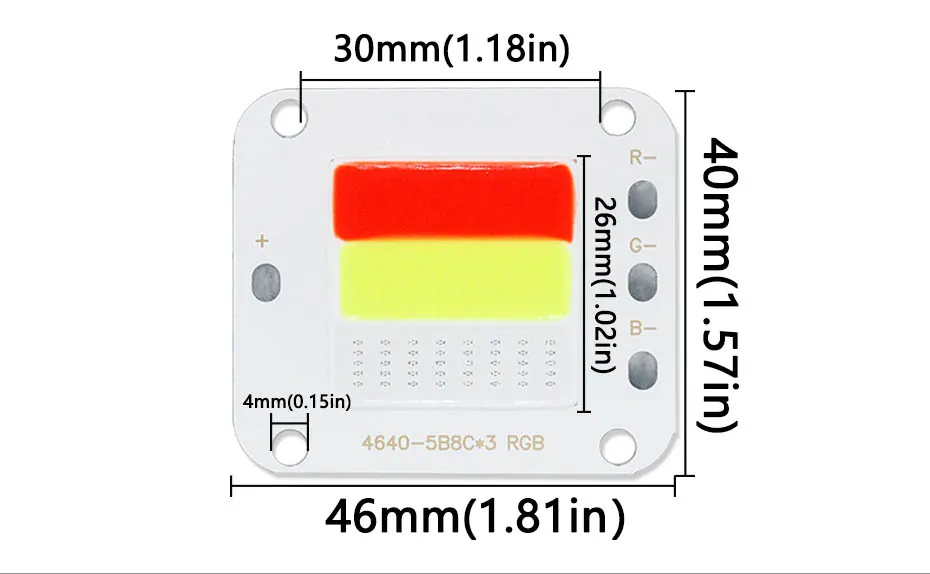

Size: 46 * 40mm
Luminous surface size: 26*26mm

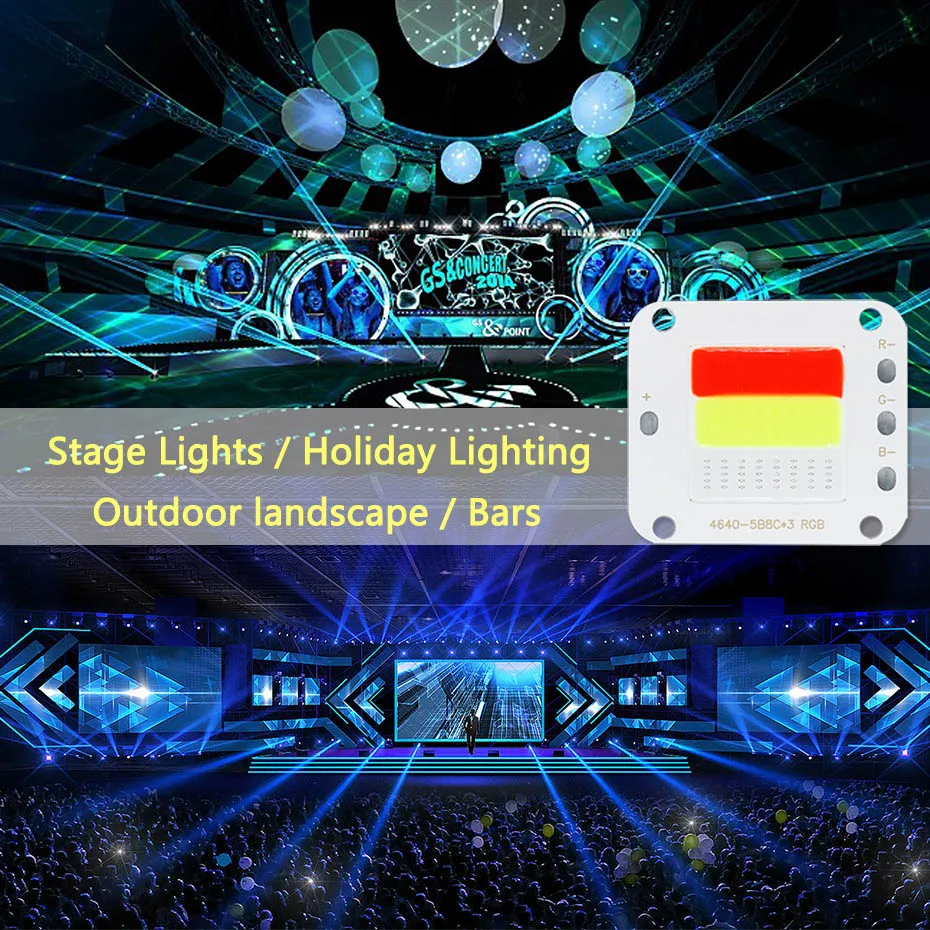

Application location: stage lights, holiday lighting, bars, outdoor landscape lighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
Power: 50W (Blue light 15W/Red light 15W/Green light 15W)
Series parallel: 5B8C * 3
Voltage: DC24-25V
Current: 600mA
Lumen: 80lm/w
Display value: Ra ≥ 70
Chip crystal size: 10 * 21mil
Material: Aluminum
Thickness: 1mm
Thermal conductivity: aluminum plate 2W/M · K

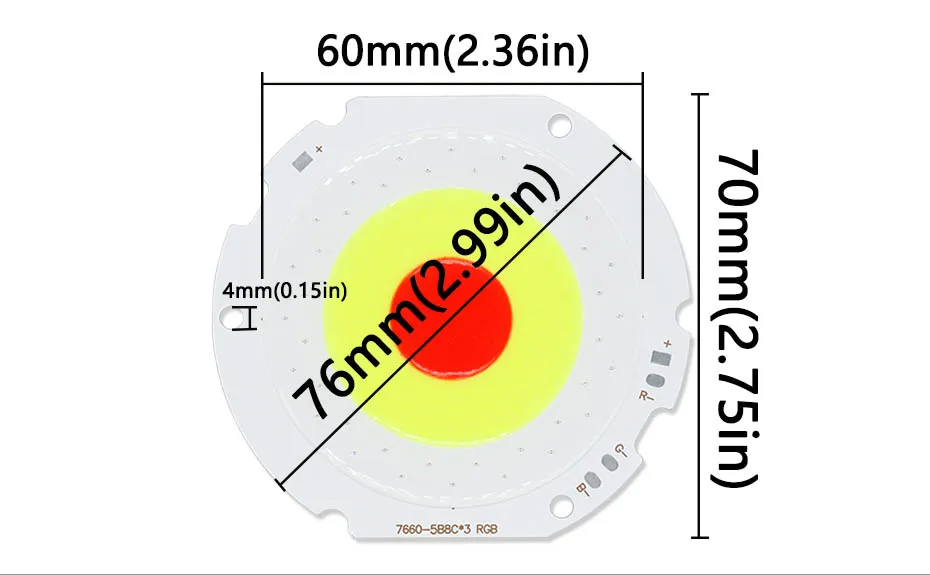

Size: 76*60mm
Luminous surface size: 60mm
Application location: stage lights, holiday lighting, bars, outdoor landscape lighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
Power: 50W (Blue light 15W/Red light 15W/Green light 15W)
Series parallel: 5B8C * 3
Voltage: DC24-25V
Current: 600mA
Lumen: 80lm/w
Display value: Ra ≥ 70
Chip crystal size: 10 * 21mil
Material: Aluminum
Thickness: 1mm
Thermal conductivity: aluminum plate 2W/M · K

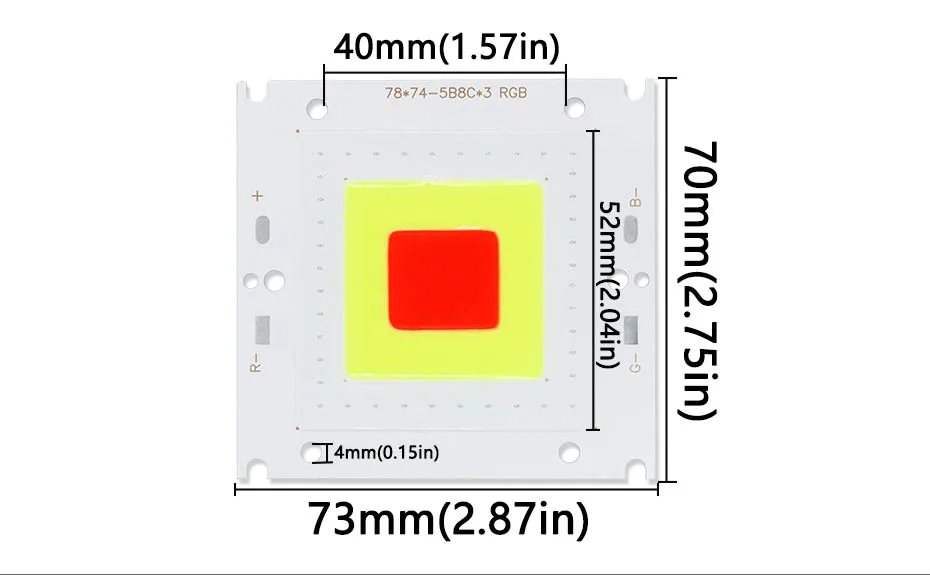

Size: 73*70mm
Luminous surface size: 52mm
Application location: stage lights, holiday lighting, bars, outdoor landscape lighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
Power: 50W (Blue light 15W/Red light 15W/Green light 15W)
Series parallel: 5B8C * 3
Voltage: DC24-25V
Current: 600mA
Lumen: 80lm/w
Display value: Ra ≥ 70
Chip crystal size: 10 * 21mil
Material: Aluminum
Thickness: 1mm
Thermal conductivity: aluminum plate 2W/M · K

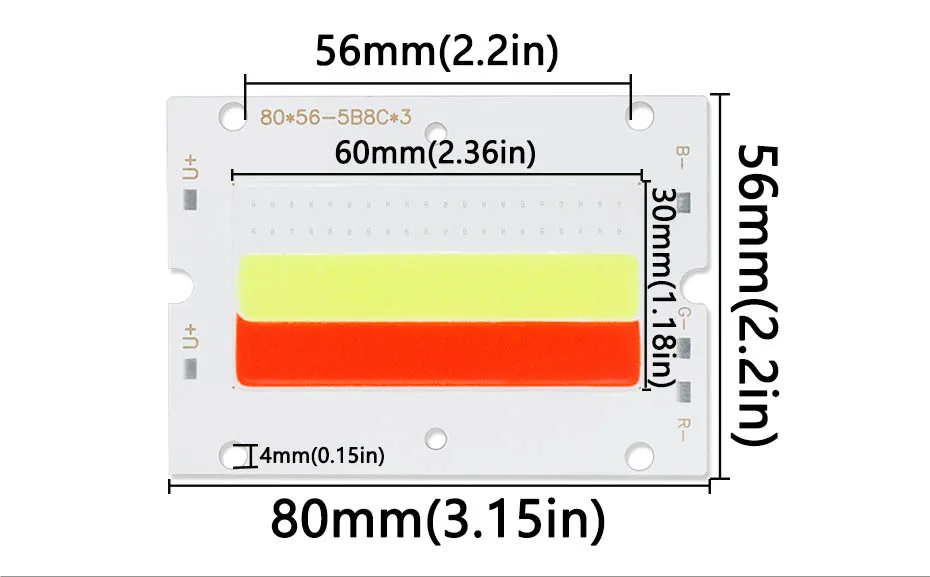

Size: 80*56mm
Luminous surface size: 60*30mm
Application location: stage lights, holiday lighting, bars, outdoor landscape lighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
,
