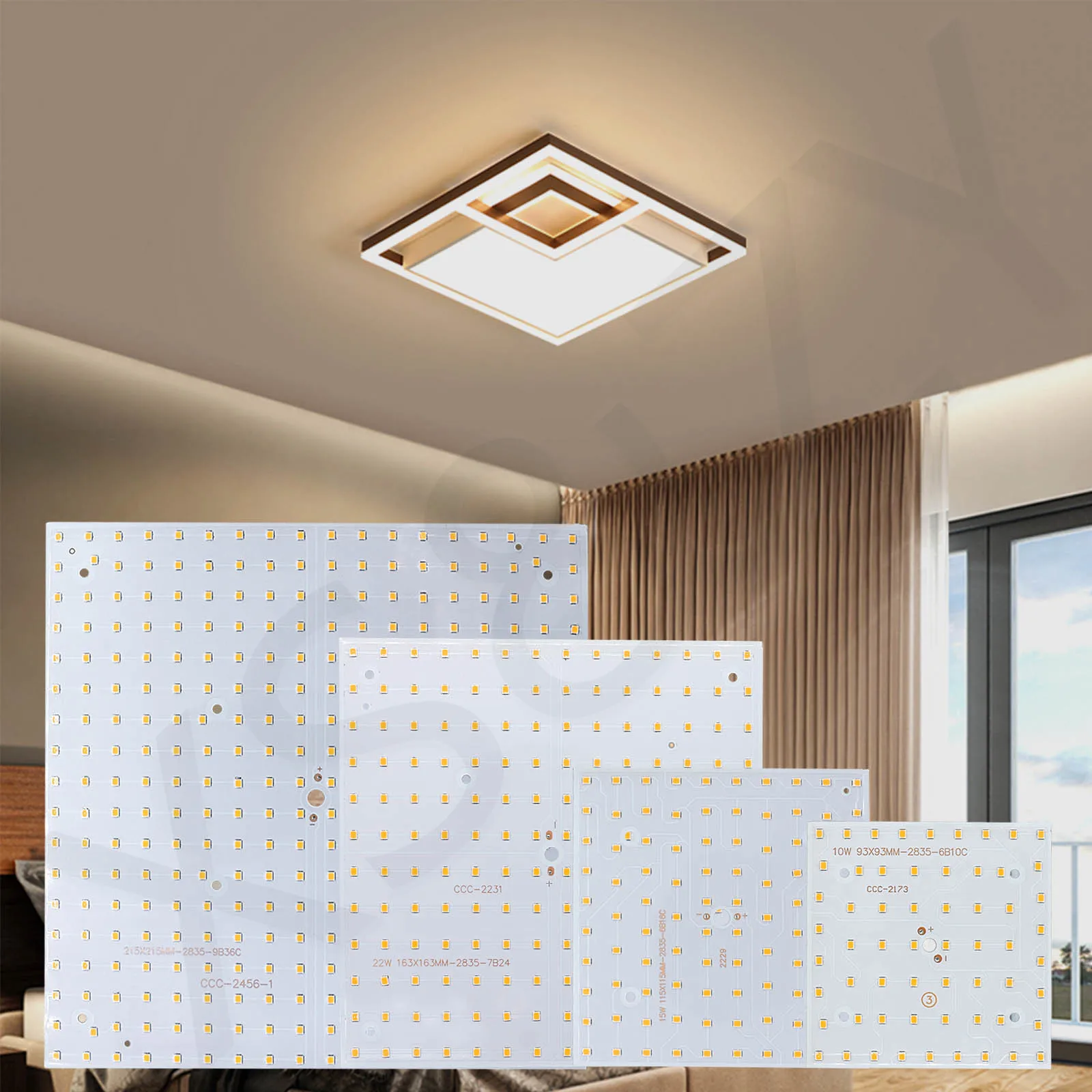

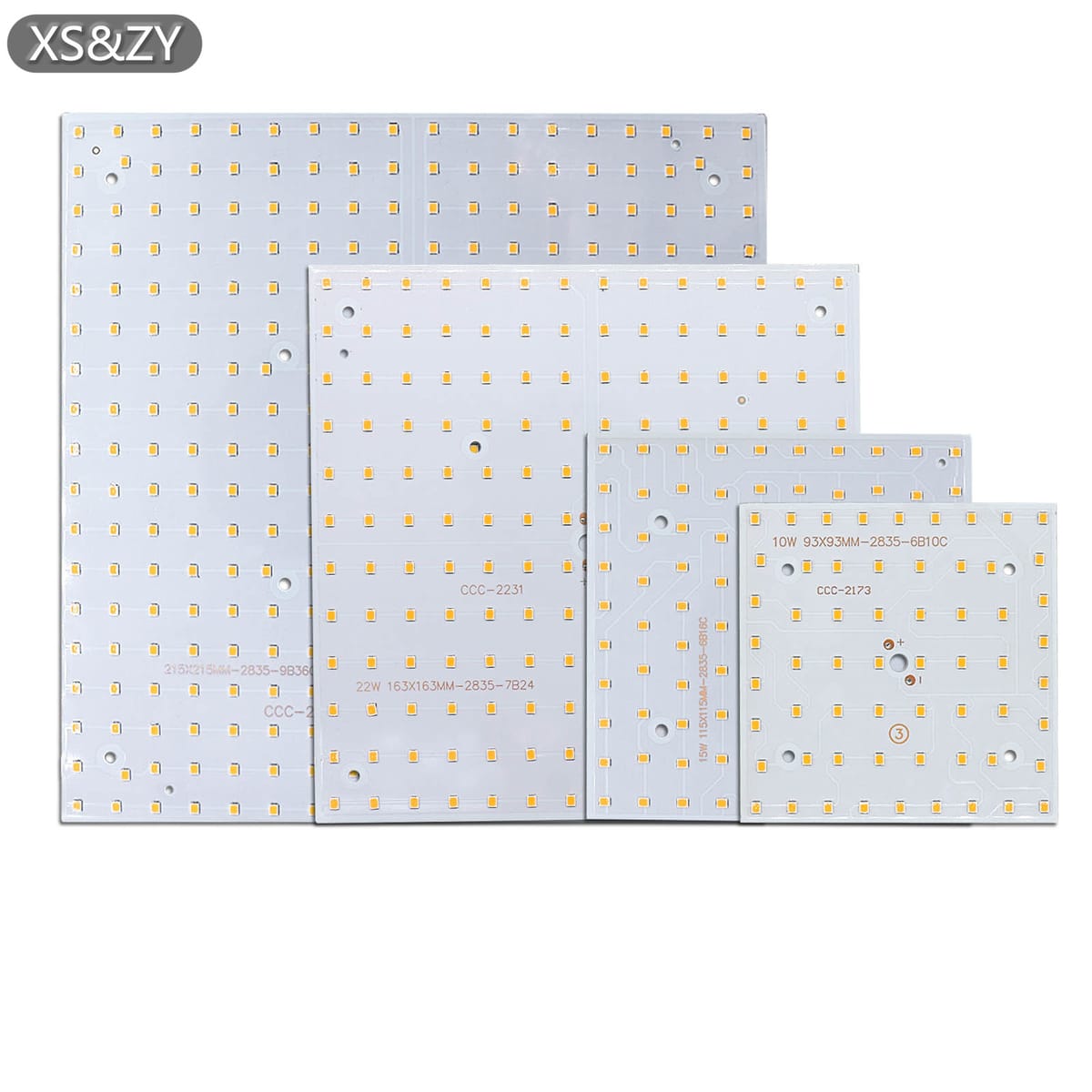

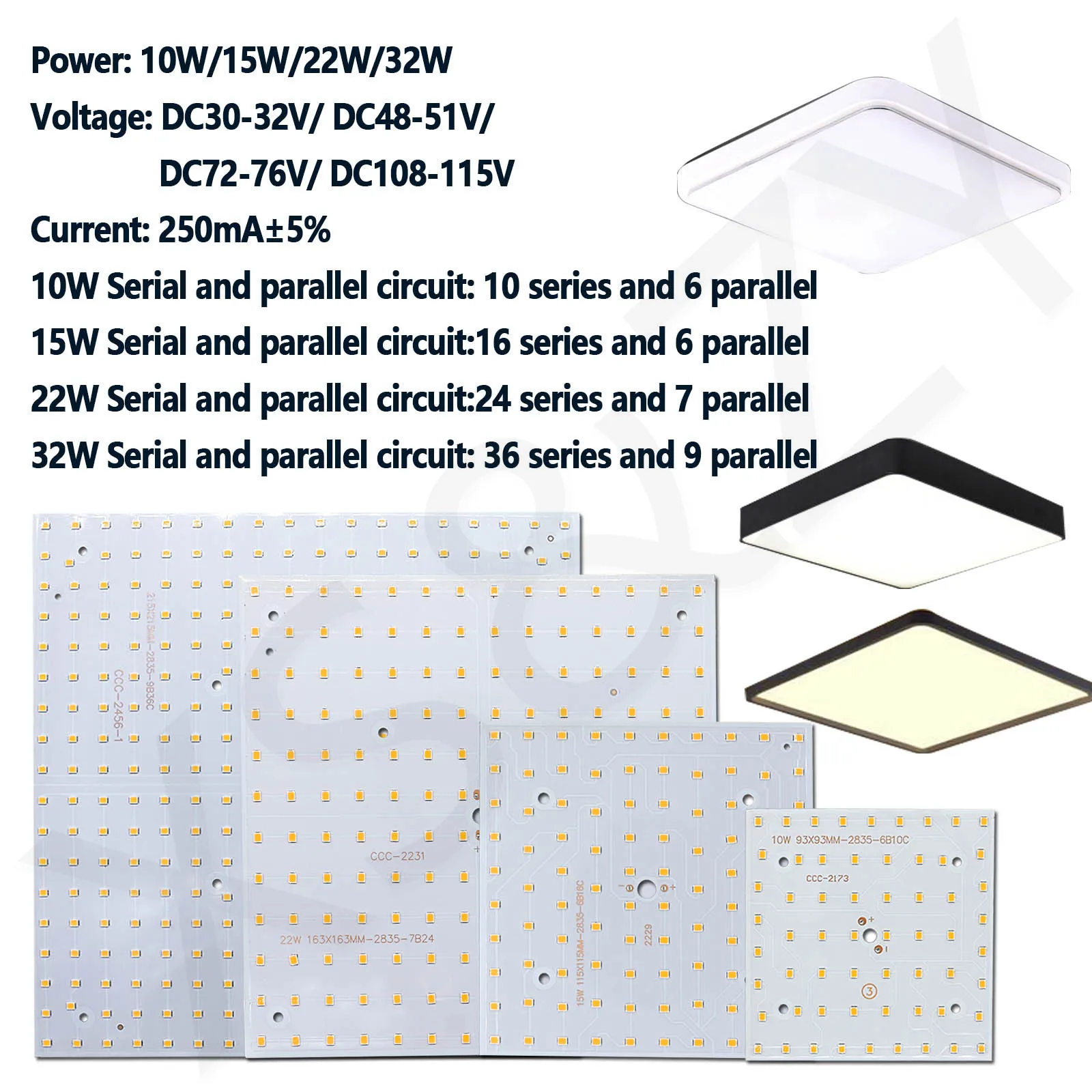

LED Panel Light 10W 15W 22W 32W 250mA LED Bead Diode Warm White LED Square Ceiling Board Lamp Board Used Office Lighting DIY

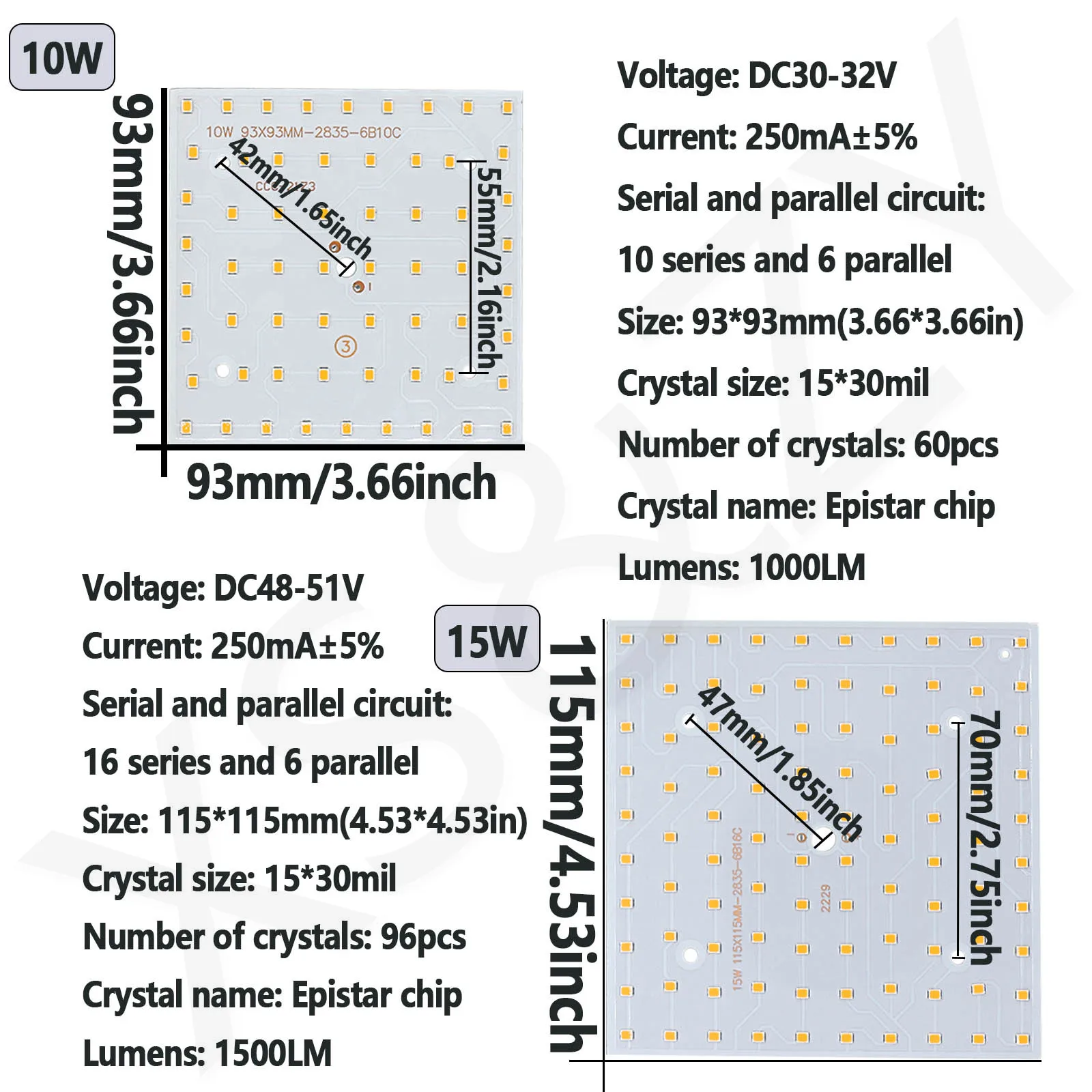

Lamp bead model: SMD2835
Power: 10W
Voltage: DC30-32V
Current: 250mA±5%
Serial and parallel circuit: 10 series and 6 parallel
Size: 93*93mm(3.66*3.66in)
Crystal size: 15*30mil
Number of crystals: 60pcs
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Lamp bead model: SMD2835
Power: 15W
Voltage: DC48-51V
Current: 250mA±5%
Serial and parallel circuit: 16 series and 6 parallel
Size: 115*115mm(4.53*4.53in)
Crystal size: 15*30mil
Number of crystals: 96pcs
Crystal name: Epistar chip
Lumens: 1500LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light

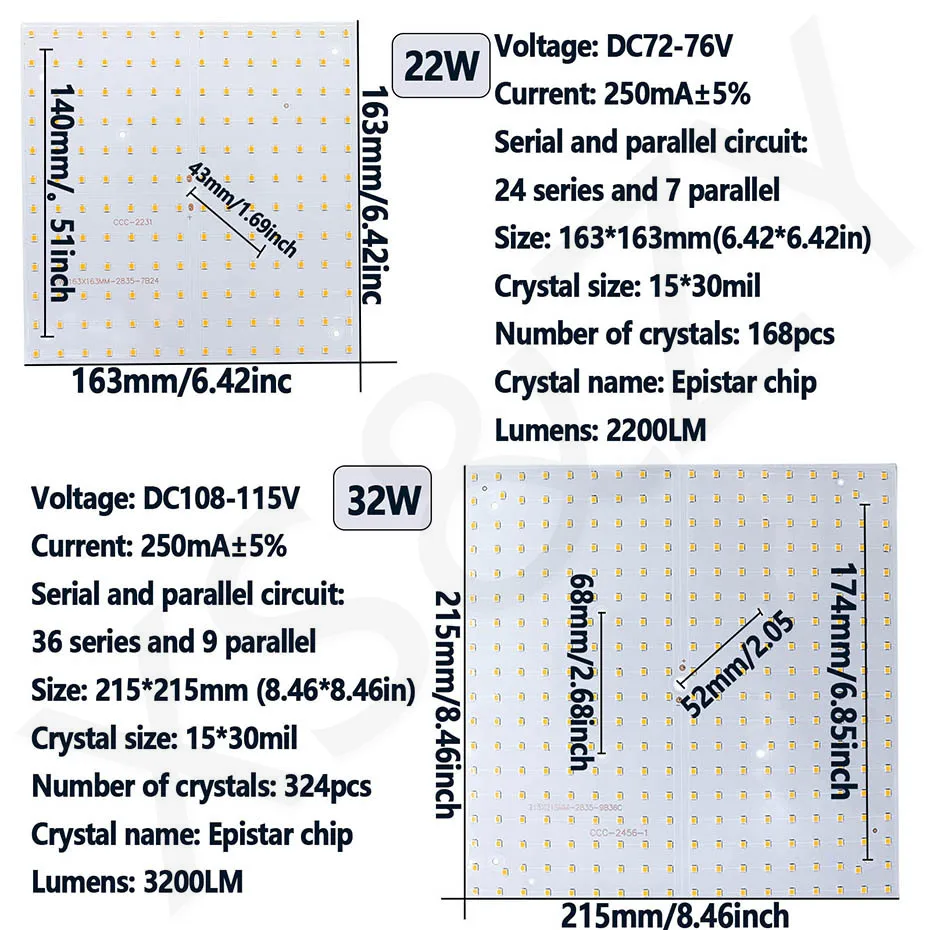

Lamp bead model: SMD2835
Power: 22W
Voltage: DC72-76V
Current: 250mA±5%
Serial and parallel circuit: 24 series and 7 parallel
Size: 163*163mm(6.42*6.42in)
Crystal size: 15*30mil
Number of crystals: 168pcs
Crystal name: Epistar chip
Lumens: 2200LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Lamp bead model: SMD2835
Power: 32W
Voltage: DC108-115V
Current: 250mA±5%
Serial and parallel circuit: 36 series and 9 parallel
Size: 215*215mm (8.46*8.46in)
Crystal size: 15*30mil
Number of crystals: 324pcs
Crystal name: Epistar chip
Lumens: 3200LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
,
