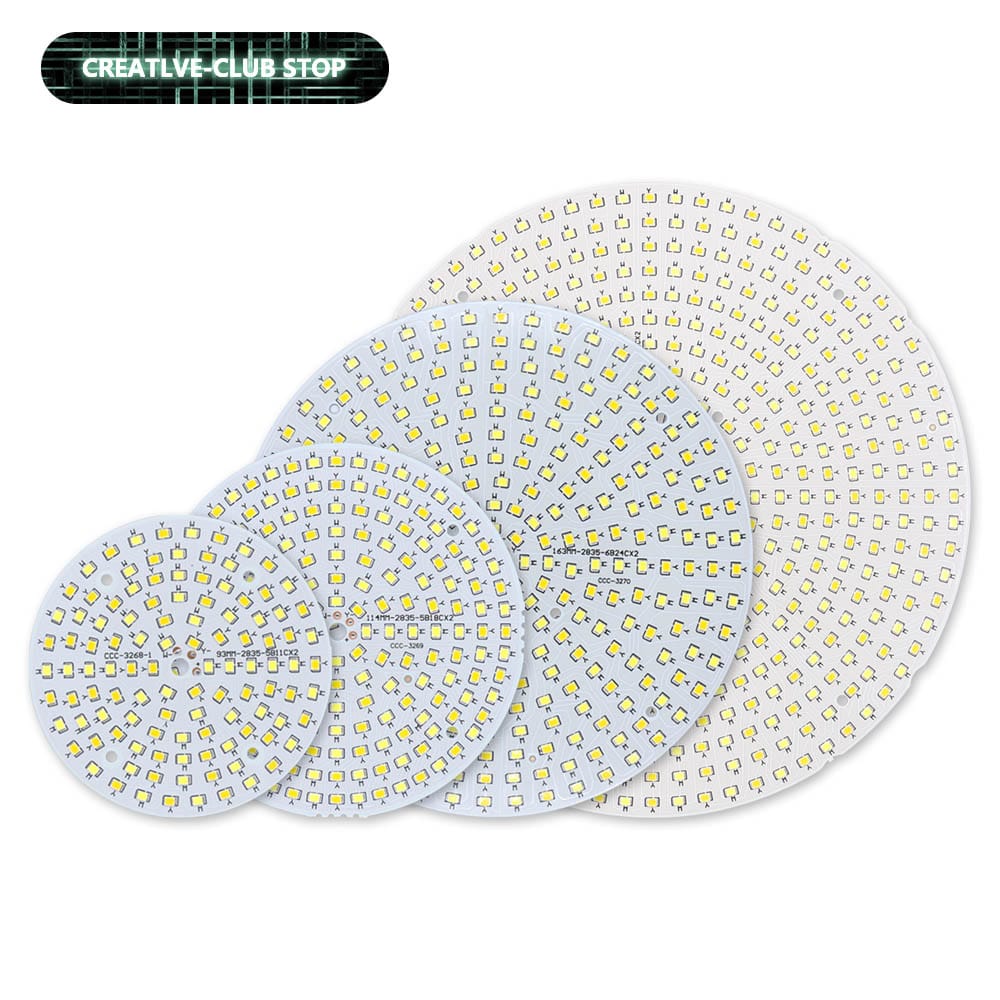

LED Light Board 10W 18W 24W 36W Two-Color LED Chip Source SMD2835 Lamp Bead 250mA Constant Current Input Diode For Panel Light
Dual color LED drive+dual color light panel
Product Details
Lamp bead model: SMD2835 two-color 10W
Power: 10W white light+10W warm white
Voltage: DC30-32V
Current: 250mA±5%
Serial and parallel circuit: 11 series and 5 parallel
Size: Φ93mm(3.66*inch)
Crystal size: 10*30mil
Number of crystals: 55pcs*2
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Lamp bead model: SMD2835 two-color 18W
Power: 18W white light+18W warm light
Voltage: DC54-56V
Current: 250mA±5%
Serial and parallel circuit: 18 series and 5 parallel
Size: Φ115mm(4.53inch)
Crystal size: 10*30mil
Number of crystals: 90pcs*2
Crystal name: Epistar chip
Lumens: 1800LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Lamp bead model: SMD2835 two-color 24W
Power: 24W white light+24W warm light
Voltage: DC72-76V
Current: 250mA±5%
Serial and parallel circuit: 24 series and 6 parallel
Size:Φ163mm(6.42inch)
Crystal size: 10*30mil
Number of crystals: 144pcs*2
Crystal name: Epistar chip
Lumens: 2400LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Lamp bead model: SMD2835 two-color 36W
Power: 36W white light+36W warm light
Voltage: DC108-115V
Current: 250mA±5%
Serial and parallel circuit: 36 series and 7 parallel
Size: Φ215mm (8.46inch)
Crystal size: 10*30mil
Number of crystals: 252pcs*2
Crystal name: Epistar chip
Lumens: 3600LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
,
