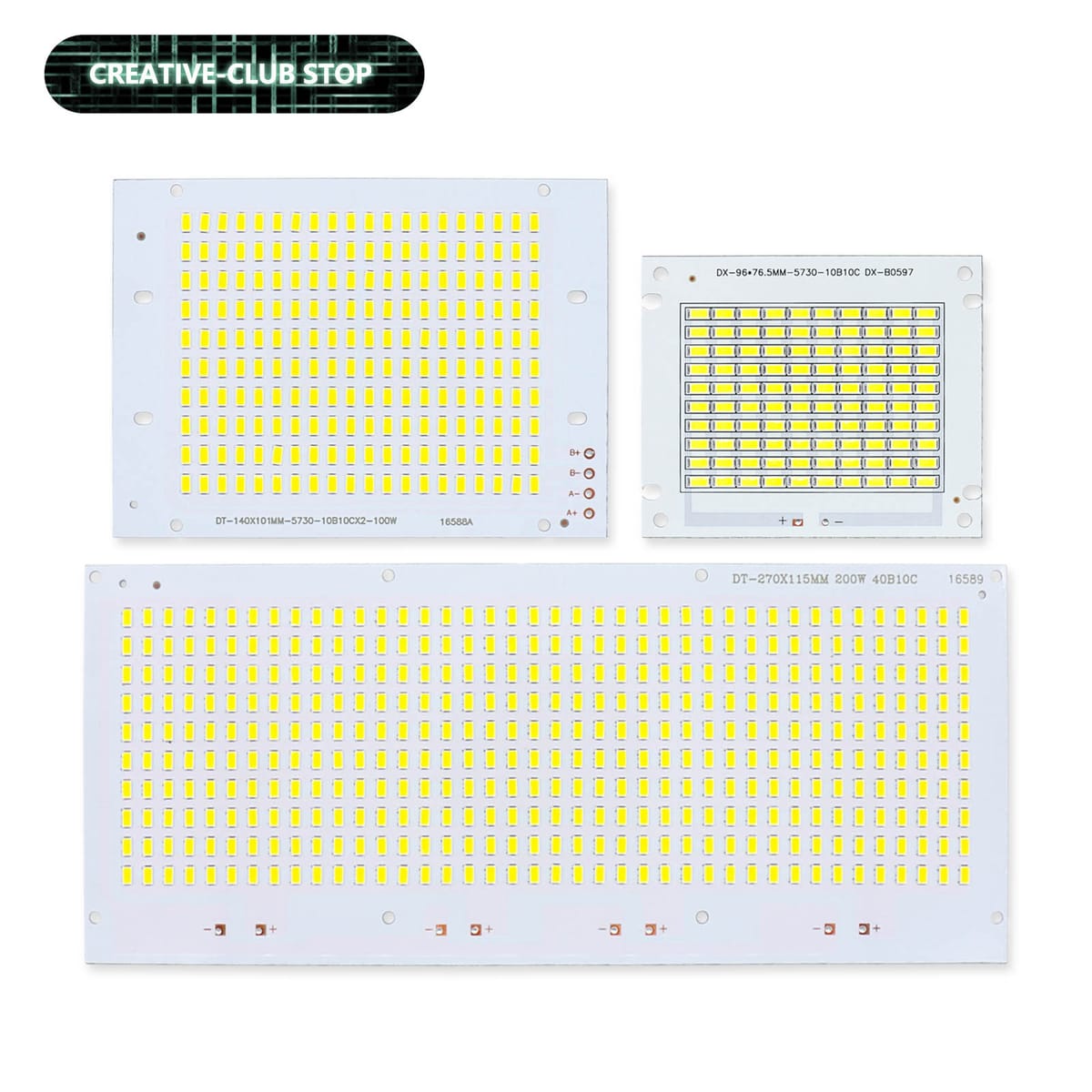

LED Lamp Chips 50W 100W 200W SMD Bulb High Lumen 5730 17*34mil Lamp Beads DC30-33V For Flood Light Street Lamp Outdoor Lighting
Product details

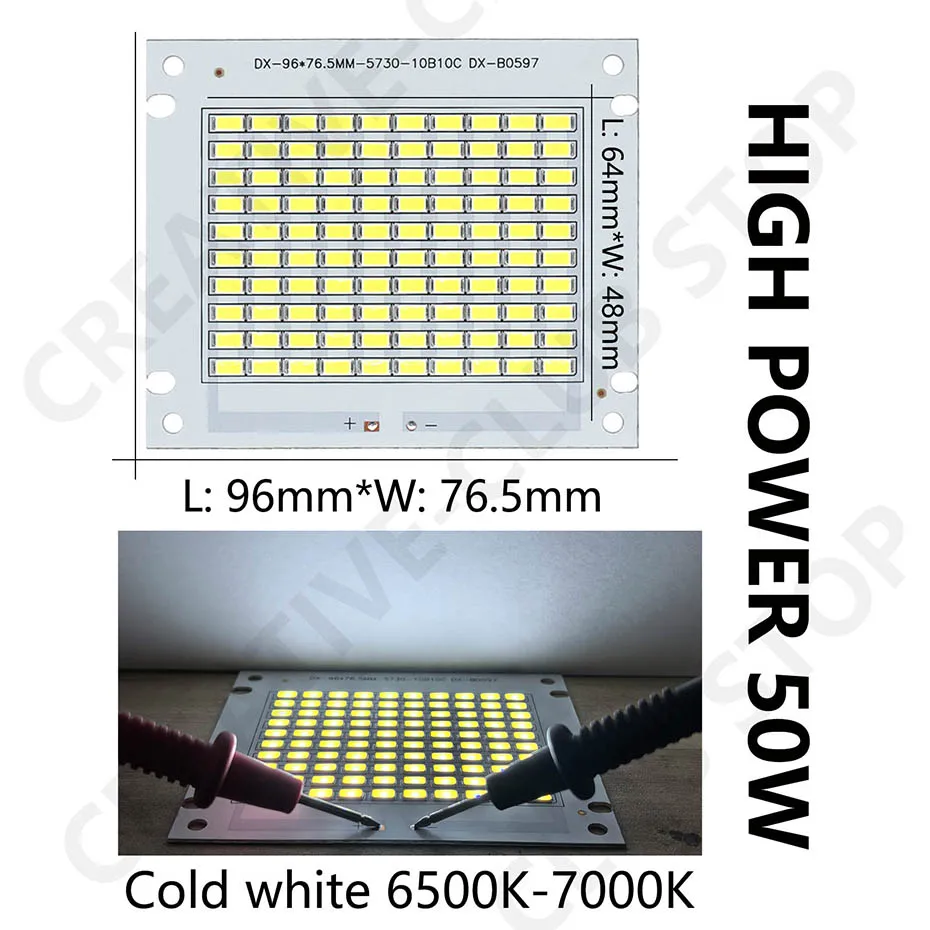

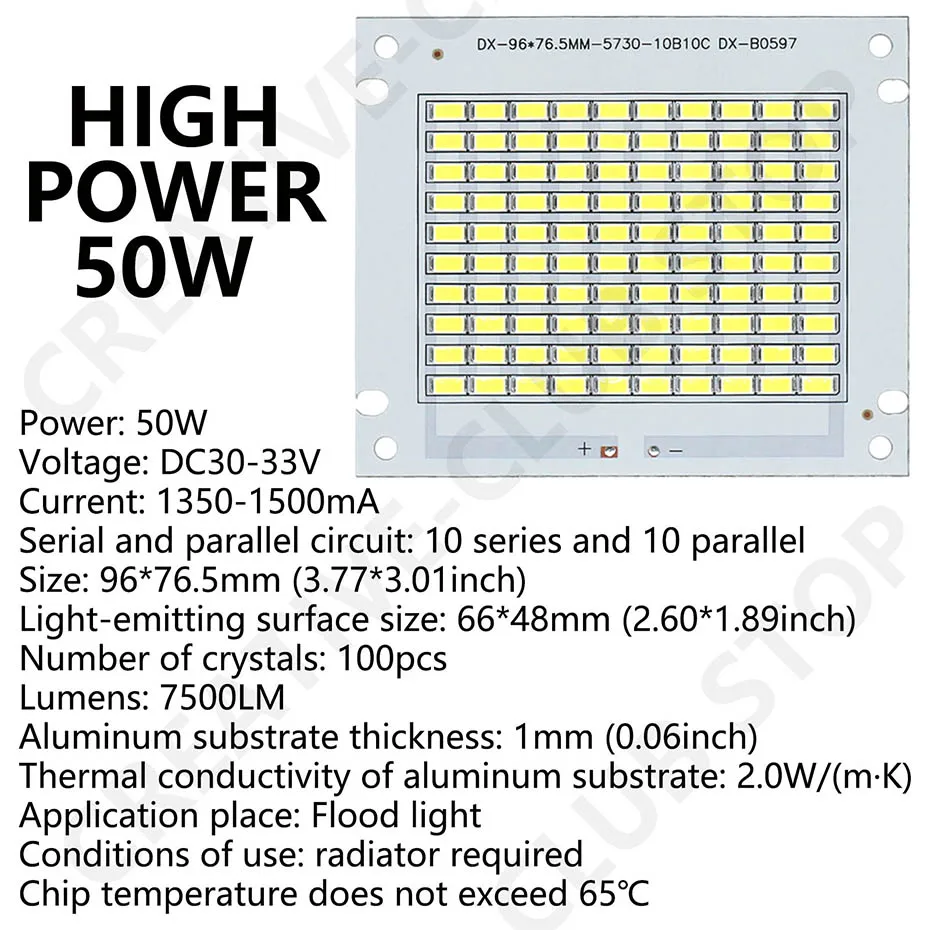

Power: 50W
Voltage: DC30-33V
Current: 1350-1500mA
Serial and parallel circuit: 10 series and 10 parallel
Size: 96*76.5mm (3.77*3.01inch)
Light-emitting surface size: 66*48mm (2.60*1.89inch)
Number of crystals: 100pcs
Lumens: 7500LM
Aluminum substrate thickness: 1mm (0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
50W LED requires one set of 50W (DC30-32V/1350-1450mA) LED drivers
Power: 100W
Voltage: DC30-33V
Current: 1500mA*2set
Serial and parallel circuit: 10 series and 10 parallel*2
Size: 140*101mm(5.51*3.98inch)
Light-emitting surface size: 101*79mm(3.97*3.11inch)
Number of crystals: 200pcs
Lumens: 15000LM
Aluminum substrate thickness: 1mm(0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
100W LED requires 2 sets of 50W (DC30-32V/1350-1450mA) LED drivers
100W chip/usage tips - please note:
If it is a set of 50W drive zone operation, only half of the light beads can be lit up
If two sets of 50W drive zones work together, all the light beads can be lit

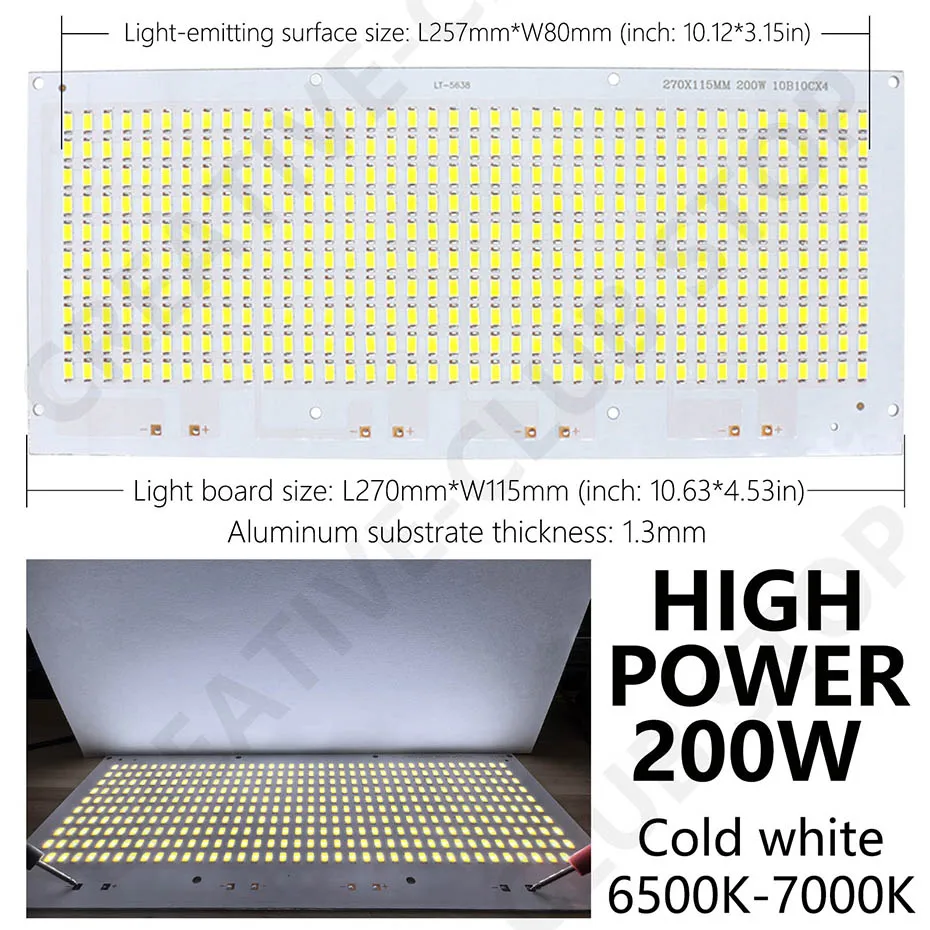

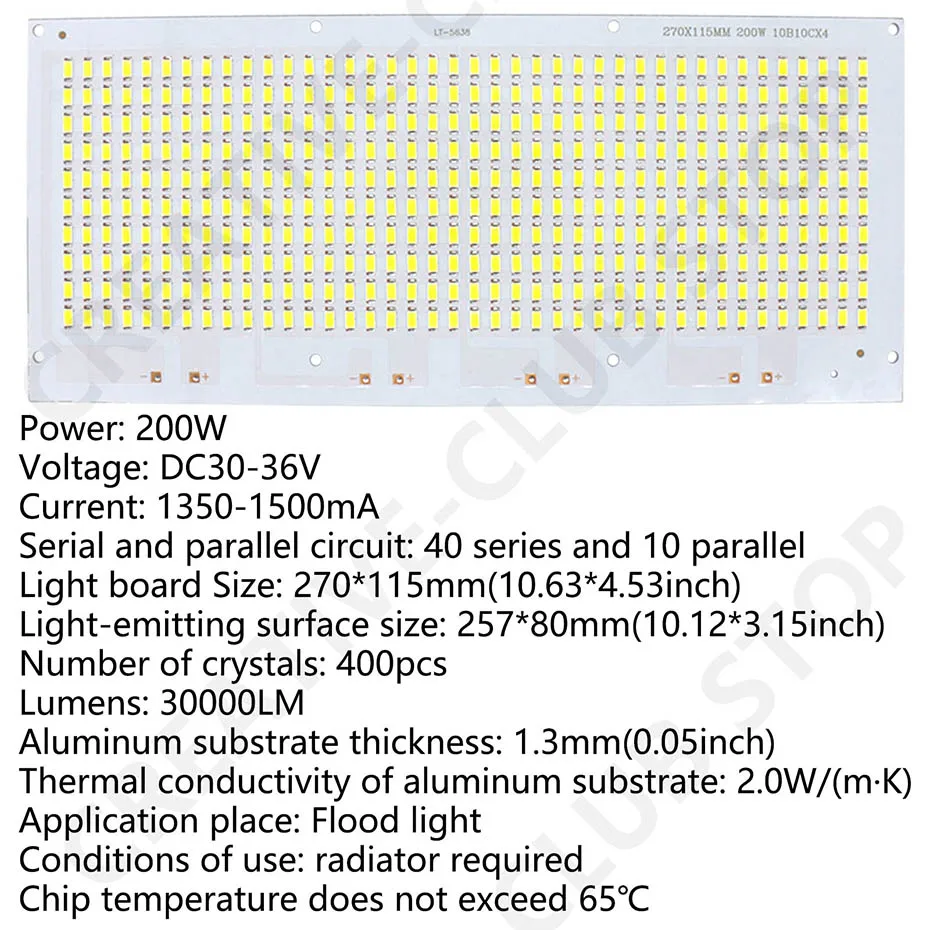

Power: 200W
Voltage: DC30-36V
Current: 1350-1500mA
Serial and parallel circuit: 40 series and 10 parallel
Light board Size: 270*115mm(10.63*4.53inch)
Light-emitting surface size: 257*80mm(10.12*3.15inch)
Number of crystals: 400pcs
Lumens: 30000LM
Aluminum substrate thickness: 1.3mm(0.05inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
200W LED requires 4 sets of 50W (DC30-32V/1350-1450mA) LED drivers
200 watt chip/usage tips - please note:
If it is a set of 50W drivers working, achieving 25% brightness
If two sets of 50W drive zones work together to achieve 50% brightness
If 3 sets of 50W drive zones work together to achieve 75% brightness
If 4 sets of 50W drive zones work together to achieve 100% brightness
,
