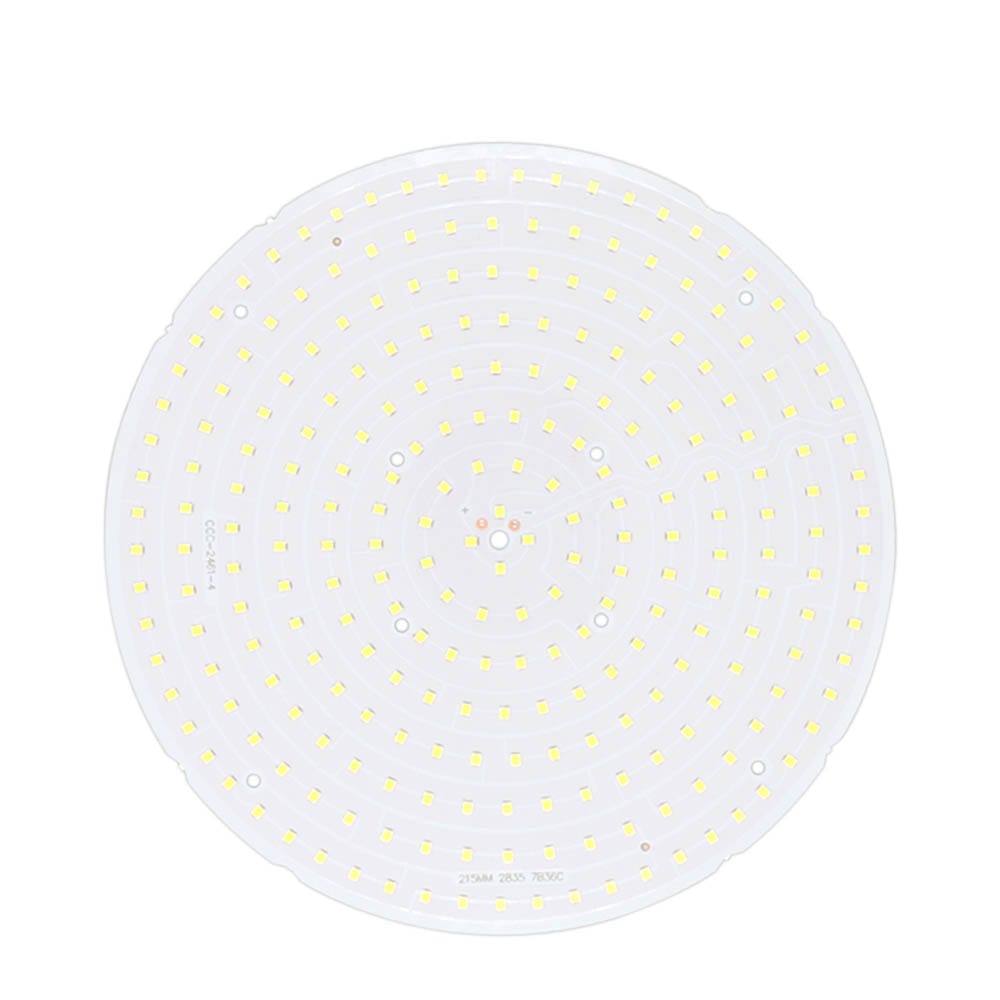

LED Lamp Beads Light board 10W 15W 22W 32W Led Tube Light 250mA Module Led For Ceiling Lights Dimmable Round Ceiling Panel Light
Product Details
Lamp bead model: SMD2835
Power: 10W
Voltage: DC30-32V
Current: 250mA±5%
Serial and parallel circuit: 11 series and 5 parallel
Size: Φ93mm(3.66*inch)
Crystal size: 15*30mil
Number of crystals: 55pcs
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Conditions of use: need a heat sink, need LED constant current drive
Chip temperature does not exceed 65℃
Lamp bead model: SMD2835
Power: 15W
Voltage: DC48-51V
Current: 250mA±5%
Serial and parallel circuit: 18 series and 5 parallel
Size: Φ115mm(4.53inch)
Crystal size: 15*30mil
Number of crystals: 90pcs
Crystal name: Epistar chip
Lumens: 1500LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Conditions of use: need a heat sink, need LED constant current drive
Chip temperature does not exceed 65℃

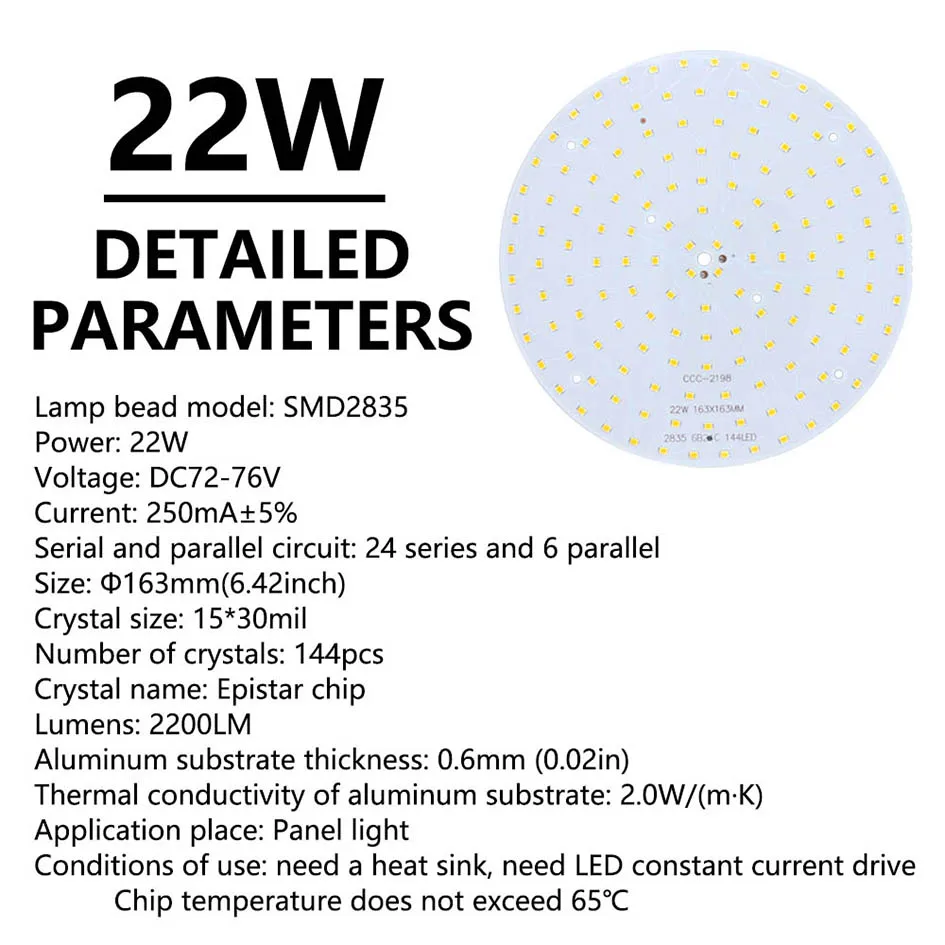

Lamp bead model: SMD2835
Power: 22W
Voltage: DC72-76V
Current: 250mA±5%
Serial and parallel circuit: 24 series and 6 parallel
Size: Φ163mm(6.42inch)
Crystal size: 15*30mil
Number of crystals: 144pcs
Crystal name: Epistar chip
Lumens: 2200LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Conditions of use: need a heat sink, need LED constant current drive
Chip temperature does not exceed 65℃

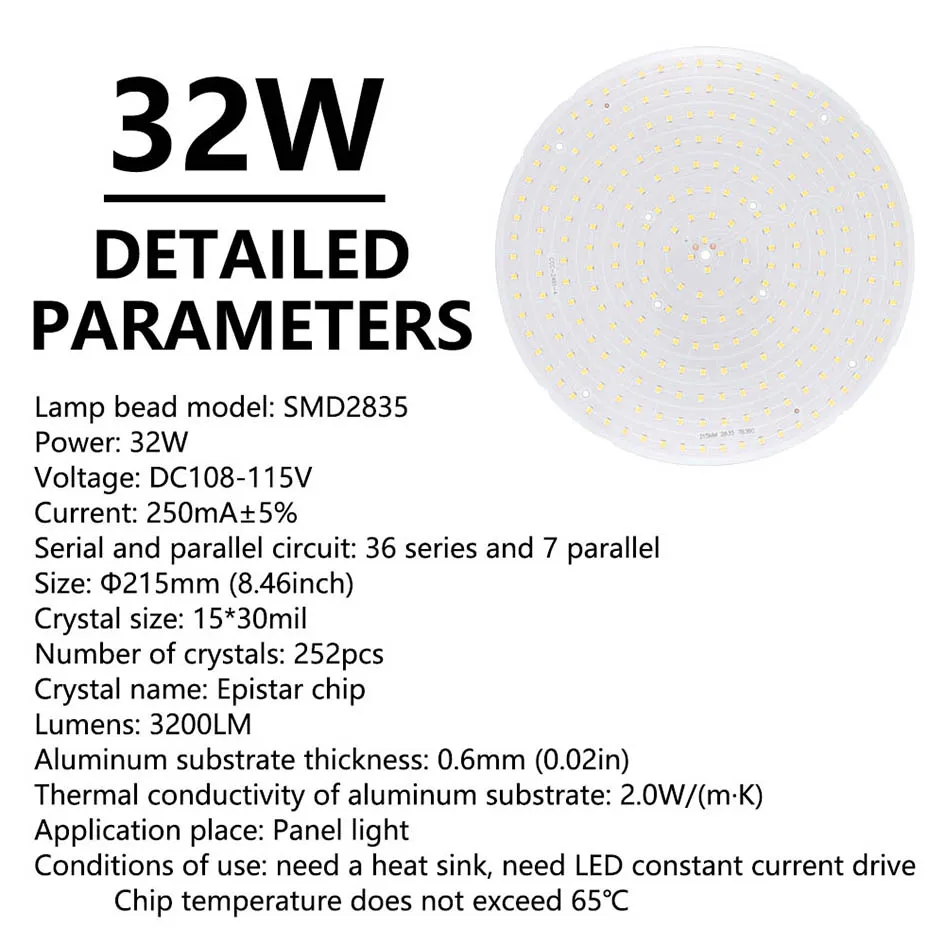

Lamp bead model: SMD2835
Power: 32W
Voltage: DC108-115V
Current: 250mA±5%
Serial and parallel circuit: 36 series and 7 parallel
Size: Φ215mm (8.46inch)
Crystal size: 15*30mil
Number of crystals: 252pcs
Crystal name: Epistar chip
Lumens: 3200LM
Aluminum substrate thickness: 0.6mm (0.02in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Panel light
Conditions of use: need a heat sink, need LED constant current drive
Chip temperature does not exceed 65℃
,
