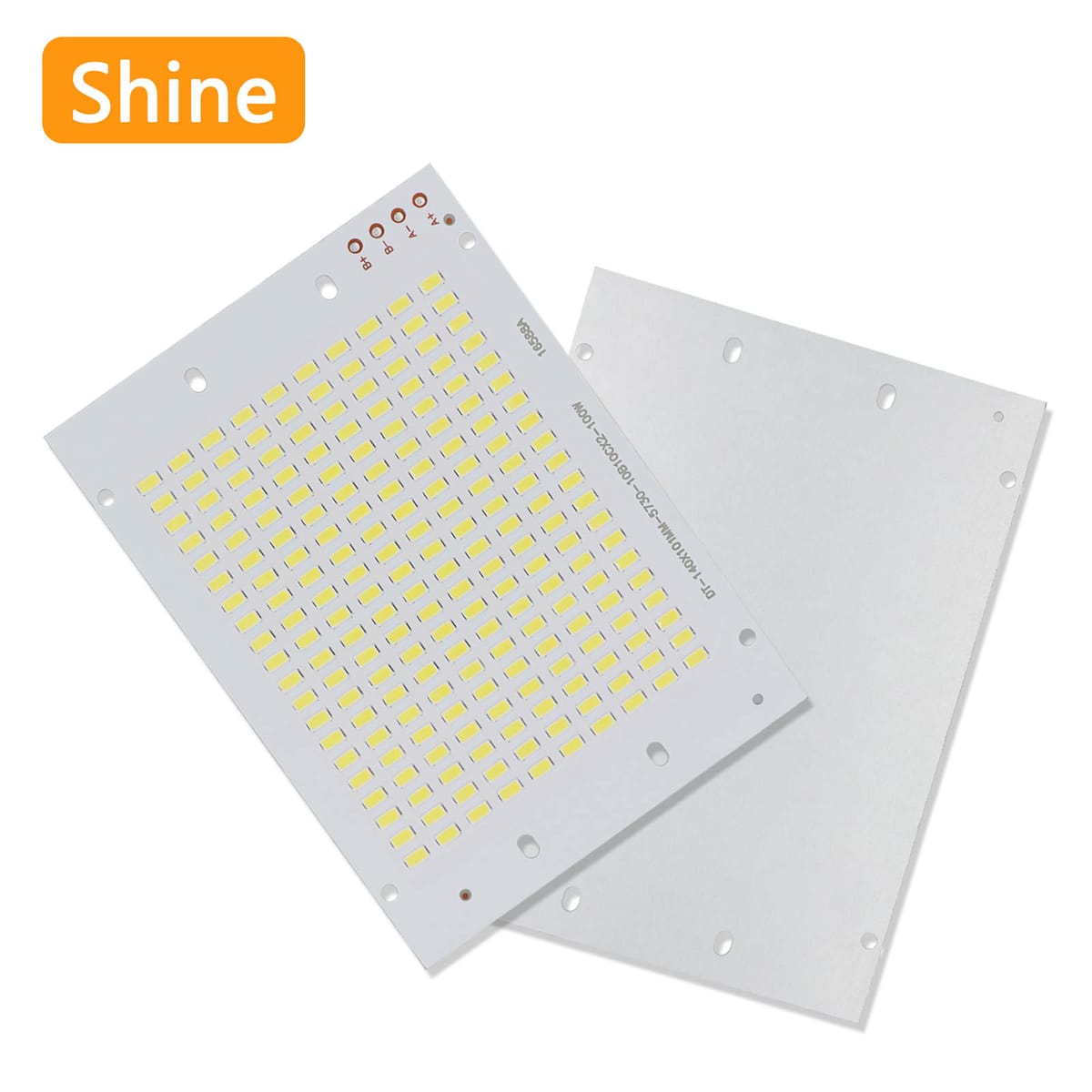

LED Floodlight 6500K SMD5730 LED Bead Aluminum Substrate 100W DC30-32V LED Billboard Courtyard Accessory Light Board
Product Details
100W
Power: 100W
Voltage: DC30-32V
Current: 1350-1450mA*2 Set
Serial and parallel circuit: 10 series and 10 parallel*2

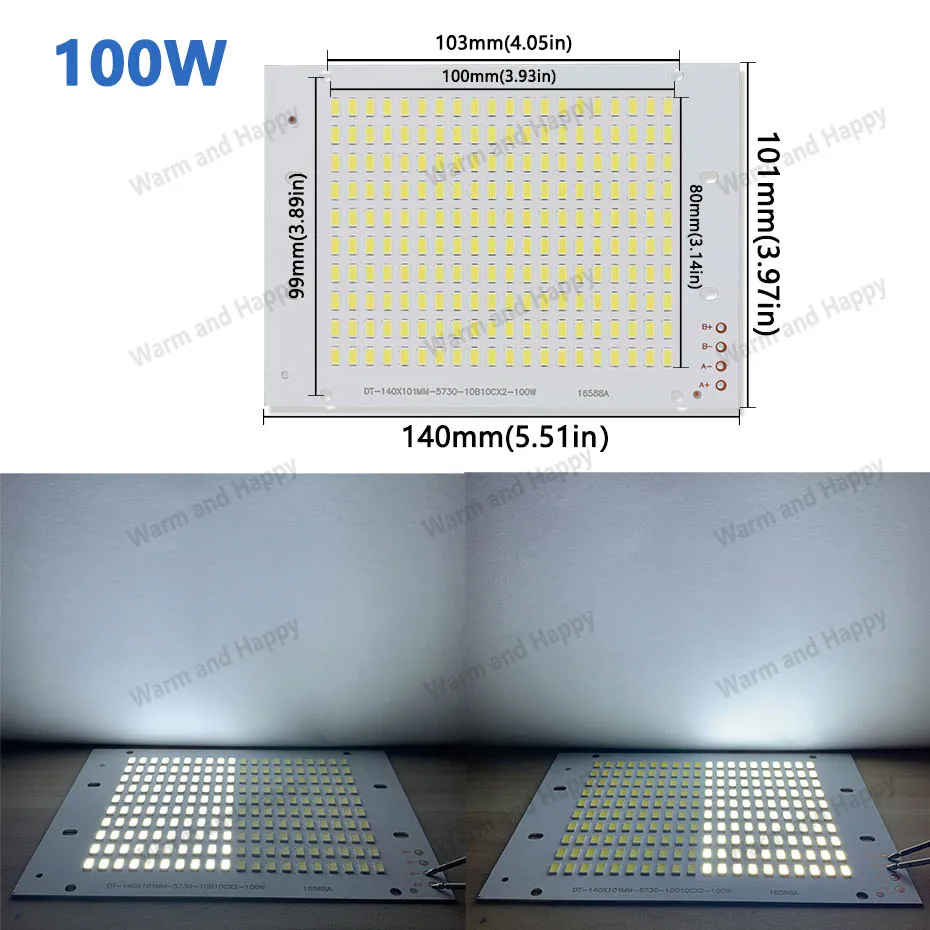

Size: 140*101mm (5.51*3.97in)
Chip crystal size: 17 * 34mil
Number of crystals: 200pcs
Lumens: 10000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)

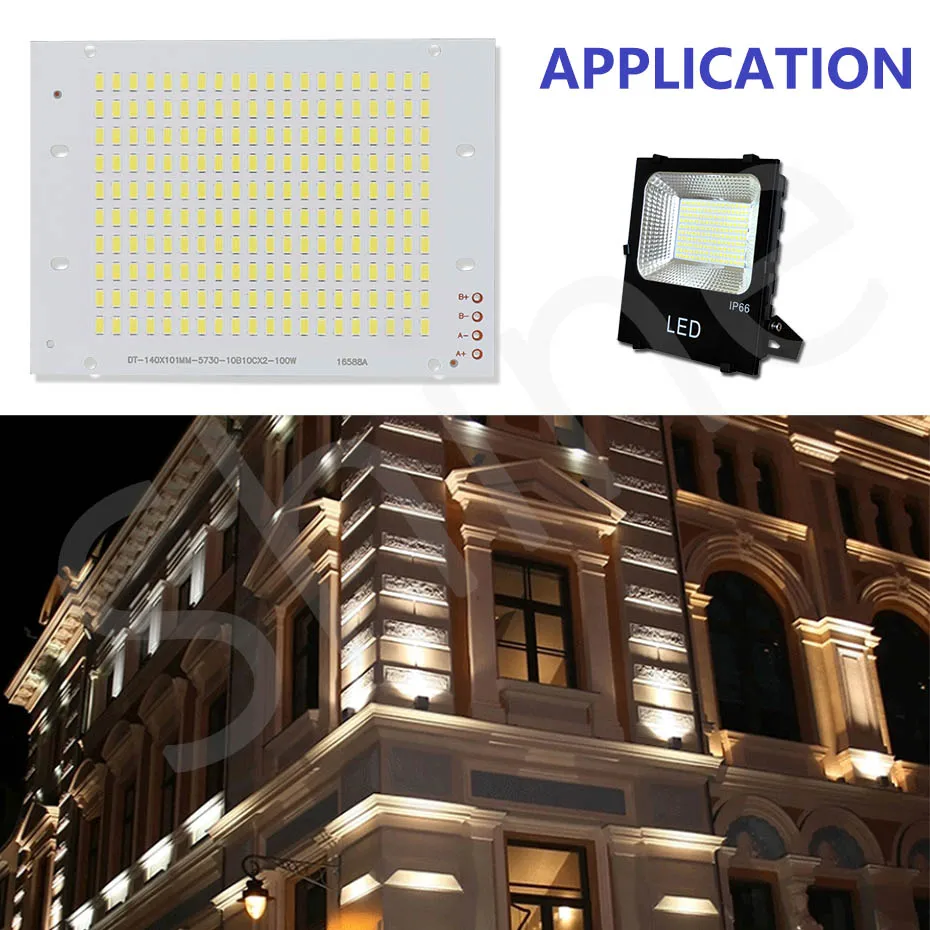

Application place: Flood light

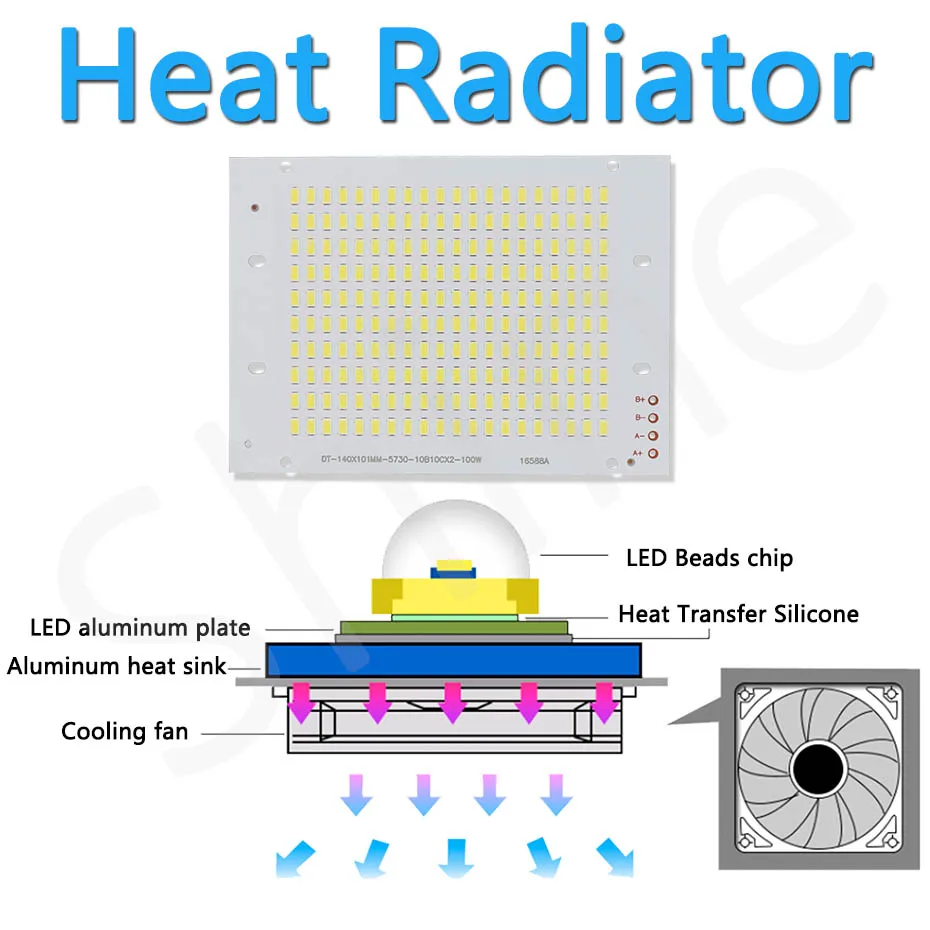

Conditions of use: radiator required
Chip temperature does not exceed 65℃

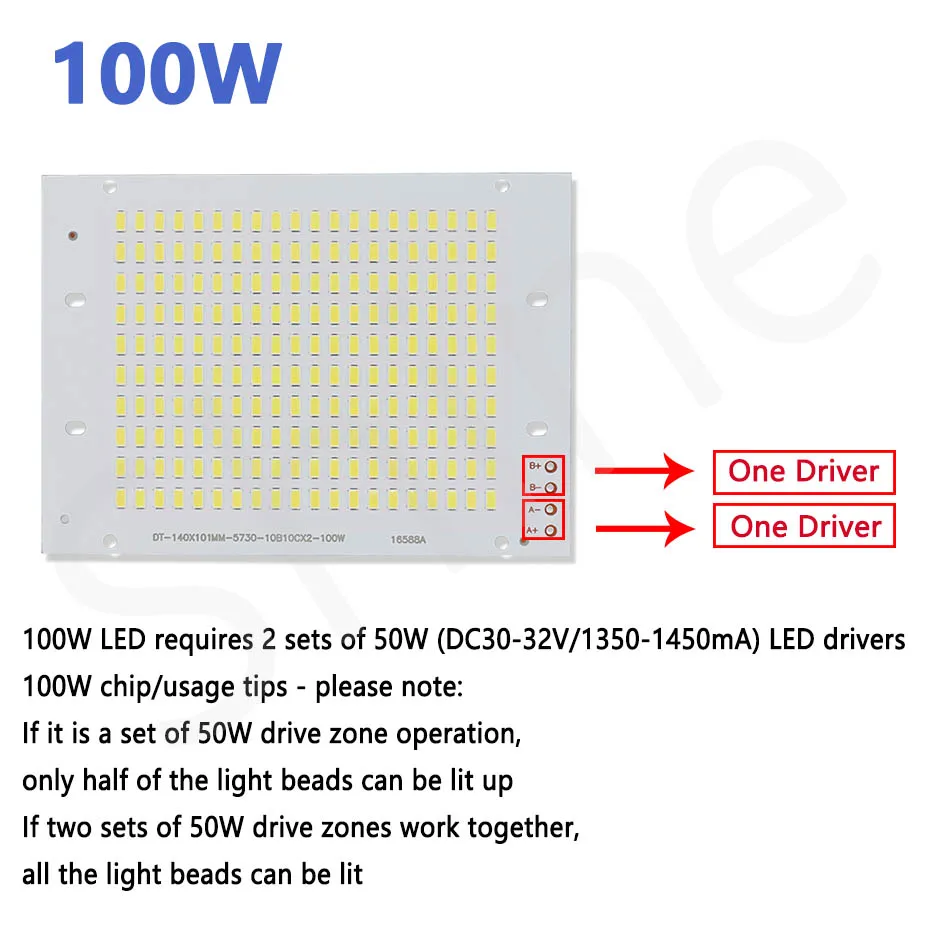

100W LED requires 2 sets of 50W (DC30-32V/1350-1450mA) LED drivers
100W chip/usage tips - please note:
If it is a set of 50W drive zone operation, only half of the light beads can be lit up
If two sets of 50W drive zones work together, all the light beads can be lit
,
