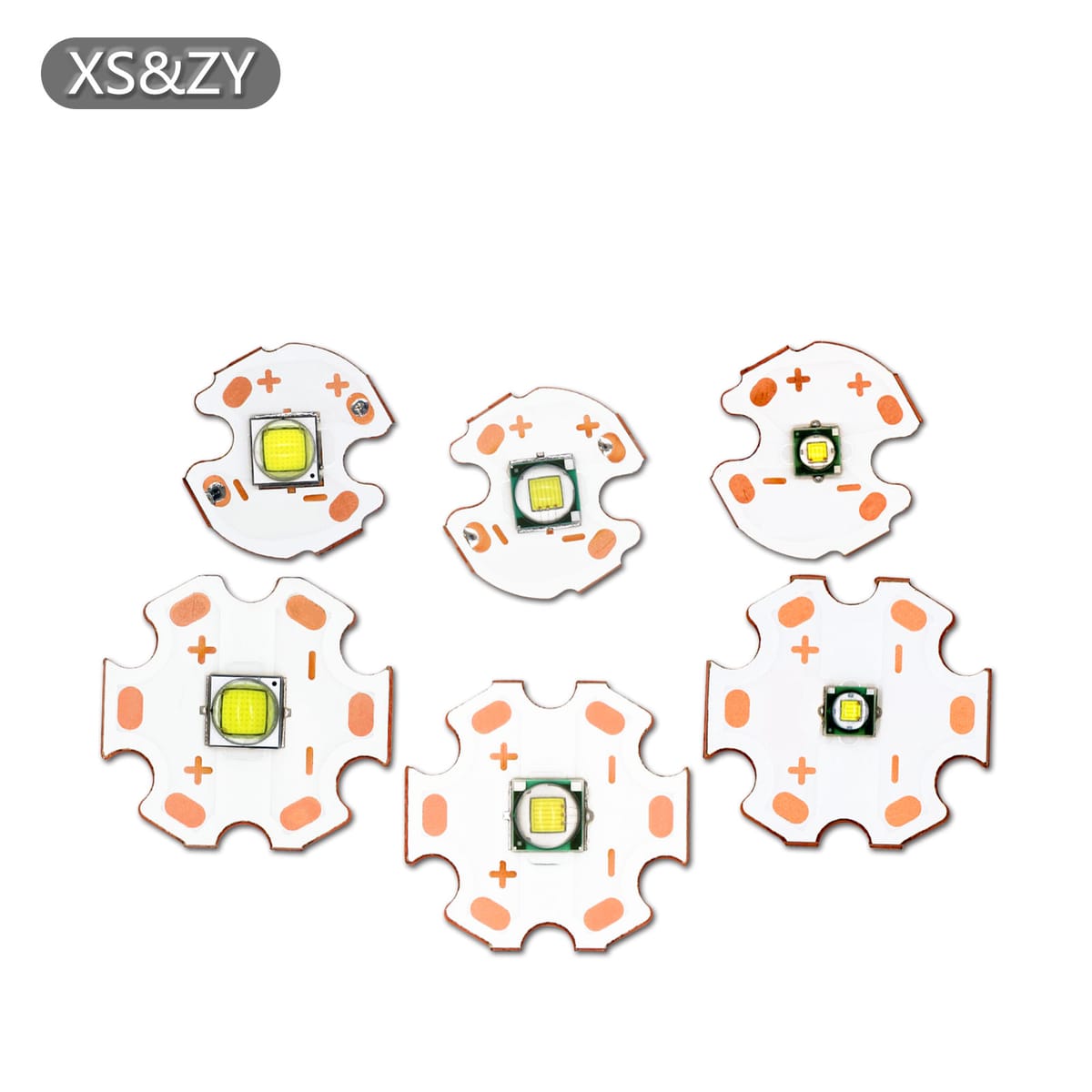

LED Flashlight Bead White 6500K 1-3W 5W 10W 80mil 16mm 20mm Copper Substrate For Flashlight Lighting Fixtures Bead Accessories

LED Flashlight Beads

Power: 1-3W/5W/10W

Voltage: DC3.0-3.4V/DC3.4-3.6V/DC3.4-3.8V

Current: 350-700mA/1000-1500mA/1500-2500mA

Color: White 6500K

Lumen: 120-360ML/600ML/1200ML

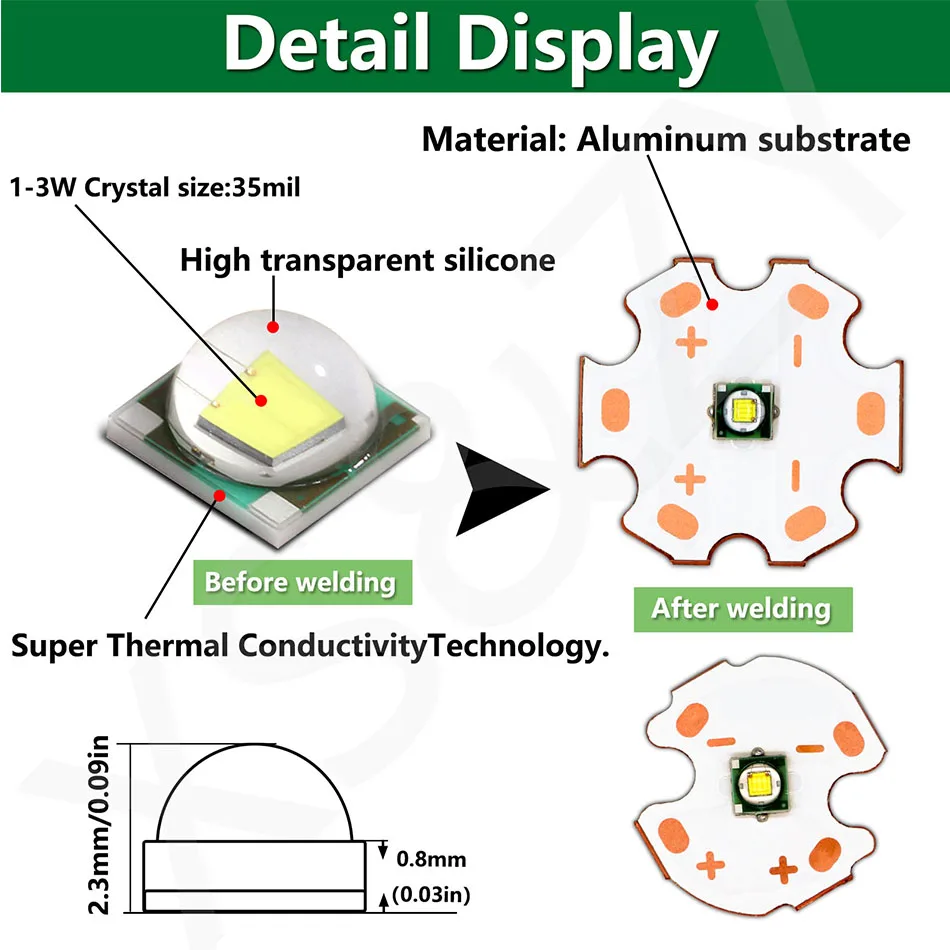

Chip size: 1-3W:35*35mil/5W:65*65mil/10W:80*80mil

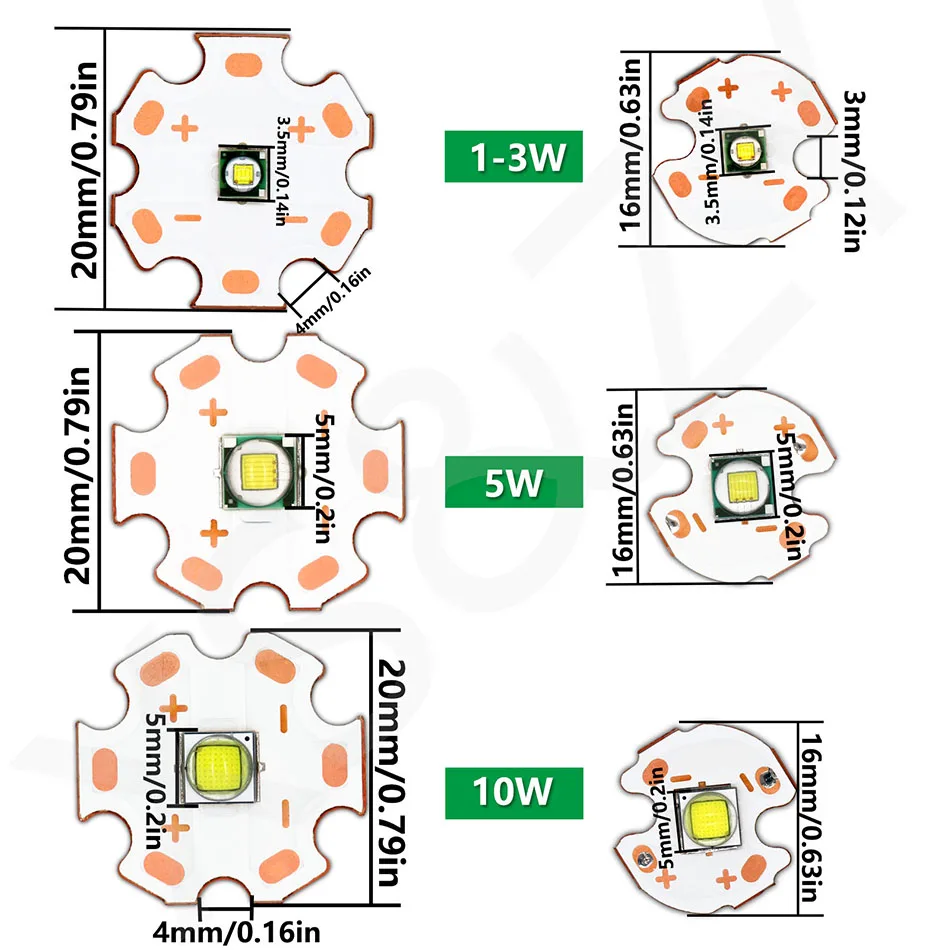

Lamp bead size: 16mm/20mm

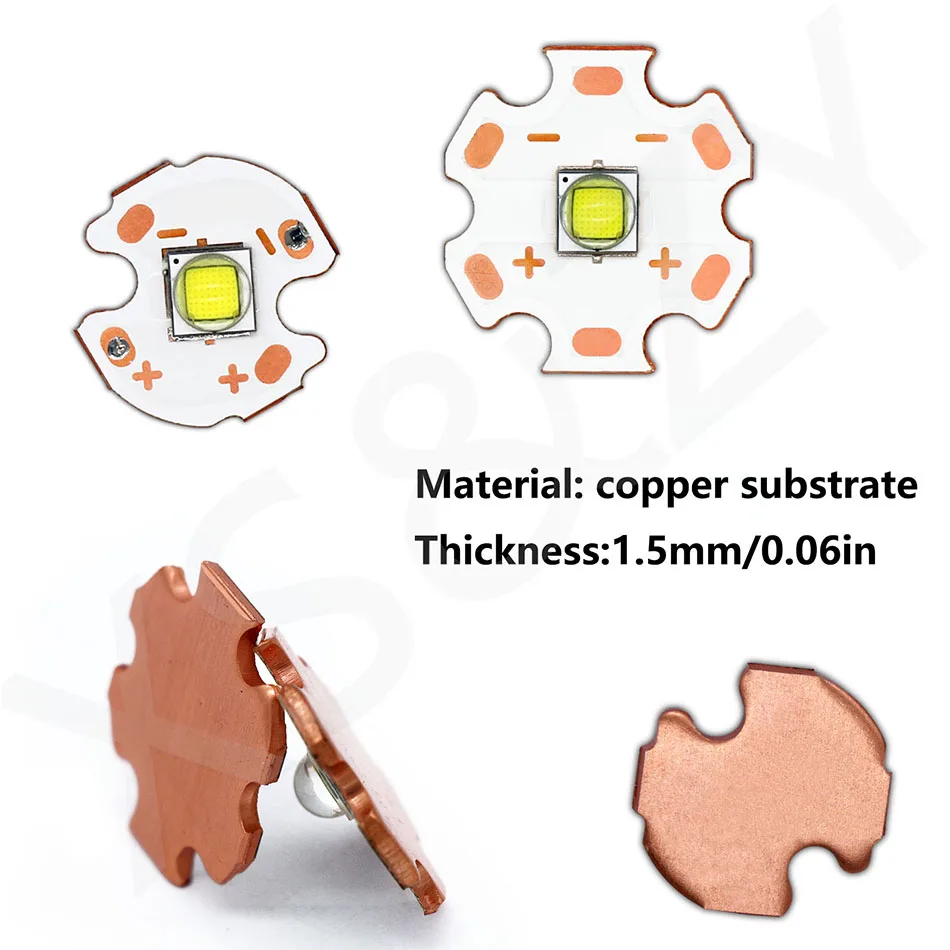

Material: copper substrate 1.5mm

Working conditions: LED requires a heat sink,

and the temperature of the lamp beads cannot exceed 65 ℃

Welding temperature: The temperature of the electric soldering iron is 350 ℃,

and the completion of welding is ≤ 2 seconds

,
