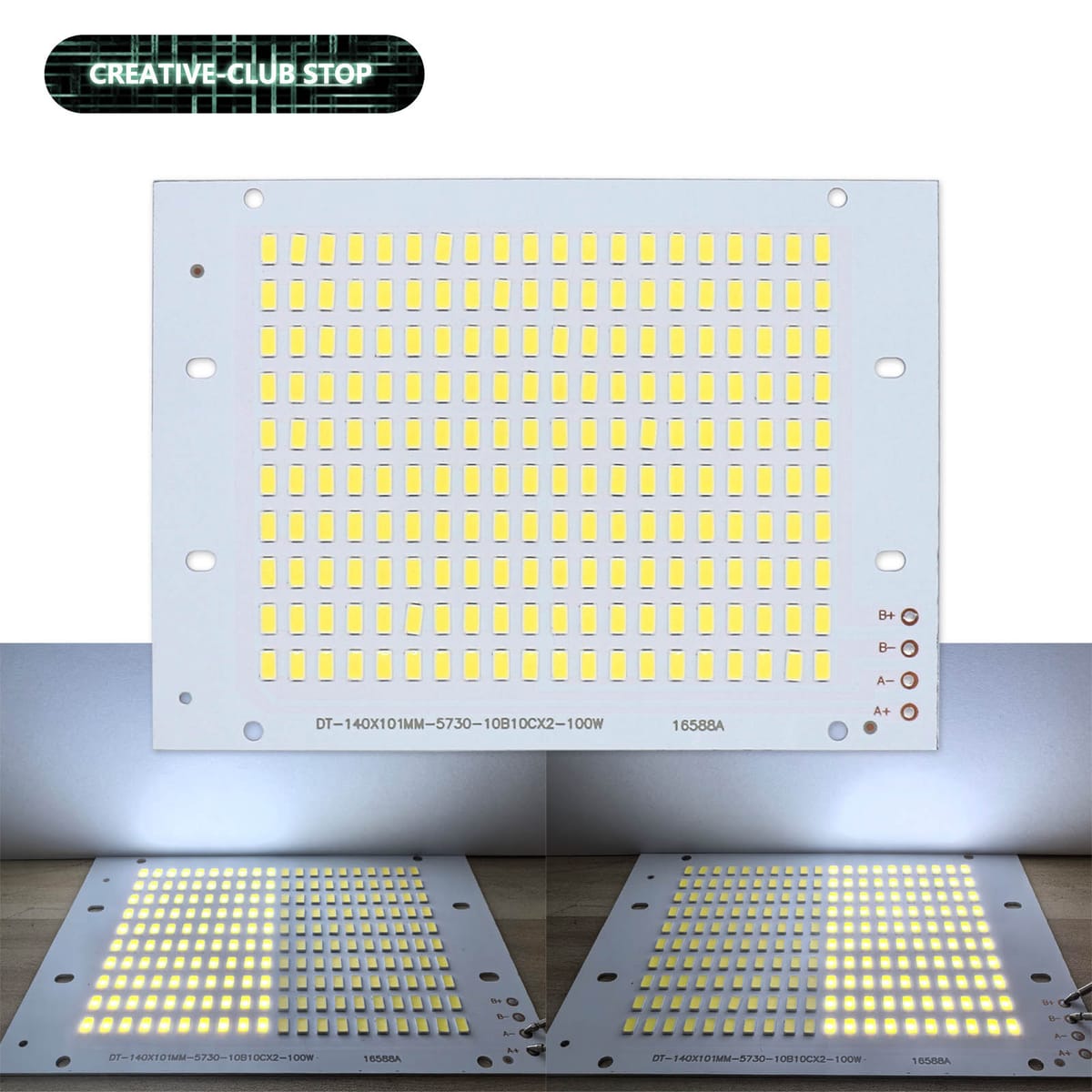

LED Diode 5730 Light Lamp Beads 100W Large chip 17*34mil Lamp Panel PCB High Brightness Lamp Board Suitable For DIY Light Source
Product details
Power: 100W
Voltage: DC30-33V
Current: 1500mA*2set
Serial and parallel circuit: 10 series and 10 parallel*2
Size: 140*101mm(5.51*3.98inch)
Light-emitting surface size: 101*79mm(3.97*3.11inch)
Number of crystals: 200pcs
Lumens: 15000LM
Aluminum substrate thickness: 1mm(0.06inch)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
100W LED requires 2 sets of 50W (DC30-32V/1350-1450mA) LED drivers
100W chip/usage tips - please note:
If it is a set of 50W drive zone operation, only half of the light beads can be lit up
If two sets of 50W drive zones work together, all the light beads can be lit
,
