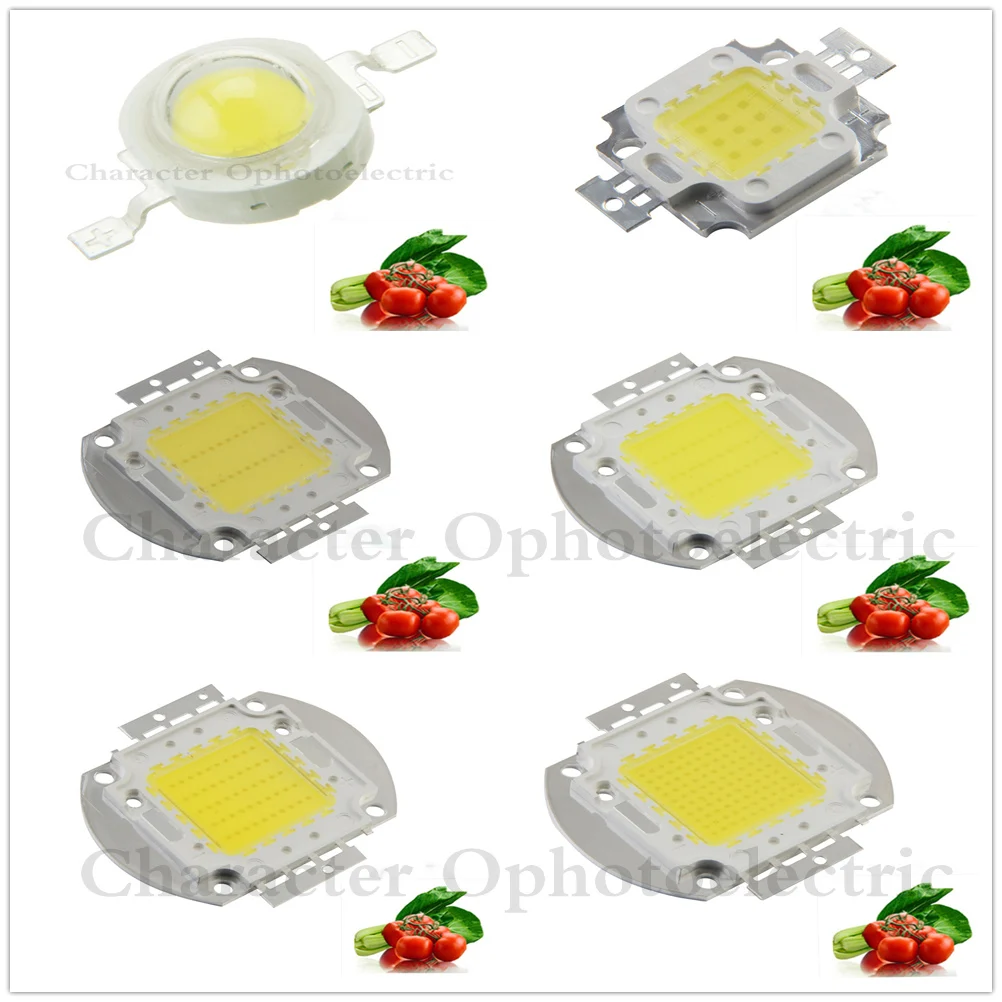

LED COB Chip Full Spectrum 400-840nm Cool White DIY Aquarium Lamp Bulbs For 1W 3W 5W 10W 20W 30W 50W 100W Light Beads

LED COB Chip Full Spectrum 400-840nm Cool White DIY Aquarium Lamp Bulbs For 1W 3W 5W 10W 20W 30W 50W 100W Light Beads

for indoor plant growing and lighting,but also can applies to landscape lighting.

Name Emitting Color Power Voltage Current Lumen LED Chip

Full Spectrum

(380-840nm)

White 1W 3.0-3.4V 300-350mA 100-120LM 30x30mil

3W 3.0-3.4V 600-700mA 220-260LM 45x45mil

5W 6-7V 600-700mA 450-500LM 45x45mil

10W 9-11V 900mA 1000-1100LM 45x45mil

20W 30-34V 600mA 2000-2200LM 45x45mil

30W 30-34V 900mA 3000-3300LM 45x45mil

50W 30-34V 1500mA 5000-5500LM 45x45mil

100W 30-34V 3000mA 10000-11000LM 45x45mil

1. Product Name: LED Full spectrum chip for plant growth

2. Rated Power: 1W / 3W / 5W / 10W / 20W / 30W / 50W / 100W

3. Chip Brand:Epistar

4. Chip Size: 30mil/45mil

5. Lighting Colors: Full spectrum white

6. Color Wavelength: 380-840Nm

7. Current: 300-350mA(1W),600-700mA(3W/5W/20W), 900-1000mA(10W/30W),1500mA(50W),3000mA(100W)

8. Voltage: 3.0V-3.4V(1W/3W),6V-7V(5W),9V-11V(10W),30V-34V(20W/30W/50W/100W)

9. Beam Angle: 120 degree

10. Sealing Material: 2-99%Golden Wires, Copper bracke

11. Working life: 50000hrs

12. Operating temperature: -30 to +85 degree centigrade

13. Welding temperature: 120°Centigrade in 5 second

,
