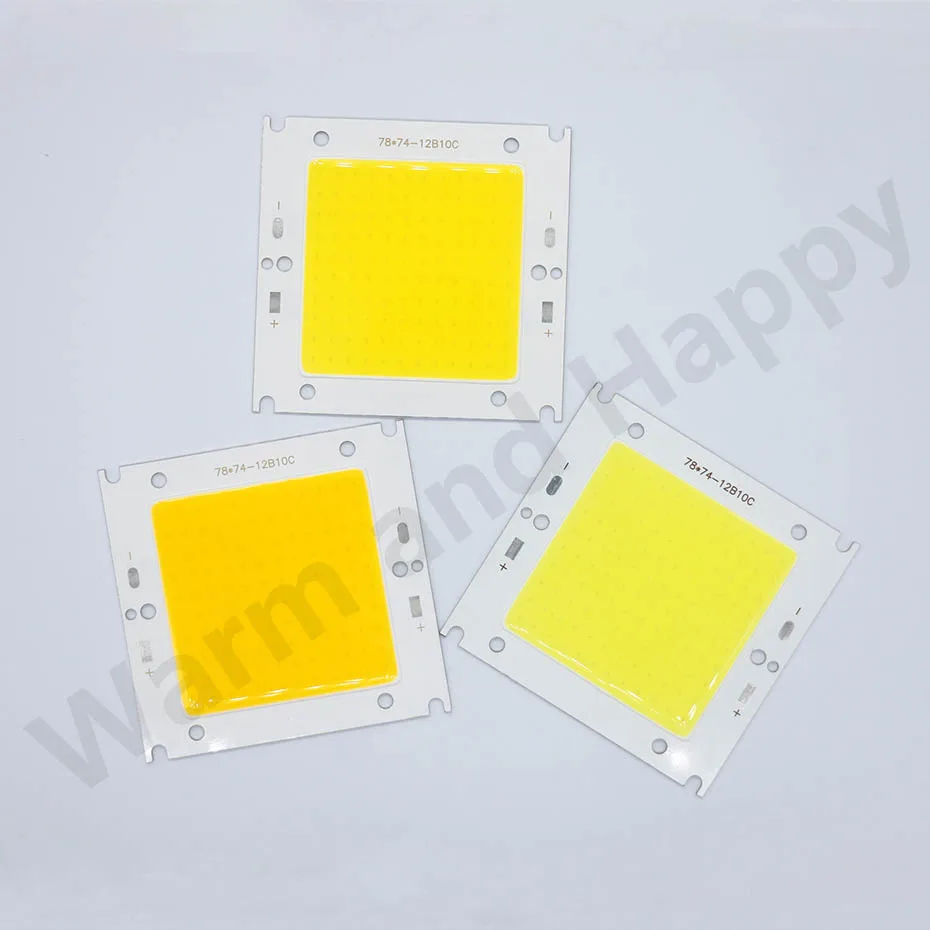

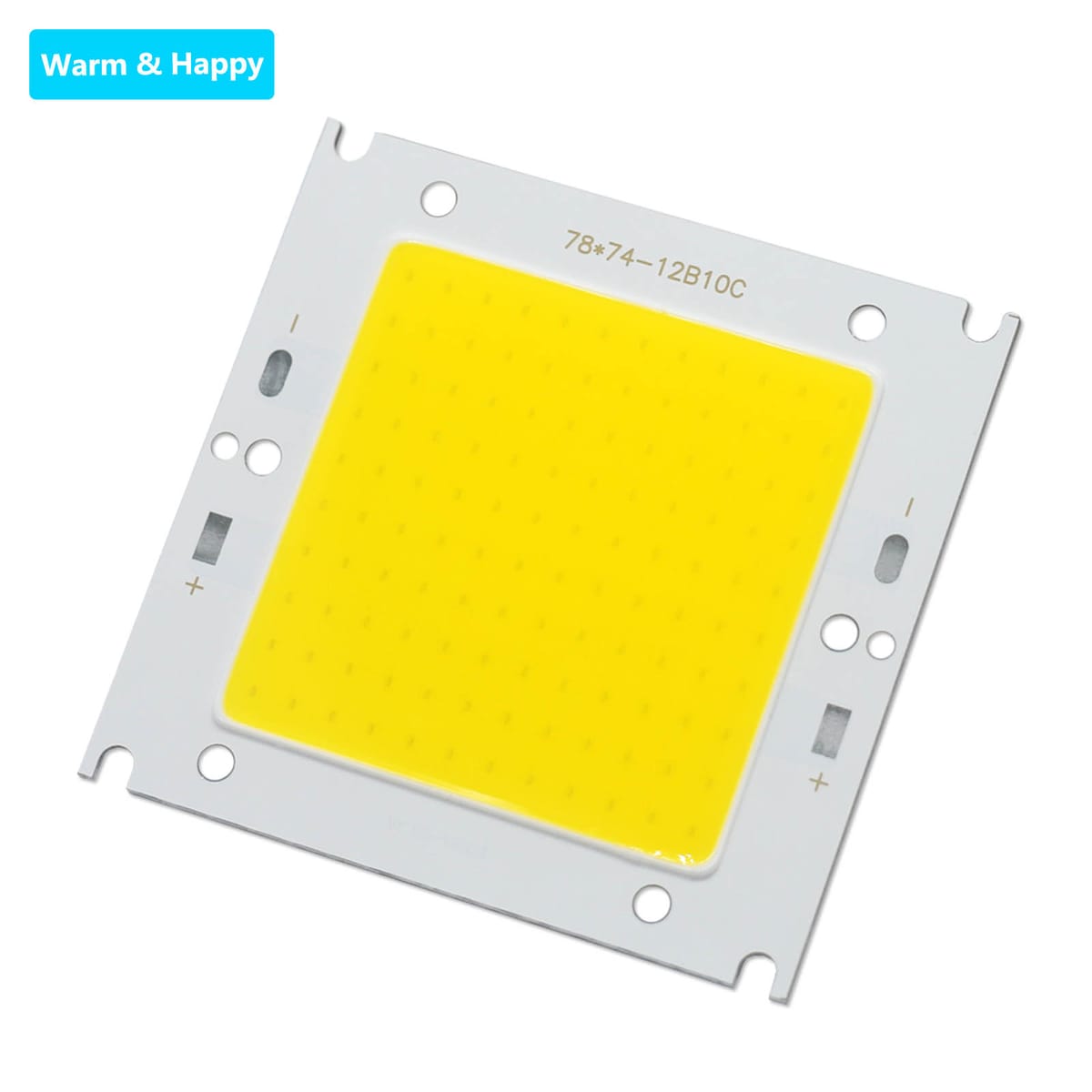

LED COB Chip 50W DC30-32V LED Bead 1400-1500mA Cold White Natural White Warm White Three Sizes Stage Bar Outdoor Lighting DIY
Specifications
Model: No.7370
Power: 50W
Series Parallel: 12B10C
Voltage: DC30-32V
Current: 1400-1500mA
Lumen: 80lm/w
Display Value: Ra ≥ 70
Chip Crystal Size: 10 * 21mil
Number of lamp beads: 120pcs
Material: Aluminum
Thickness:1mm

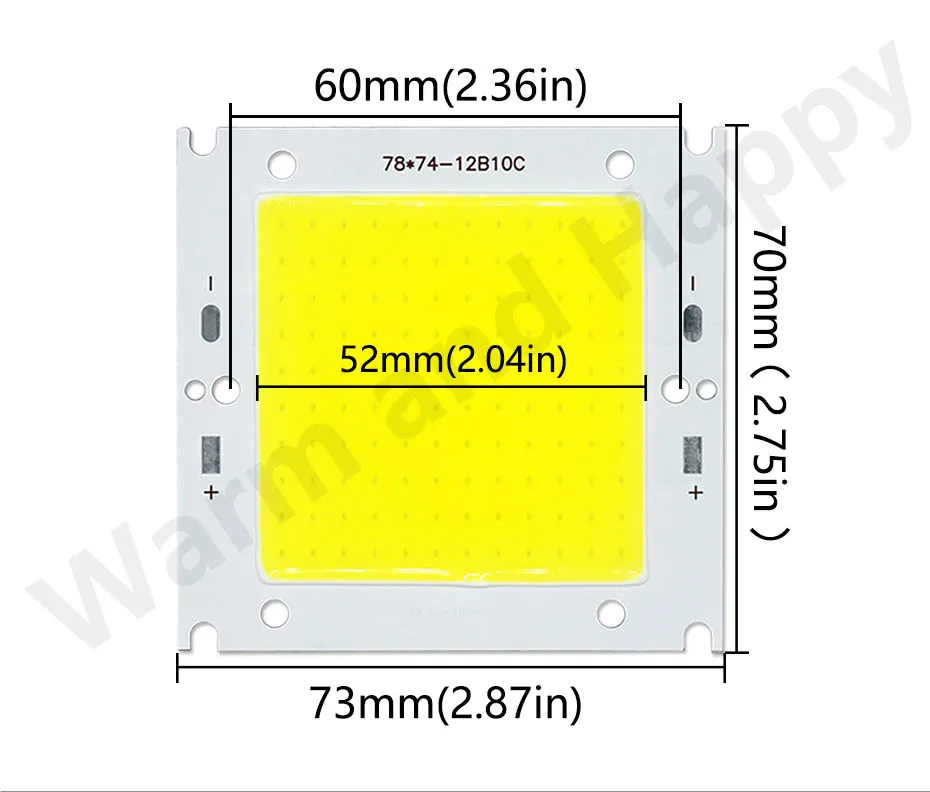

Out Size: 73*70mm
Luminous Surface Size: 52mm

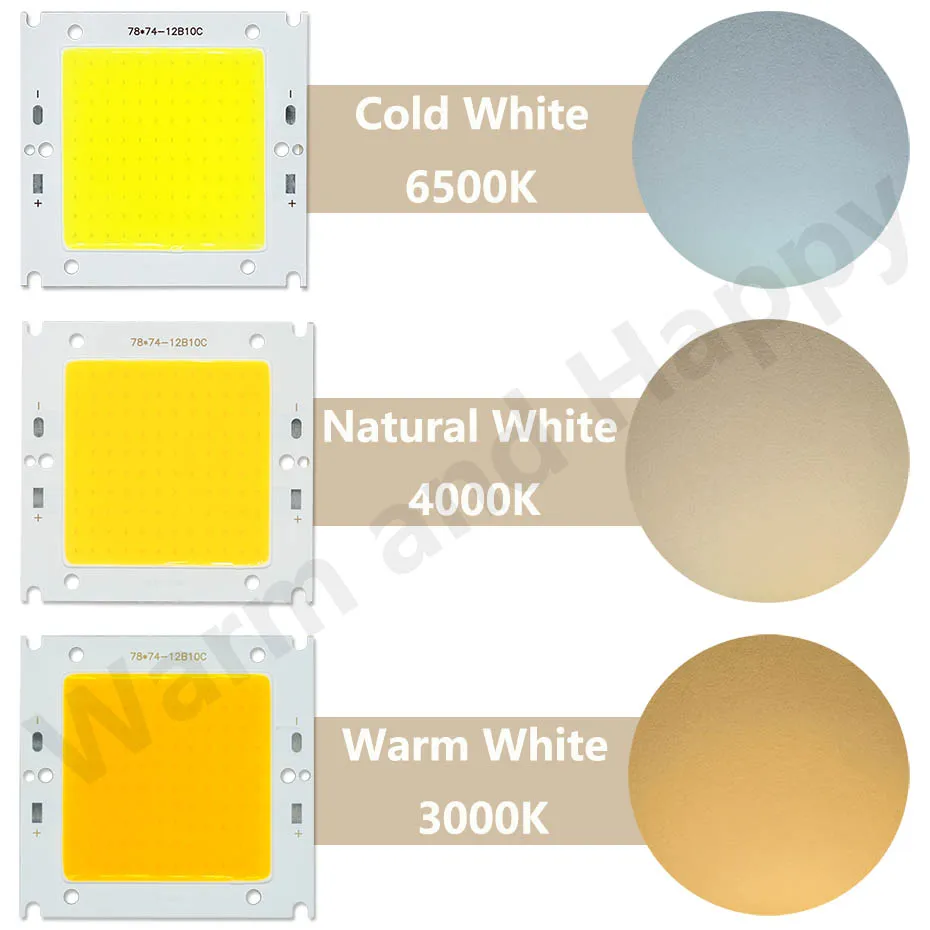

Color: Cold white/Natural White/Warm white
Thermal conductivity: Aluminum plate 2W/M · K
Application location: Stage lights, Holiday Lighting, Bars, Outdoor Landscape ighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
,
