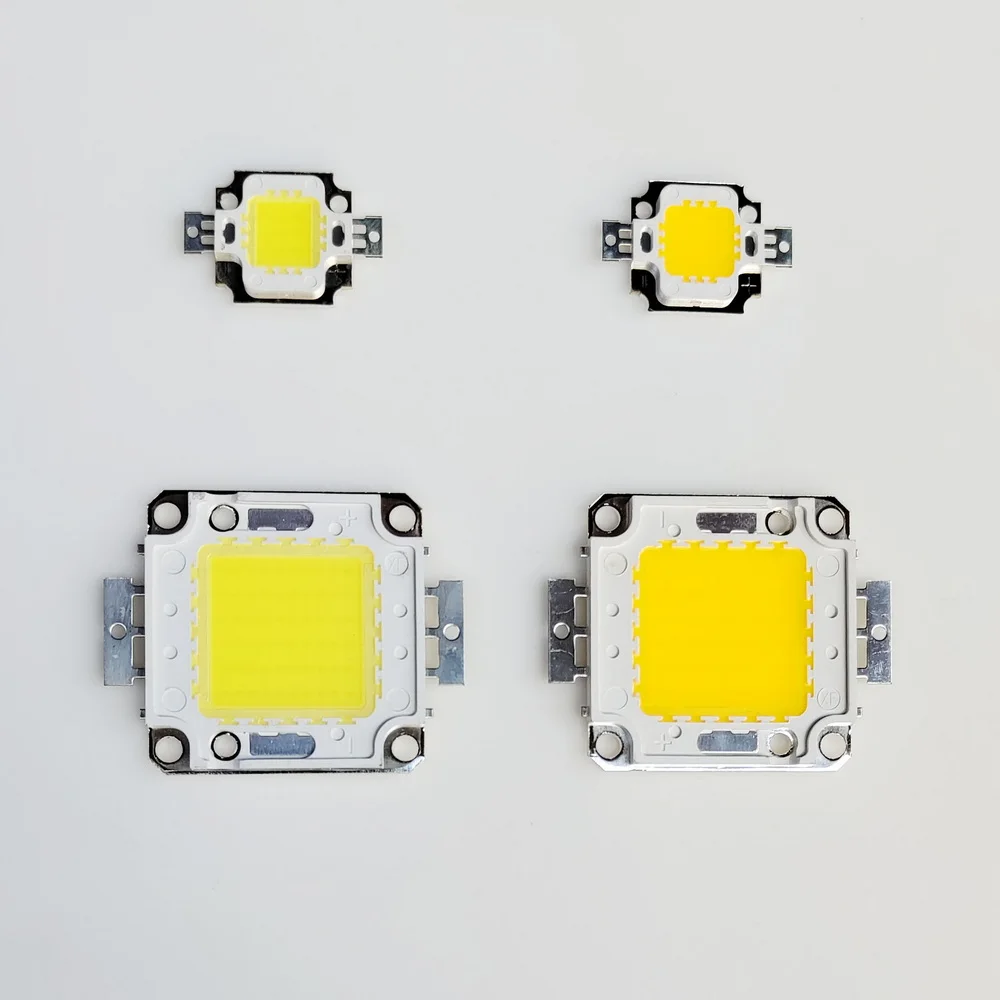

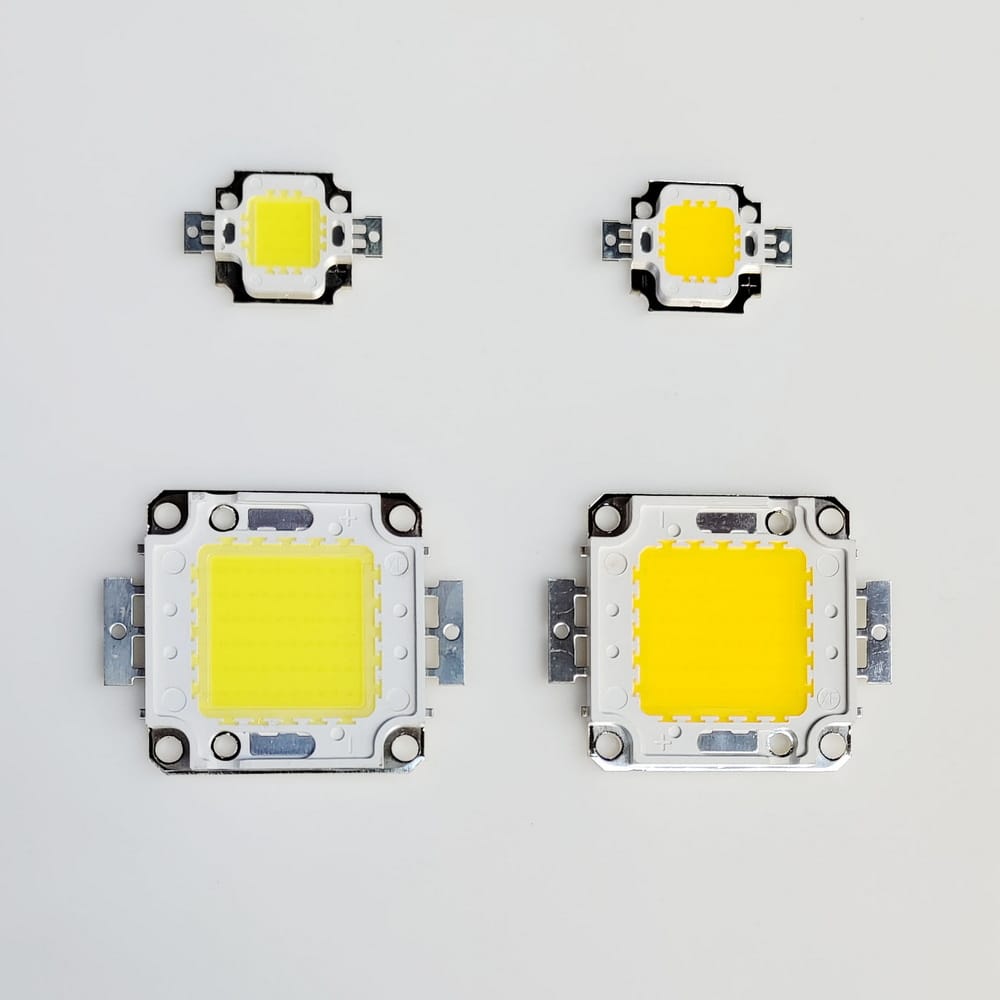

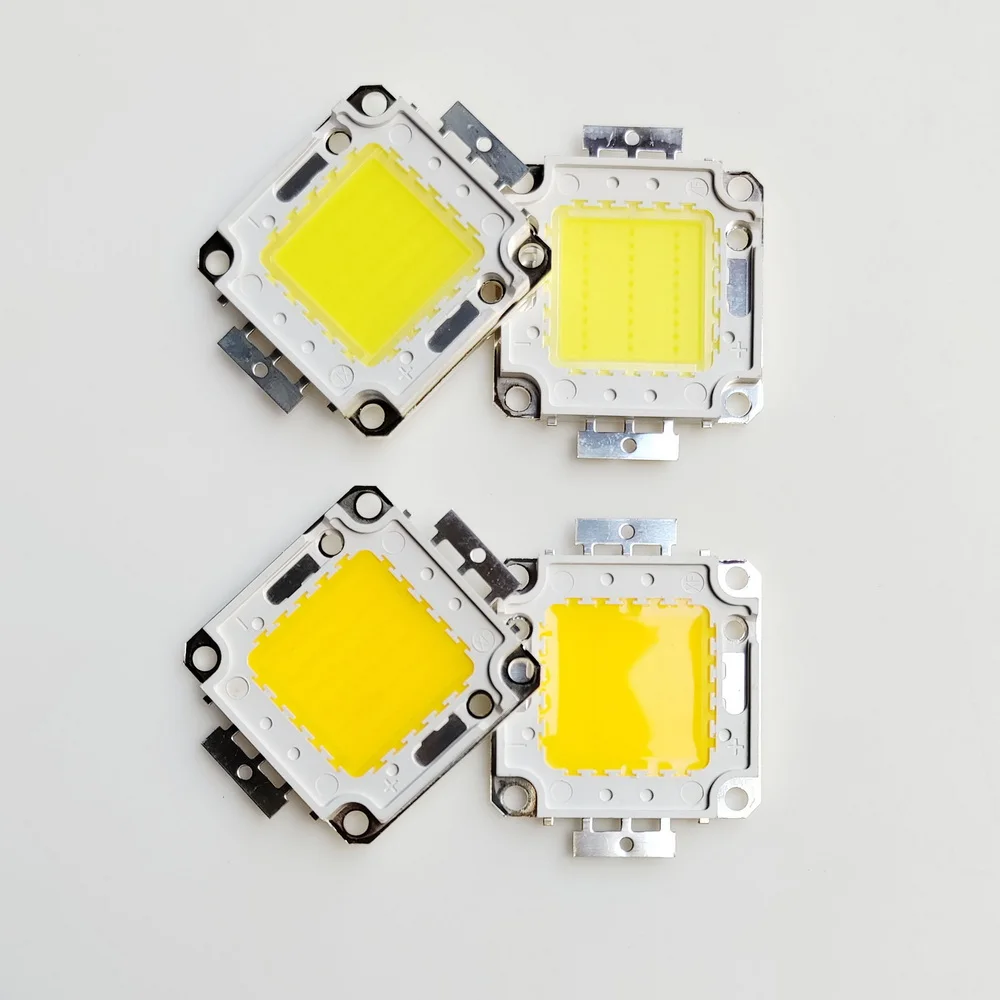

LED COB Chip 10W 20W 30W 50W 70W 100W 29-36V High Power Integrated LED Beads DIY Lighting Accessories For FloodLight Spotlight
LED COB Chip 10W 20W 30W 50W 70W 100W 29-36V High Power Integrated LED Beads DIY Lighting Accessories For FloodLight Spotlight
Product parameters
1. Power: 10W20W/30W/50W/70W/100W
2. 10W/20W/30W/50W/70W/100W Input voltage: DC29-36V
3. Input current:
10W：200-300MA
20W：400-600MA
30W：600-900MA
50W：1200-1500MA
70W：1500-2100MA
100W：2100-3000MA

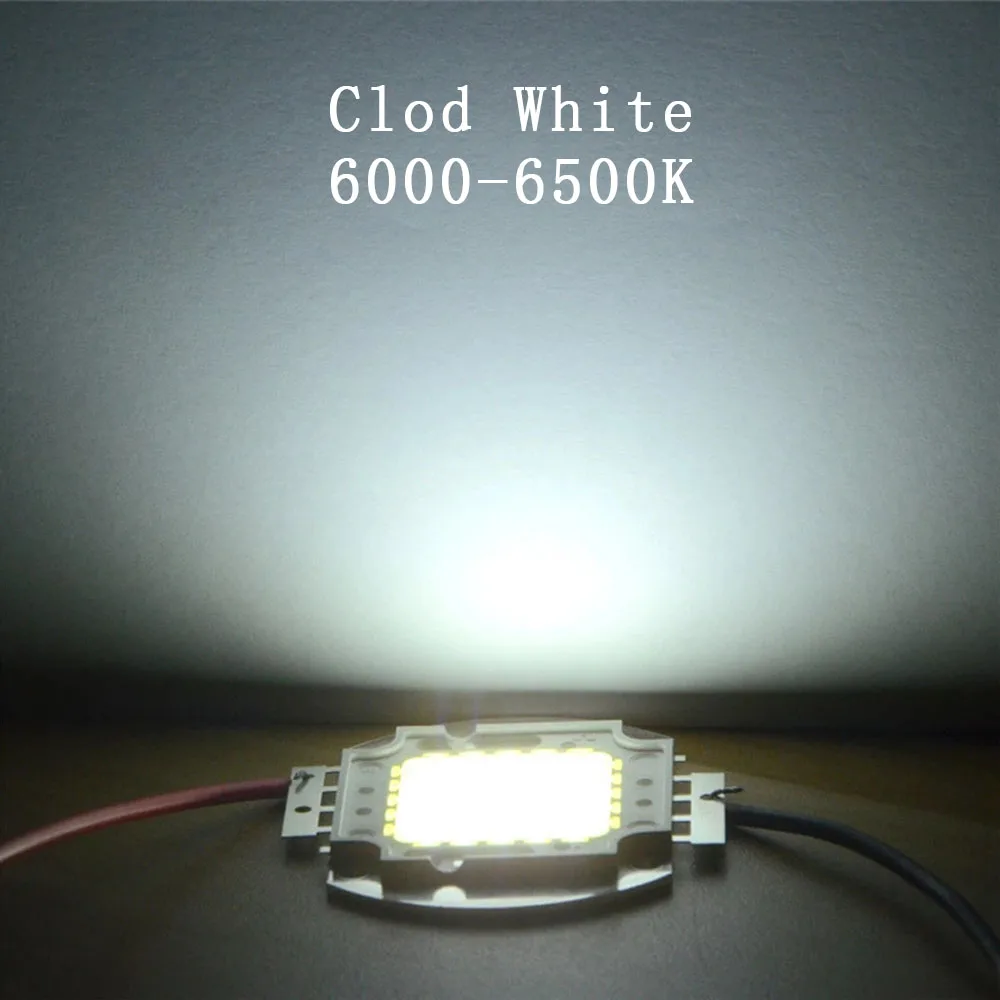

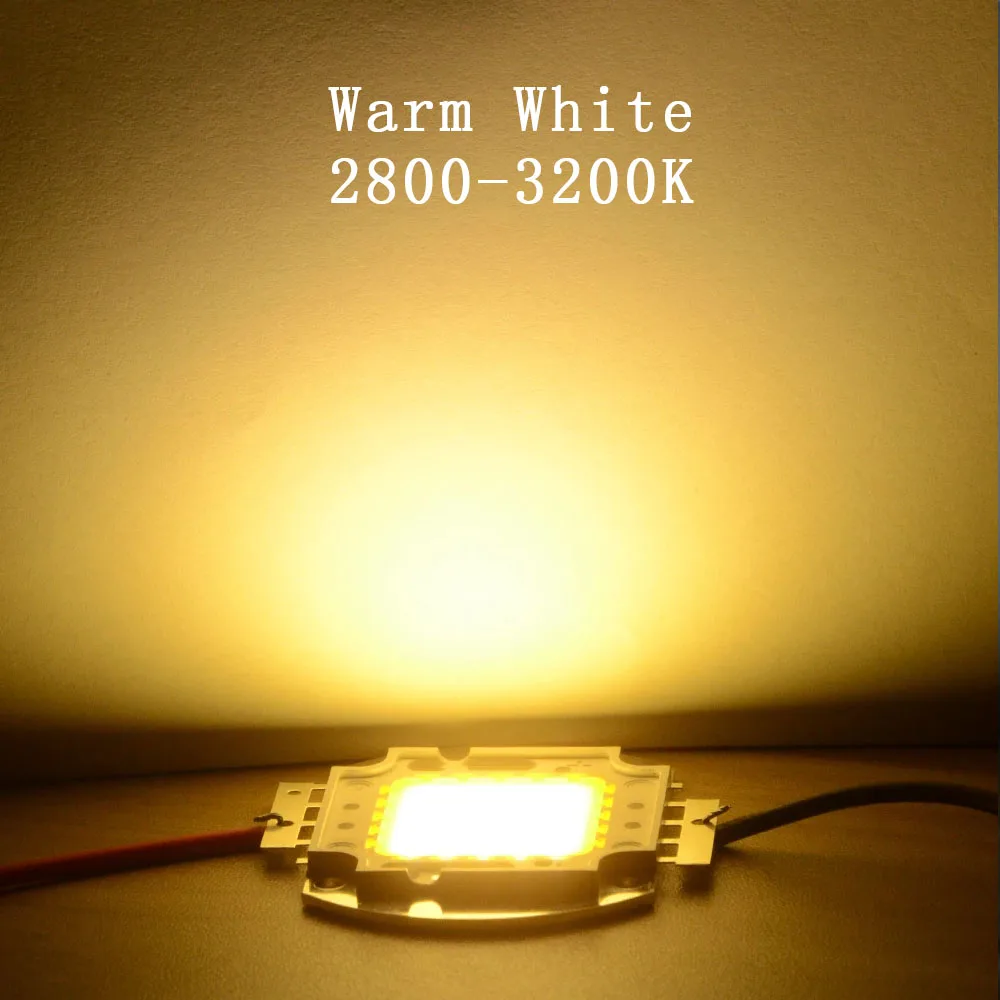

4. Color: Clod White(6000-6500K)/Warm White(2800-3200K)

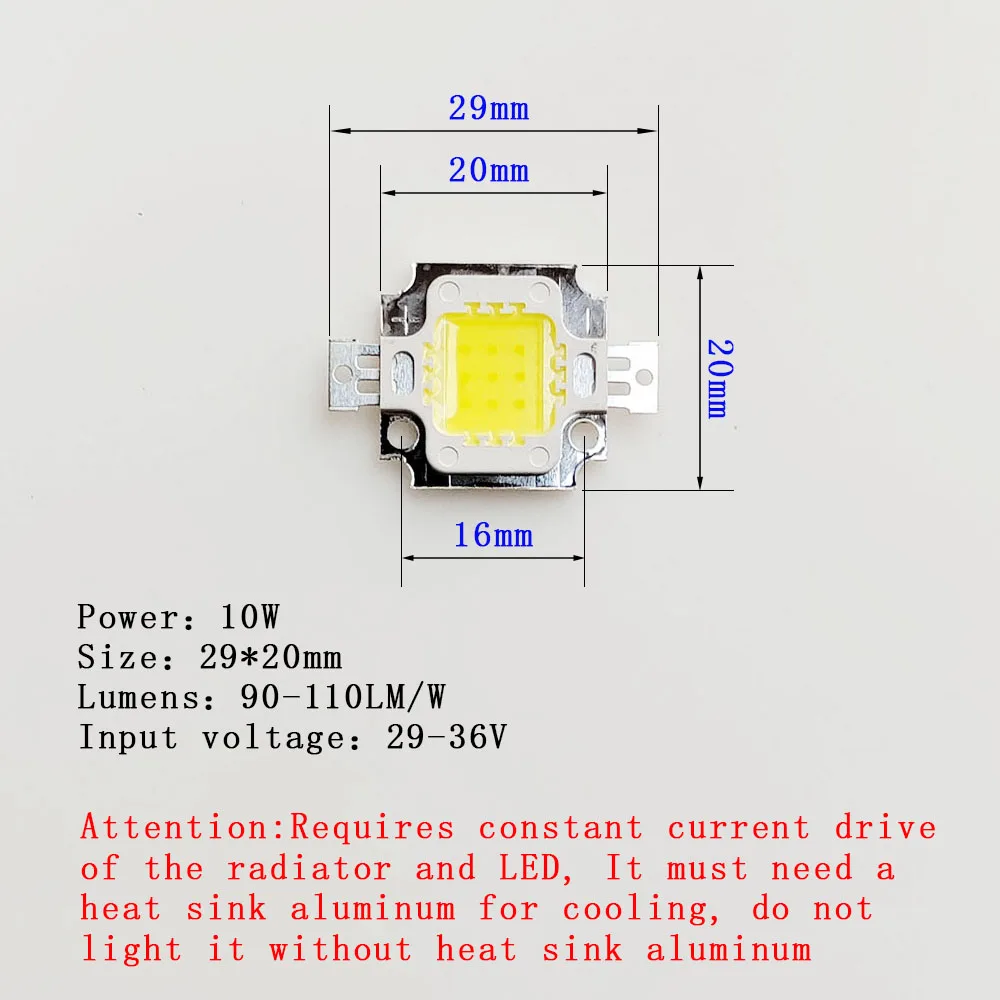

5. 10W Size:29*20mm
6. 10W Luminous area：11*11mm

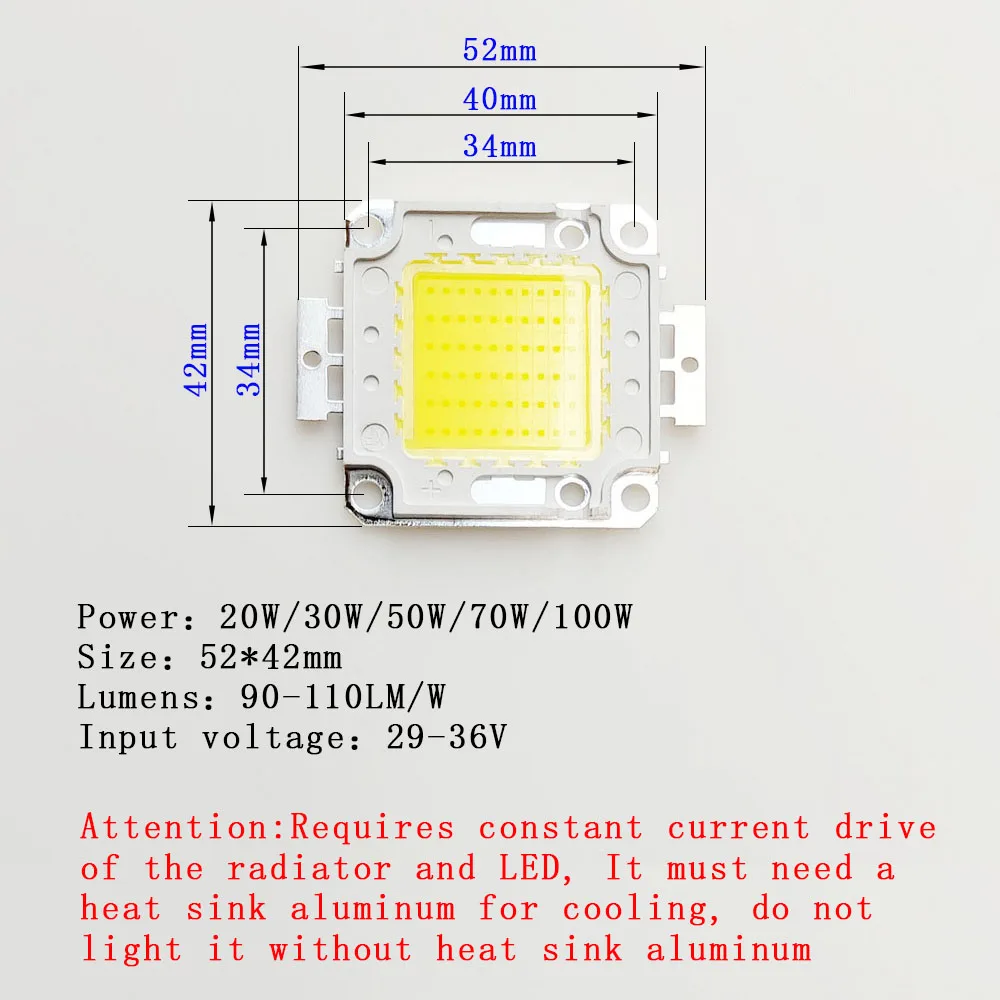

7. 20W/30W/50W/70W/100W Size:42*52mm
8. 20W/30W/50W/70W/100W Luminous area：25*25mm
9. Lumens: 90-110 LM / W
10. Time life: 50,000 hours

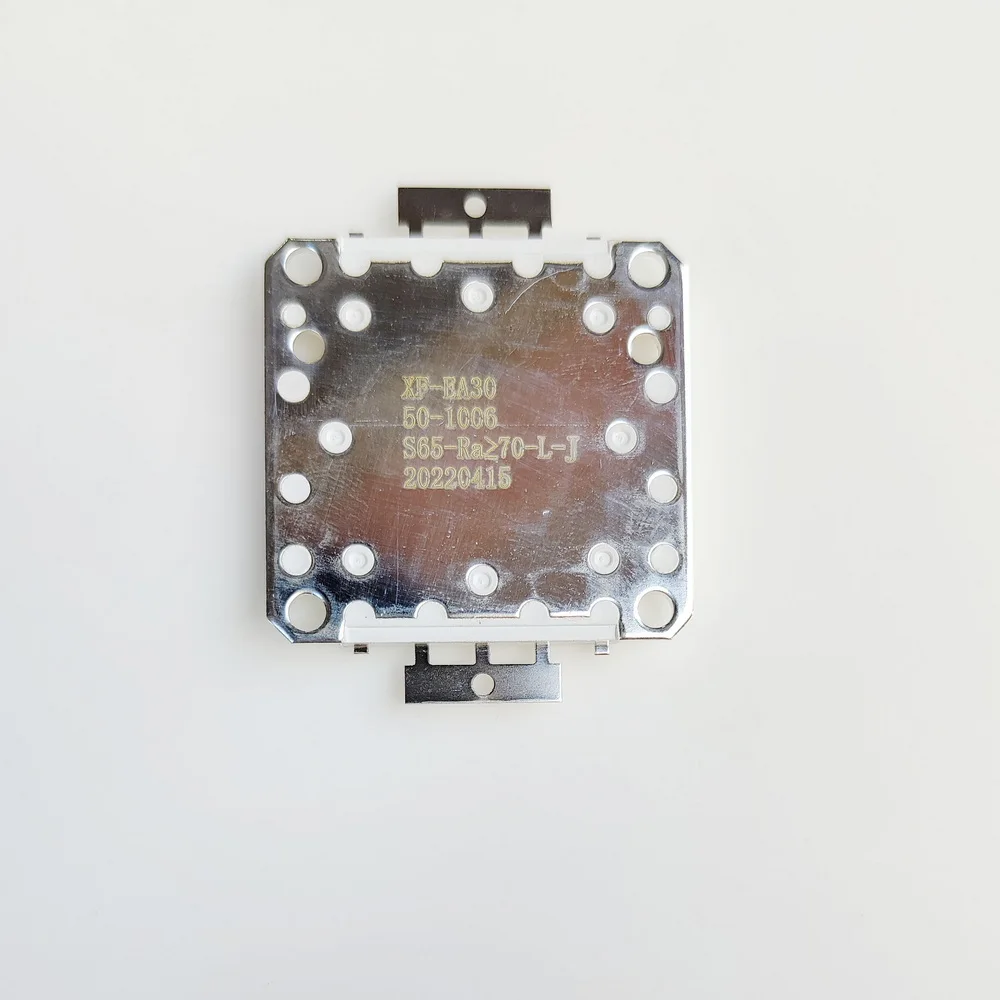

11. Material: Copper bracket
12. Applicable scenes: spotlights, spotlights, DIY headlights, backlights, square lights, advertising lights, street lights, garden lights, outdoor lighting chips.
13. Conditions of use: Requires constant current drive of the radiator and LED, It must need a heat sink aluminum for cooling, do not light it without heat sink aluminum
,
