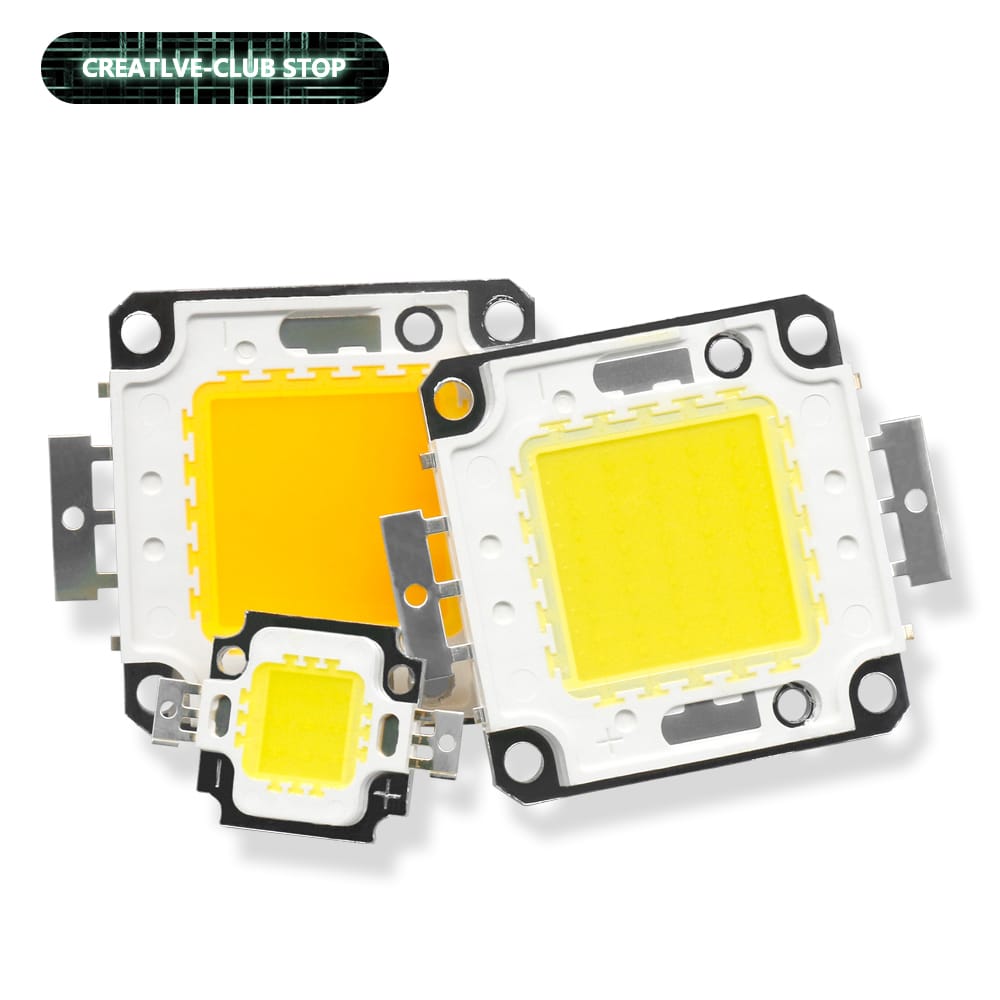

LED Chip Beads 10W 20W 30W 1.5mm Thickness Backlight Diode Lamps Cold Warm White LED Matrix For DIY Flood Light Bulbs Spotlights
Product details
1. Power: 10W20W/30W/50W
2. 10W Input voltage: DC9-12V
3. 20W/30W/50W Input voltage: DC30-36V
4. Input current: 10W 400-900mA/20W 100-600mA/30W 400-900MA/50W 1000-1500MA
5. Color: Clod White
6. 10W Size:29*20mm
7. 10W Luminous area：11*11mm
8. 20W/30W/50W Size:42*52mm
9. 20W/30W/50W Luminous area：25*25mm
10. Lumens: 100 LM / W
11. Time life: 50,000 hours
12. Material: Aluminum bracket
13. Applicable scenes: spotlights, spotlights, DIY headlights, backlights, square lights, advertising lights, street lights, garden lights, outdoor lighting chips.
14. Conditions of use: Requires constant current drive of the radiator and LED, control the temperature, can't exceed 60 degrees Celsius, in order to work properly.
Our advantage
Better quality
More uniform luminescence
More accurate power
Longer life
The difference between us and other stores
We will not have stroboscopic or individual not bright

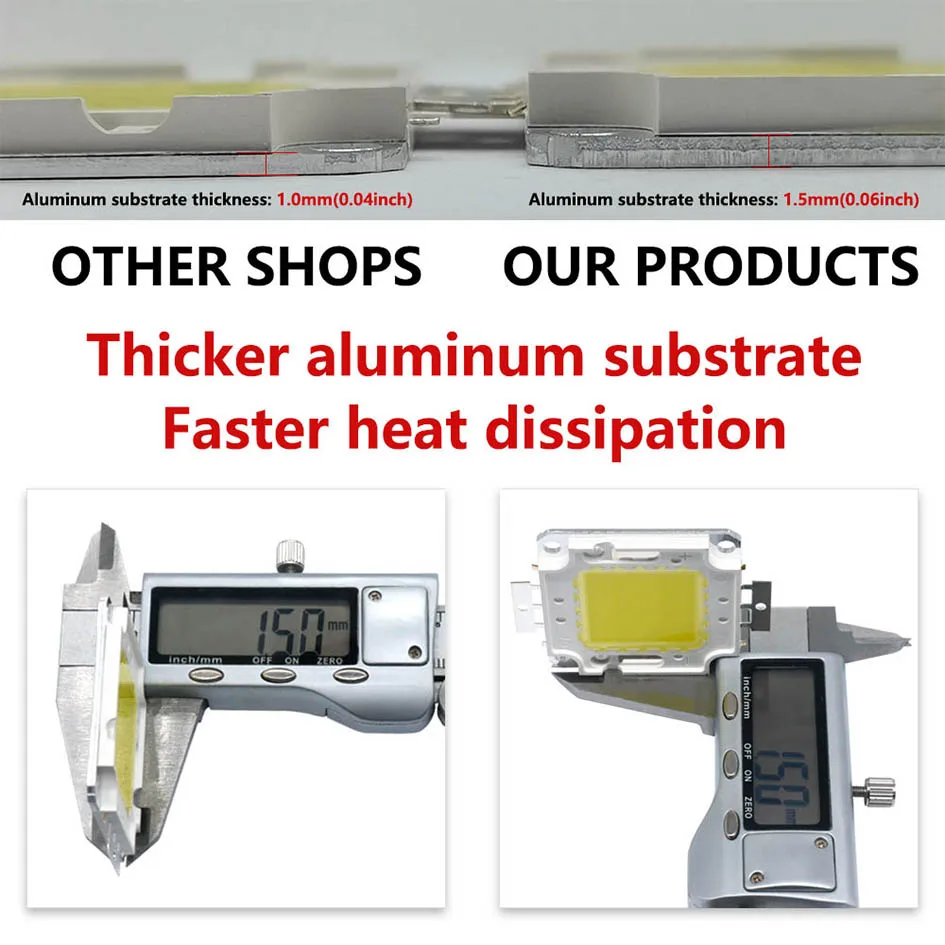

1.5mm aluminum substrate thickness
Heat dissipation faster than normal
Longer life than normal
,
