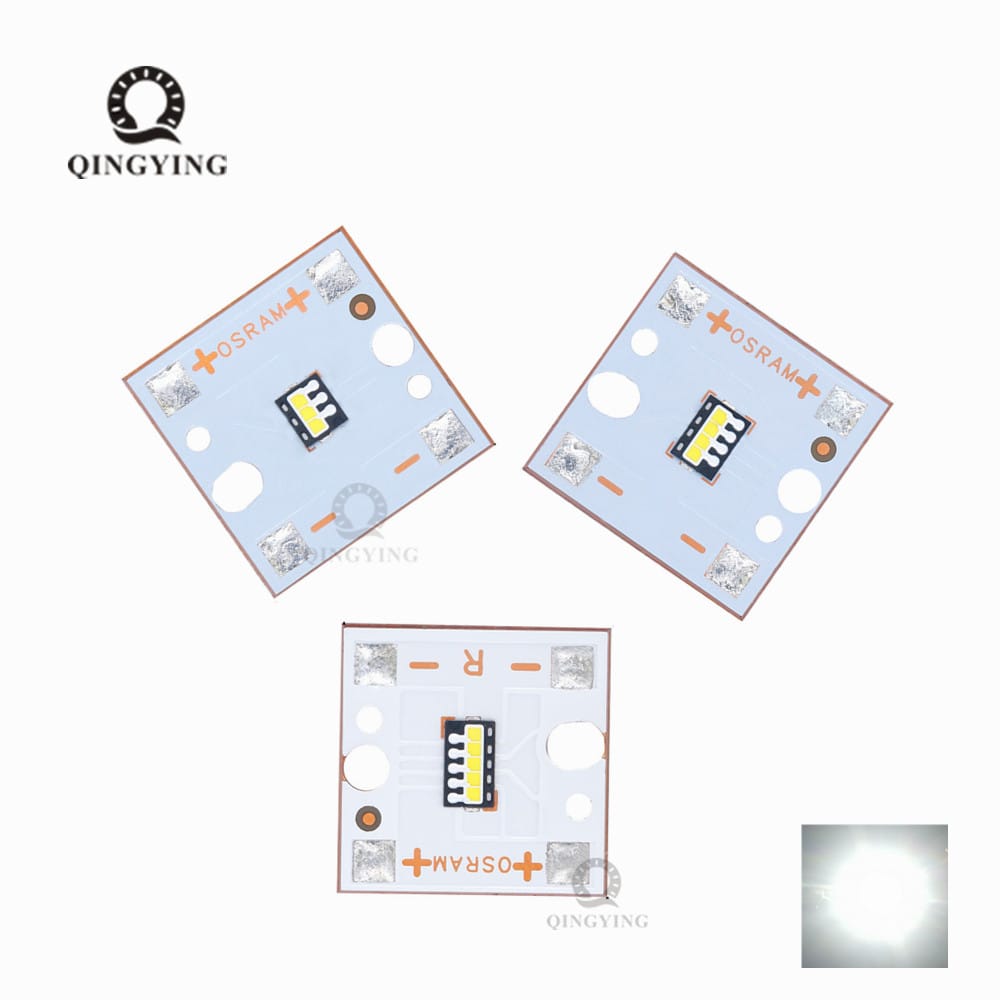

LED Car Driving Headlight Chip Lamp Beads 15W DC9-11V 20W DC12-14V 25W DC15-17V Cool White 6500-7000K Light Lamp Car Accessories
Product Details

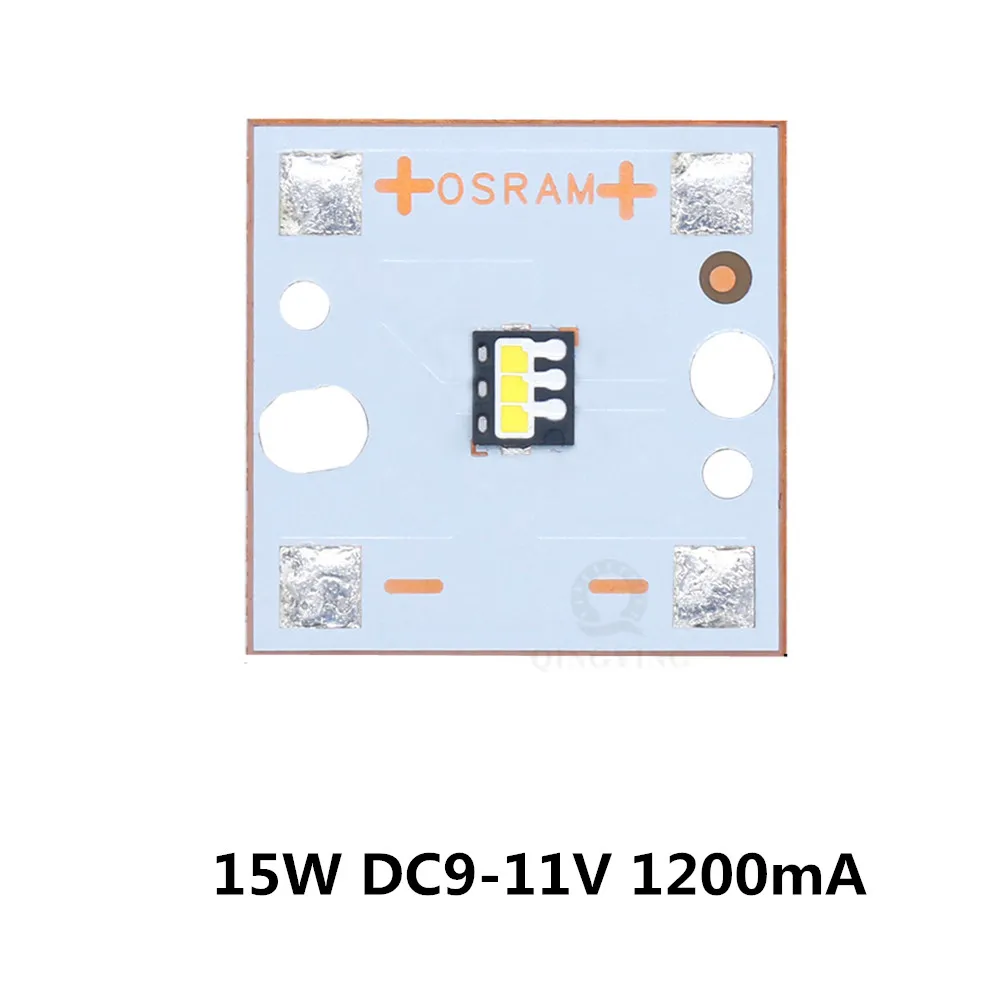

15W
Power: 15W
Voltage: DC9-11V
Current: 1200mA±5%

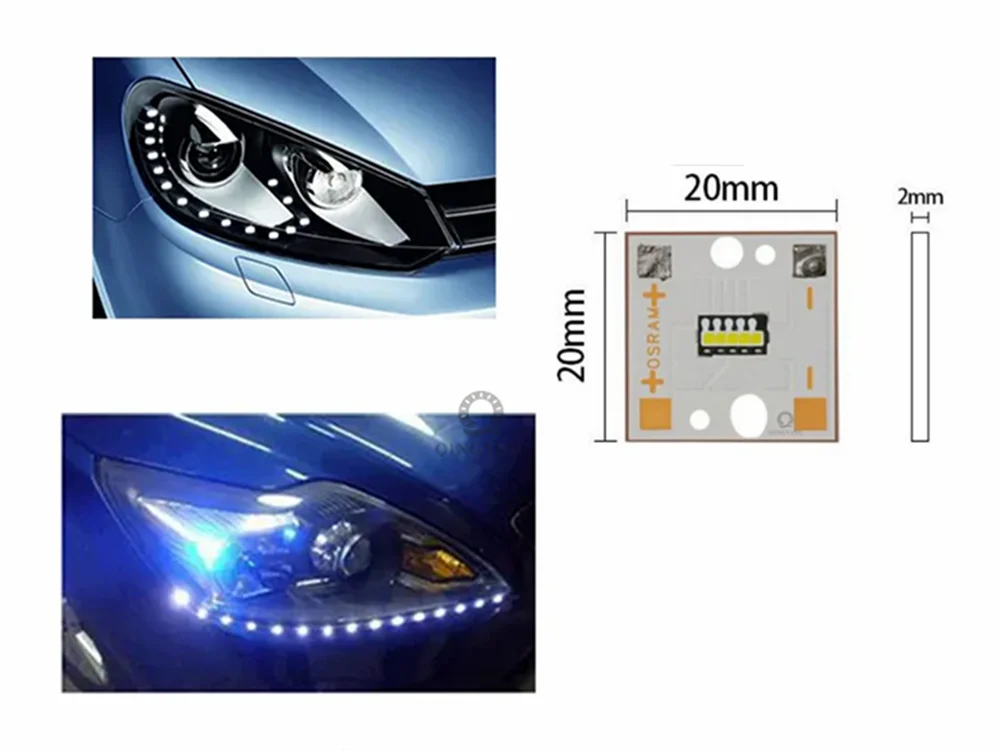

Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 4.3*3.8mm (0.16*0.14in)
Crystal size: 14*28mil
Number of crystals: 3pcs
Crystal name: Bridgelux Chip
Lumens: 2500LM

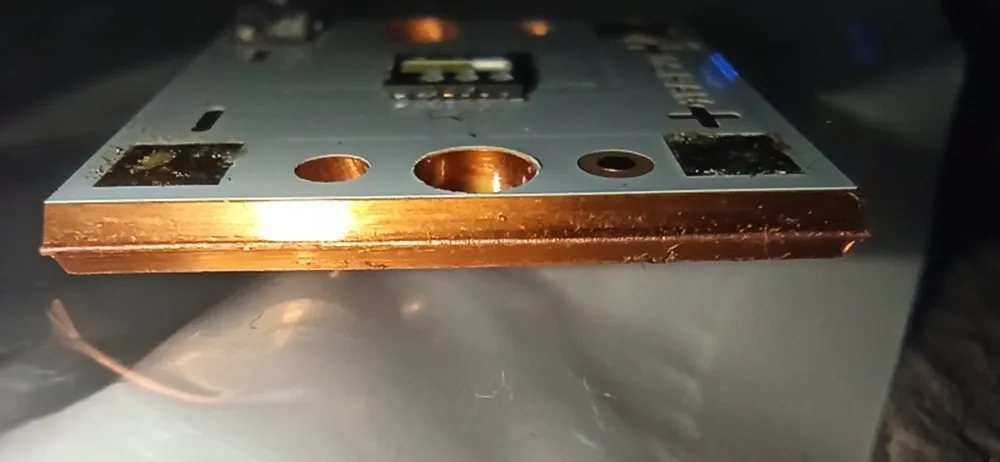

Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)
Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

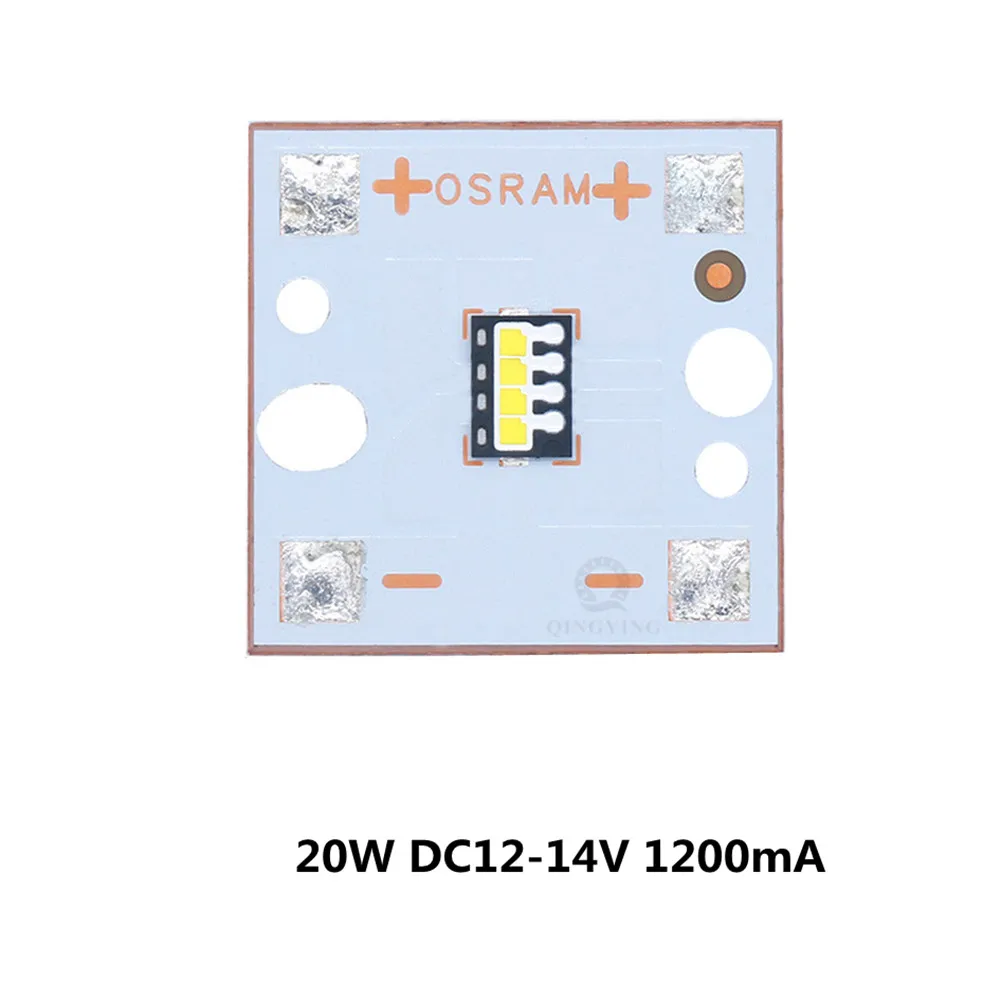

20W
Power: 20W
Voltage: DC12-14V
Current: 1200mA±5%
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 5.4*3.8mm (0.21*0.14in)
Crystal size: 14*28mil
Number of crystals: 4pcs
Crystal name: Bridgelux Chip
Lumens: 2500LM
Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)
Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

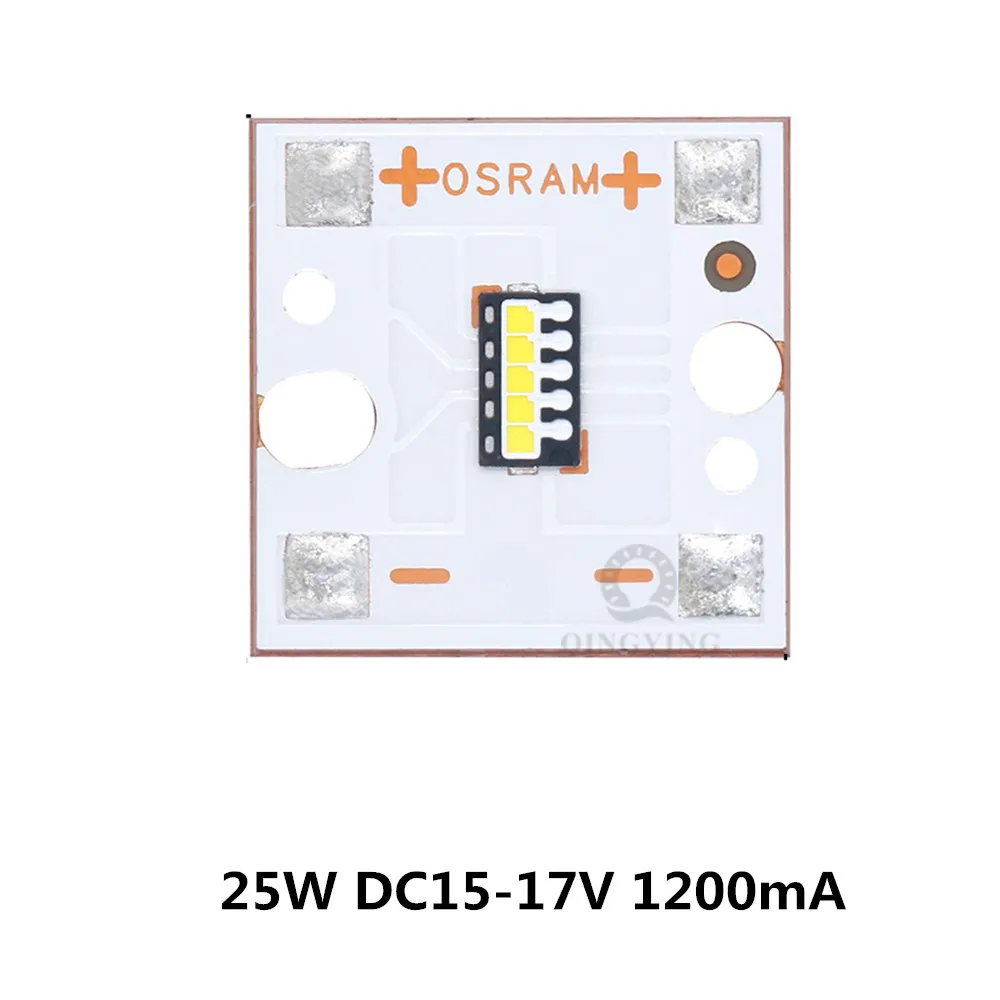

25W
Power: 25W
Voltage: DC15-17V
Current: 1200mA±5%
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 6.4*3.8mm (0.25*0.14in)
Crystal size: 14*28mil
Number of crystals: 5pcs
Crystal name: Bridgelux Chip
Lumens: 2500LM
Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)
Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
,
