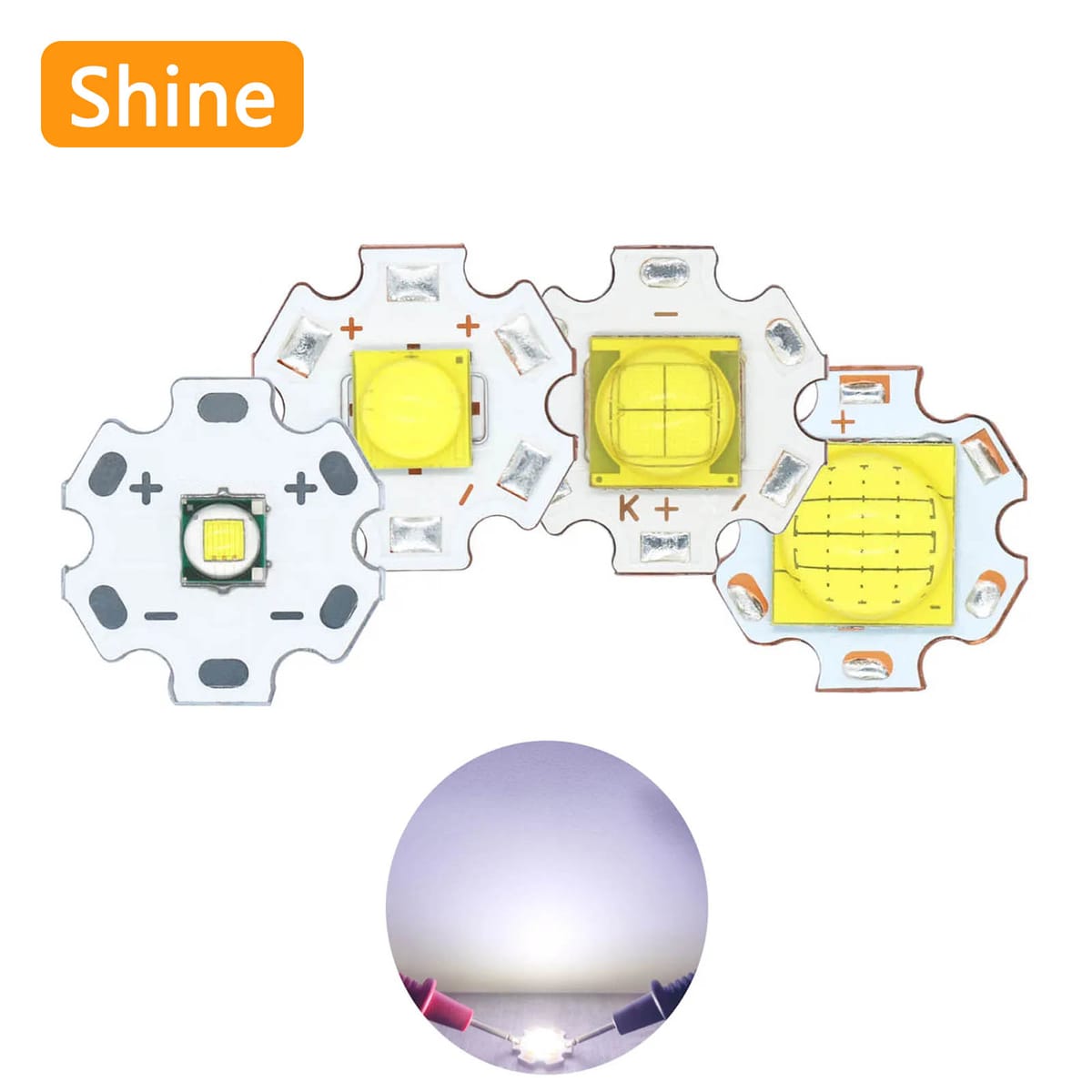

LED Beads XHP50 XHP70 XHP90 XHP110 LED COB PCB Chip 5W 18W 30W 45W 54W 72W 20mm DC3V 5V 6-8V 24V For Flashlight Car Lighting DIY

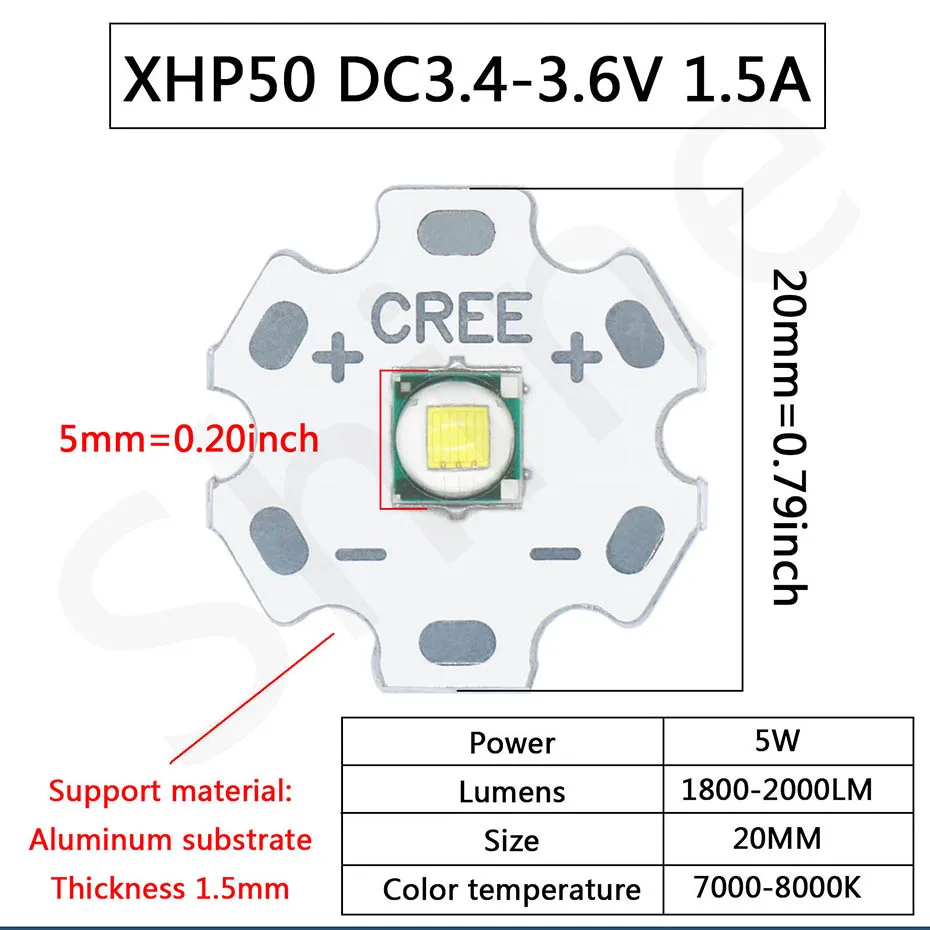

XHP50 DC3.4-3.6V 1.5A
Power: 5W
Voltage: DC3V
Current: 1.5A (MAX)
Lumens: 1800-2000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Aluminum substrate
Thickness:1.5mm
(4-cores x55mil Epistar Crystal)

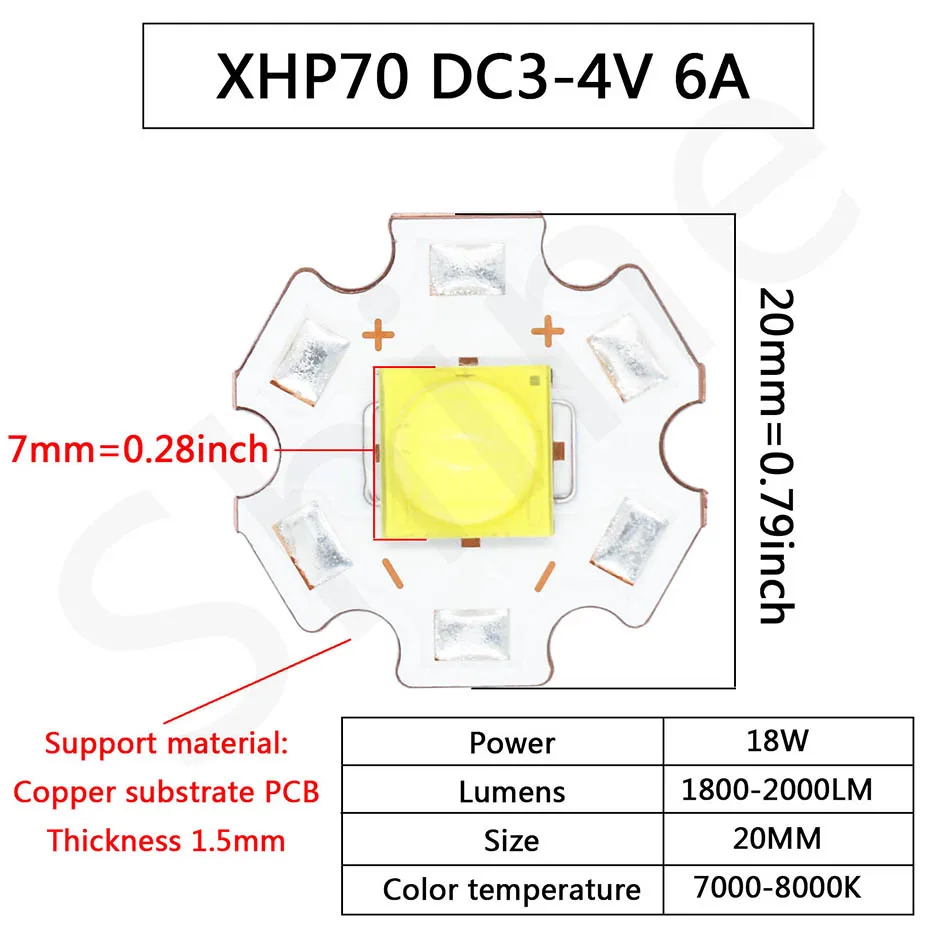

XHP70 DC3-4V 6A
Power: 18W
Voltage: DC3V
Current: 6A (MAX)
Lumens: 1800-2000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(4-cores x55mil Epistar Crystal)

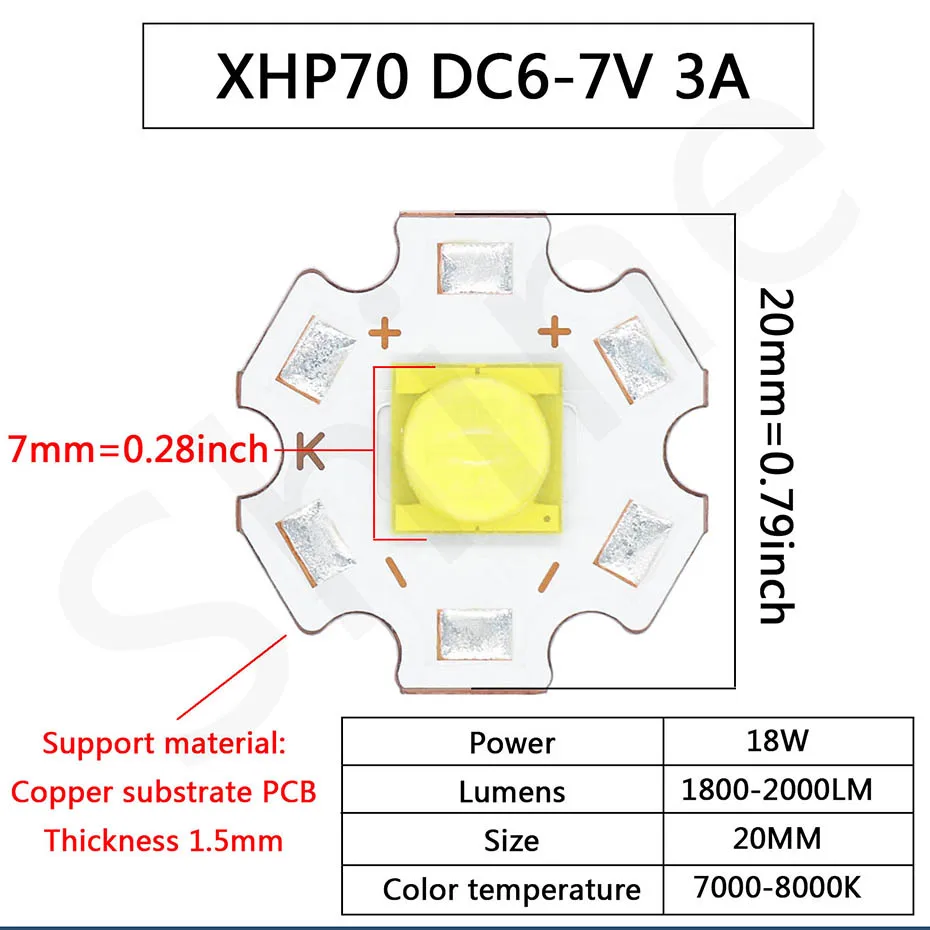

XHP70 DC6-7V 3A
Power: 18W
Voltage: DC6V
Current: 3A (MAX)
Lumens: 1800-2000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(4-cores x55mil Epistar Crystal)

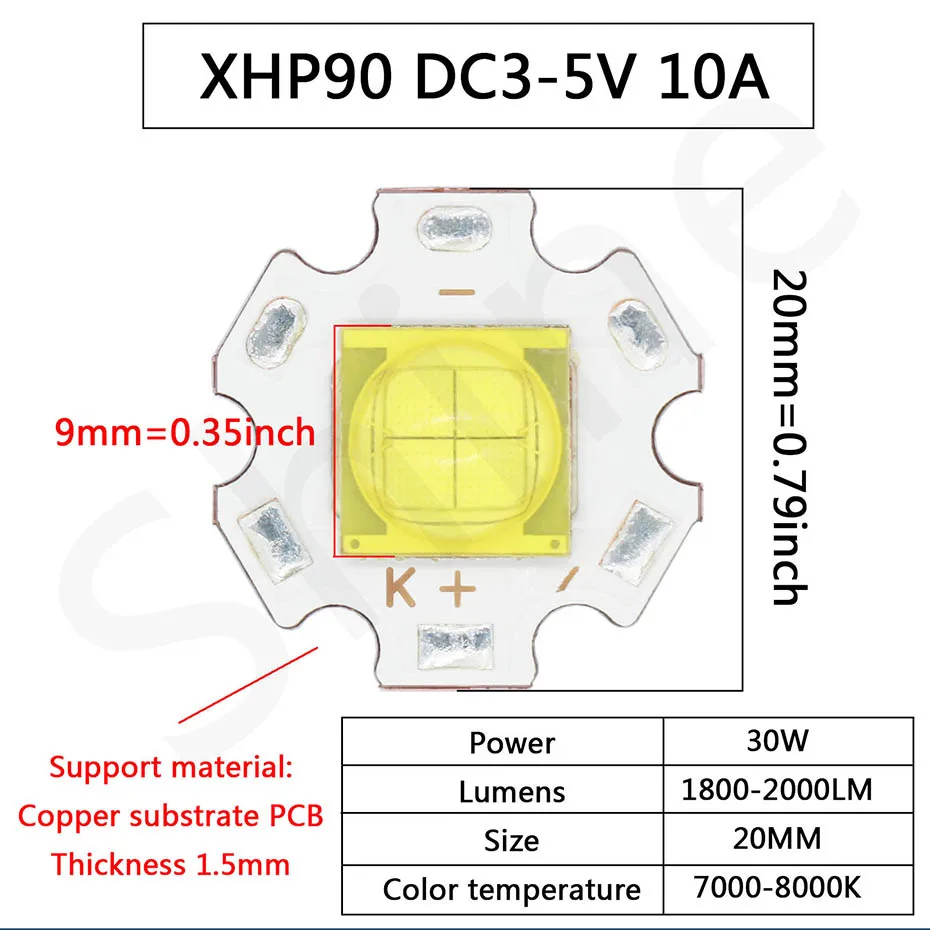

XHP90 DC3-5V 10A
Power: 30W
Voltage: DC3V
Current: 10A (MAX)
Lumens: 1800-2000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(4-cores x55mil Epistar Crystal)

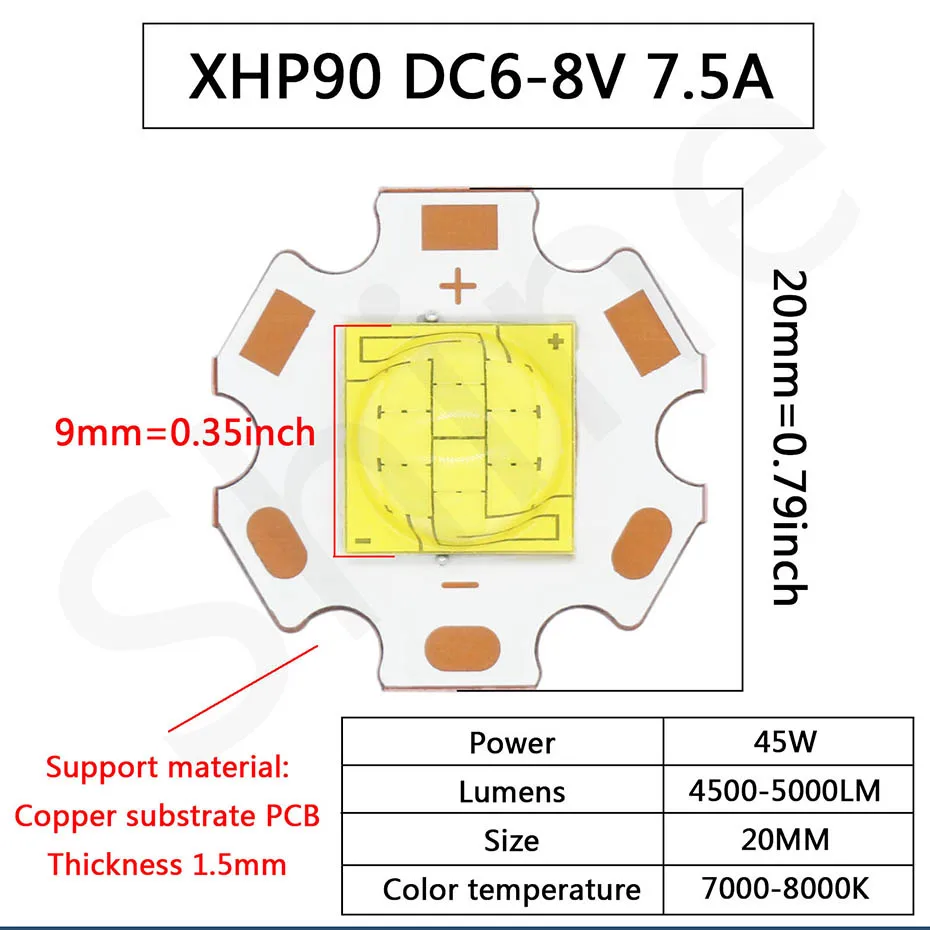

XHP90 DC6-8V 7.5A
Power: 45W
Voltage: DC6V
Current: 7.5A (MAX)
Lumens: 4500-5000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(9-cores x55mil Epistar Crystal）

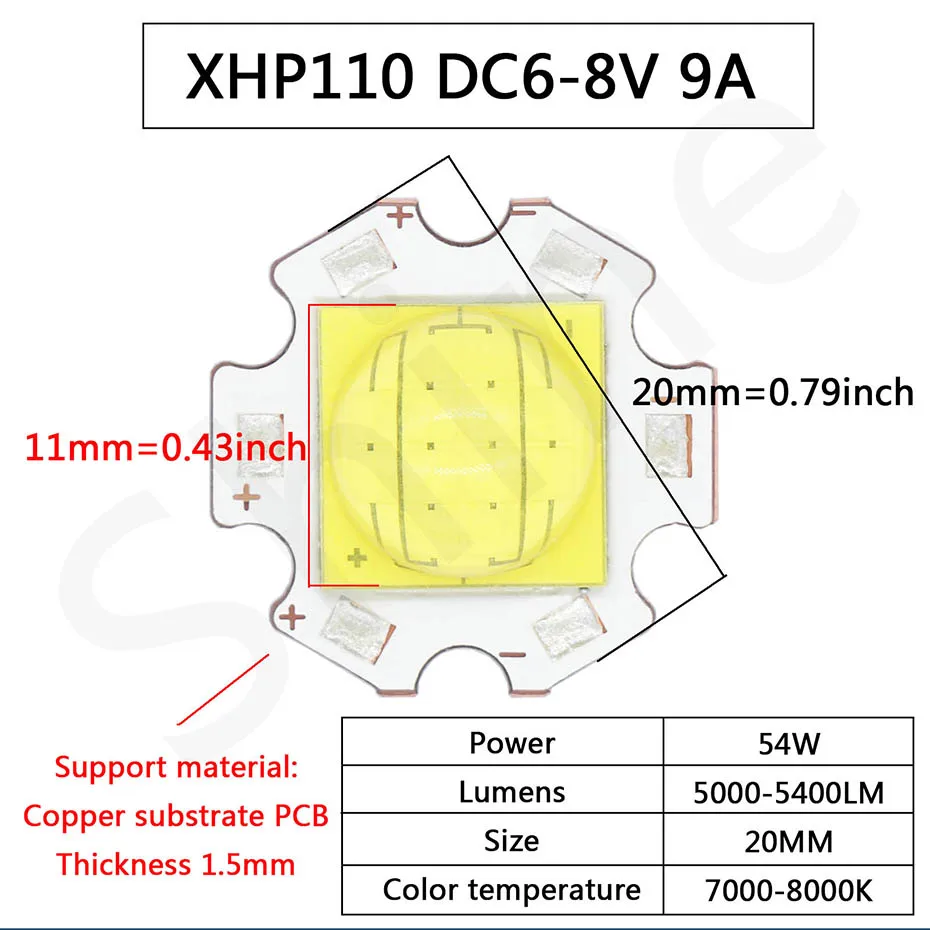

XHP110 DC6-8V 9A
Power: 54W
Voltage: DC6V
Current: 9A (MAX)
Lumens: 5000-5400LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(12-cores x55mil Epistar Crystal）

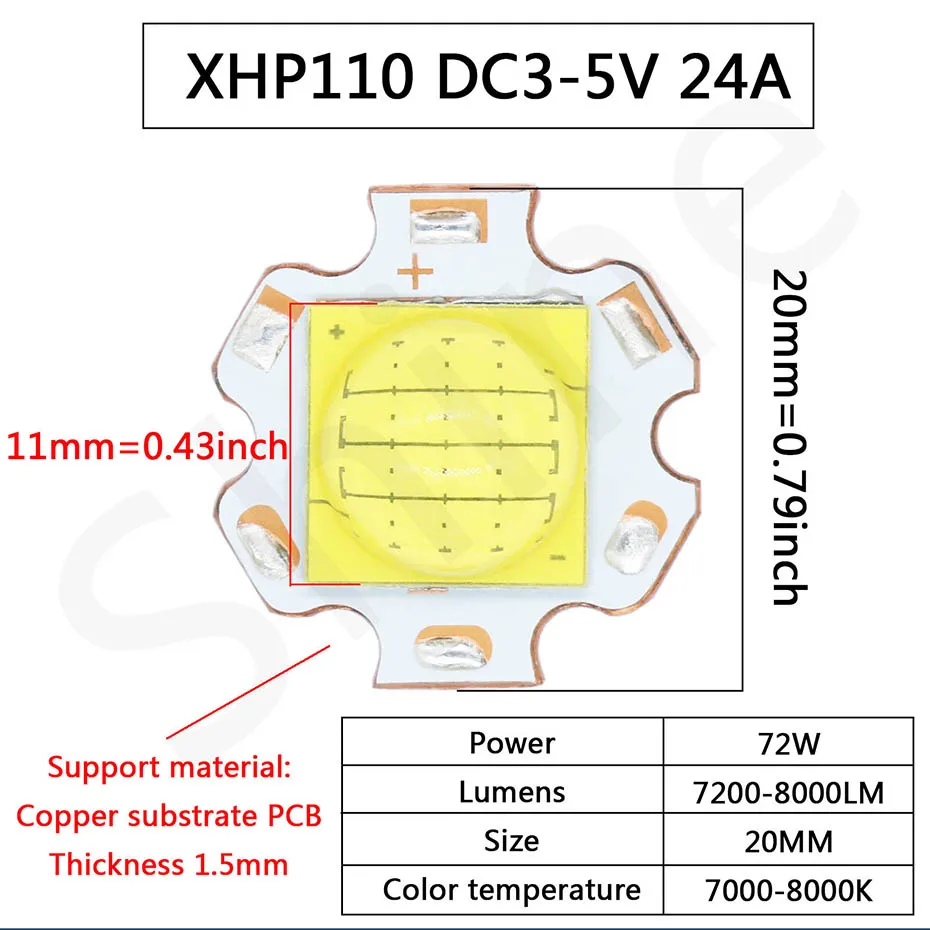

XHP110 DC3-5V 24A
Power: 72W
Voltage: DC3V
Current: 24A (MAX)
Lumens: 7200-8000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(16-cores x55mil Epistar Crystal）

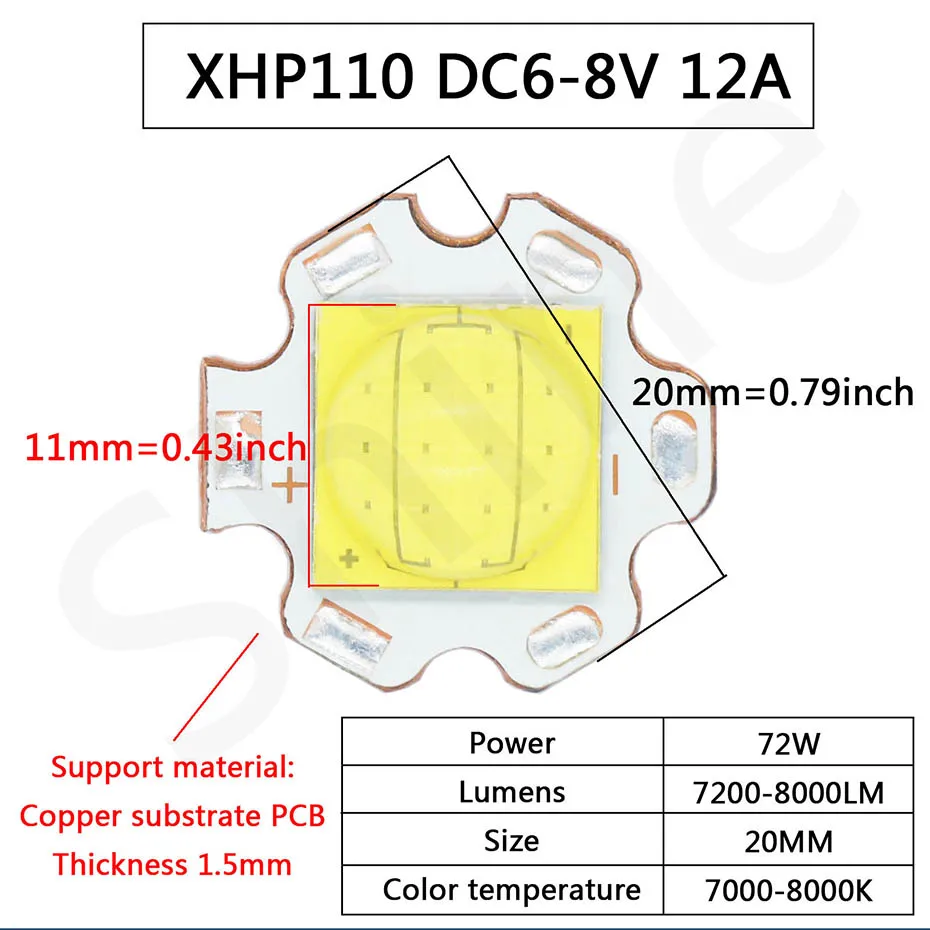

XHP110 DC6-8V 12A
Power: 72W
Voltage: DC6V
Current: 12A (MAX)
Lumens: 7200-8000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(16-cores x55mil Epistar Crystal）

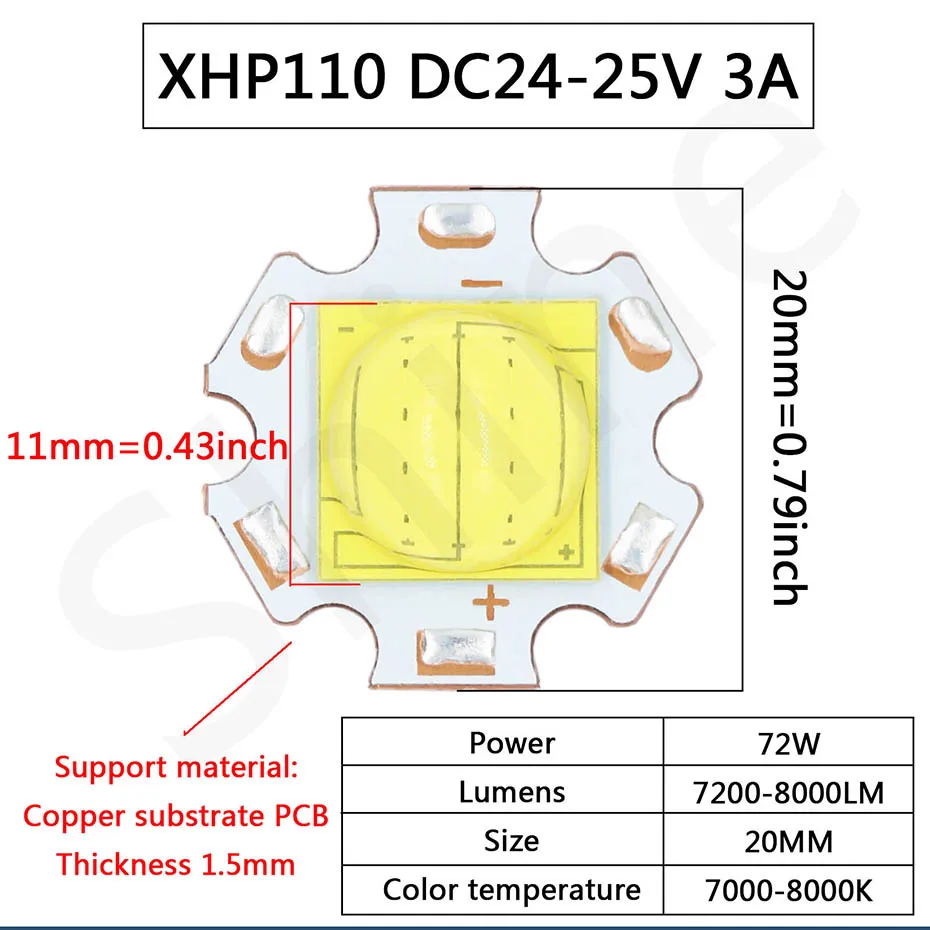

XHP110 DC24-25V 3A
Power: 72W
Voltage: DC24V
Current: 3A (MAX)
Lumens: 7200-8000LM
Size: 20MM
Color temperature: 7000-8000K
Support Material:Copper substrate
Thickness:1.5mm
(16-cores x55mil Epistar Crystal）
,
