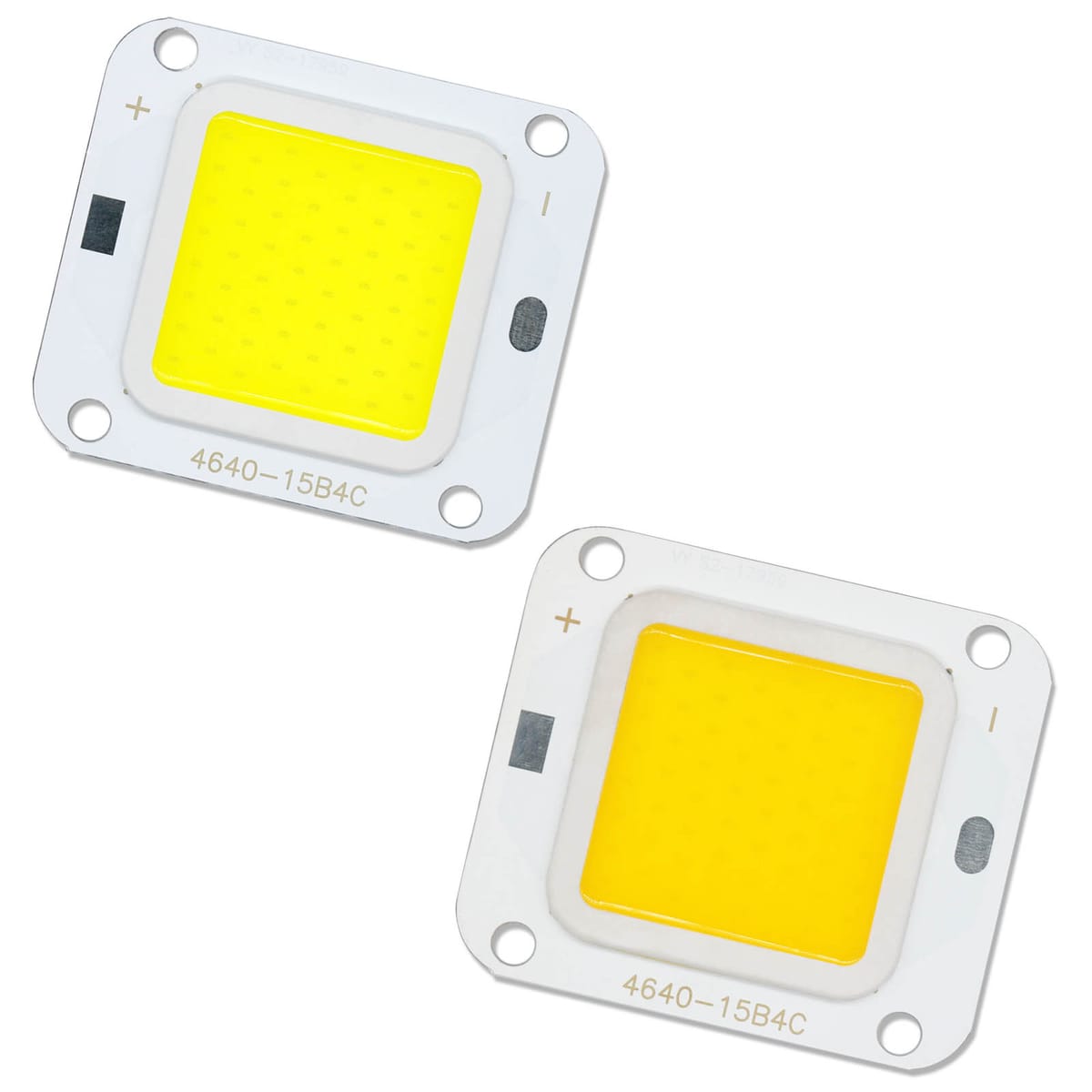

LED Beads 20W DC12-14V 1500mA LED COB Chip Lighting for Outdoor Floodlights Projection Lights DIY Modified Headlamps DIY

Specifications

Power: 20W

Voltage: DC12-14V

Current: 500-1500mA (max)

Lumen: 1000-4000lm

Display value: Ra ≥ 70

Series parallel: 15B4C

Crystal size inside the lamp bead: 10 * 21mil

Number of crystals inside the lamp beads: 60pcs

Material: Aluminum

Aluminum substrate thickness: 1.5mm

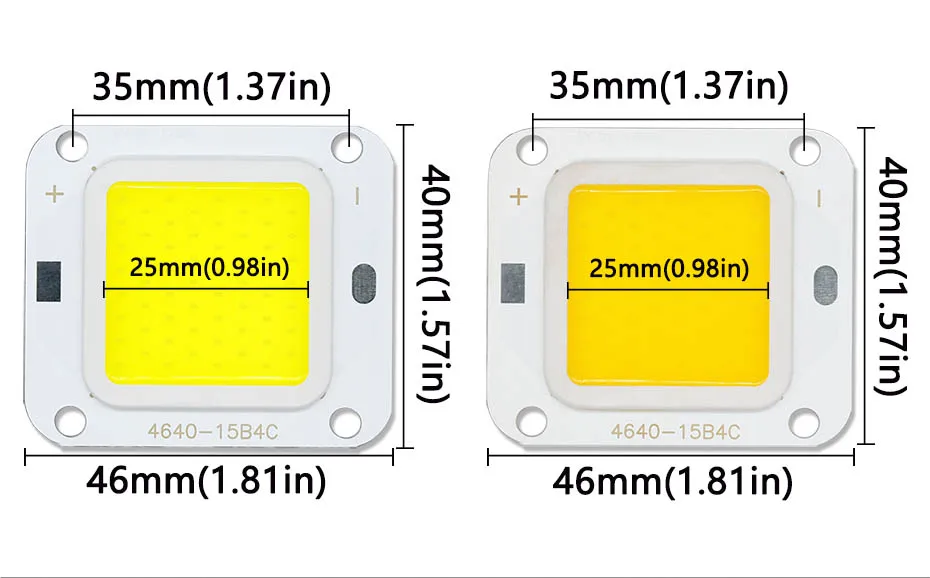

Size: 46 * 40mm

Luminous surface size: 25 * 25mm

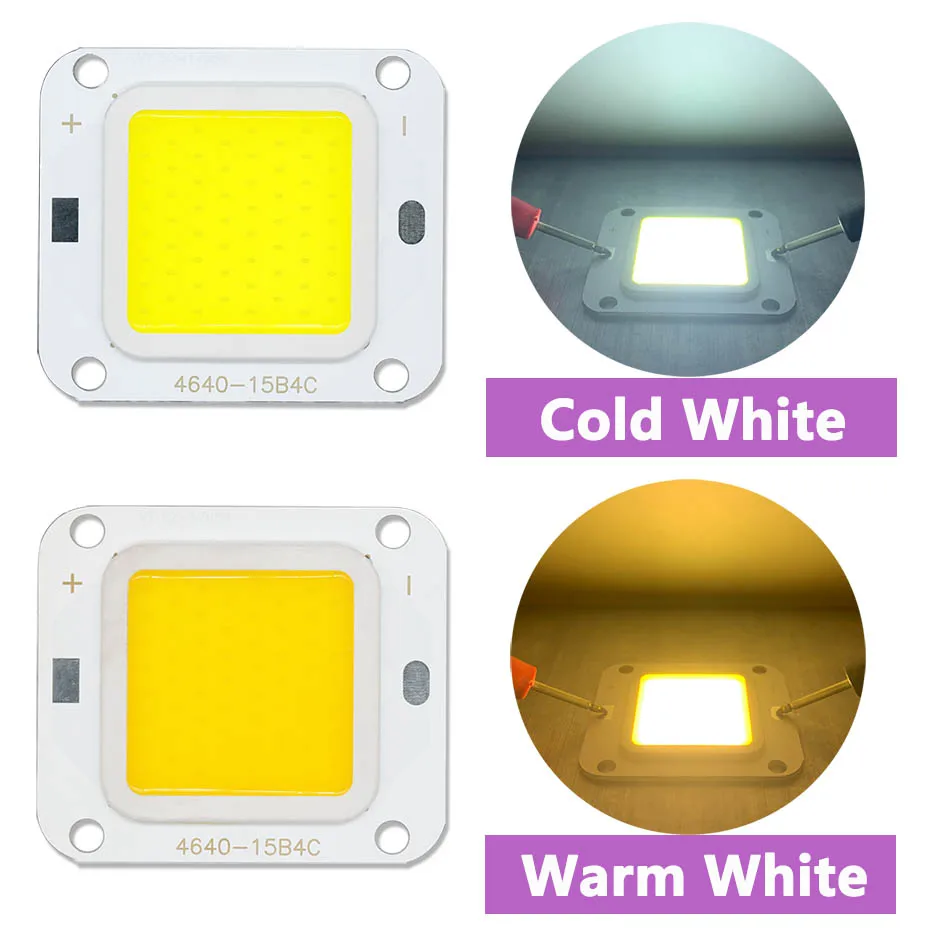

Color：Cold White/Warm White

Thermal conductivity: Aluminum plate 2W/M · K

Application location: Outdoor floodlights, projection lights, tower chandeliers, DIY modified headlights, and so on.

Working conditions: LED operation requires a radiator, and the temperature of the lamp beads cannot exceed 65 ℃

Welding temperature: The temperature of the electric soldering iron is 350 ℃, and the welding completion time is ≤ 2 seconds.

,
