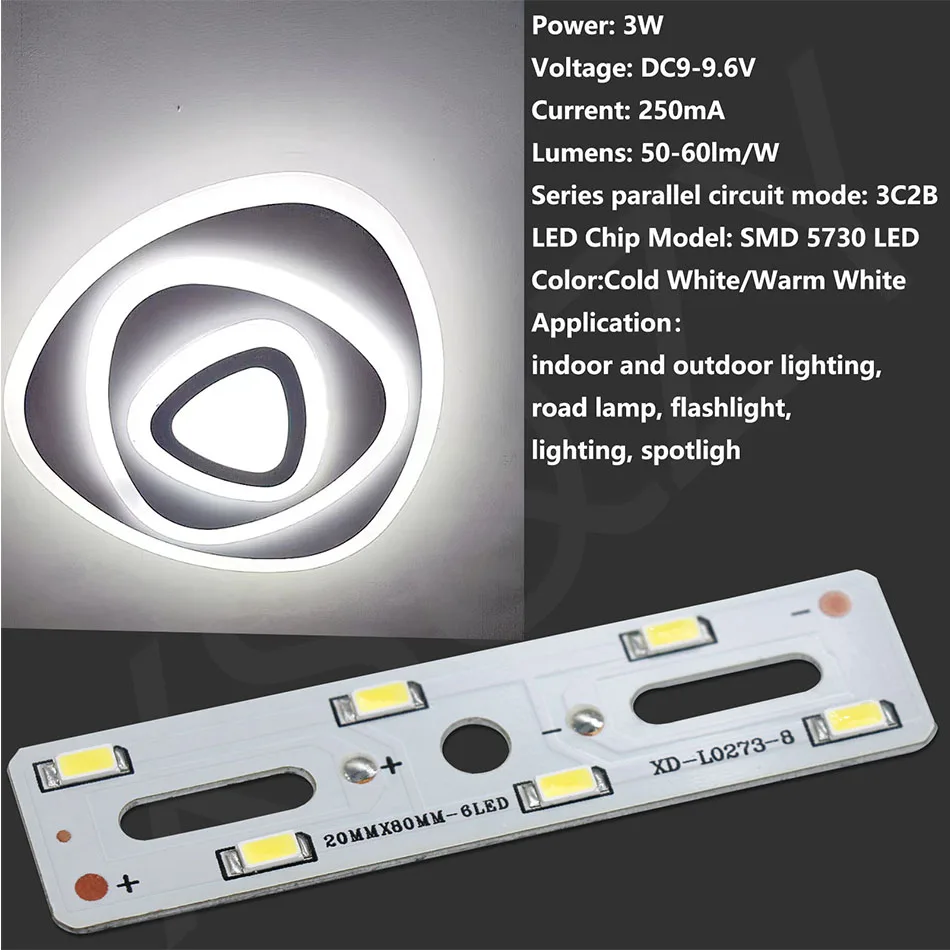

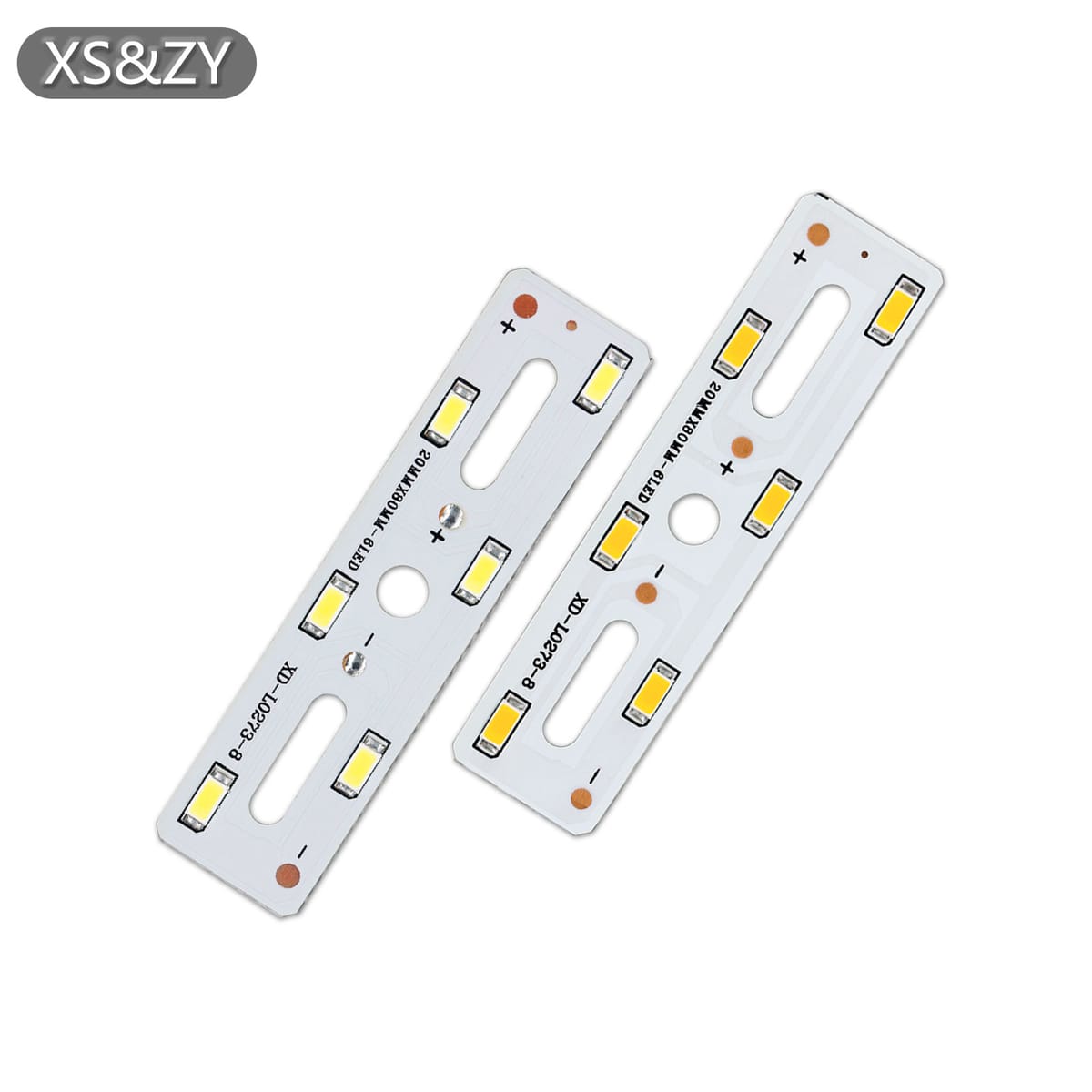

LED Bead 3W DC9-9.6V 250mA SMD 5730 LED Cold Warm White Patch Type Wick Light Ceiling Light Pendant Crystal Light Accessorie DIY

Power: 3W

Voltage: DC9-9.6V

Current: 250mA

Lumens: 50-60lm/W

Series parallel circuit mode: 3C2B

Number of lamp beads: 6pcs

LED Chip Model: SMD 5730 LED

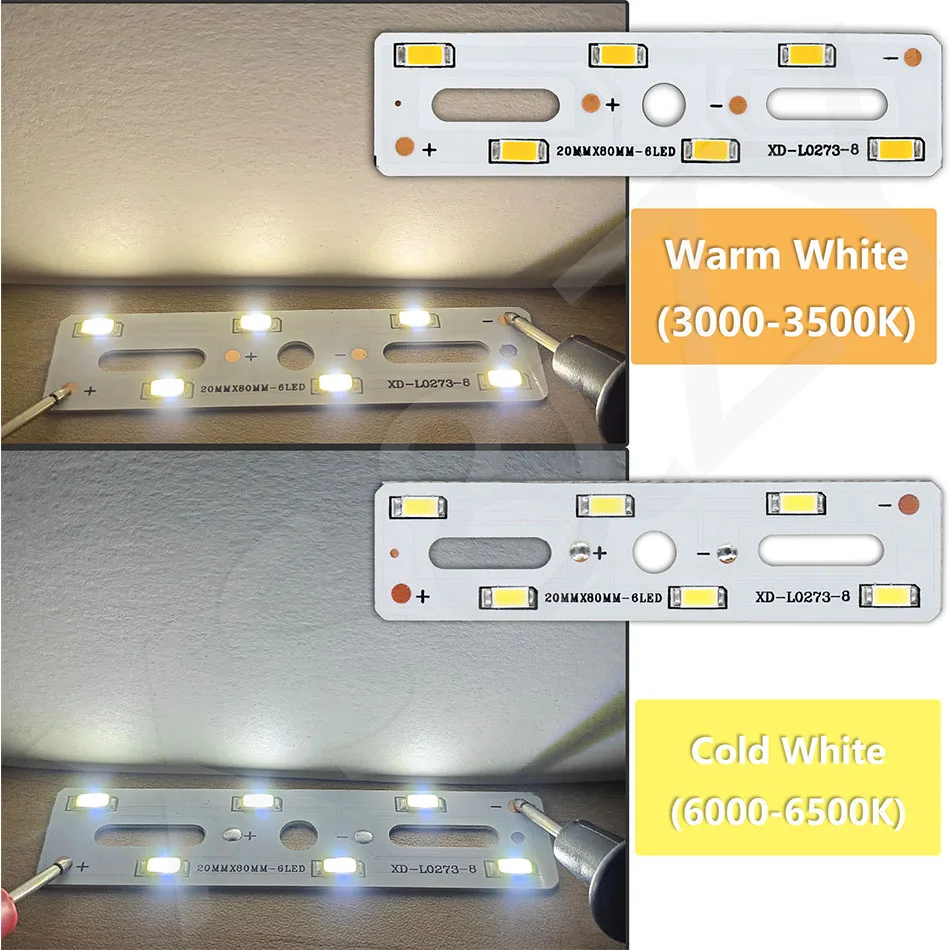

Color Temperature：Warm White(3000-3500K)

Color Temperature2：Cold White (6000-6500K)

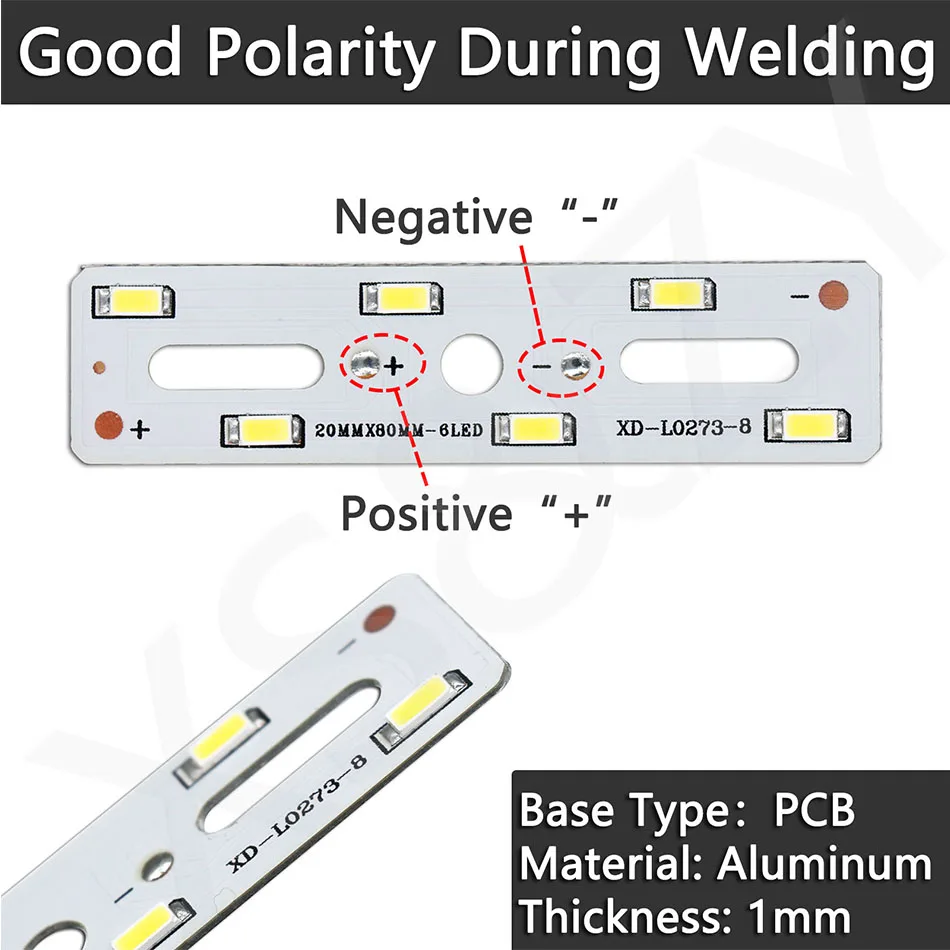

Base Type：PCB

Material: Aluminum

Thickness: 1mm

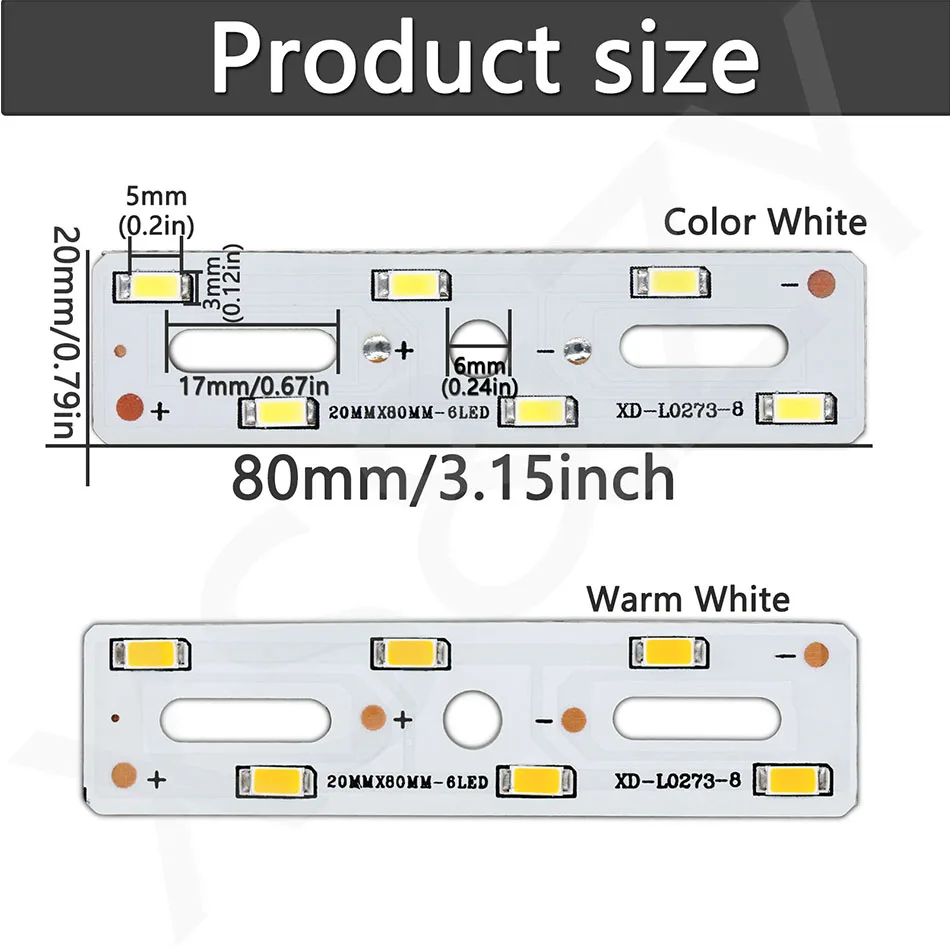

Appearance size: 80*20mm(3.15*0.79inch)

Thermal conductivity: aluminum plate 2W/M · K

Application：indoor and outdoor lighting, road lamp, flashlight, lighting, spotligh

Application scenarios: Widely used in panel lights, LED lamp bulb and other industries

Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.

Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is ≤ 2 seconds.

,
