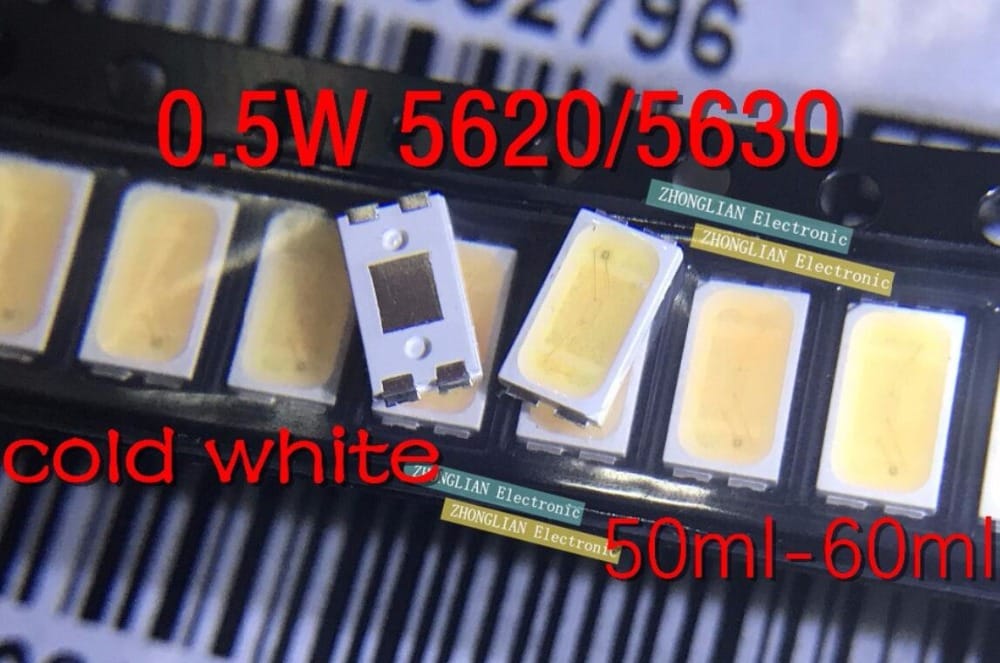

LCD TV backlight led lamp beads 0.5W SMD 5620 LED lamp beads 5630 lamp beads 50ml-60ml 14000-18000MCD cold white light SMD 4pin
【Product Model】: CMW JBSH.B1 5630 LED 【Manufacturer】: OSRAM (OSRAM) 【Packing】: reel tape, anti-static vacuum bag, original import, not opened Forward current (IF):180mA [Forward Pulse] Pulse Forward Curren "t1] (IFp): 300mA Reverse Current (IR): uA Reverse Voltage (VR): V Power Dissipation (PD): 0.5W Operating temperature Operatin Tgemperature (Topr): - 40 ~ +85 ℃ Storage temperature (Tstg): - 40 ~ +100 ℃ 【Soldering Temperature Soldering Temperature】 (Tsld): reflow 260 ℃ for 10 seconds / manual welding 350 ℃ for 3 seconds [Chip temperature Junctio Tnemperature] (Tj): 110 ° C Forward Voltage (VF): 2.80-3.60V (120mA) [Brightness] (MCD): 14000-18000MCD (120mA) [Band] (nm): nm (120mA) 【Color Area】: white (cool white) (120mA) 【Color temperature】 (CCT): 8000-20000K 【Product Features】: 【Size】: 5.6 × 3.0 × 0.8 mm (L × W × H), light-emitting surface d = mm
,
