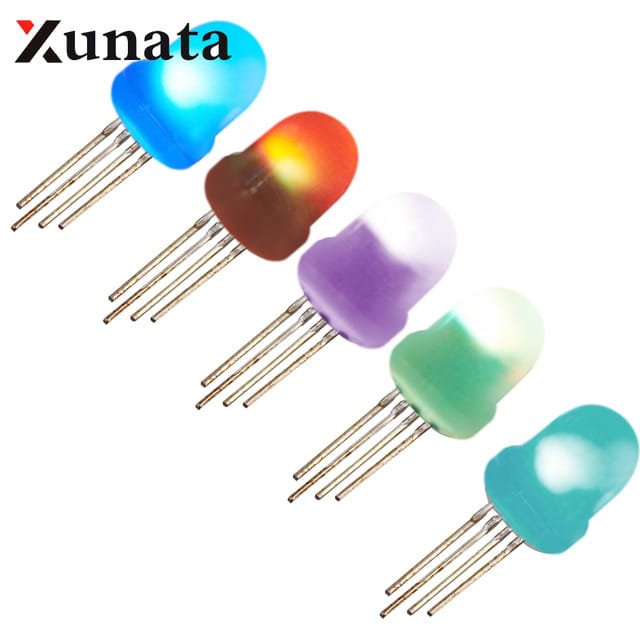

IC APA106 F5 F8 RGB Led Beads 5V 5mm 8mm Round RGB Full Color Neon Pixel Arduino Frosted Led Chips Like WS2811 WS2812 WS2812B

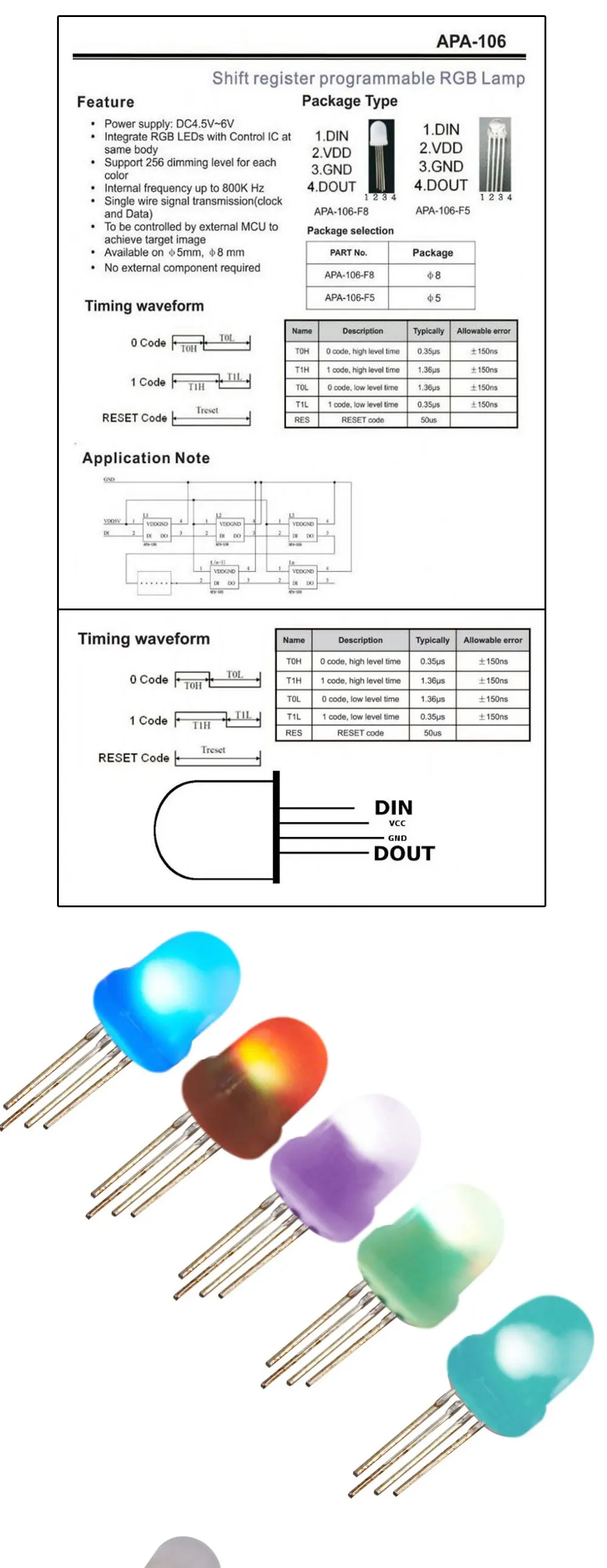

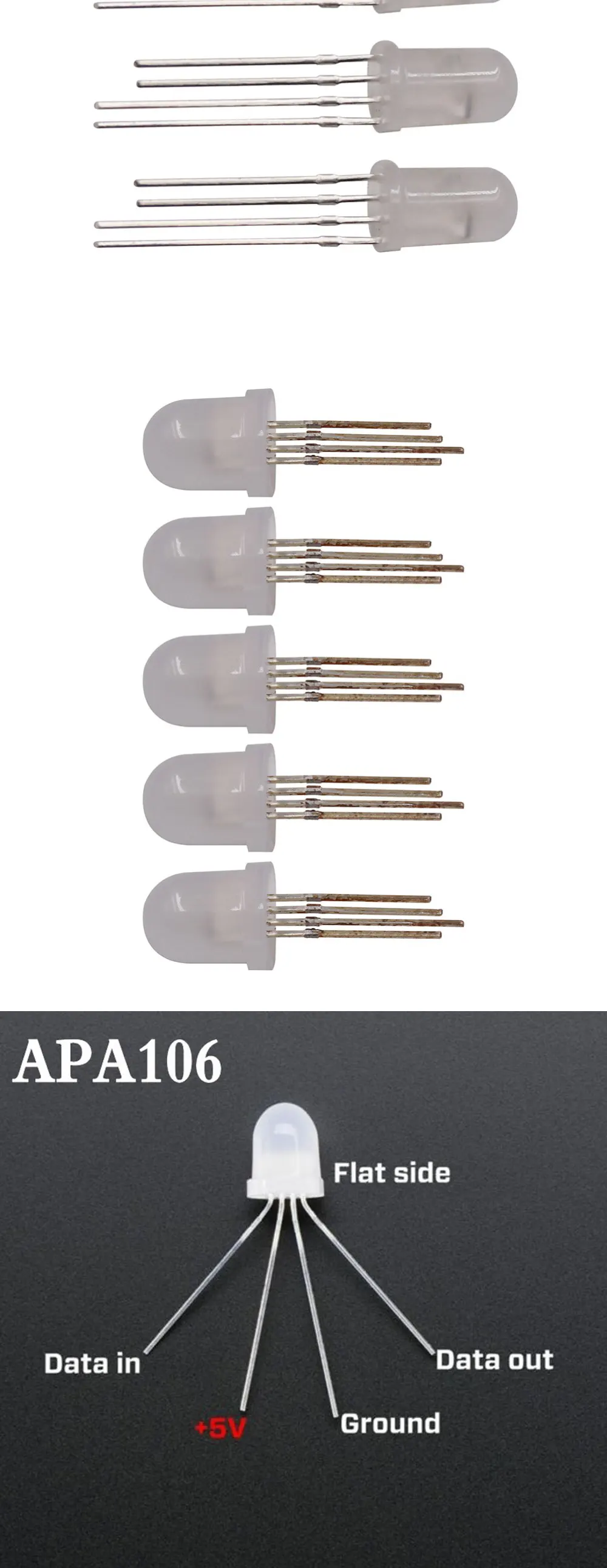

APA-106 is an RGB LED with built in controller IC (a.k.a. addressable LED.)

It uses same protocol as the popular WS2811 or WS2812 LEDs, so code can be reused.

Perfect for the breadboard or any through hole project.

F5,F8 apa106 led diode ,and series product ,such as led strip ,led string ,led module ,led display board and so on

Features:
8MM Round LED
4.5V-6V power supply
256 dimming level for each color
800kHz internal frequency
Single wire control
No external components required

The gray level adjusting circuit (256 brightness adjustable)

The on-chip voltage regulator tube, power supply end series resistance to IC VDD feet, without external regulator

The built-in power on reset circuit

The PWM control terminal can achieve the 256 level adjustment, scanning frequency of not less than 400Hz/s

The cascade interface serial interface, via a signal line to complete the receiving and decoding of data

When the refresh rate of 30 frames per second, the number of cascade low speed mode is not less than 512 points, the high-speed mode is not less than 1024 points

The data transmission speed of up to 800Kbps

,
