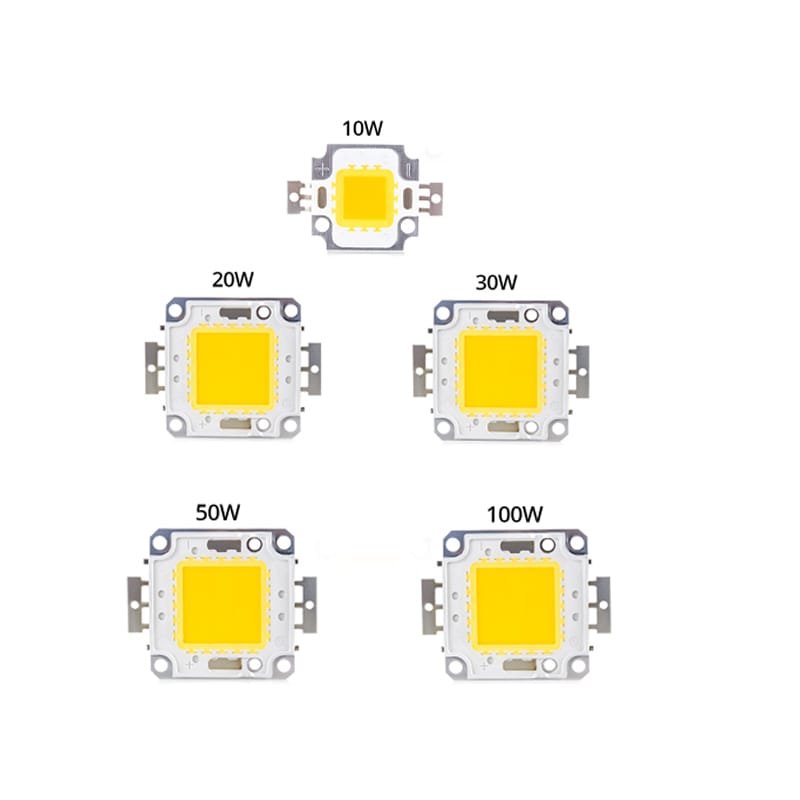

Hontiey High Power LED Chip Warm Pure Cold White Lighting Beads 1W 3W 10W 20W 30W 50W 100W Integrated Matrix Bulb COB Lamp
Dear friend ,Due to the low price ,we will send by china post ordinary small packet plus ,which you can not track number on line if the total amount is less than 5USD ,thanks
Product Detail
Product Name: Hontiey High Power LED Chip, LED Beads, LED Bulb, LED Matrix.
Rated Power: 1W 3W 10W 20W 30W 50W 100W
Chip Brand:Epistar
Chip Size: 30mil/45mi
Lighting Colors: Warm White/Natural White/Pure White/Cold White.
Color Wavelength: 3000-3500K/4000-4500K/6000-6500K/10000-15000K/20000-25000K/30000-3500
Current: 300-350mA(1W), 600-700mA(3W/5W/20W), 900-1000mA(10W/30W), 1600-1700mA(50W), 3200-3500mA(100W)
Voltage: 3.0V-3.4V(1W-3W),6V-7V(5W),9V-11V(10W),30V-34V(20W/30W/50W/100W)
Beam Angle: 120 degree
Sealing Material: 2-99%Golden Wires, Copper bracket.
Weight:1W-5W(0.65g), 10W(5.1g), 20W-100W(27.5g).
Working life: 50000hrs
Operating temperature: -30 to +85 degree centigrade
Welding temperature: 120°Centigrade in 5 seconds
,
