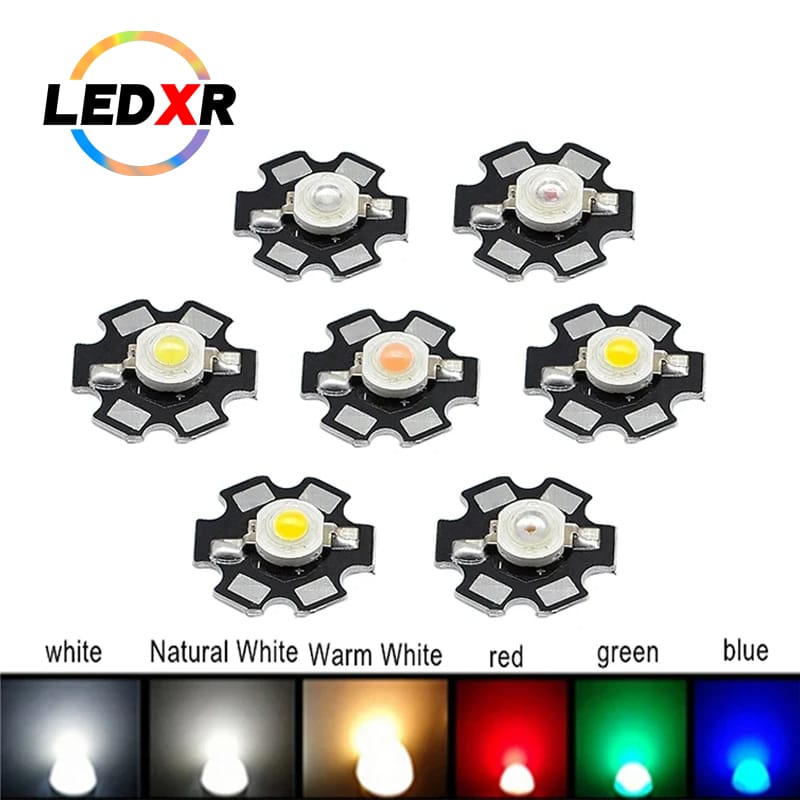

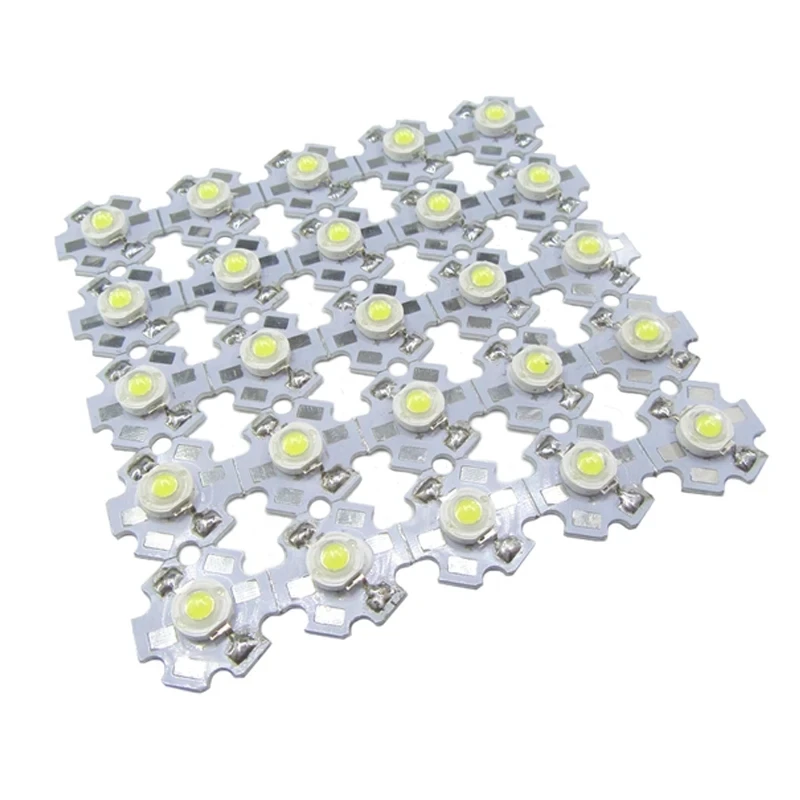

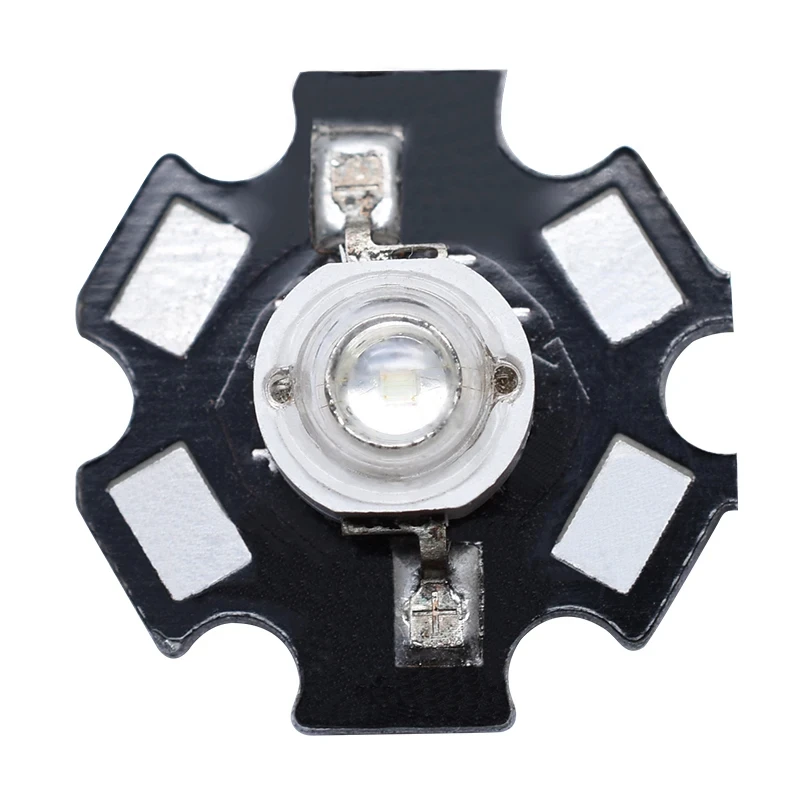

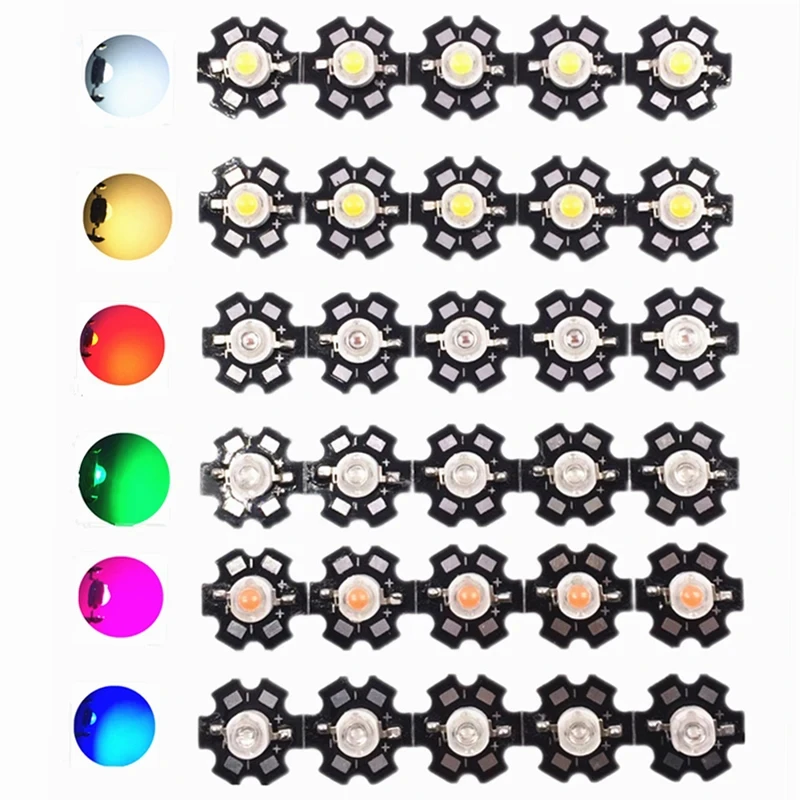

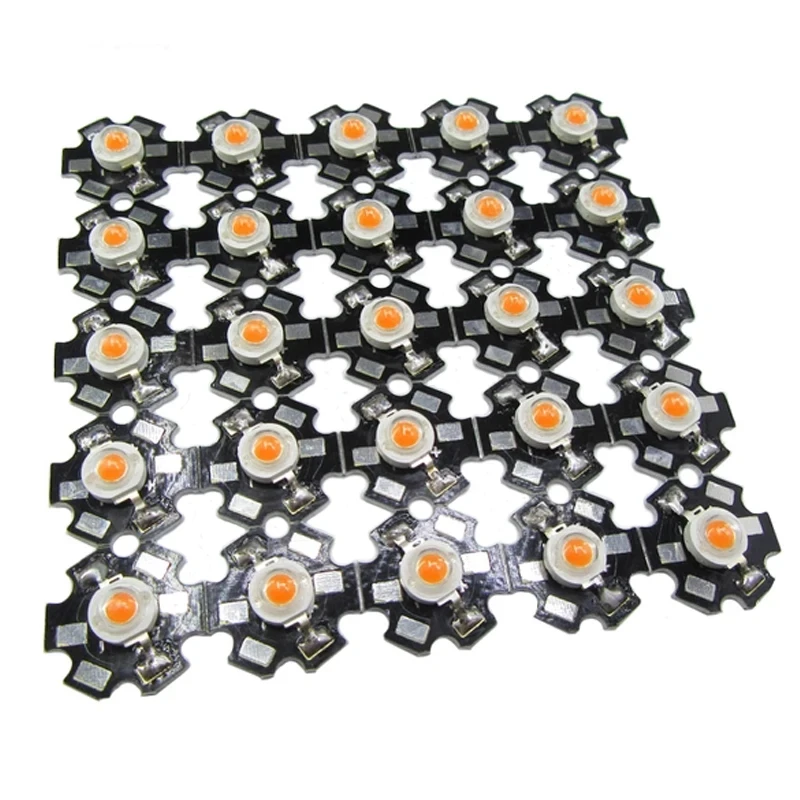

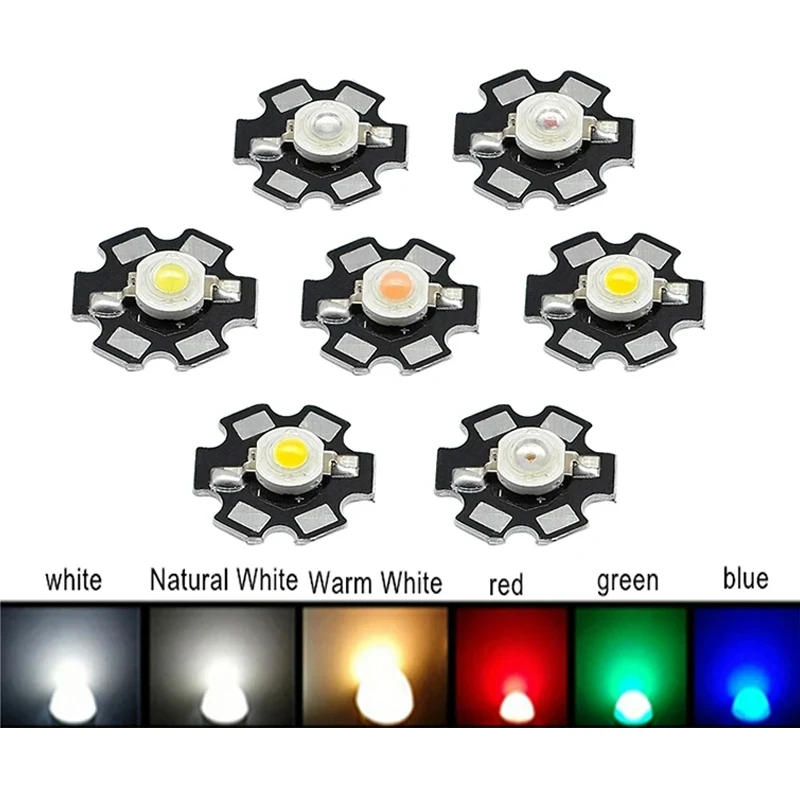

high power led chip lamp bead 1w led chip 30mil led 3w chip 45mil 5w led two chip 45mil 3V LED diode light strip PCB aluminum
1 Watt LED :
UV (395nm): forward DC voltage: (3.0V~3.6V), DC: 300mA~350mA
Royal blue (445-450nm): DC, forward voltage: 3.0V~3, 6 V DC: 300mA~350 mA
Blue (460-465nm): DC forward voltage: 3.0V~3.6 V, forward current: 300mA~350mA
blue green(490-500nm): DC forward voltage: 3.0V~3.6V, DC: 300mA~350mA
Green (510-530nm): DC forward voltage: 3.0 V~3.6 V, forward current: 300mA~350mA
Yellow (580-590nm): DC voltage: 2.0-2.6V, DC:300mA~ 350mA
Orange (605nm): DC forward voltage: 2.0-2.6V, DC: 300mA~350mA
Red (620-630nm): DC forward voltage: 2.0 V~2.6 V, forward current: 300mA~350 mA
deep Red Plant lamp (660nm): DC forward voltage: 2.0-2.6V, forward current: 300mA~350mA
IR (730nm): DC voltage: 1.4V~1.7V, DC: 300mA~350mA
IR (850nm): DC voltage: 1.4V~1.7V, DC: 300mA~350mA
IR (940nm): DC, forward voltage: 1.4V~1.7V, DC: 300mA~350mA
Warm white (2800-3200 K): Forward DC voltage: (3.0 V~3.6 V), DC power: 300 mA~350 mA
Natural white light (4000-4500 K): Forward DC voltage: (3.0V~ 3.6 V), DC: 300 mA~350 mA
White (6000-6500 K): DC voltage: (3.0 V~3.6 V), DC: 300 mA~350 mA
Cool white (8000-12000 K): DC voltage: (3.0 V~3.6 V), DC: 300 mA~350 mA
Full Spectrum Pink Plant Light (380-840nm): DC, forward voltage: (3.0V~3.6V), front current: 300mA~350mA
3 Watt LED:
UV (360-370nm): forward DC voltage: (3.6V~4.2V), DC: 600mA~700mA
UV (395nm): forward DC voltage: (3.2V~3.8V), DC: 600mA~700mA
Royal Blue (445-450nm): DC, forward voltage: 3.0V~3, 6 V, forward current: 600mA~700mA
Blue (460-465nm): DC, forward voltage: 3.0V~3.6V, DC: 600mA~700mA
blue green(490-500nm): DC forward voltage: 3.0V~3.6V, front current: 600mA~700mA
Green (520-530nm): DC forward voltage: 3.0V~3.6V, DC: 600mA~700mA
Yellow (580-590nm): DC forward voltage:2.0-2.6V, DC: 600mA~700mA
Orange (600-610nm): DC forward voltage: 2.0-2.6V, DC: 600mA~700mA
Red (620-630nm): DC, forward voltage: 2.0V~2.6V, front current: 600mA~700mA
deep Red Plant lamp (650-660nm): DC forward voltage: 3.2V~3.62.0-2.6 front current: 600mA~700mA
IR (730nm): DC voltage: 1.4V~1.7V, DC: 400ma-500mA
IR (850nm): DC current voltage: 1.4V~1.7V, DC current: 400ma-500mA
IR (940nm): DC, forward voltage: 1.4V~1.7V, DC: 400ma-500mA
Warm white (2800-3200 K): Forward DC voltage: (3.0 V~3.6 V), DC current: 600 mA~700 mA
Natural white (4000-4500 K): DC voltage: (3.0 V~3.6 V), DC power: 600mA~700mA
White (6000-6500 K): DC voltage: (3.0 V~3.6 V), DC: 600mA~700mA
Cool white (8000-12000 K): DC voltage: (3.0 V~3.6 V), DC: 600mA~700mA
Full Spectrum Pink Plant Light (380-840nm): DC, forward voltage: (3.0V~3.6V), front current: 600mA~700mA
5 Watt LED:
UV (360-370nm): 2 chips in parallel DC voltage: (3.6V~4.2V), DC: 800mA~1000mA
UV (395nm): 2 chips in parallel DC voltage: (3.2V~3.8 V), current: 800mA~1000mA
Royal blue (455-450nm):2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Blue (460-465nm): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
blue green(490-500nm): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Green (520-530nm): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Yellow (580-590nm): 2 chips in parallel DC voltage: (2.0-2.6V), current: 800mA~1000mA
Orange (600-610nm): 2 chips in parallel DC voltage: (2.0-2.6V), current: 800mA~1000mA
Red (610-630nm): 2 chips in parallel DC voltage: (2.0-2.6V), current: 800mA~1000mA
deep Red Plant lamp (650-660nm): 2 chips in parallel DC voltage: (2.0V~2.6 V), current: 800mA~1000mA
Infrared (730nm): 2 chips in parallel DC voltage: (1.4-1.7V), current: 600-900mA
IR (850nm):2 chips in parallel DC voltage: (1.4-1.7V), current: 600-900mA
IR (940nm): 2 chips in parallel DC voltage: (1.4-1.7V), current: 600-900mA
golden light (1800-2200 K): 55mil a chip DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Warm white (2800-3200 K): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Natural white light (4000-4500 K): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
White (6000-6500 K): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Cool white (8000-12,000 K): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
Full Spectrum Pink Plant Light (380-840nm): 2 chips in parallel DC voltage: (3.0V~3.8 V), current: 800mA~1000mA
,
