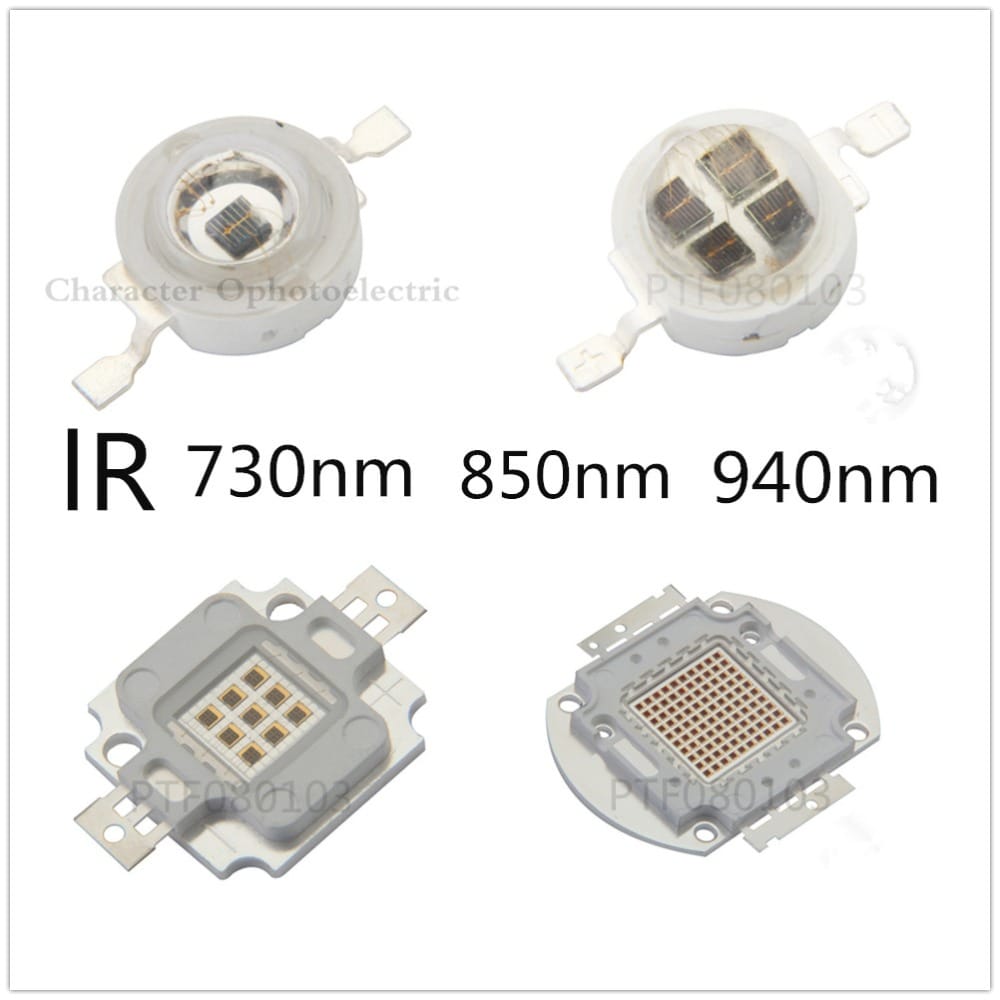

High Power LED Chip 730nm 850nm 940nm IR LED Infrared 1W 3W 5W 10W 20W 30W 50W 100W 850 nm 940 nm Emitter Light Lamp LED Beads
High Power LED Chip 730nm 850nm 940nm IR LED Infrared 1W 3W 5W 10W 20W 30W 50W 100W 850 nm 940 nm Emitter Light Lamp LED Beads
Color | Color Temperature Wavelength | Power | Forward Voltage | Forward Current |
IR | 730nm | 3W | 2.0-2.2V | 400-500mA |
5W | 2.0-2.2V | 1100-1200mA | ||
10W | 6-7V | 840-1000mA | ||
20W | 20-22V | 560-700mA | ||
30W | 20-22V | 840-1000mA | ||
50W | 20-22V | 1400-1700mA | ||
100W | 20-22V | 2800-3500mA |
Color | Color Temperature Wavelength | Power | Forward Voltage | Forward Current |
IR | 850nm | 1W | 1.6-1.8V | 280-350mA |
3W | 1.6-1.8V | 400-500mA | ||
5W | 1.6-1.8V | 1100-1200mA | ||
10W | 5-6V | 840-1000mA | ||
20W | 16-18V | 560-700mA | ||
30W | 16-18V | 840-1000mA | ||
50W | 16-18V | 1400-1700mA | ||
100W | 16-18V | 2800-3500mA |
Color | Color Temperature Wavelength | Power | Forward Voltage | Forward Current |
IR | 940nm | 3W | 1.4-1.6V | 400-500mA |
5W | 1.4-1.6V | 1100-1200mA | ||
10W | 4.5-5.5V | 840-1000mA | ||
20W | 14-16V | 560-700mA | ||
30W | 14-16V | 840-1000mA | ||
50W | 14-16V | 1400-1700mA | ||
100W | 14-16V | 2800-3500mA |
Our LED Chips will work more than 50000 hours if the working temperature is less than 60.
So, they need to work wih heatsinks.
,
