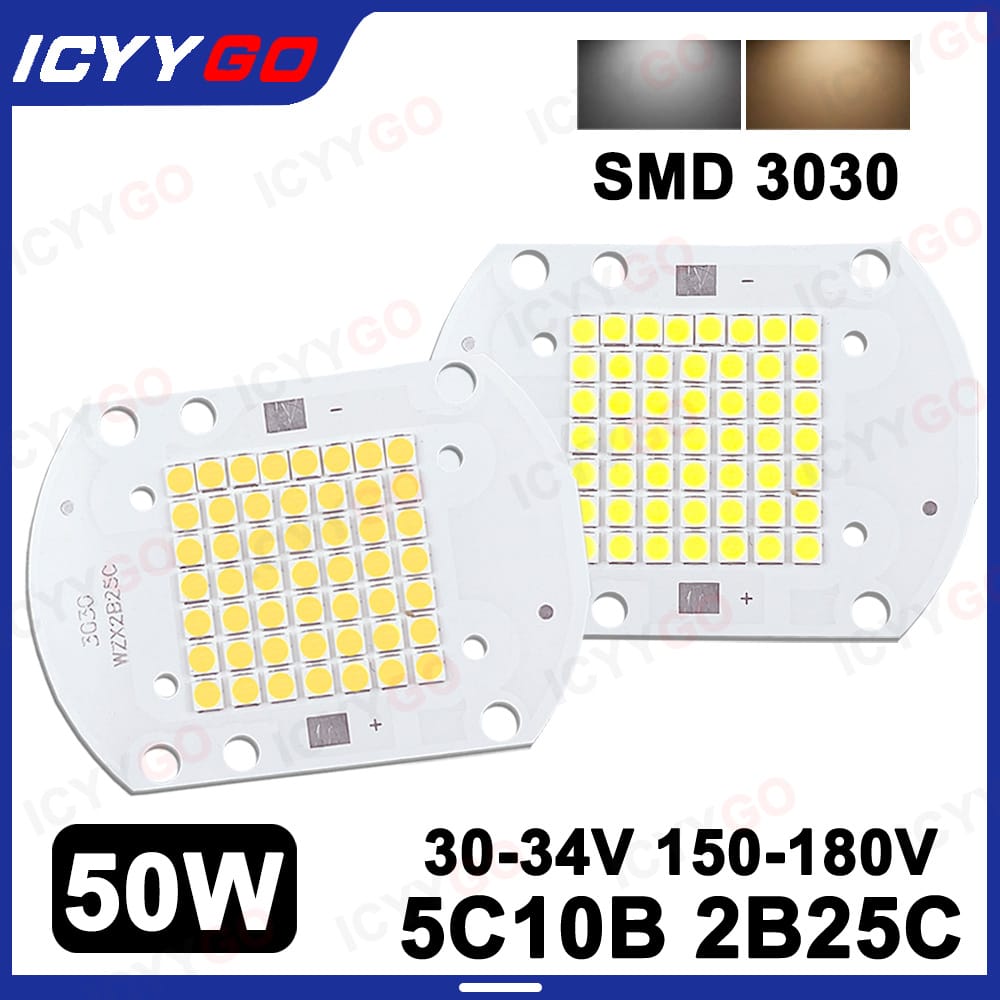

High Power 50W High Light Efficiency SMD3030 Lamp Beads Are Used For DIY Lighting Such As Foodlights And Street Lights.
Features:
1. Using aviation aluminum substrate, it has fast heat conduction and good heat dissipation.
2.3030 patch integrated light source, high brightness, small light attenuation and long life.
3. High color rendering index, uniform light emission, soft light, high light efficiency and more energy saving
4. Good irradiation effect, wide range of uses and easy disassembly.
The whole lamp can pass CE certification.

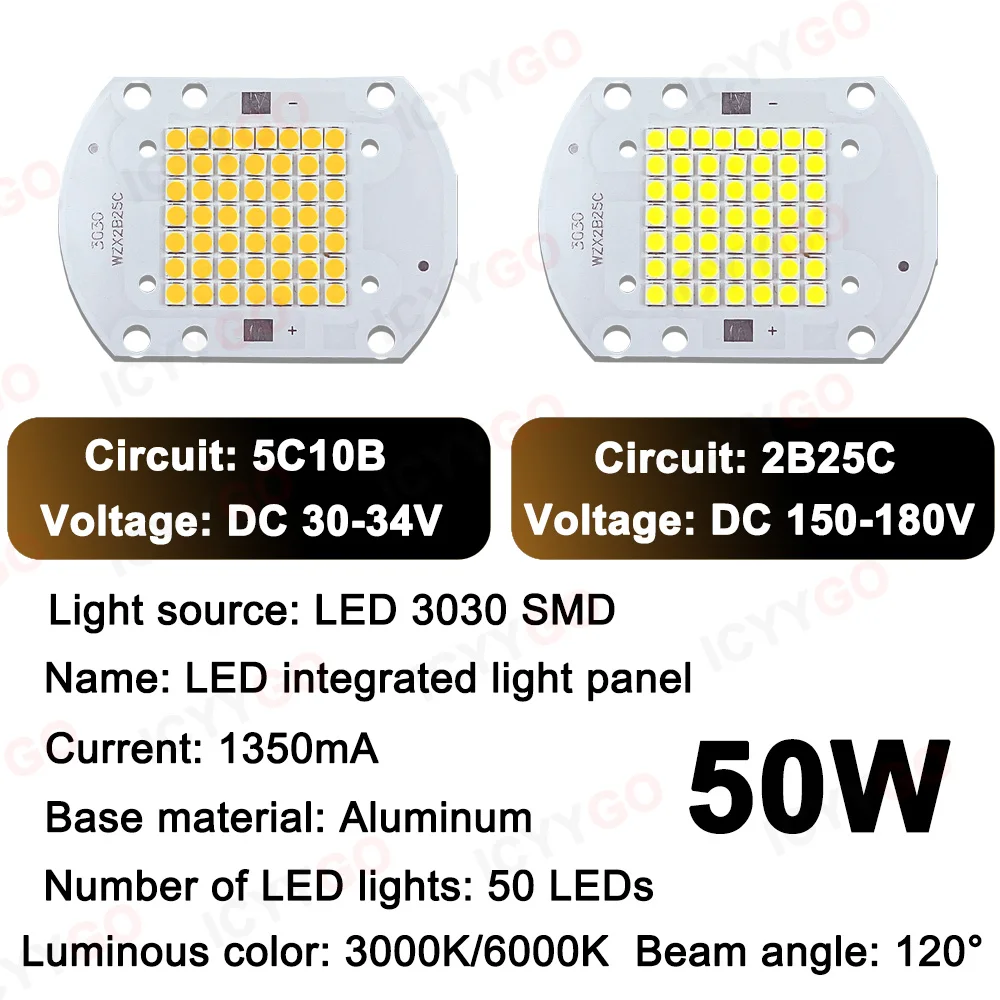

Product specifications:
●. Name: High-power LED integrated lamp panel
●. Type: constant current light source
●. Material: aluminum
●. Color: warm white, white light
●. Color temperature: 3000K/6000K

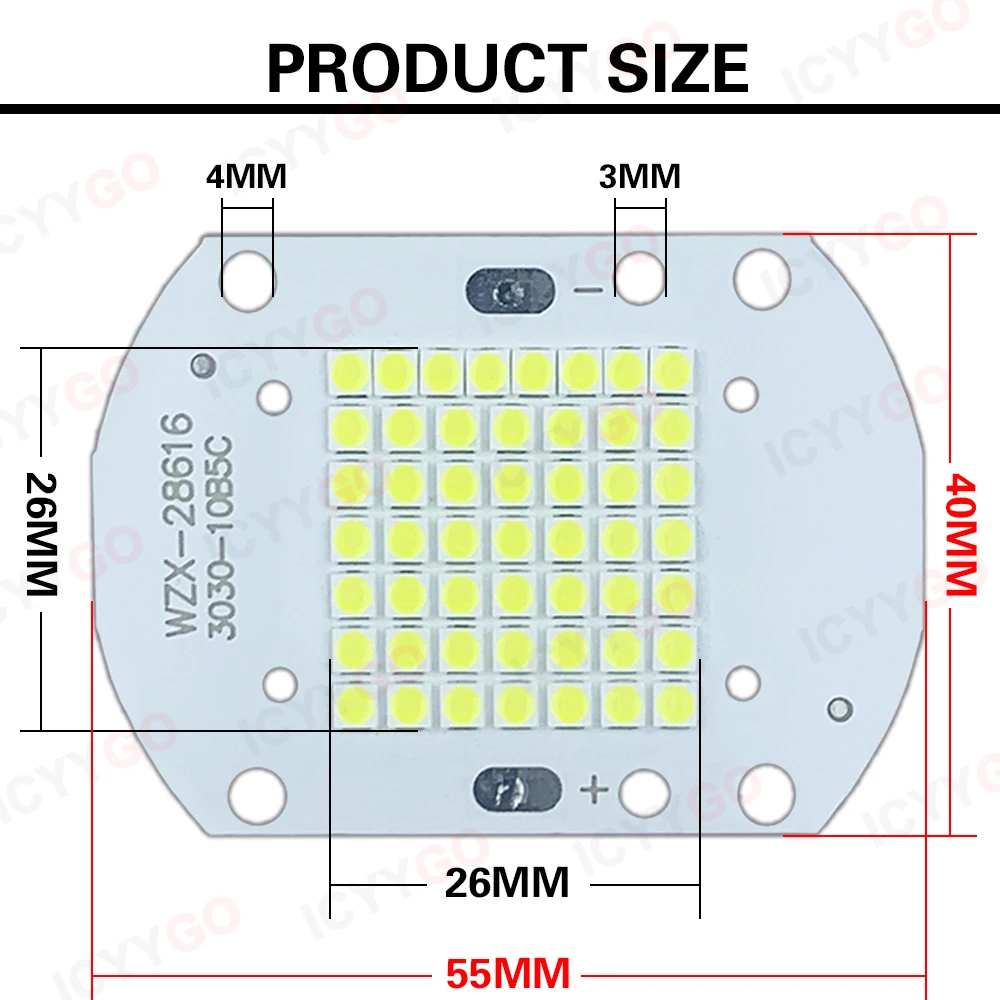

●. Product size: 55*40*1mm (length*width*height)
●. LED light source: 3030 SMD (50 LEDs)
●. Beam angle: 120°
●. Power: 50W
●. Voltage: 5C10B DC 30-34V 2B25C DC 150-180V
●. Current: Can be used within 1400mA

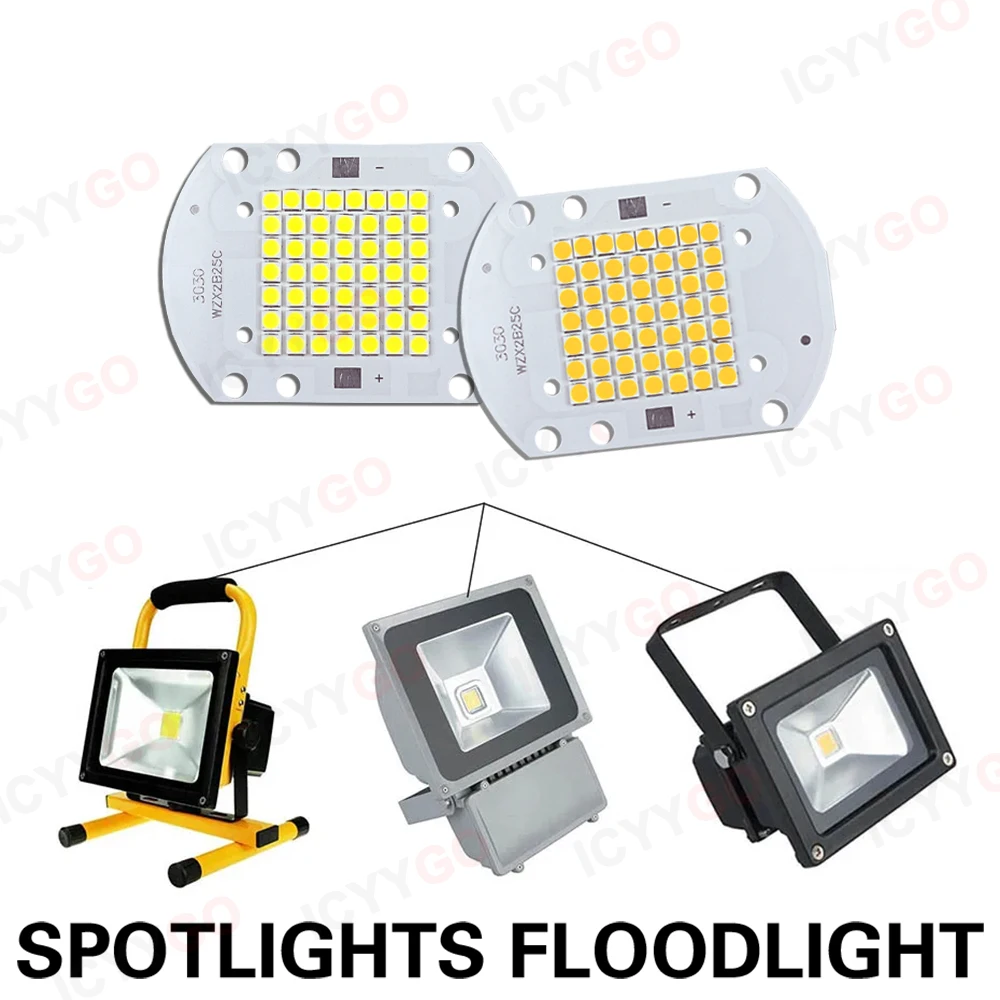

●. Usage: Used for DIY lighting such as floodlights, street lights, garden lights, landscape lights, stage lights, etc.
packing list:
50W LED light panel 1PCS
Kind tips:
●. Light and different monitors may cause the color of the item to be somewhat different from the actual item. The allowed measurement error is +/-1-2 mm.
●. For high power LEDs, a constant current LED driver is recommended.
●. When using a radiator system, the operating temperature should be below 60 degrees Celsius (140 degrees Fahrenheit).
●. Please refer to the positive (anode+) and negative (cathode-) markings on the LED.
,
