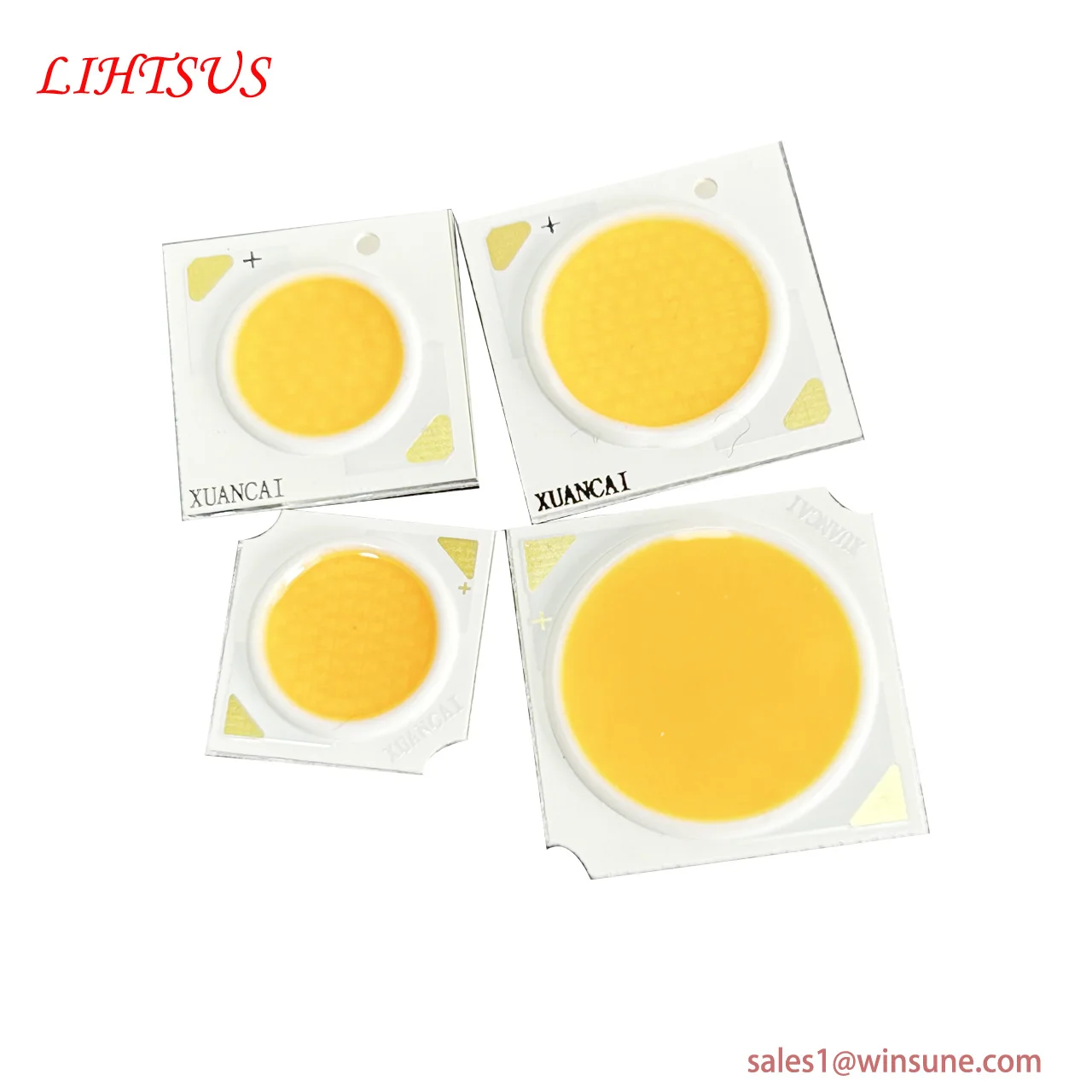

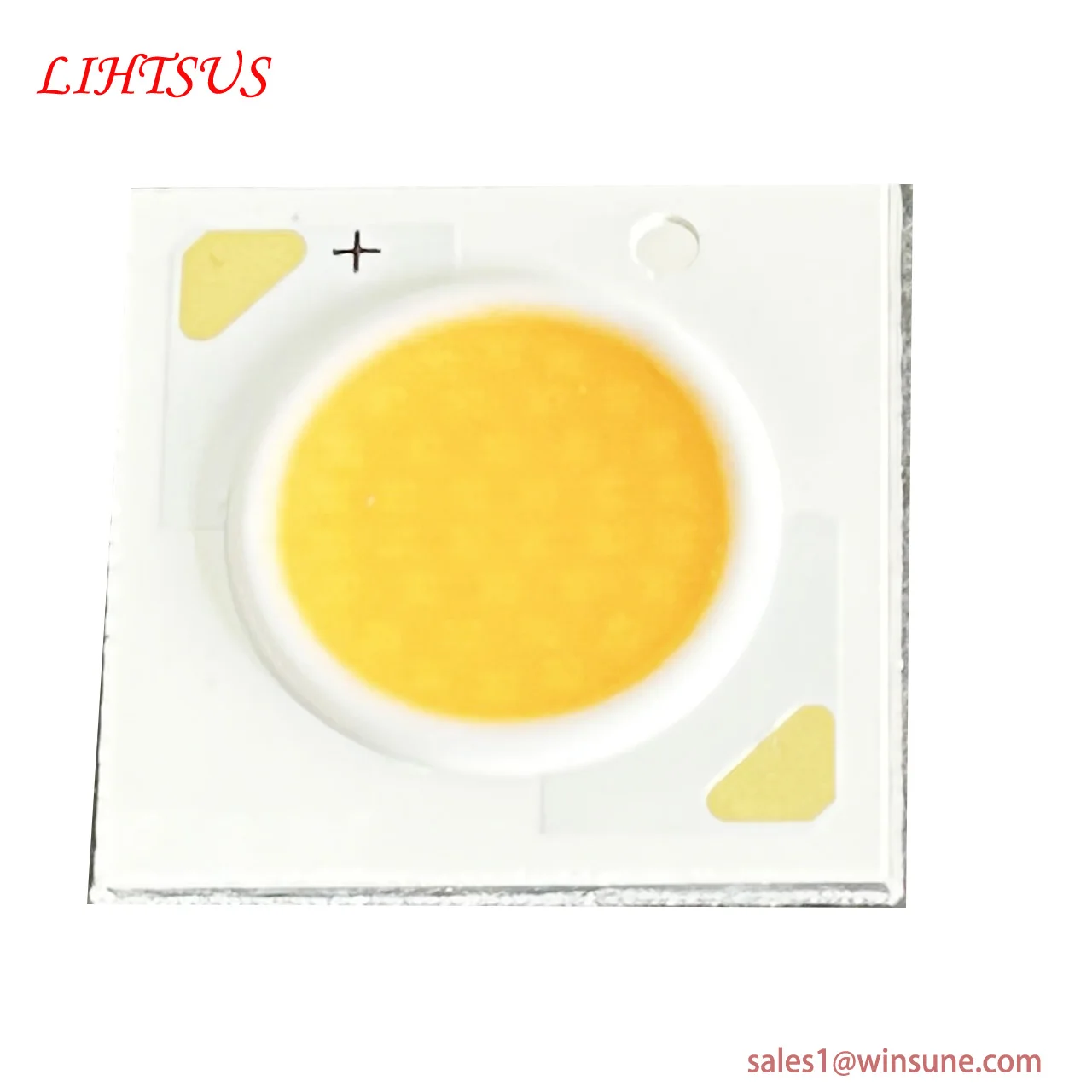

High CRI95+ LED COB Chip 3W 7W 12W 30W 36W48W Beads 1919 1313 1616 1818 Ra95 Chip Light Bead Source DIY Led Bulb Led Track Light

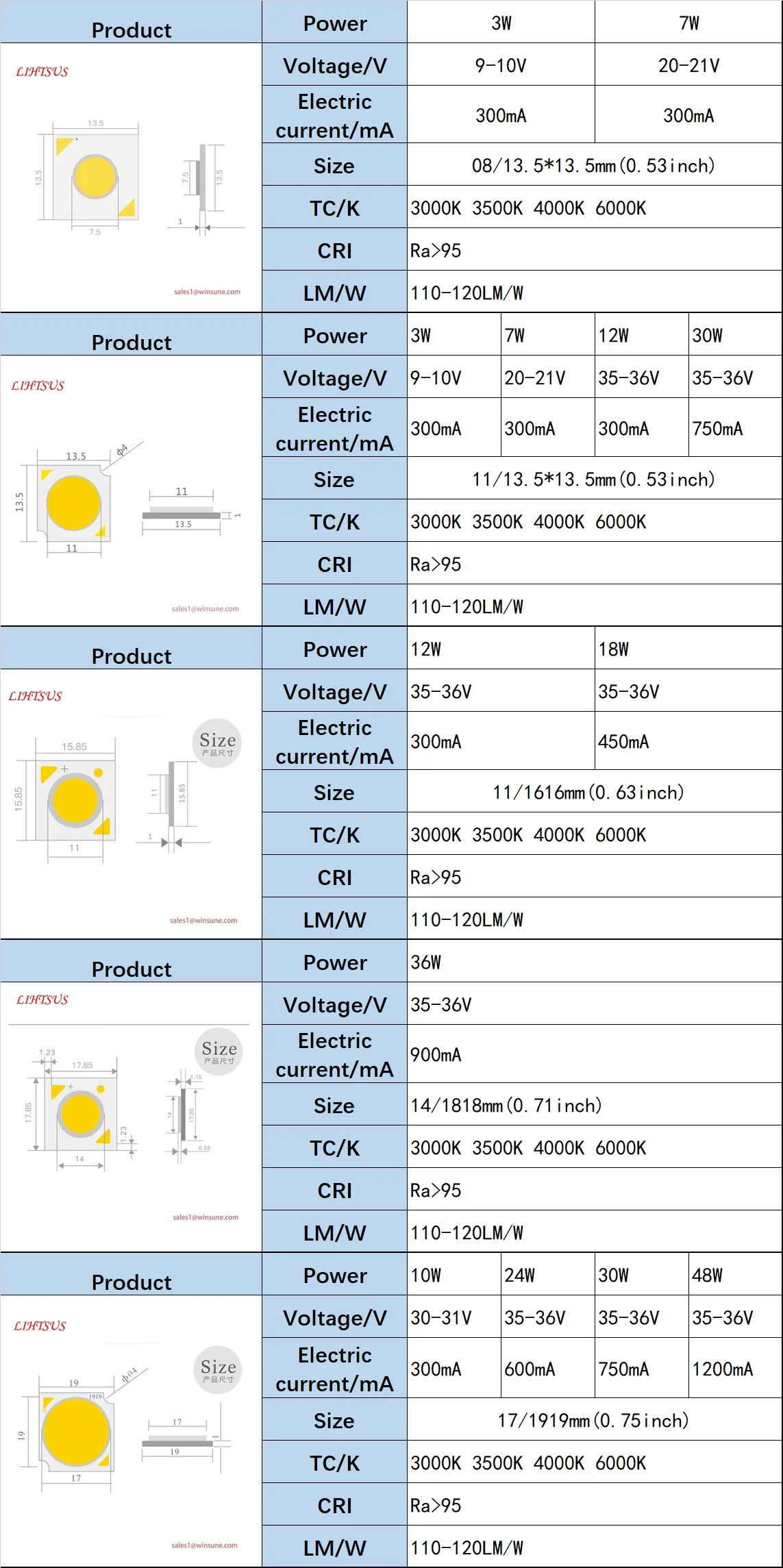

Package Content: 1pcs COB LED chip

CRI:Ra95+

Lumen:110-120LM/W

Power:3W/7W

Materiale: chip di Ceramica

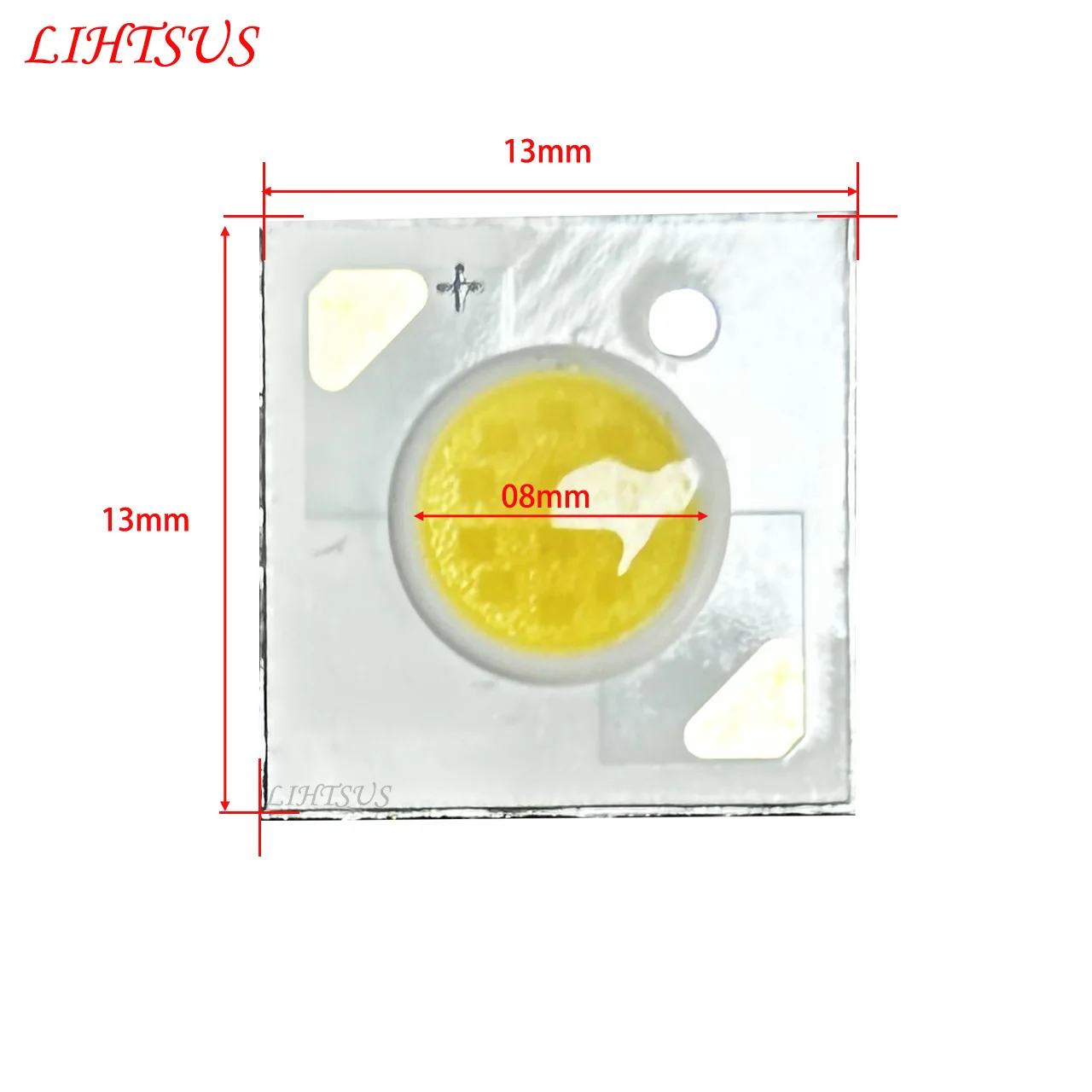

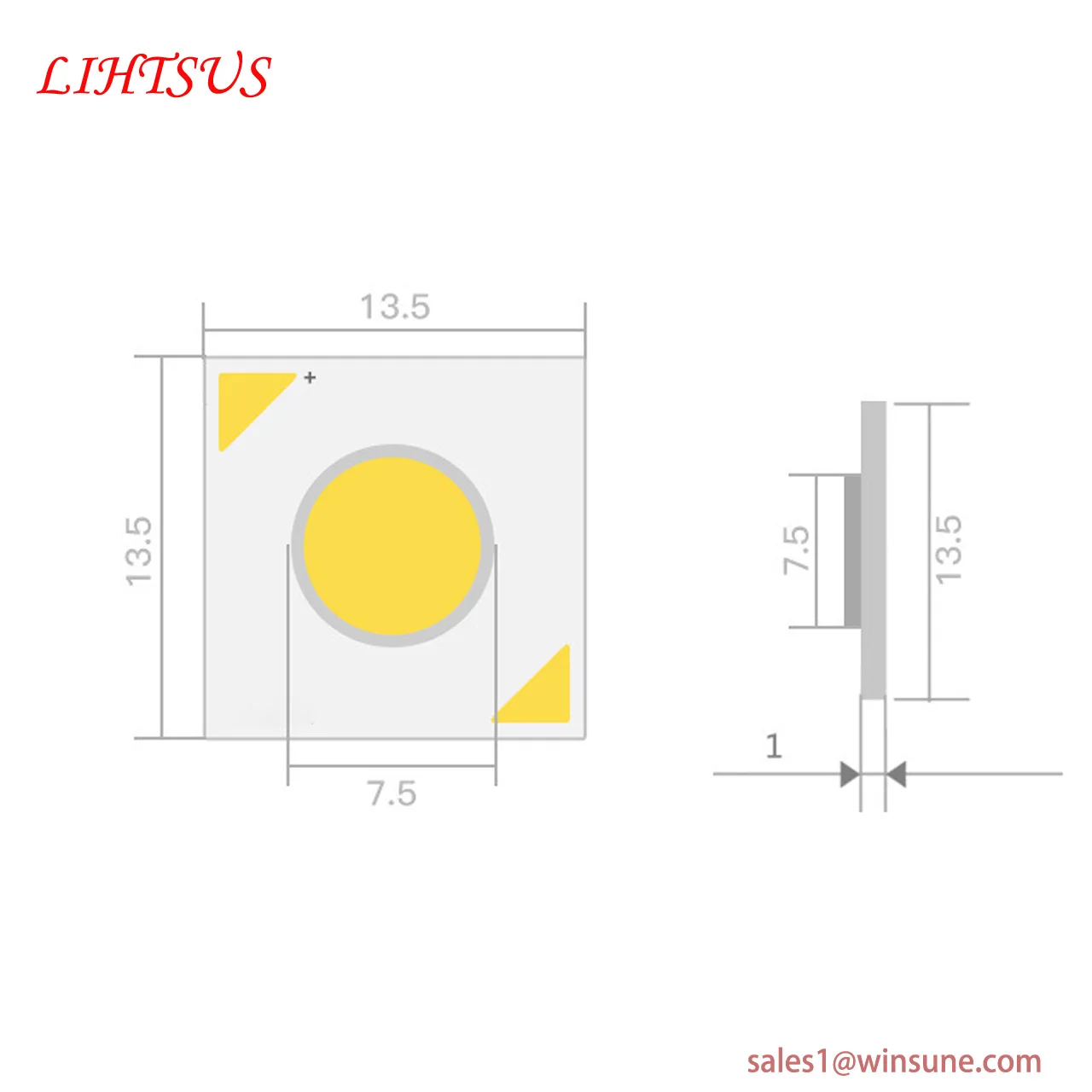

Formato: 13.5*13.5 millimetri(o.53inch)

Superficie di luce formato: 08mm(0.43inch)

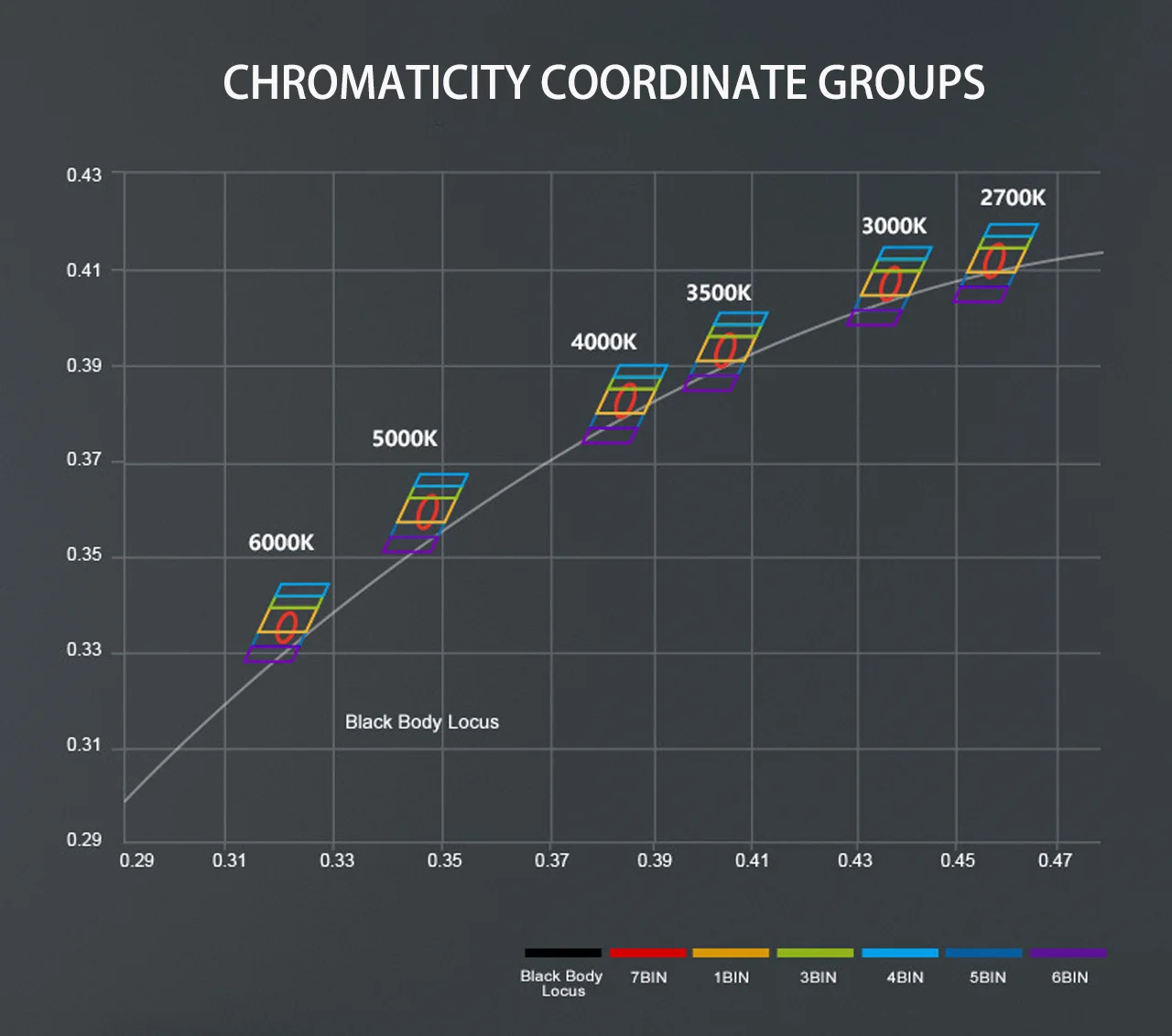

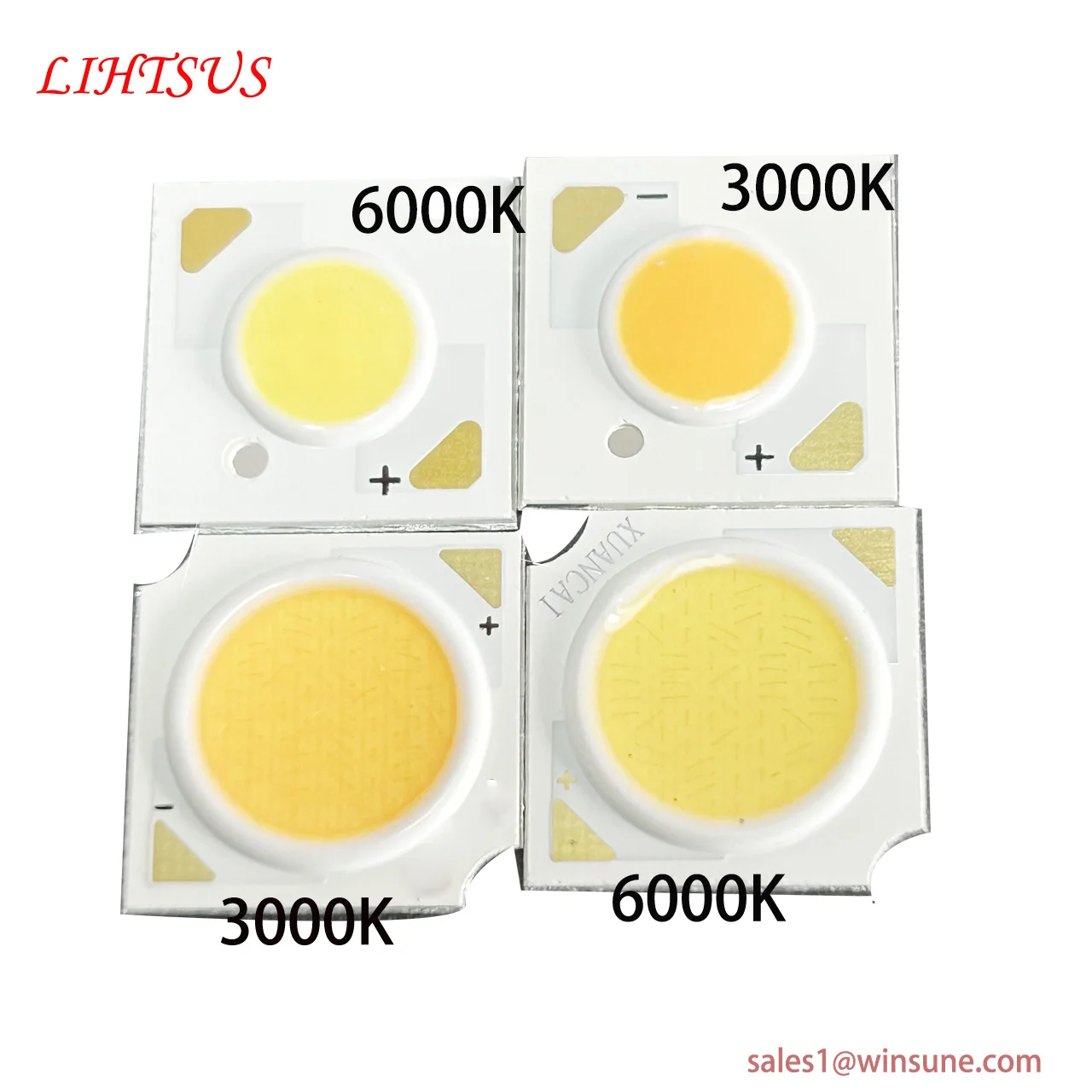

Color temperature: 3000K 3500K 4000K 6000K

3W 10V 300mA 3S3P Lumen: 270-300LM

7W 21V 300mA 7S2P Lumen: 630-700LM

CRI:Ra95+

Lumen:110-120LM/W

Power:3W/7W/12W/30W

Materiale: chip di Ceramica

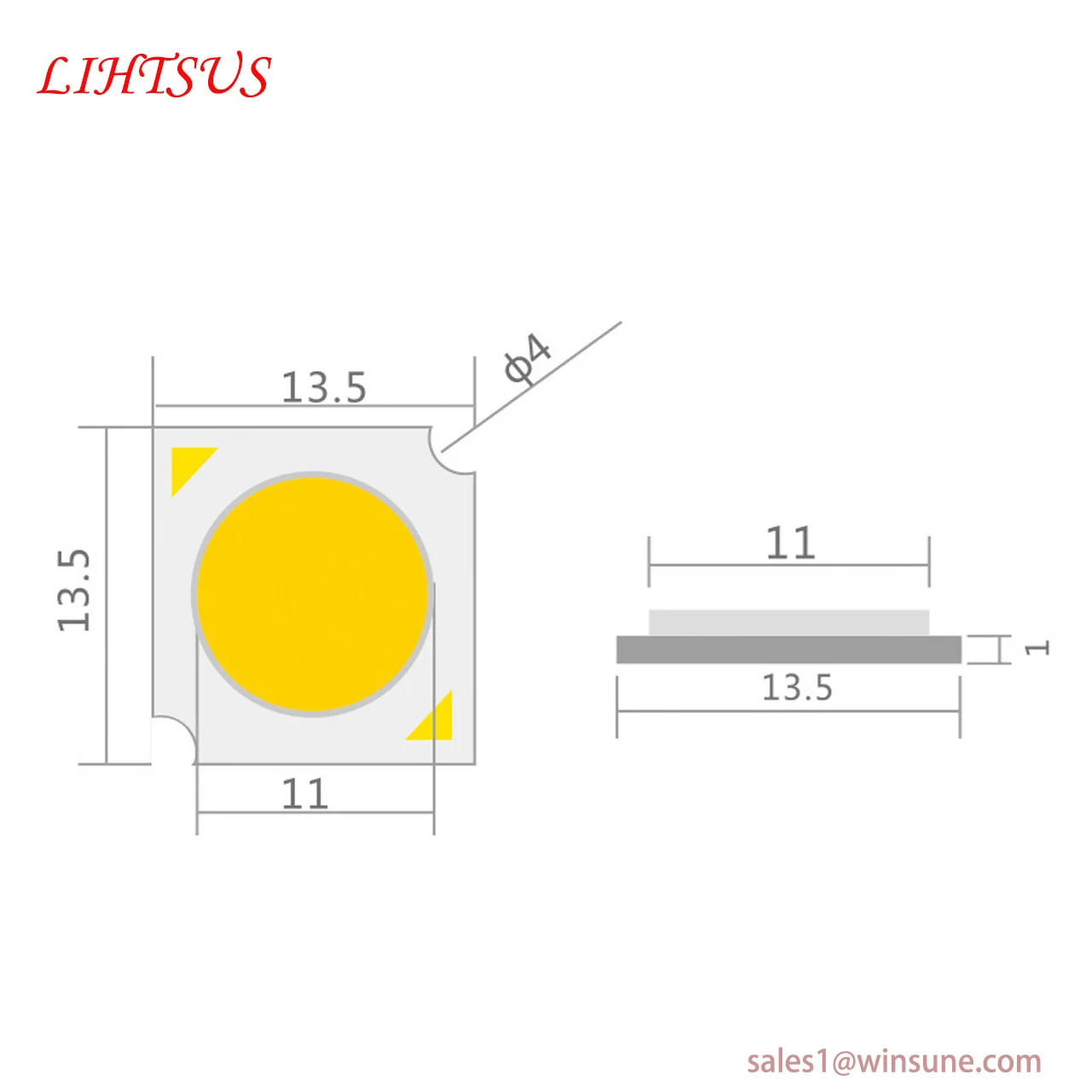

Formato: 13.5*13.5 millimetri(o.53inch)

Superficie di luce formato: 11mm(0.43inch)

Color temperature: 3000K 3500K 4000K 6000K

3W 10V 300mA 3S3P Lumen: 270-300LM

7W 21V 300mA 7S2P Lumen: 630-700LM

12W 36V 300mA 12S2P Lumen: 810-900LM

30W 36V 750mA 12S5P Lumen: 2399-2537LM

CRI:Ra95+

Lumen:110-120LM/W

Power:12W/18W

Materiale: chip di Ceramica

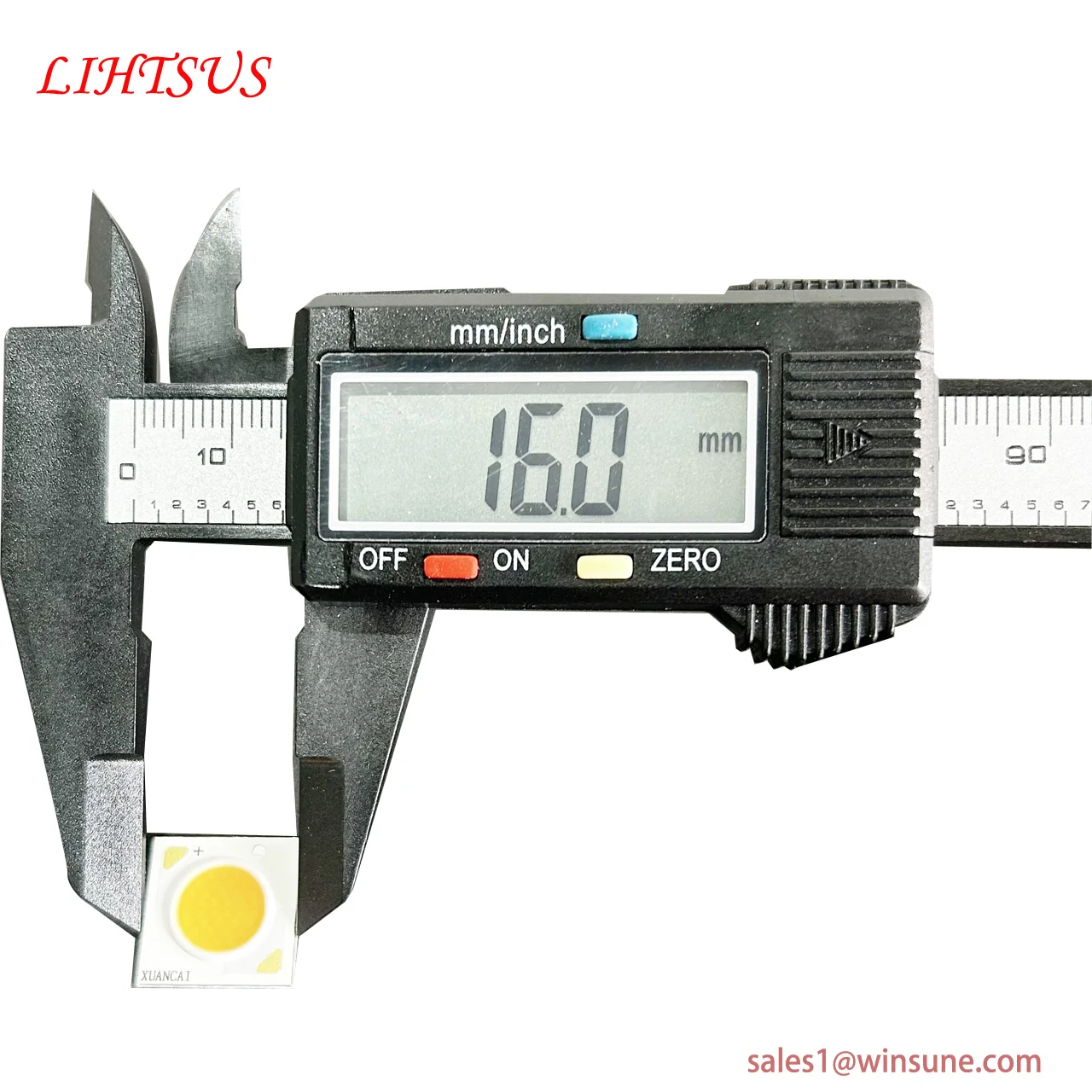

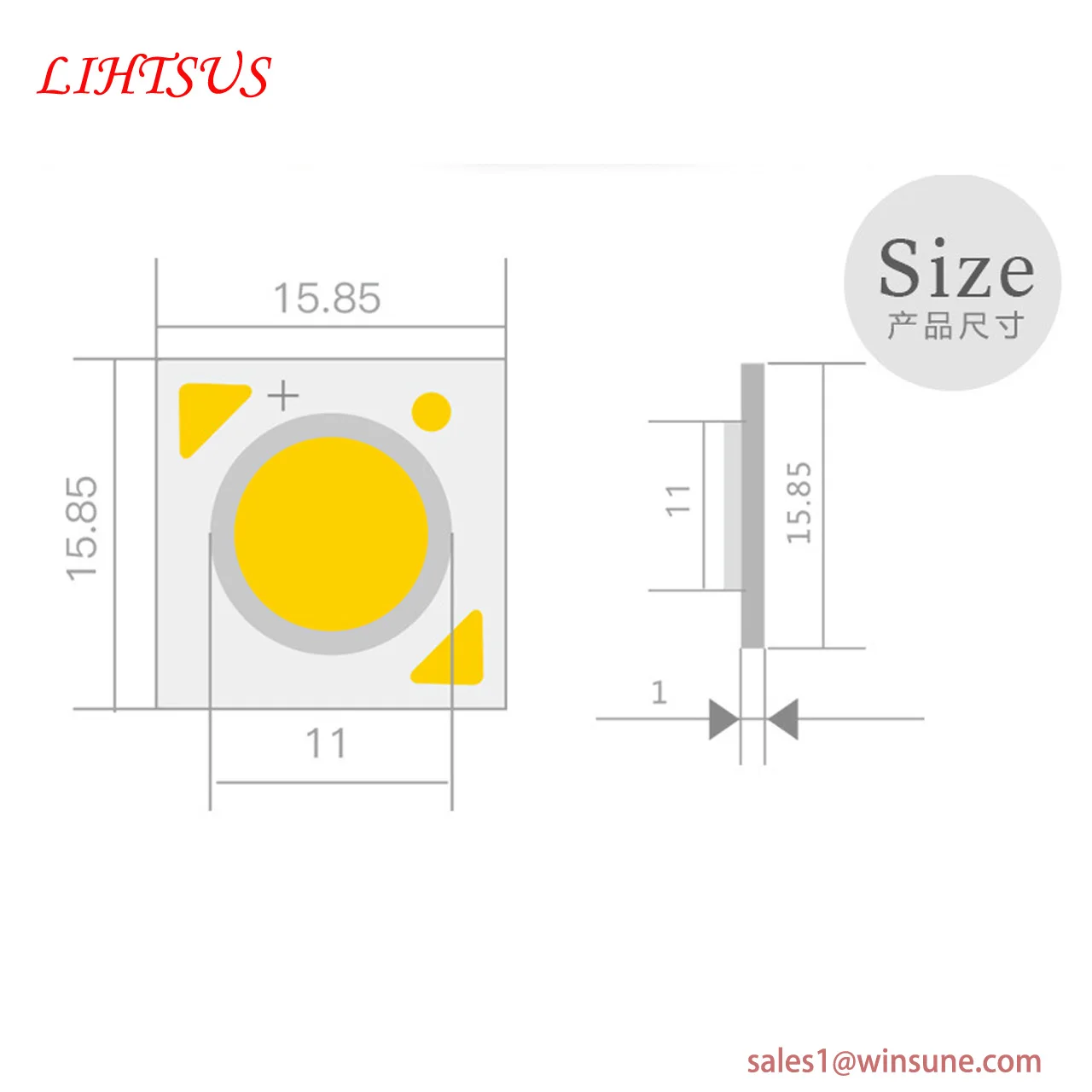

Formato: 16*16 millimetri(o.63inch)

Superficie di luce formato: 11mm(0.43inch)

Color temperature: 3000K 3500K 4000K 6000K

12W 10V 300mA 12S2P Lumen: 1100-1709LM

18W 16V 300mA 12S3P Lumen: 1146-1815LM

CRI:Ra95+

Lumen:110-120LM/W

Power:36W

Materiale: chip di Ceramica

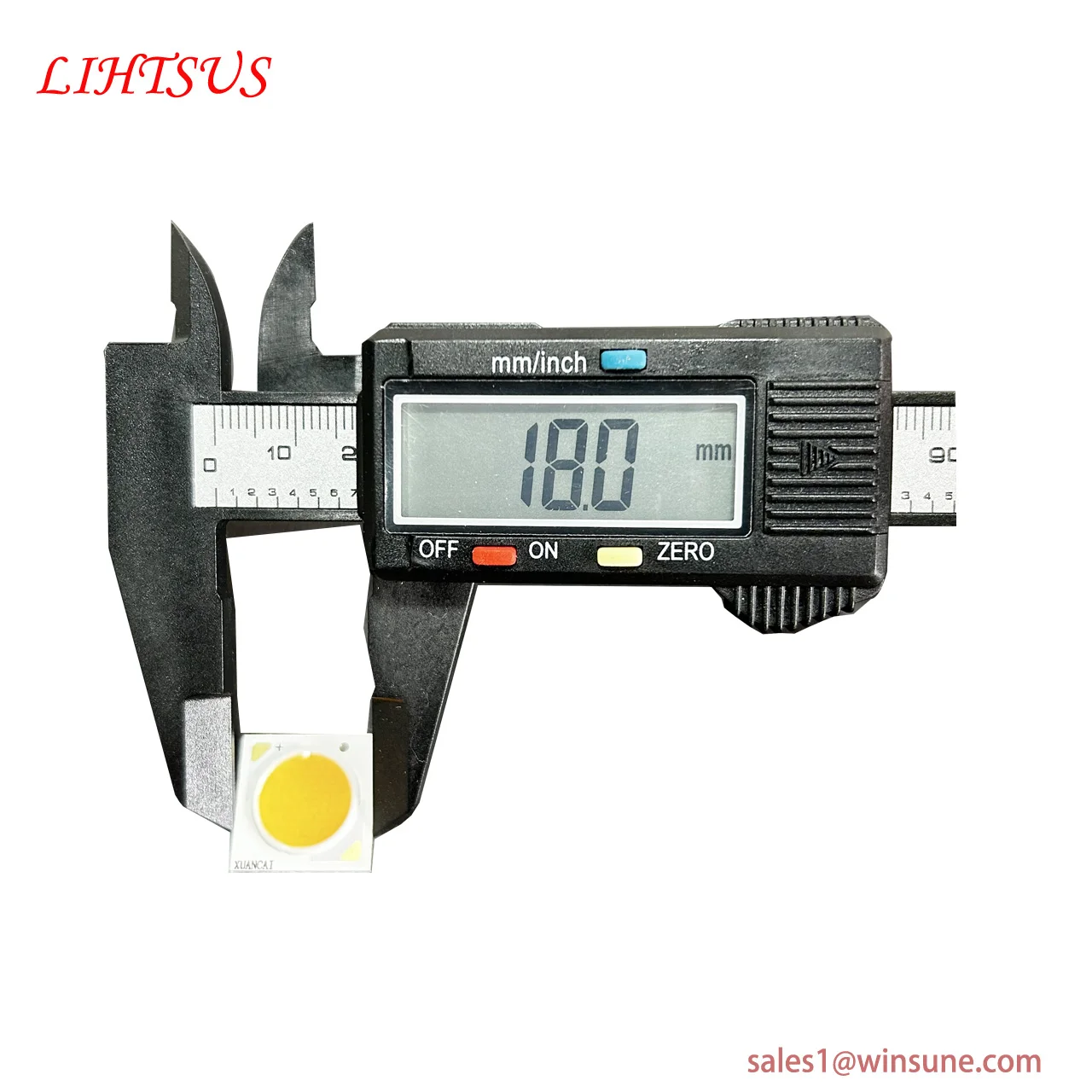

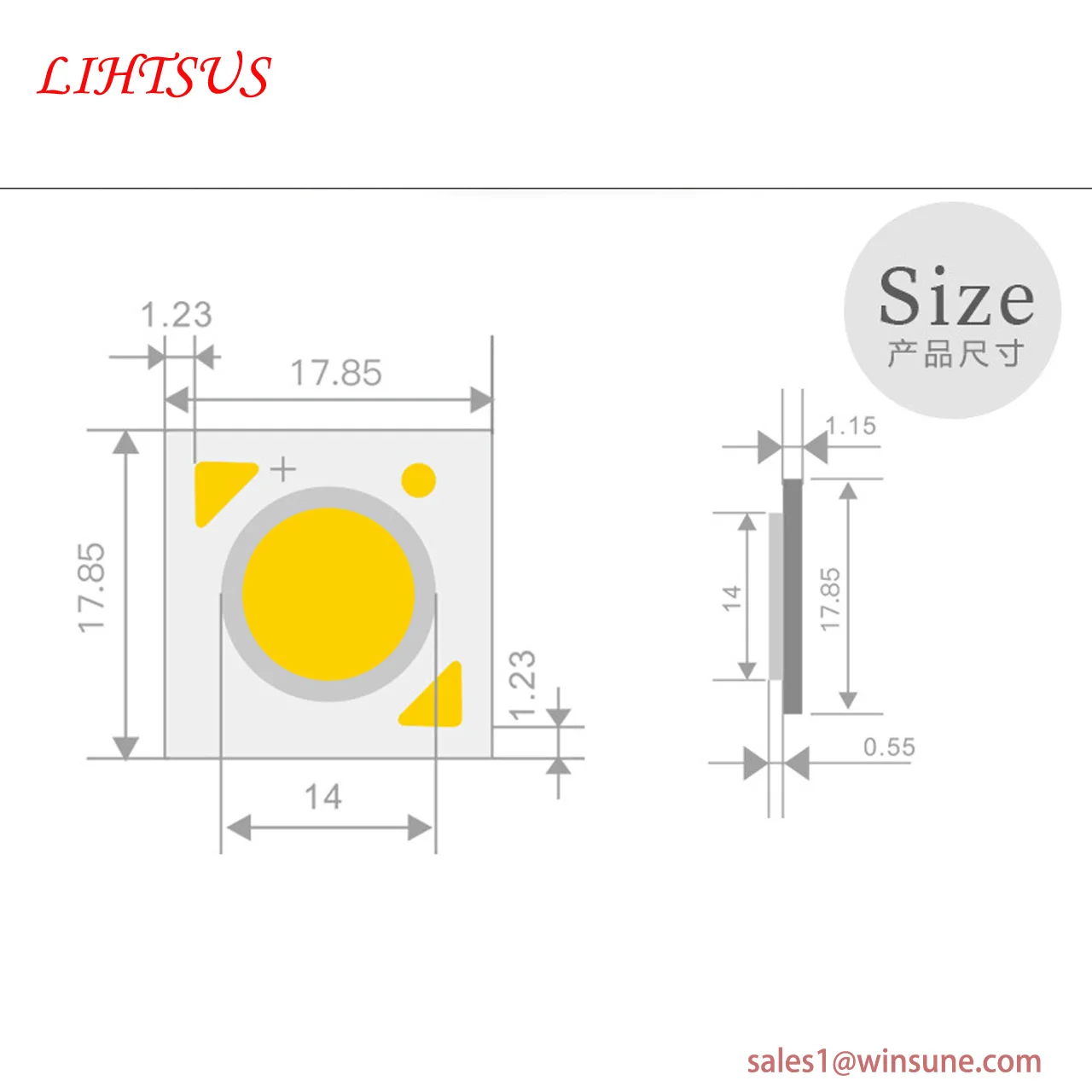

Formato: 18*18 millimetri(0.71inch)

Superficie di luce formato: 14mm(o.55inch)

Color temperature: 3000K 3500K 4000K 6000K

36W 36V 900mA 12S6P Lumen: 2415-2992LM

CRI:Ra95+

Lumen:110-120LM/W

Power:10W30W/48W

Materiale: chip di Ceramica

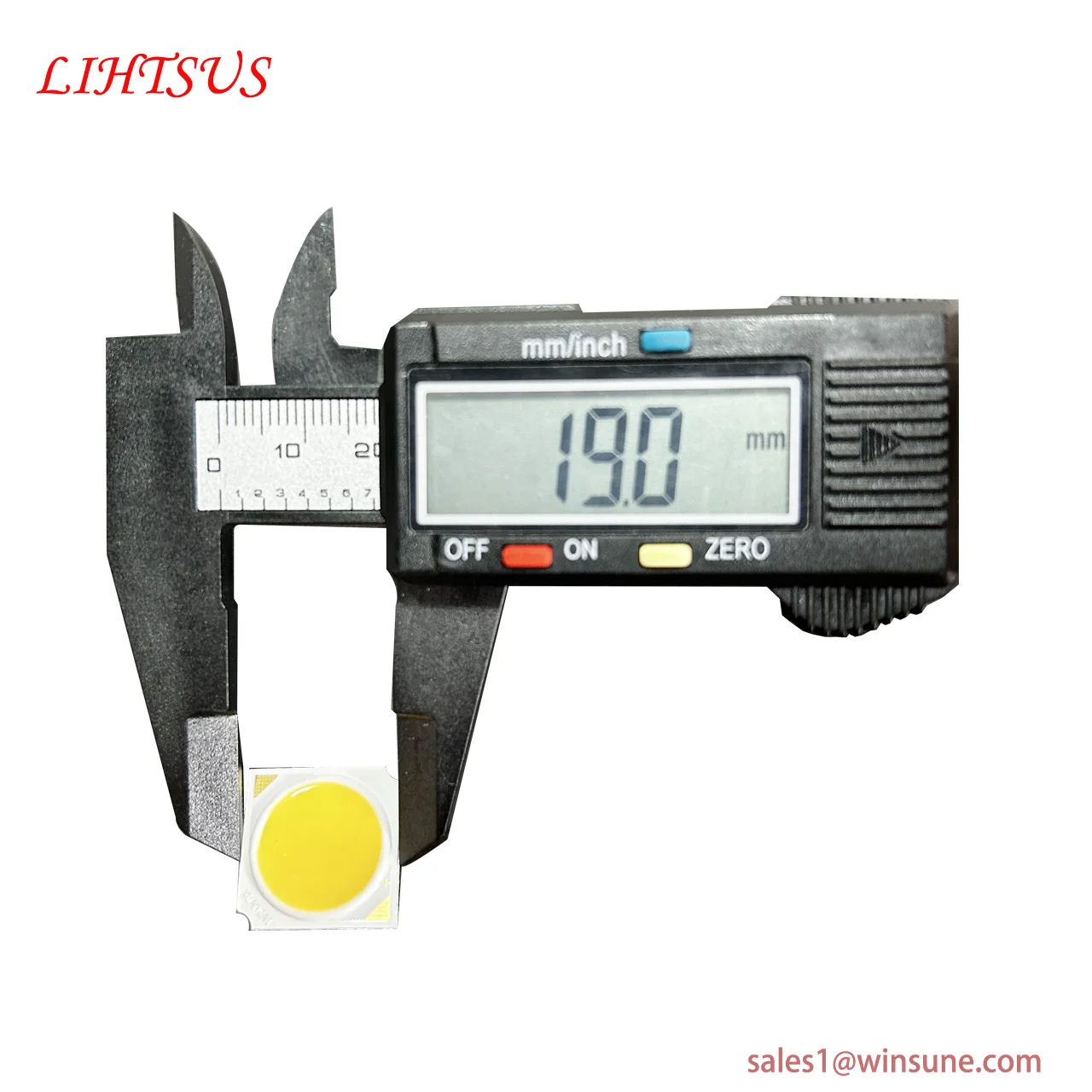

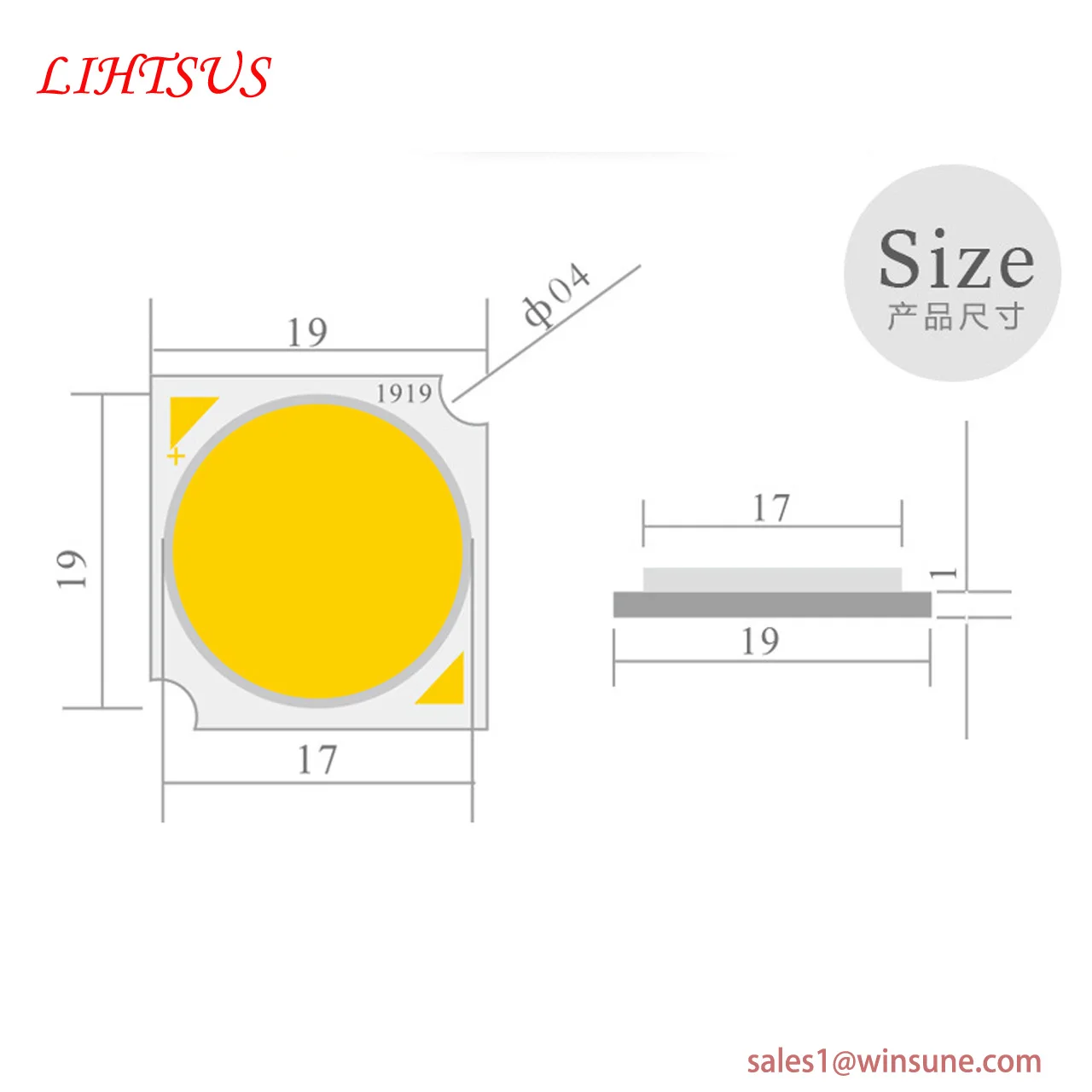

Formato: 19*19 millimetri(0.75inch)

Superficie di luce formato: 17mm(o.67inch)

Color temperature: 2700K 3000K 3500K 4000K 5000K 6000K

10W 31V 300mA 10S3P Lumen: 1100--1838LM

30W 36V 750mA 12S5P Lumen: 2399-2537LM

48W 36V 1200mA 12S8P Lumen: 3952-4178LM

We use electrostatic bags to ensure that the products are in good condition. If you have any suggestions, please contact us.

,
