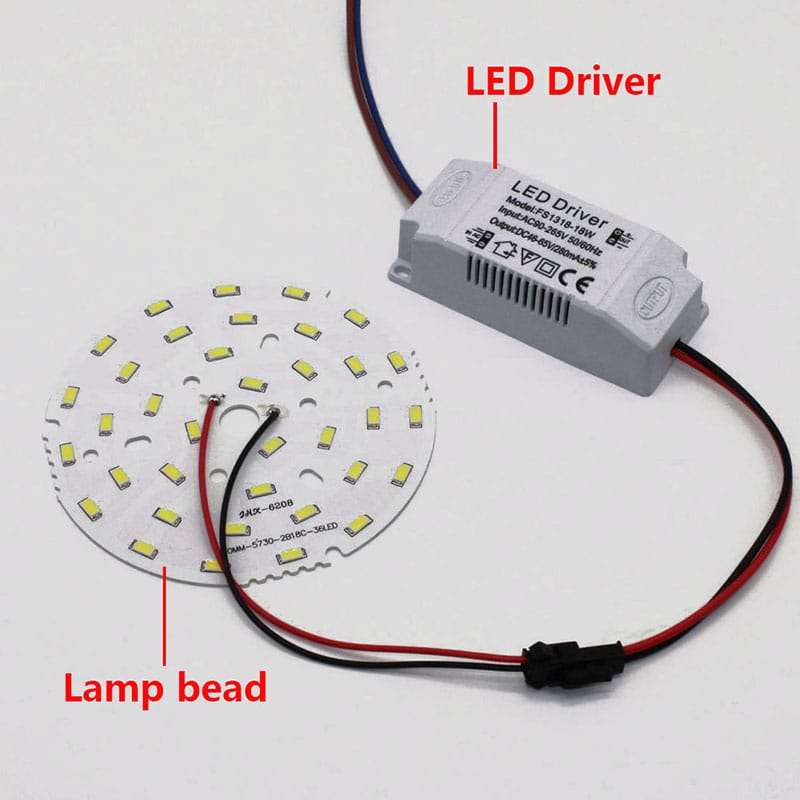

High Brightness LED 5730SMD Lamp Bead Light Board Bulb Round Transformation Light Source 3-18W 32-100MM And LED Driver.

COMPSON High Brightness LED 5730SMD Lamp Bead Light Board Bulb Round Transformation Light Source 3-18W 32-100MM And LED Driver.

Specifications:

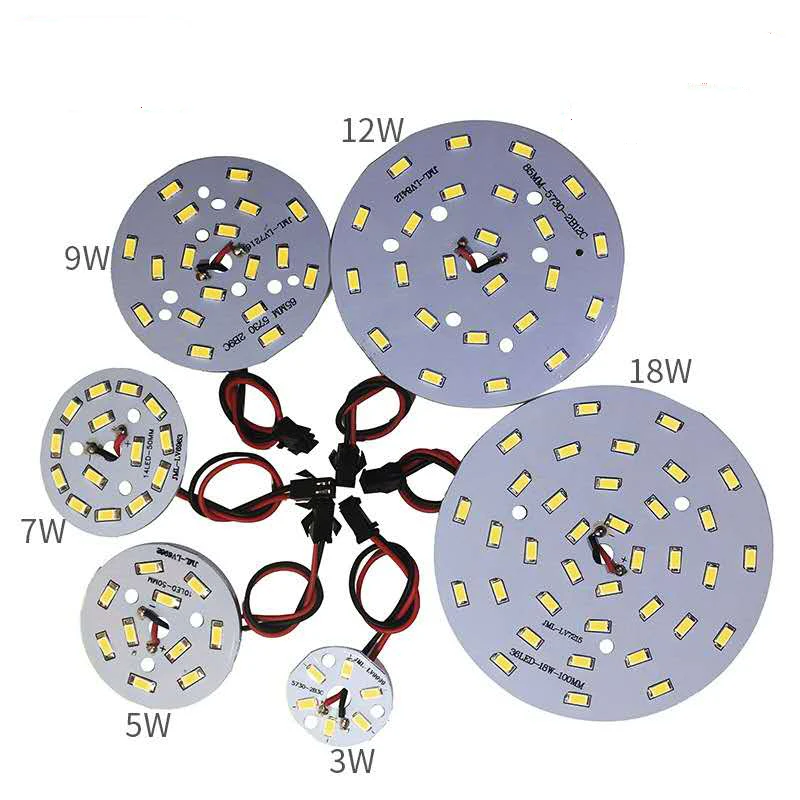

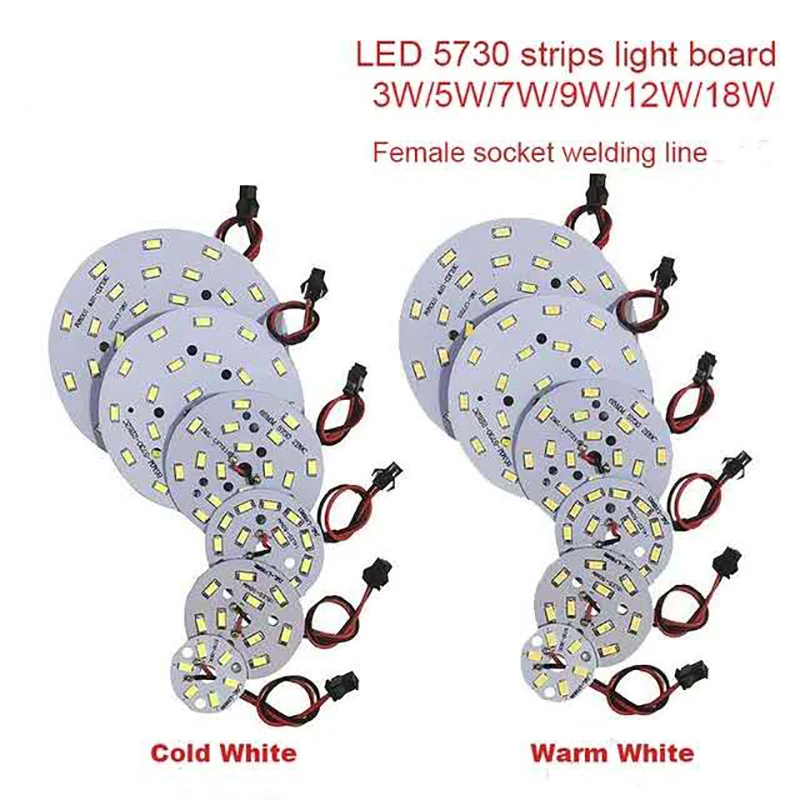

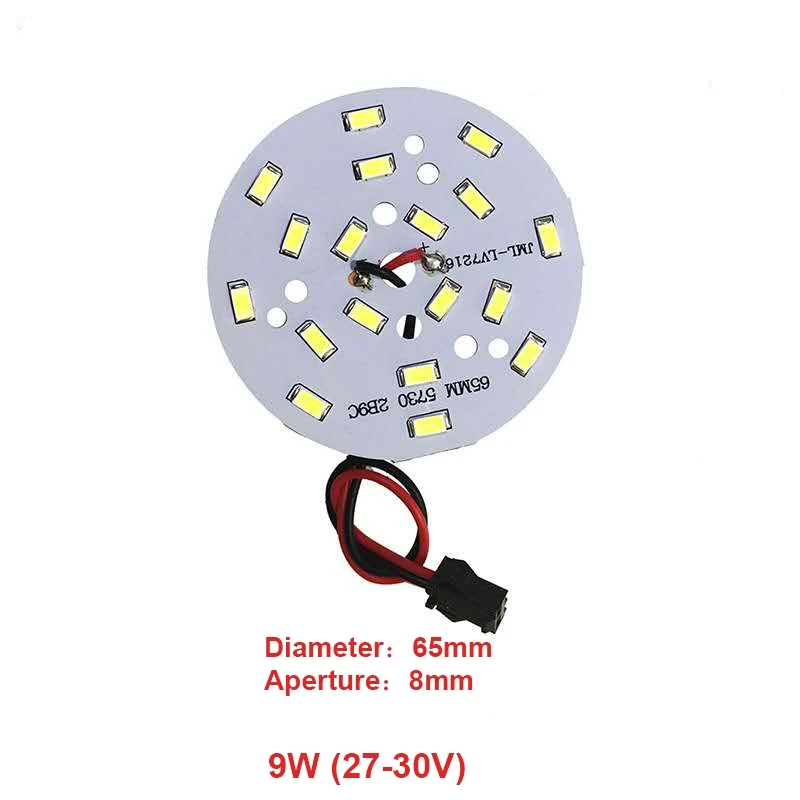

1: Lamp bead

①Power: 3W / 5W / 7W / 9W / 12W / 18W.

②Voltage: 3W(9-10V) / 5W(15-17V) / 7W(21-23V) / 9W(27-30V) / 12W(36-40V) / 18W(54-64V).

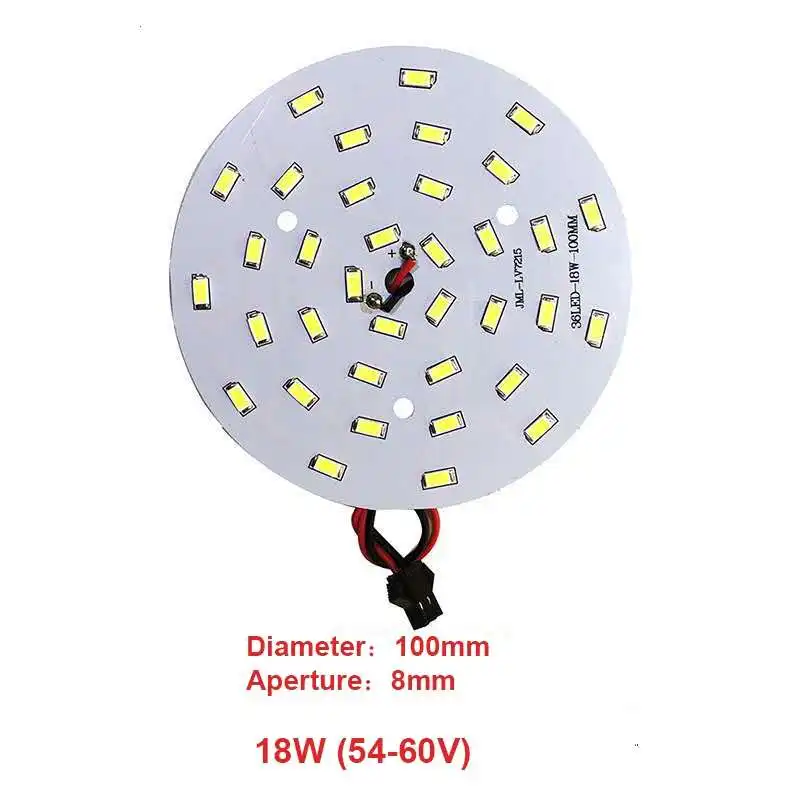

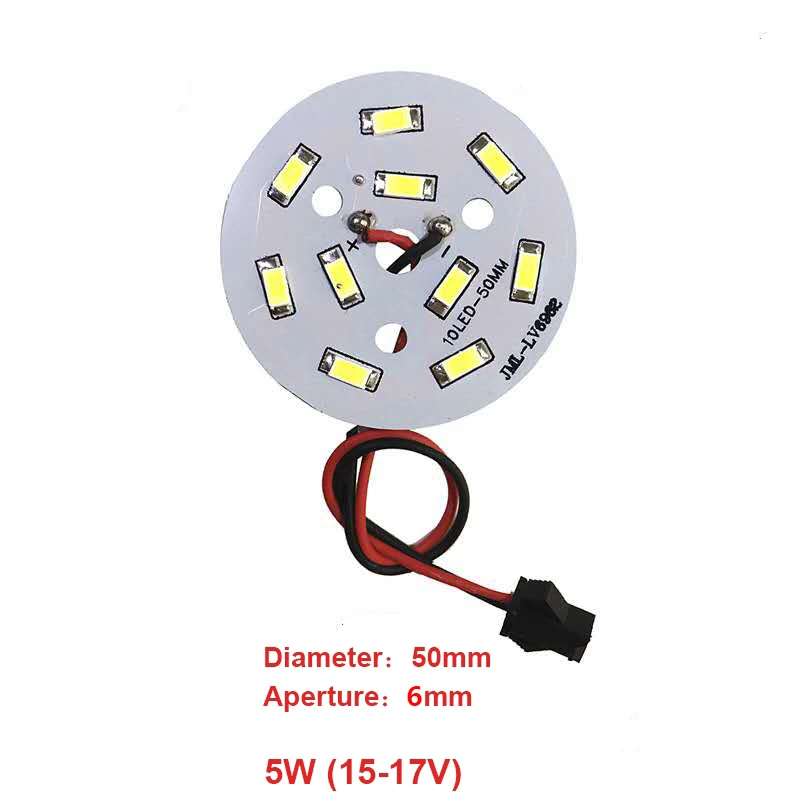

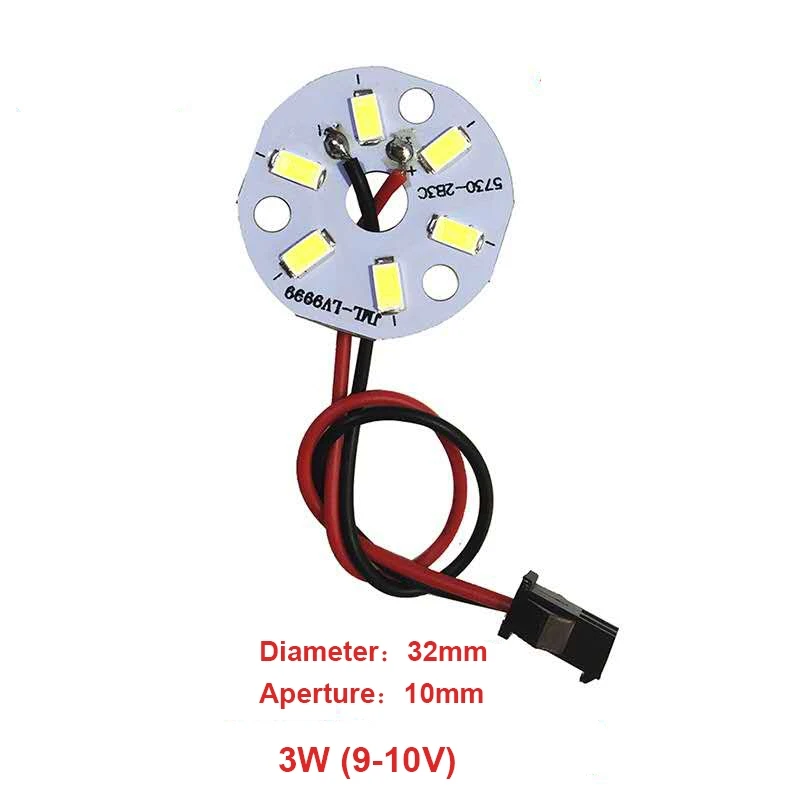

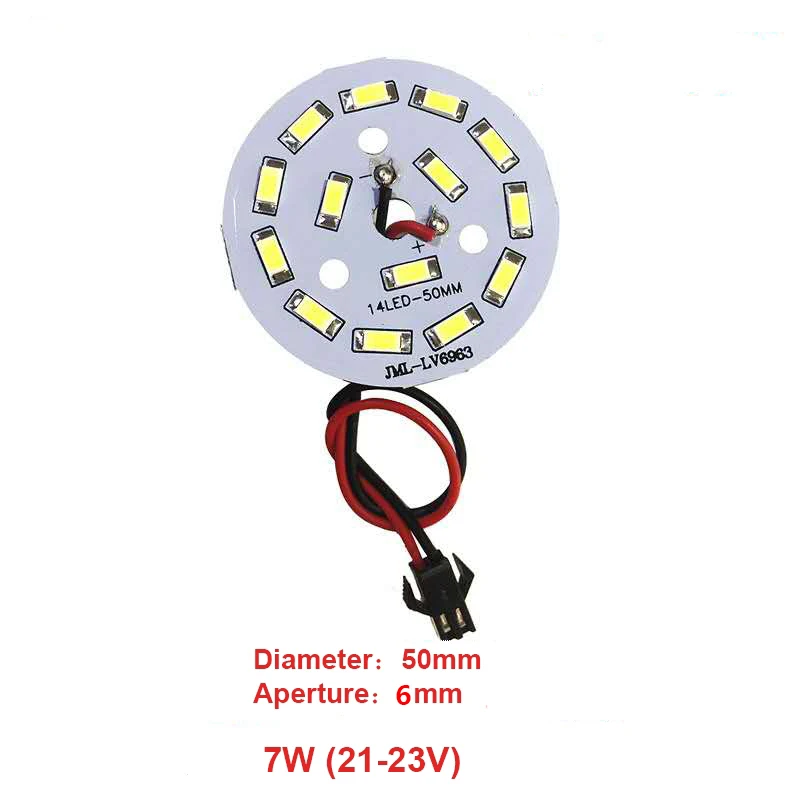

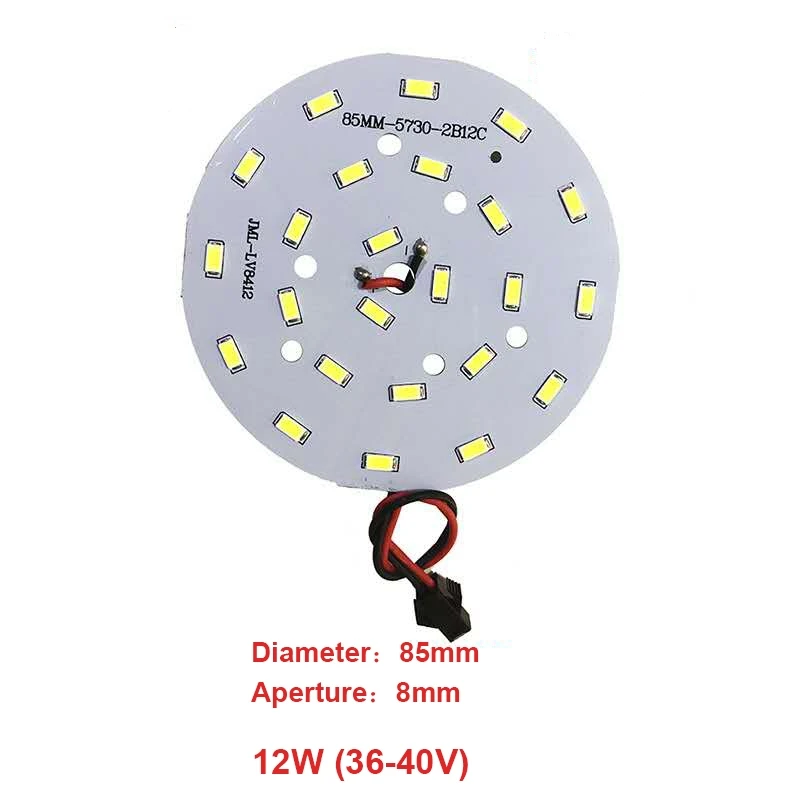

③Diameter: 3W(32MM) / 5W(50MM) / 7W(50MM) / 9W(65MM) / 12W(85MM) / 18W(100MM).

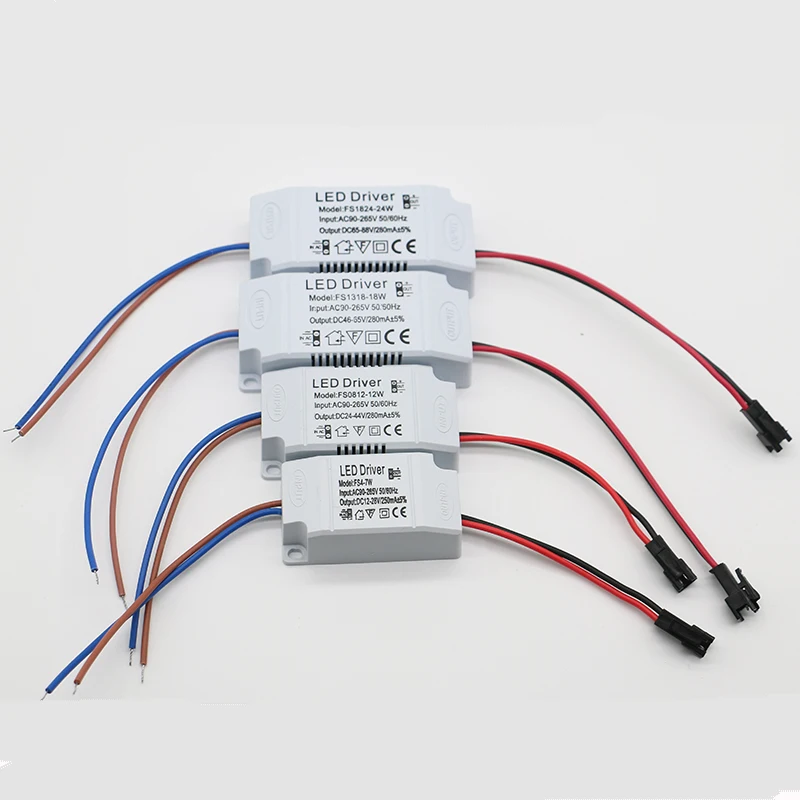

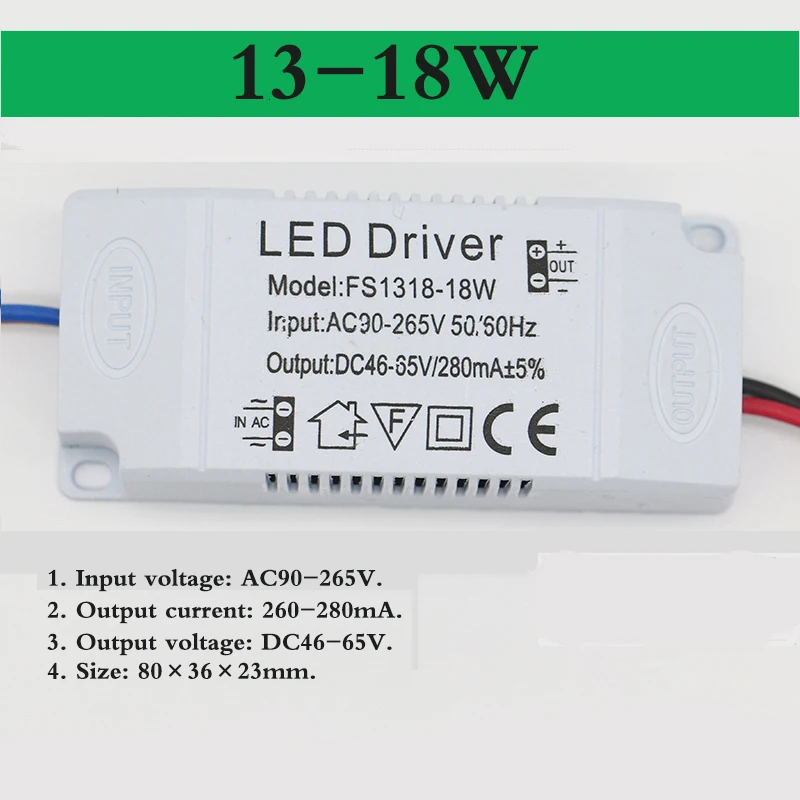

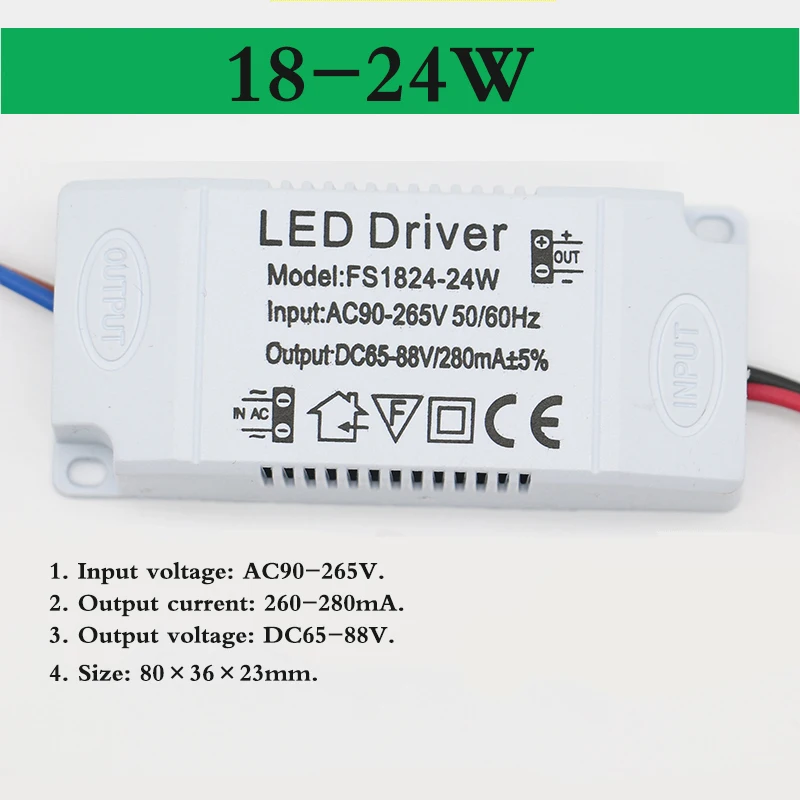

2: LED Driver:

① Power: 1-3W / 4-7W / 8-12W / 13-18W / 18-24W .

② Input voltage: AC90-265V.

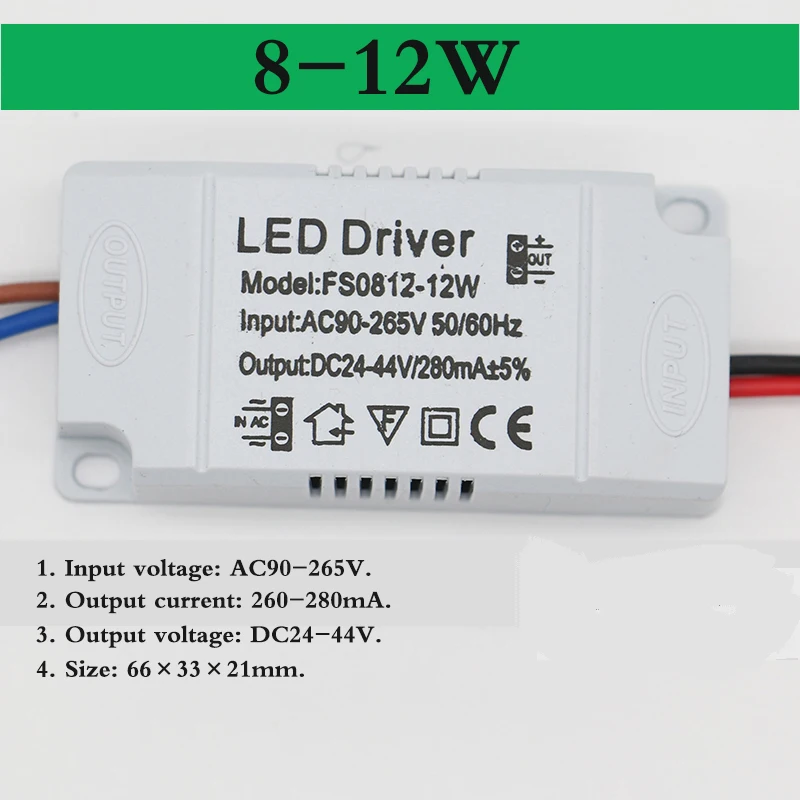

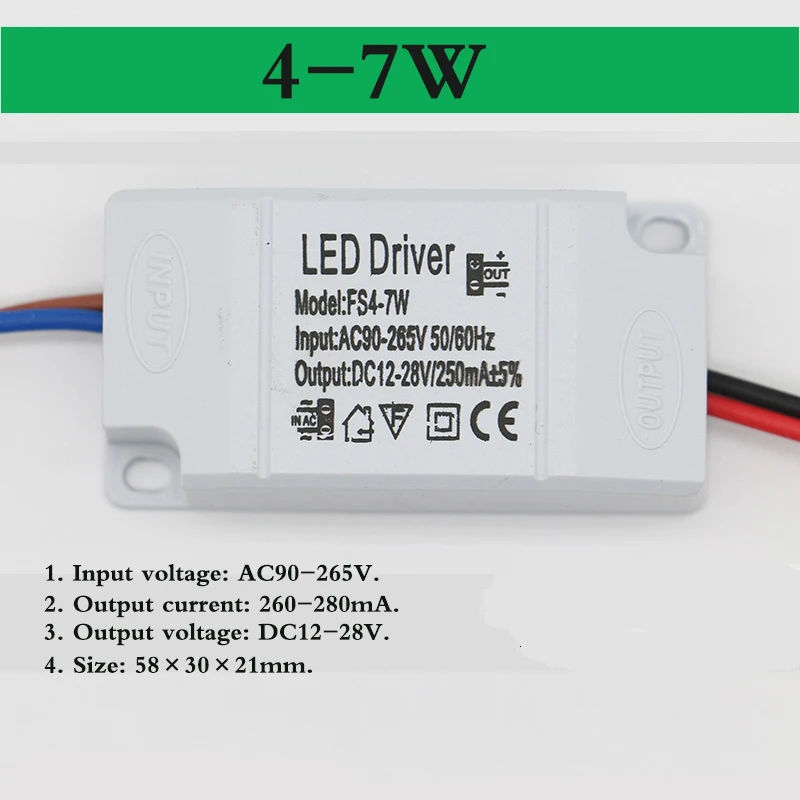

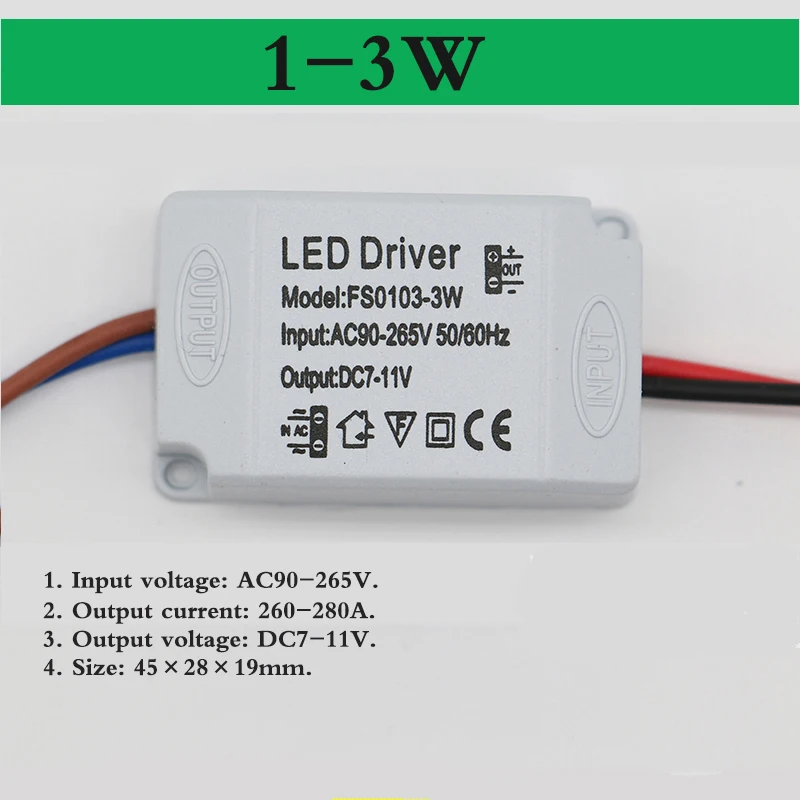

③ Output voltage: 1-3W (DC7-11V) / 4-7W (DC12-28V) / 8-12W(DC24-44V) / 13-18W(DC46-65V) / 18-24W(DC65-88V) .

④ Output current: 240-280mA.

⑤ Size: 1-3W (45×28×19mm) / 4-7W (58×30×21mm) / 8-12W(66×33×21mm) / 13-18W(80×36×23mm) / 18-24W(80×36×23mm) .

,
