Full Power 10W 20W 30W 50W 100W LED Chip Light Boards Lamp Beads DC30-33V For Spotlight Flood Light Street Lamp Outdoor Lighting
Product details

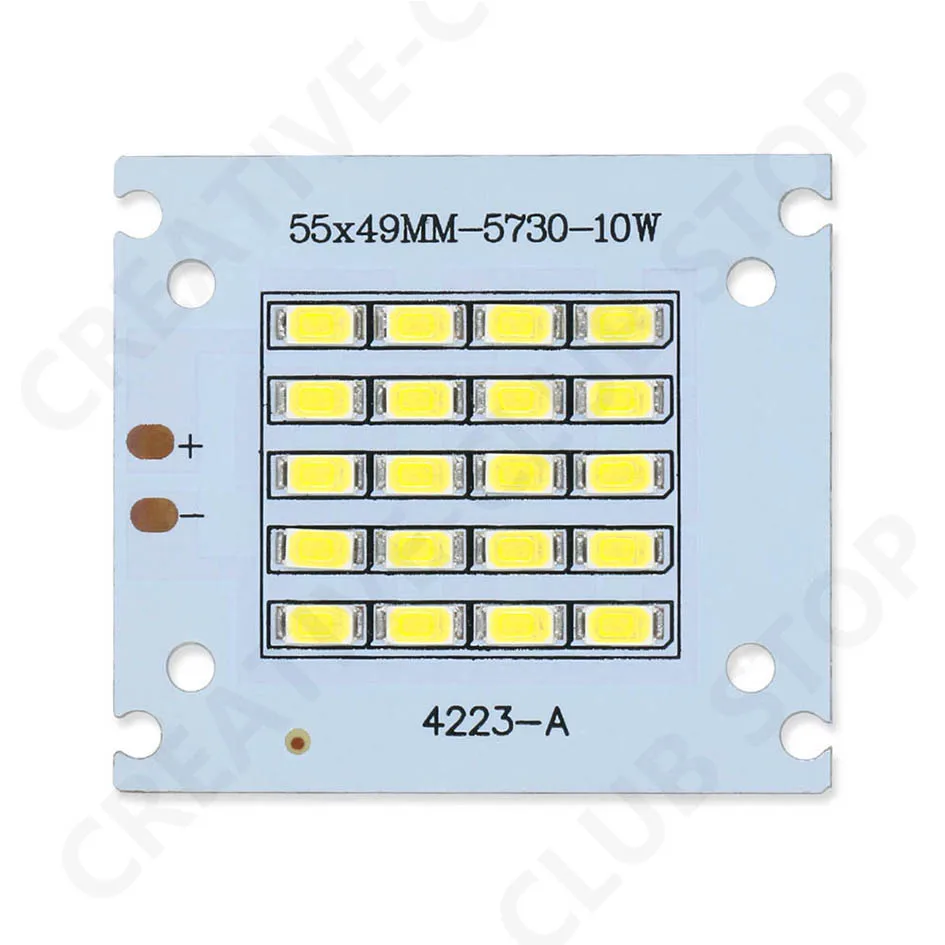

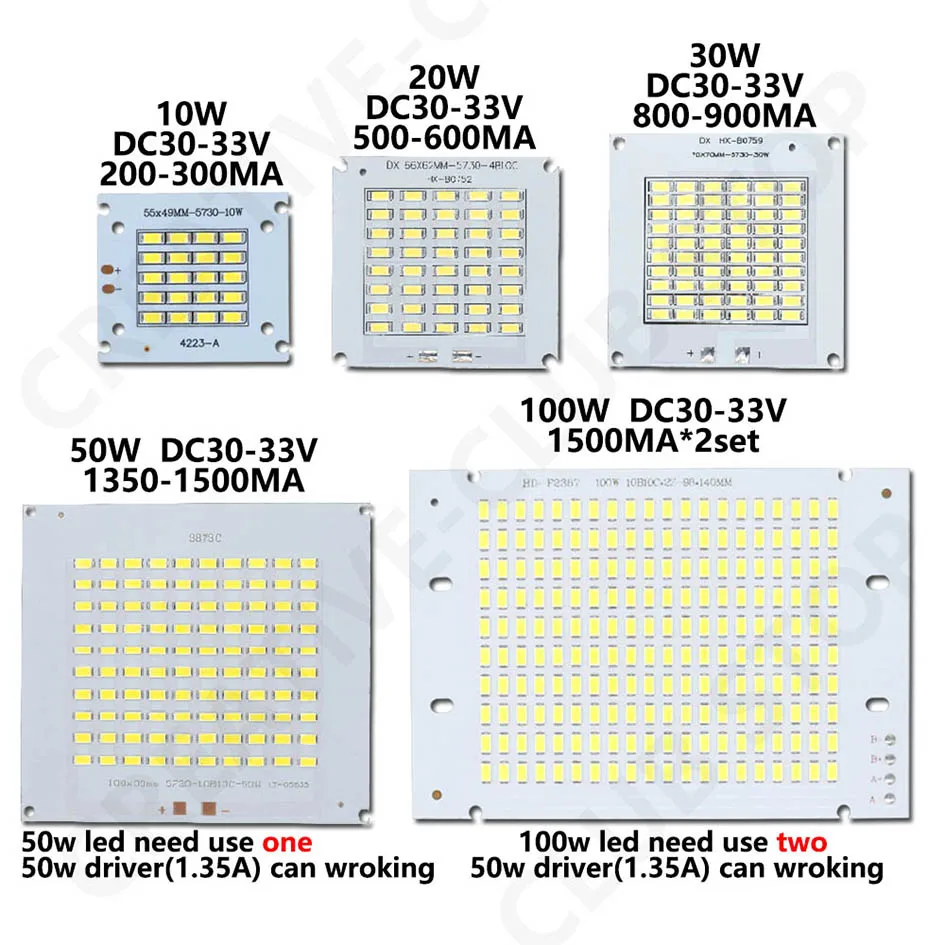

10W
Power: 10W
Voltage: DC30-33V
Current: 200-300mA
Serial and parallel circuit: 2 series and 10 parallel

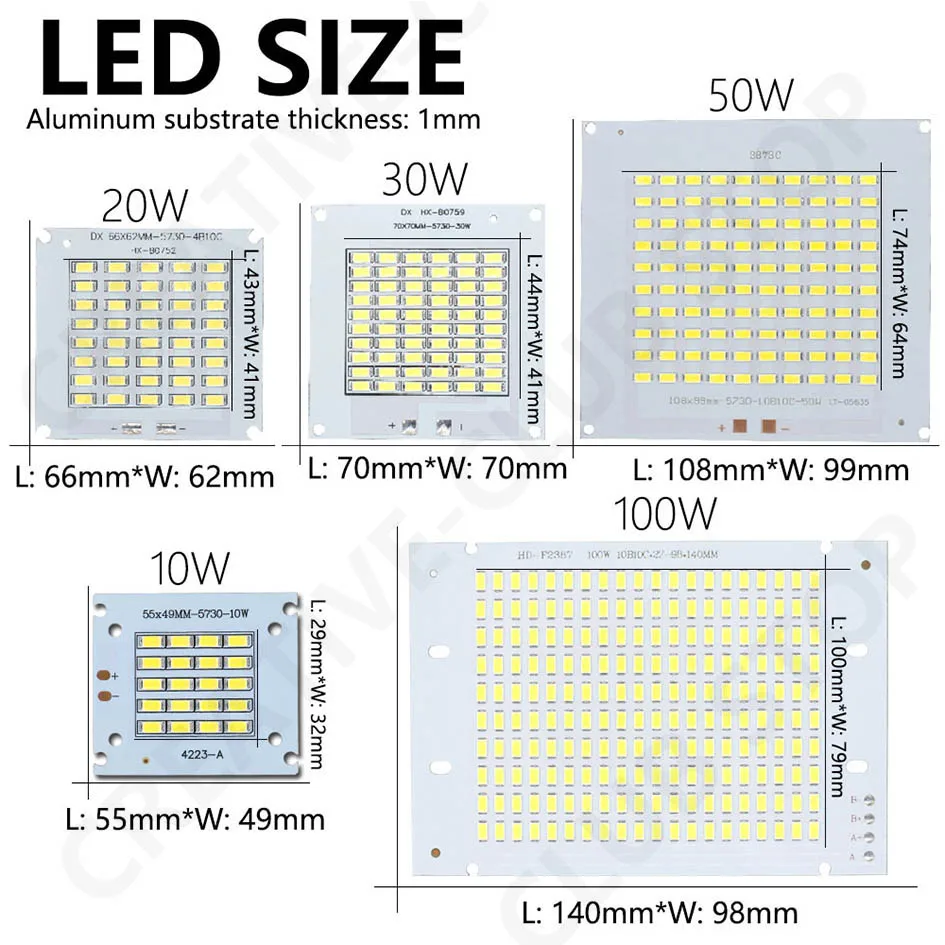

Size: 55*49mm (2.16*1.93in)
Light-emitting surface size: 32*29mm (1.26*1.14in)
Number of crystals: 20pcs
Lumens: 1000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light

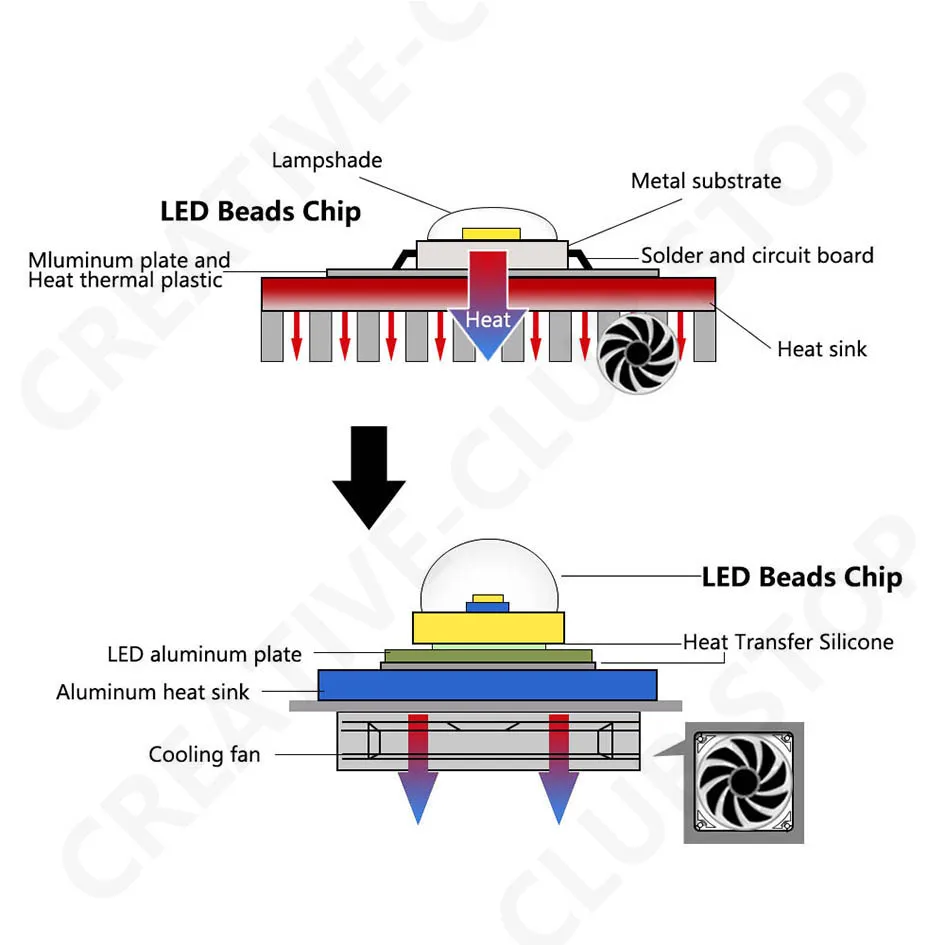

Conditions of use: radiator required
Chip temperature does not exceed 65℃

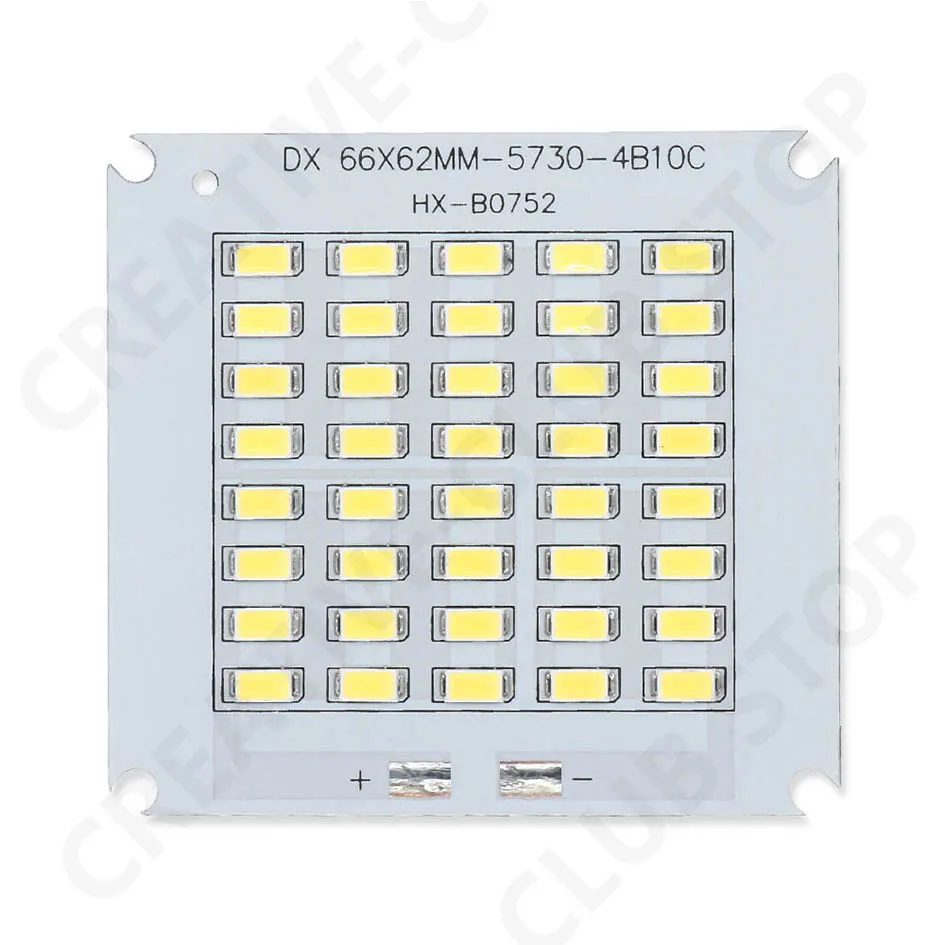

20W
Power: 20W
Voltage: DC30-33V
Current: 500-600mA
Serial and parallel circuit: 4 series and 10 parallel
Size: 66*62mm (2.59*2.44in)
Light-emitting surface size: 43*41mm (1.69*1.61in)
Number of crystals: 40pcs
Lumens: 2000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

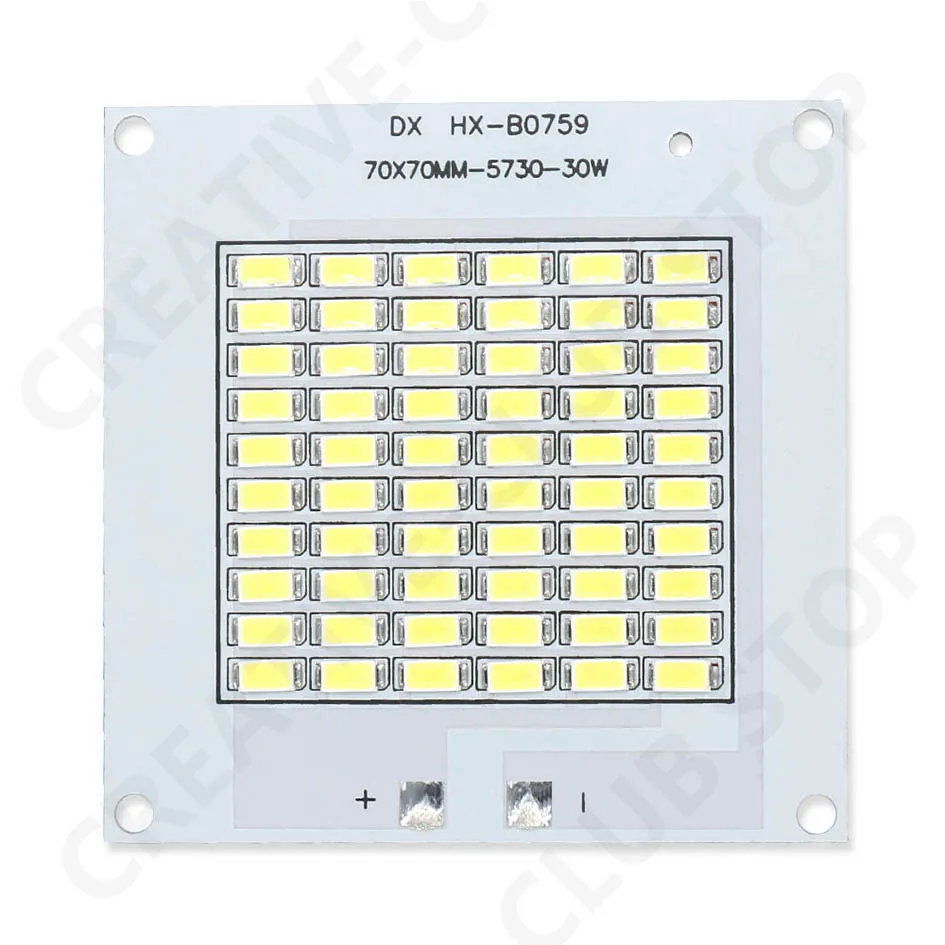

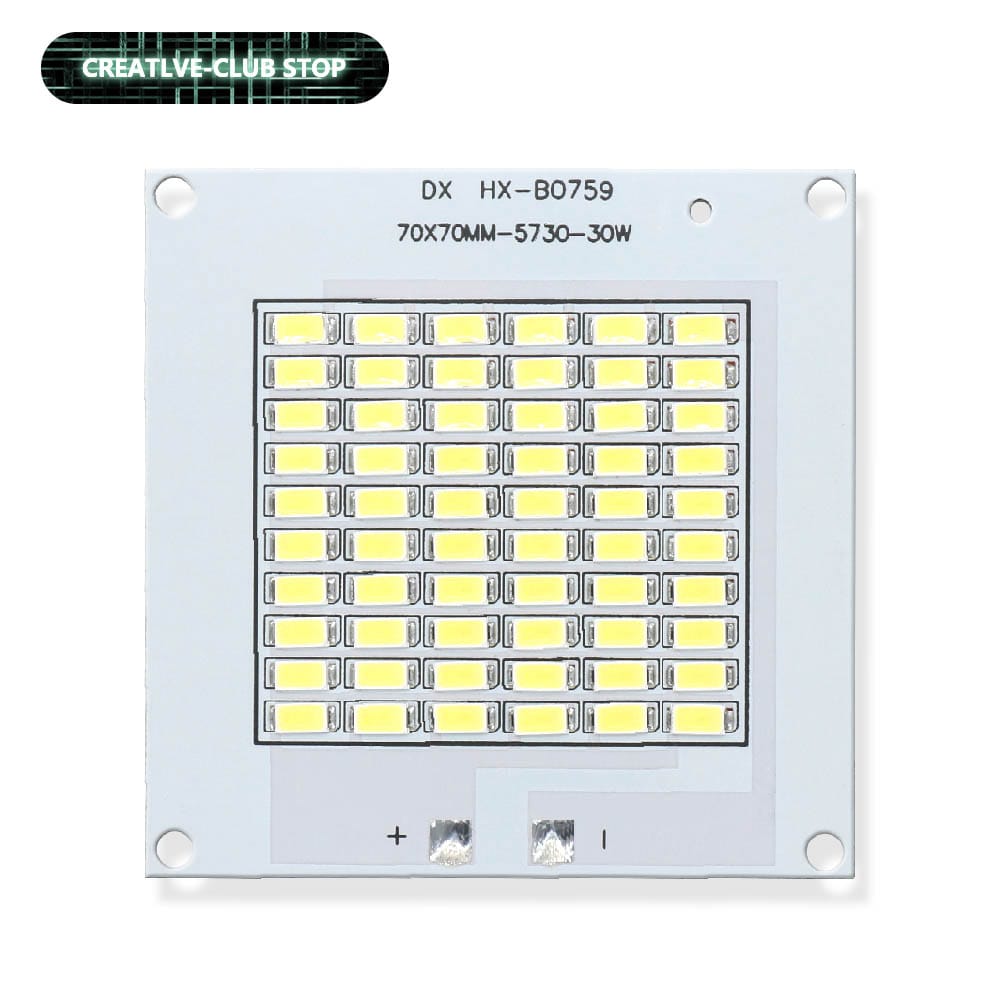

30W
Power: 30W
Voltage: DC30-33V
Current: 800-900mA
Serial and parallel circuit: 6 series and 10 parallel
Size: 70*70mm (2.75*2.75in)
Light-emitting surface size: 44*41mm (1.73*1.61in)
Number of crystals: 60pcs
Lumens: 3000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

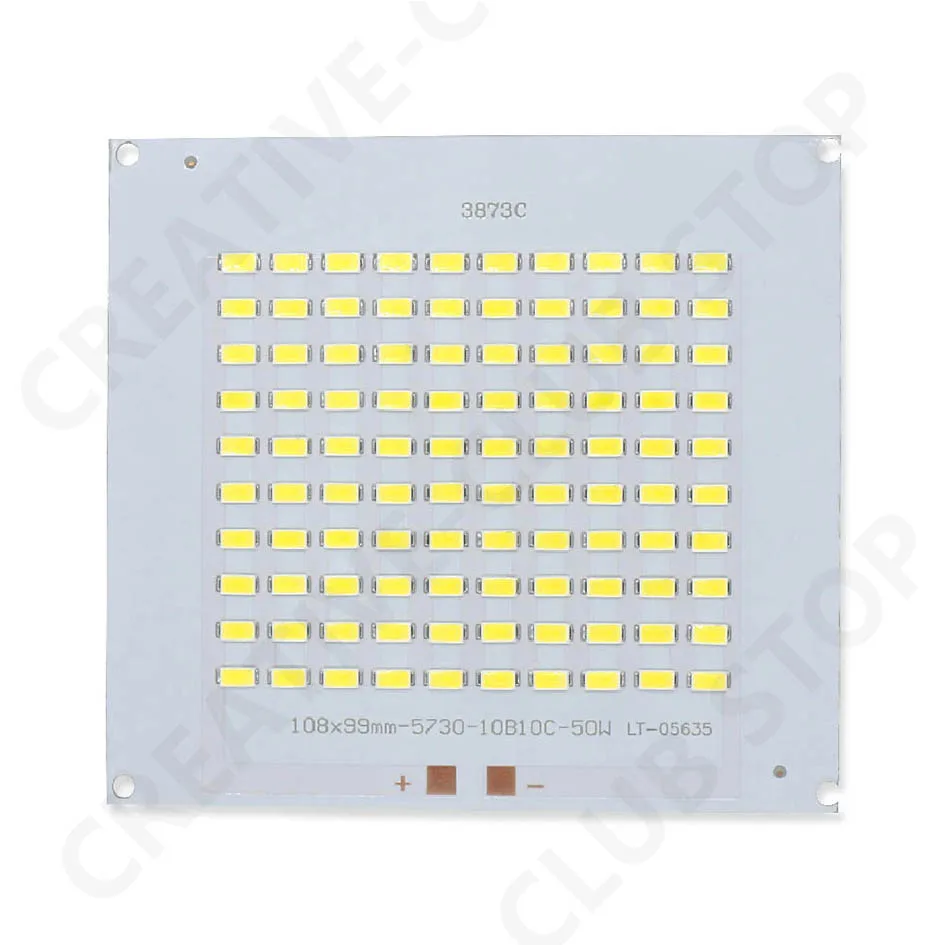

50W
Power: 50W
Voltage: DC30-33V
Current: 1350-1500mA
Serial and parallel circuit: 10 series and 10 parallel
Size: 108*99mm (4.25*3.89in)
Light-emitting surface size: 74*64mm (2.91*2.51in)
Number of crystals: 100pcs
Lumens: 5000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃

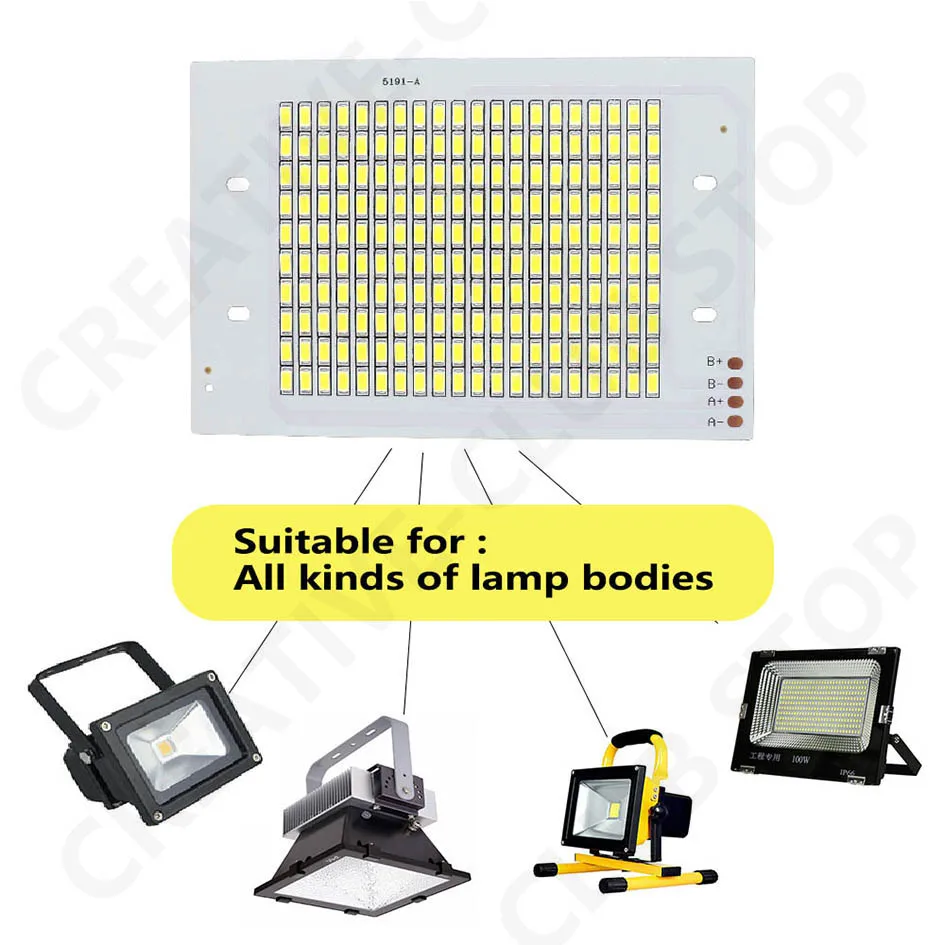

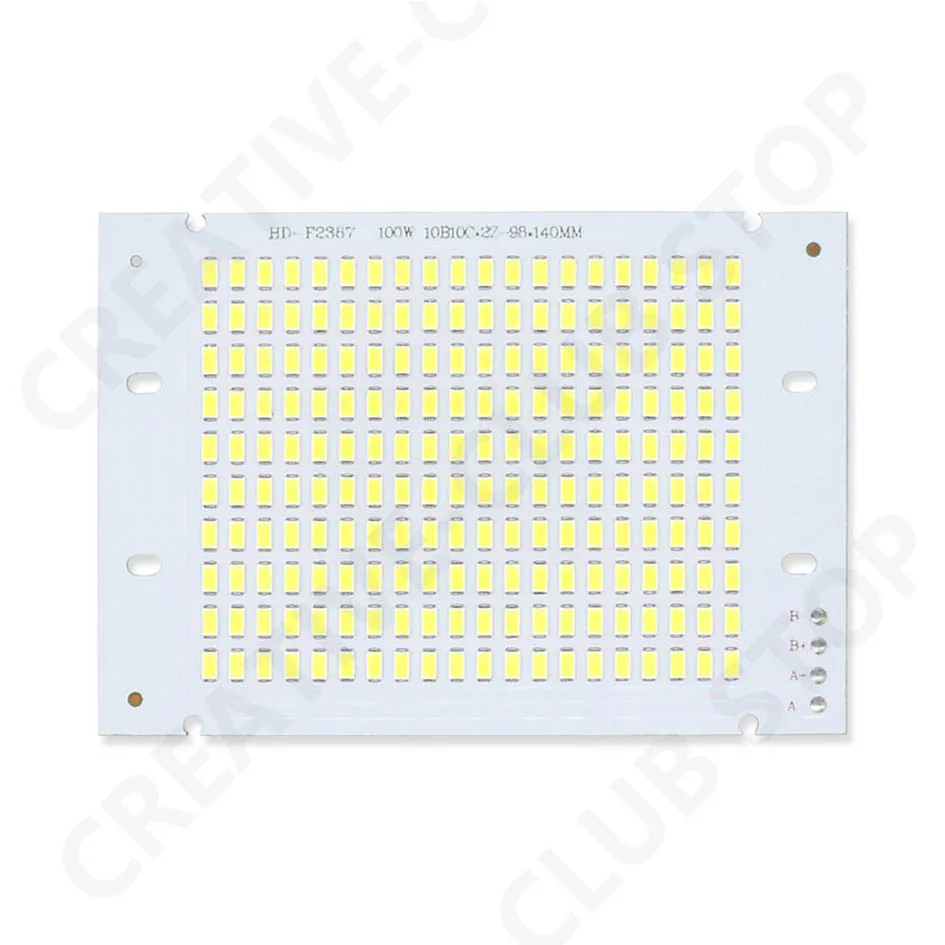

100W
Power: 100W
Voltage: DC30-33V
Current: 1500mA*2set
Serial and parallel circuit: 10 series and 10 parallel*2
Size: 140*99mm (5.51*3.89in)
Light-emitting surface size: 99*74mm (3.89*2.91in)
Number of crystals: 200pcs
Lumens: 10000LM
Aluminum substrate thickness: 1mm (0.06in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Flood light
Conditions of use: radiator required
Chip temperature does not exceed 65℃
100w led need use two 50w driver(1.35A)can wroking
,
