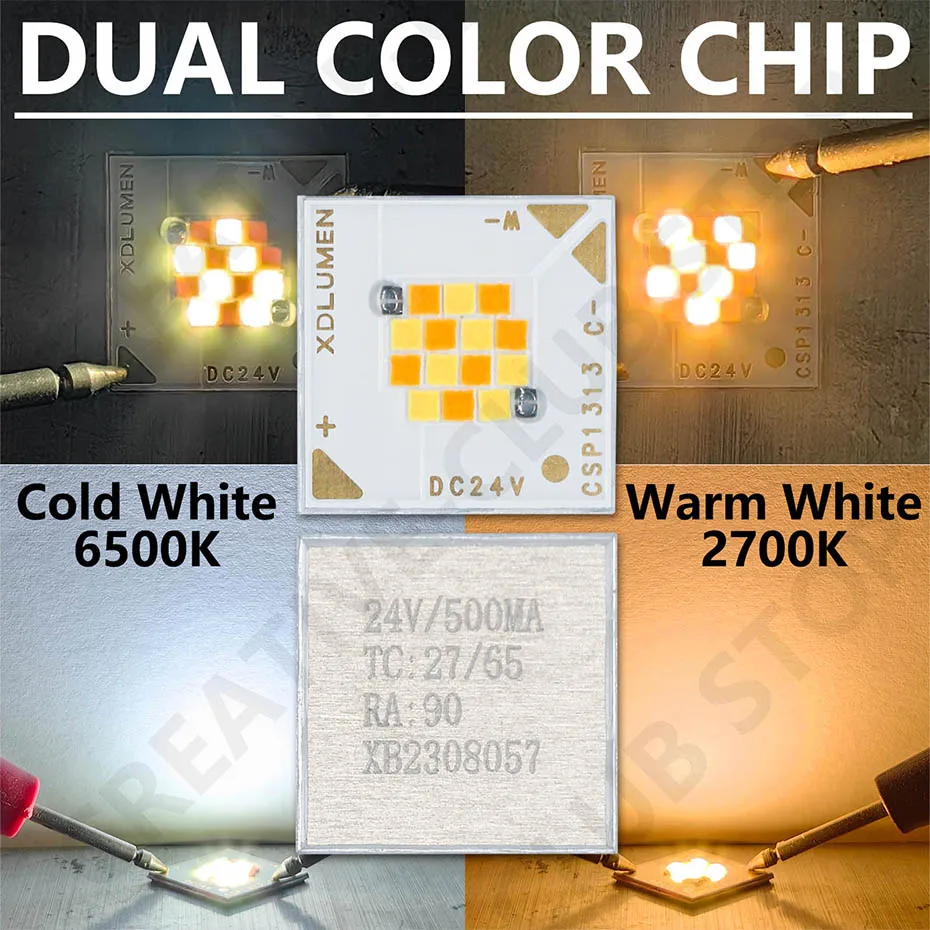

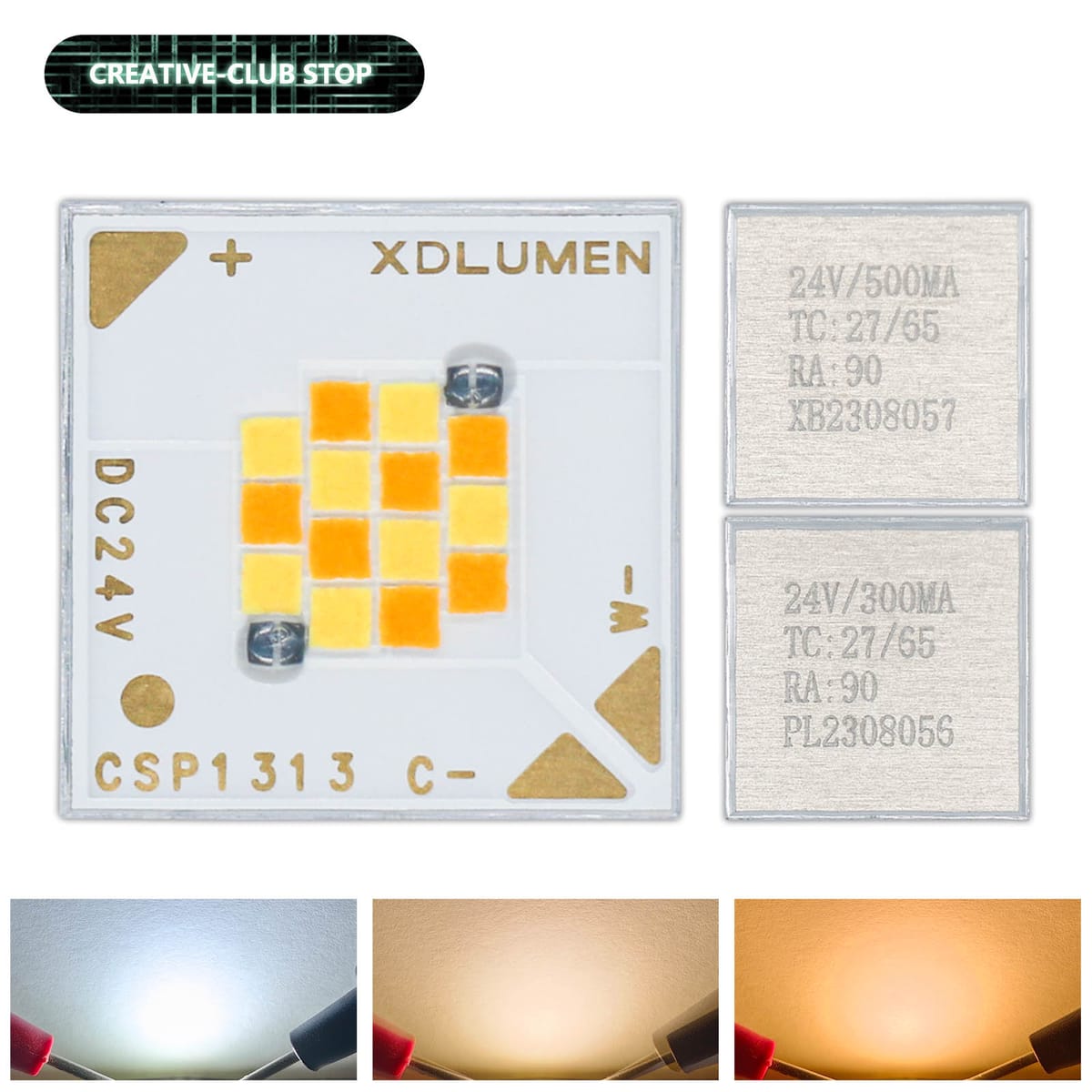

Dual Color Light Source LED COB Chip Diode 1313 7W 12W DC24V CSP Lamp Beads Warm White Cold White Ra90 For Floodlight Spotlight
Product details
Power: 7W/12W
Voltage: DC24V
Current: 300mA/500mA(Automatic adjustment)
Lumen: 100-120lm/W
Display index: Ra>90
Chip type: Bridgelux 2240
Number of lamp beads: 14pcs
Material: Aluminum
Thickness: 1mm

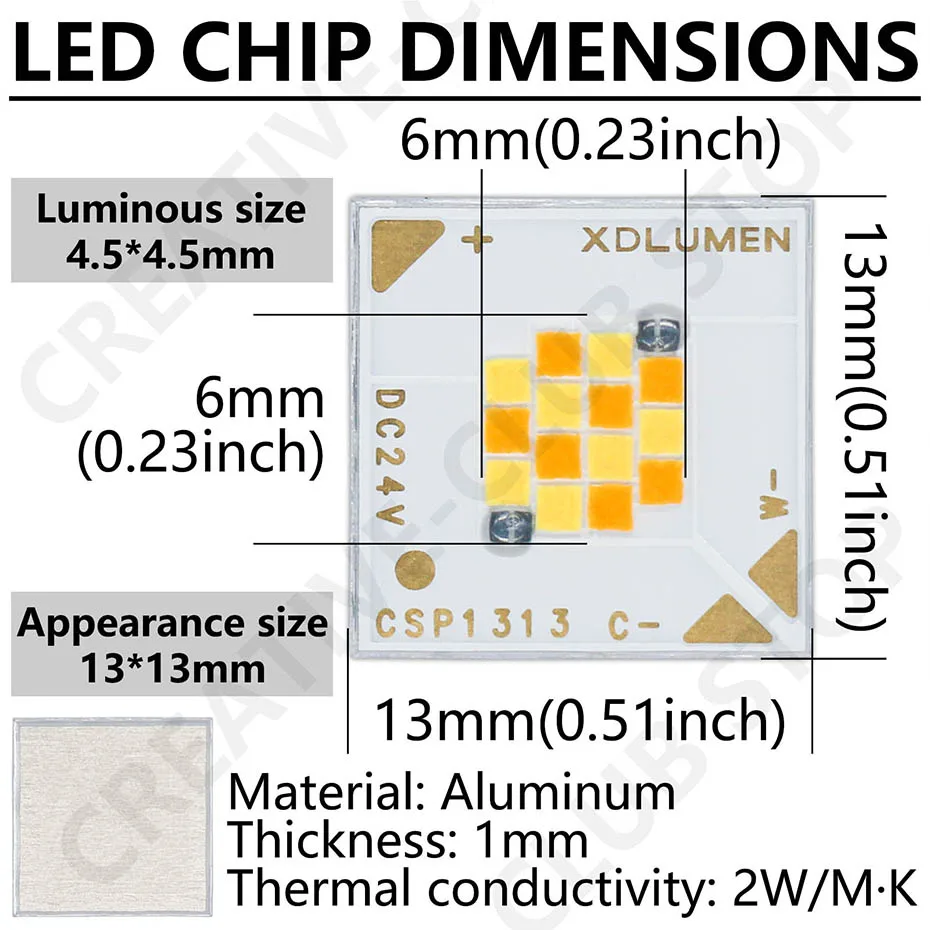

Appearance size: 13*13mm(0.51*0.51inch)
Luminous surface size: 6*6mm(0.23*0.23inch)
Thermal conductivity: Aluminum plate 2W/M·K

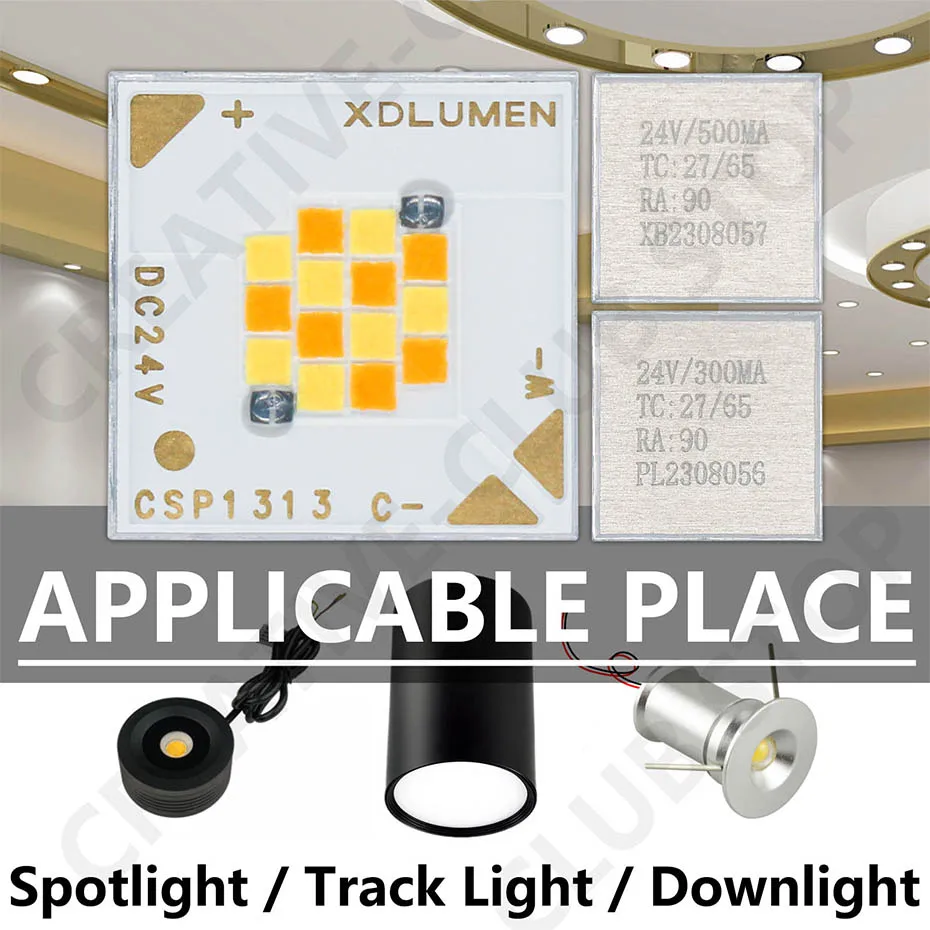

Application scenarios: Spotlight/Downlight/Track Light/Downlight

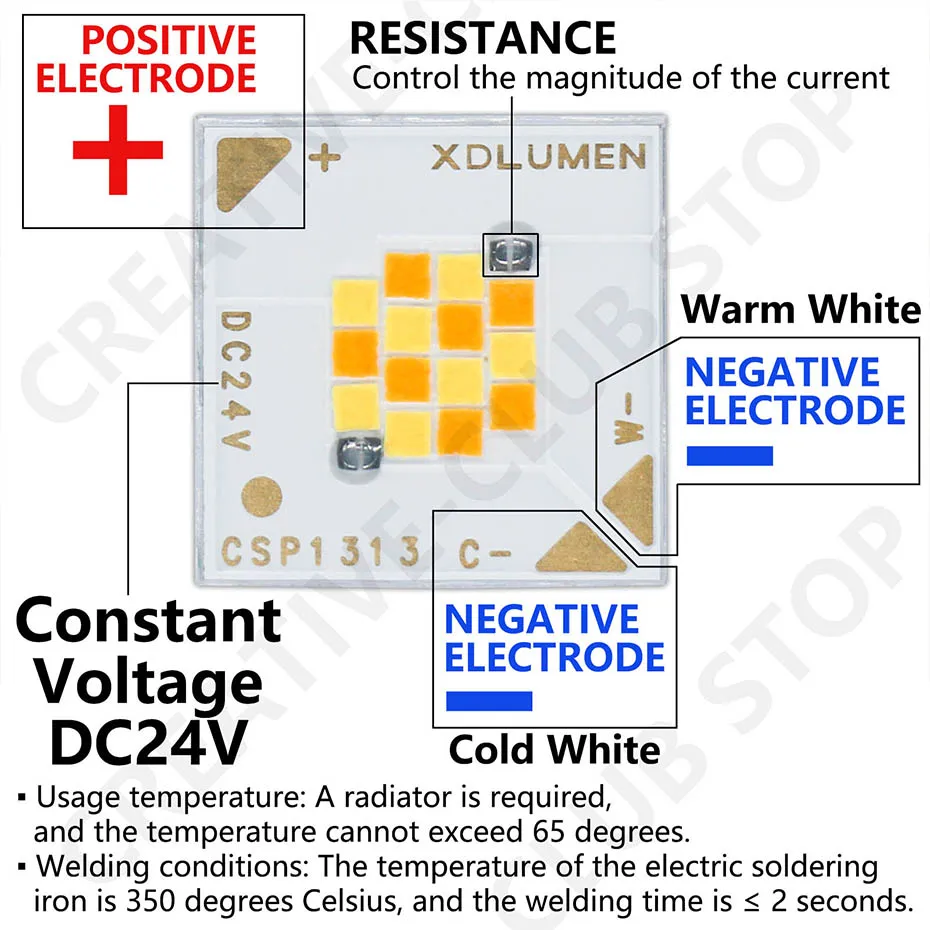

Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is ≤ 2 seconds.
,
