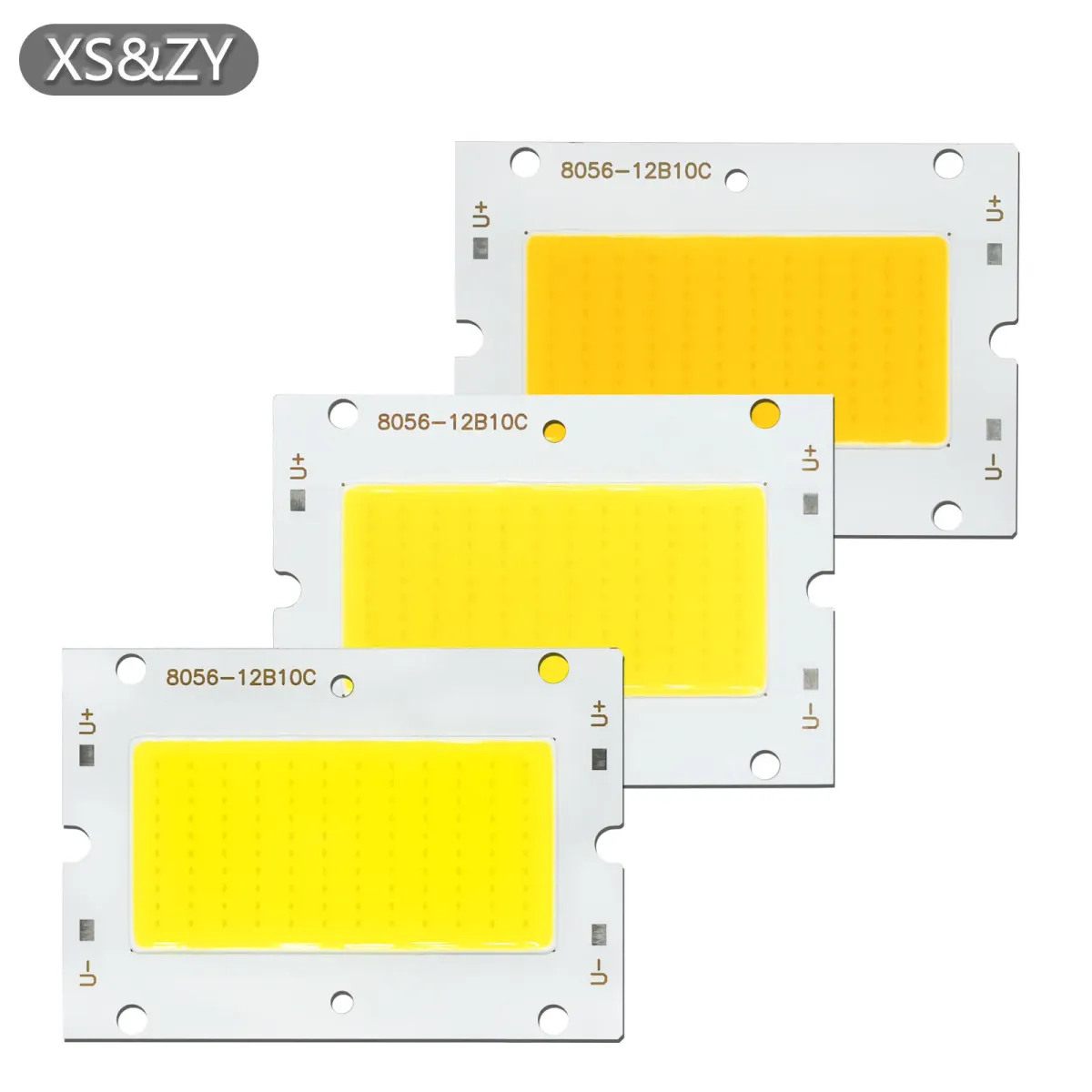

DC30-32V LED Lights Source Light Bead 7660 COB High Brightness Integrated High-Power 50W Outdoor Lighting For Projection Lights

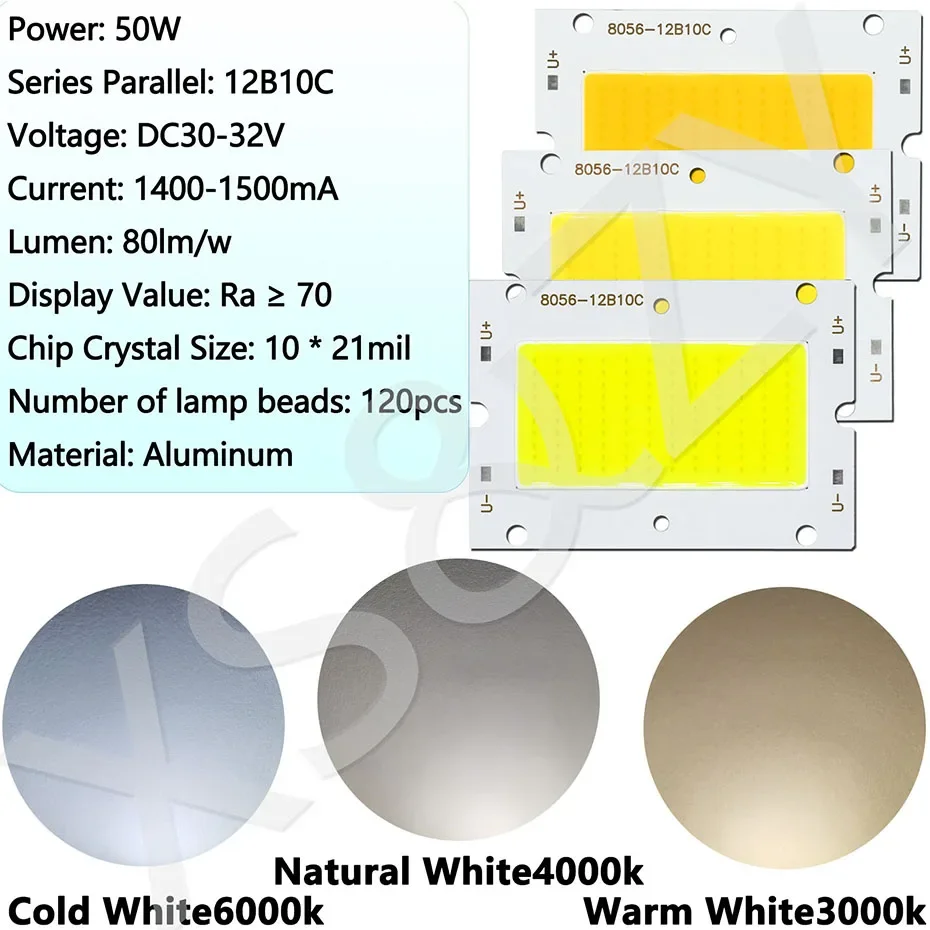

Power: 50W
Series Parallel: 12B10C
Voltage: DC30-32V
Current: 1400-1500mA
Lumen: 80lm/w
Display Value: Ra ≥ 70
Chip Crystal Size: 10 * 21mil
Number of lamp beads: 120pcs
Material: Aluminum

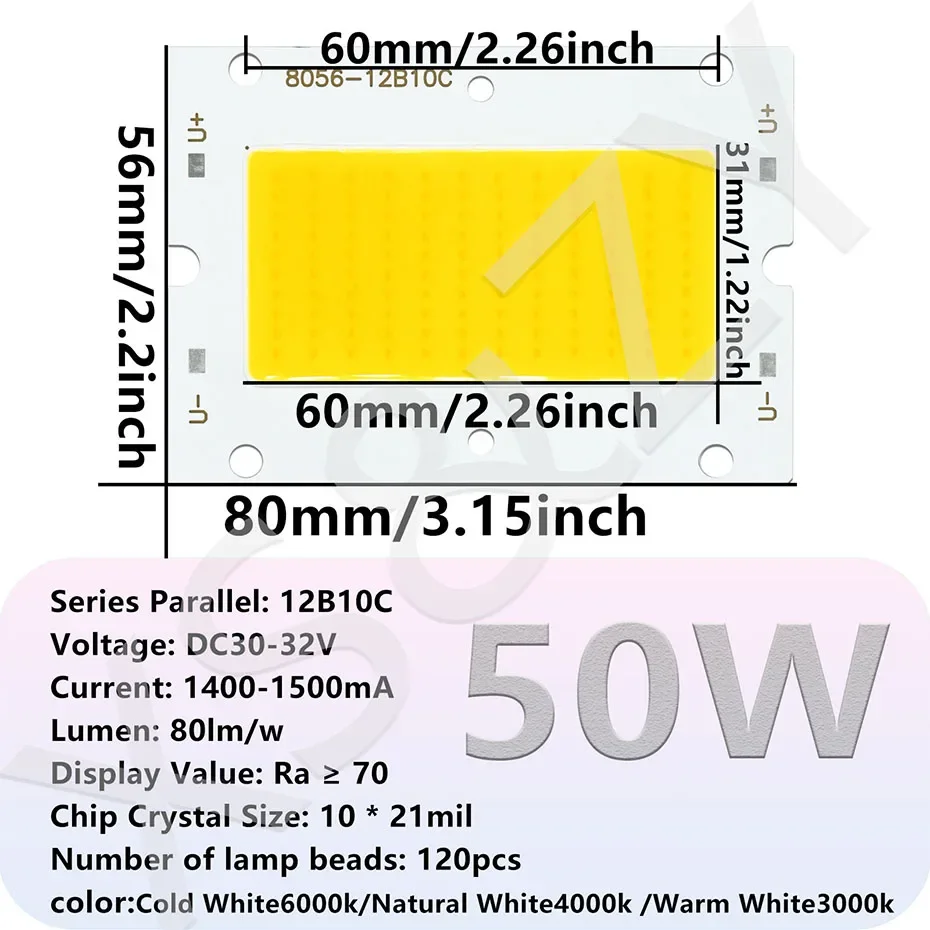

Out Size:80*56MM(3.15*2.2INCH)
Luminous Surface Size: 60*31MM(2.36*1.22INCH)
Thermal conductivity: aluminum plate 2W/M · K

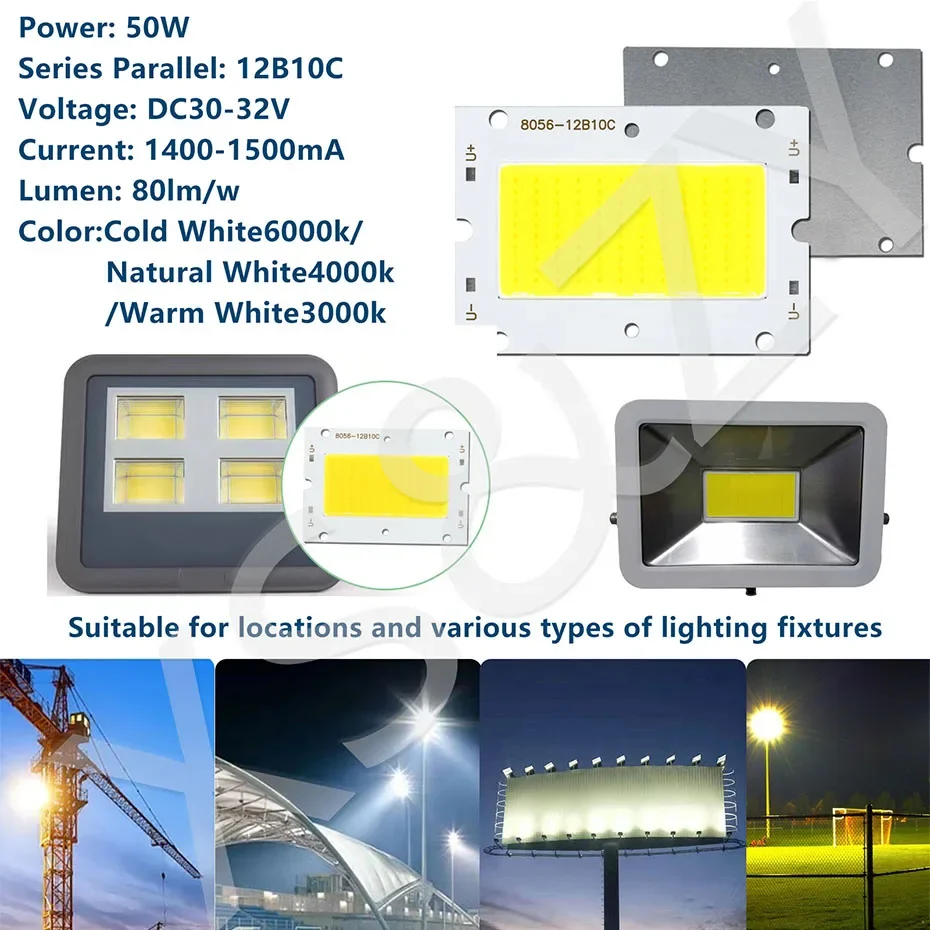

Application location: stage lights, holiday lighting, bars, outdoor landscape lighting.
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
,
