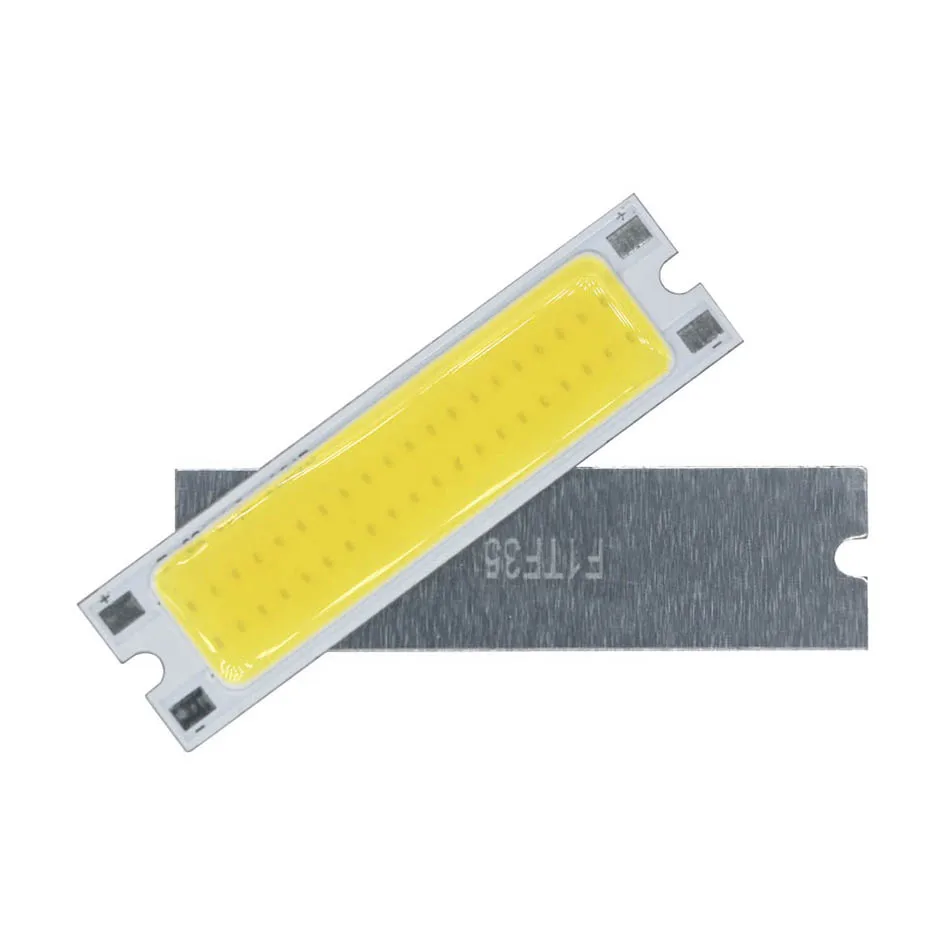

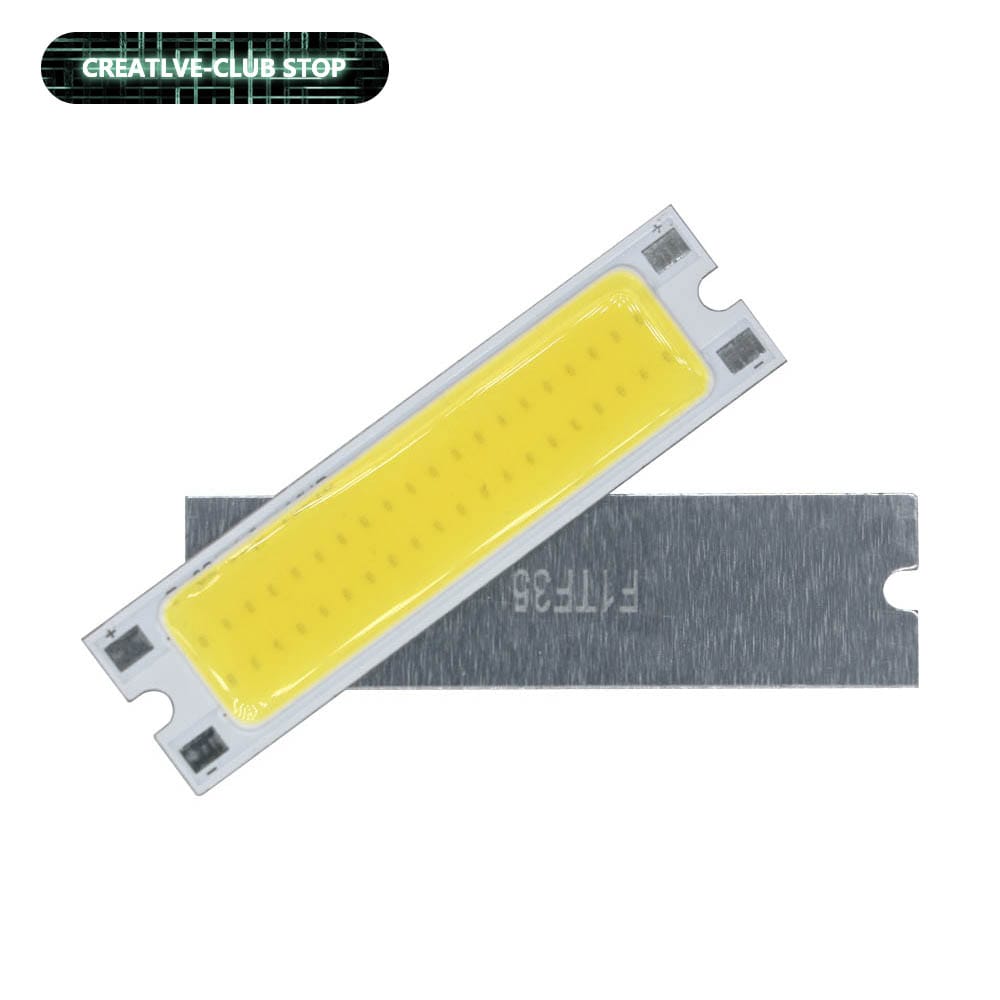

DC30-32V LED COB Chips High Power 10W Lamps 1000LM LEDs Light Beads DIY Wall Lamp Lighting Accessories For FloodLight Spotlight
Product Details

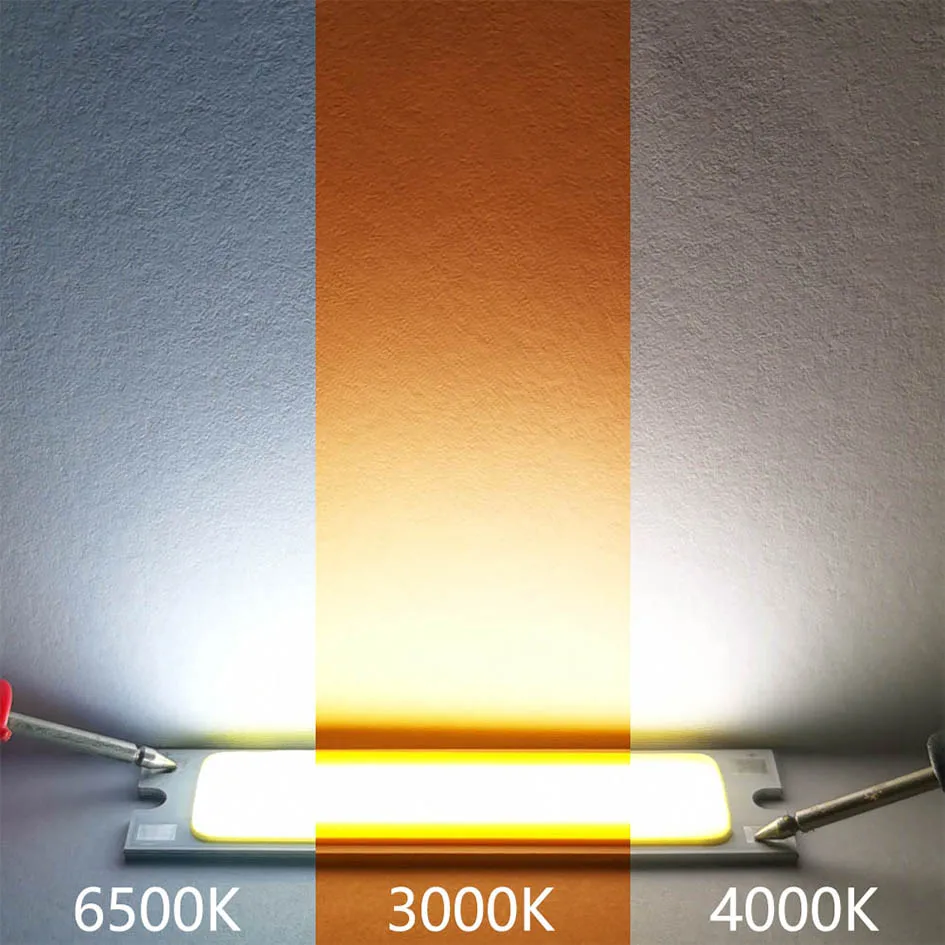

6500k White

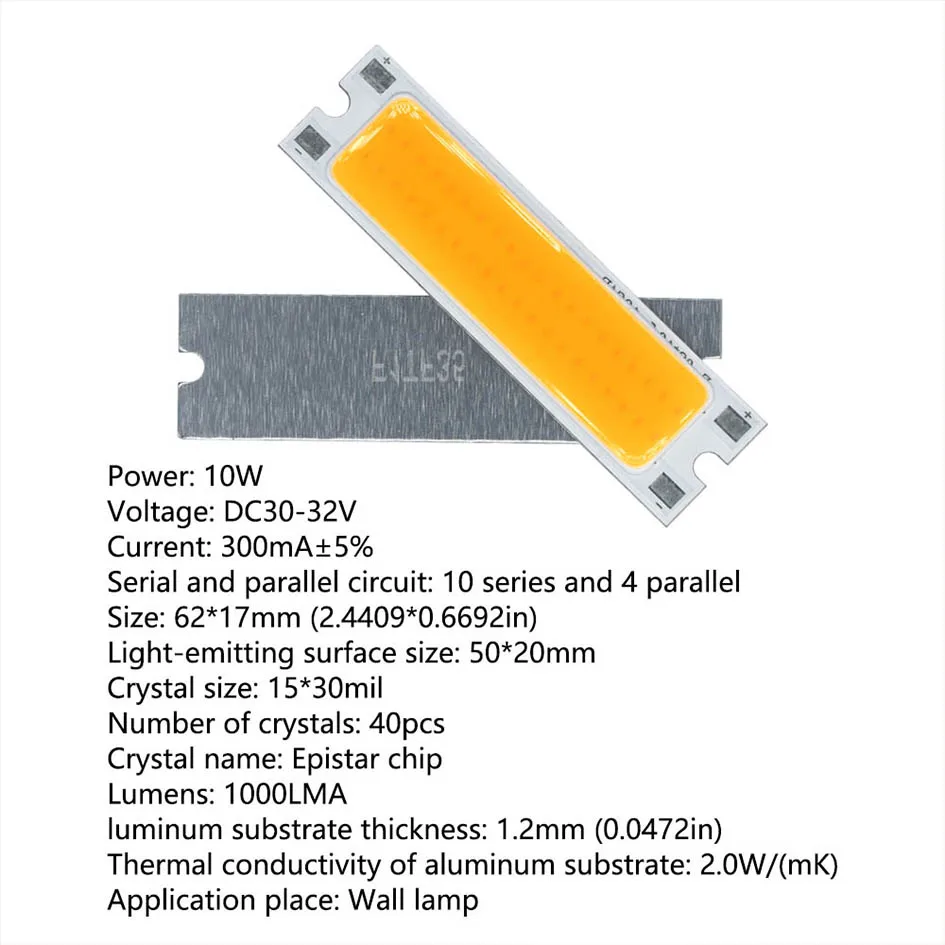

Power: 10W
Voltage: DC30-32V
Current: 300mA±5%
Serial and parallel circuit: 10 series and 4 parallel

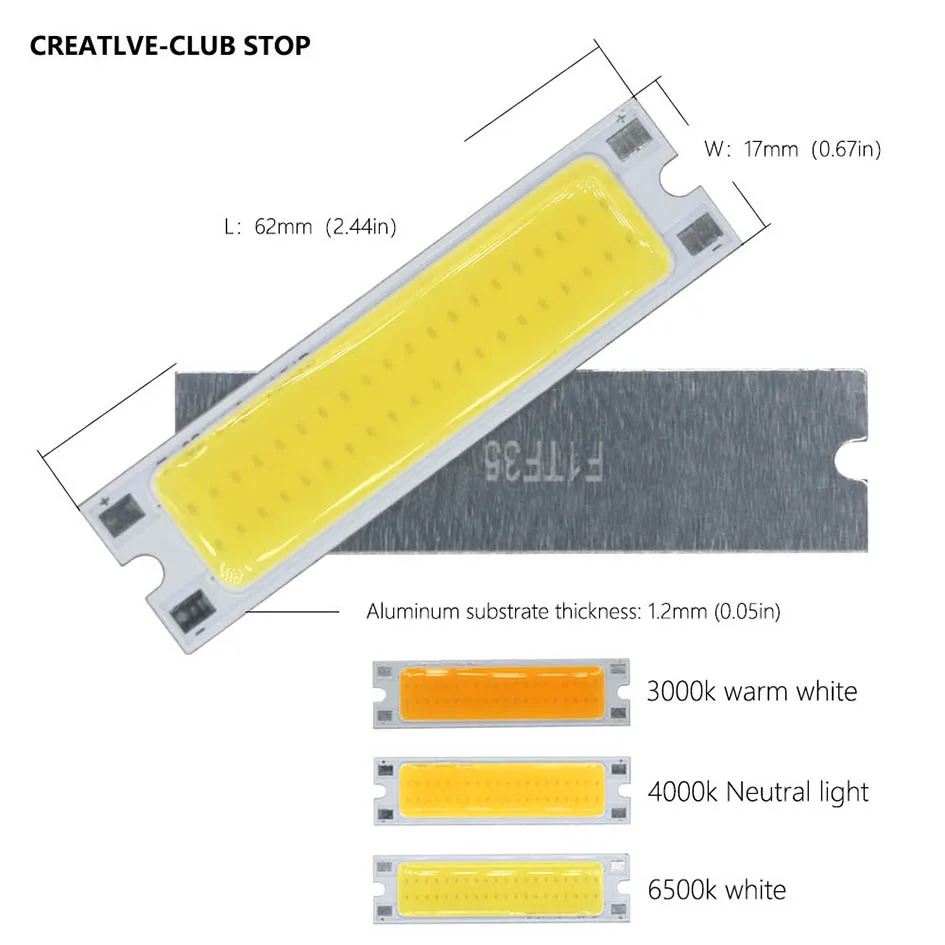

Size: 62*17mm (2.44*0.67in)
Light-emitting surface size: 50*20mm
Crystal size: 15*30mil
Number of crystals: 40pcs
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 1.2mm (0.0472in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)

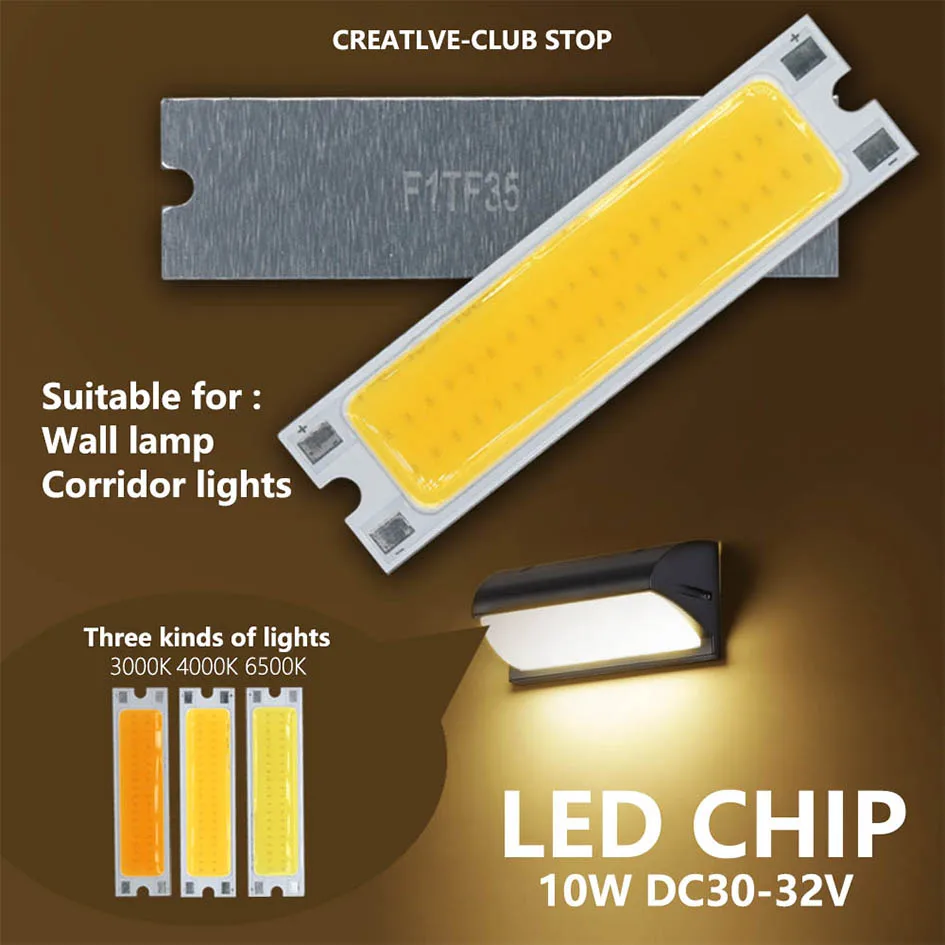

Application place: wall lamp
Conditions of use: heat sink and LED driver are required
Chip temperature does not exceed 65℃

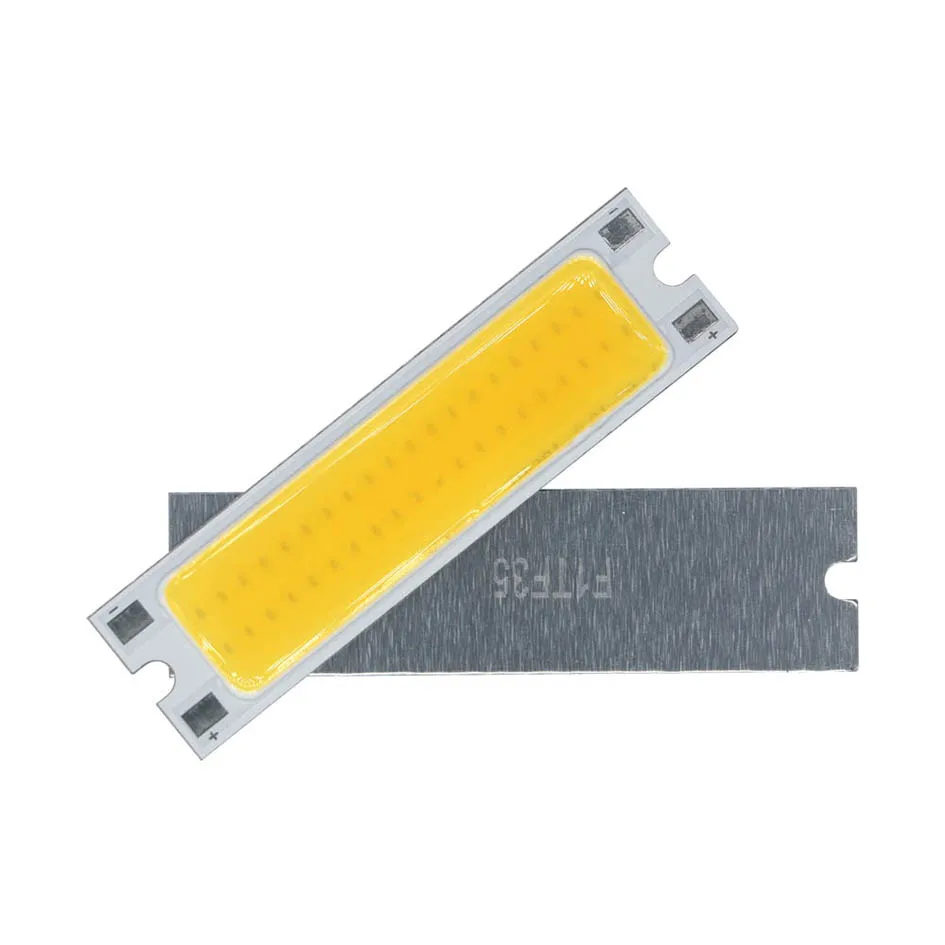

4000k Neutral Light
Power: 10W
Voltage: DC30-32V
Current: 300mA±5%
Serial and parallel circuit: 10 series and 4 parallel
Size: 62*17mm (2.44*0.67inin)
Light-emitting surface size: 50*20mm
Crystal size: 15*30mil
Number of crystals: 40pcs
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 1.2mm (0.0472in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: wall lamp
Conditions of use: heat sink and LED driver are required
Chip temperature does not exceed 65℃

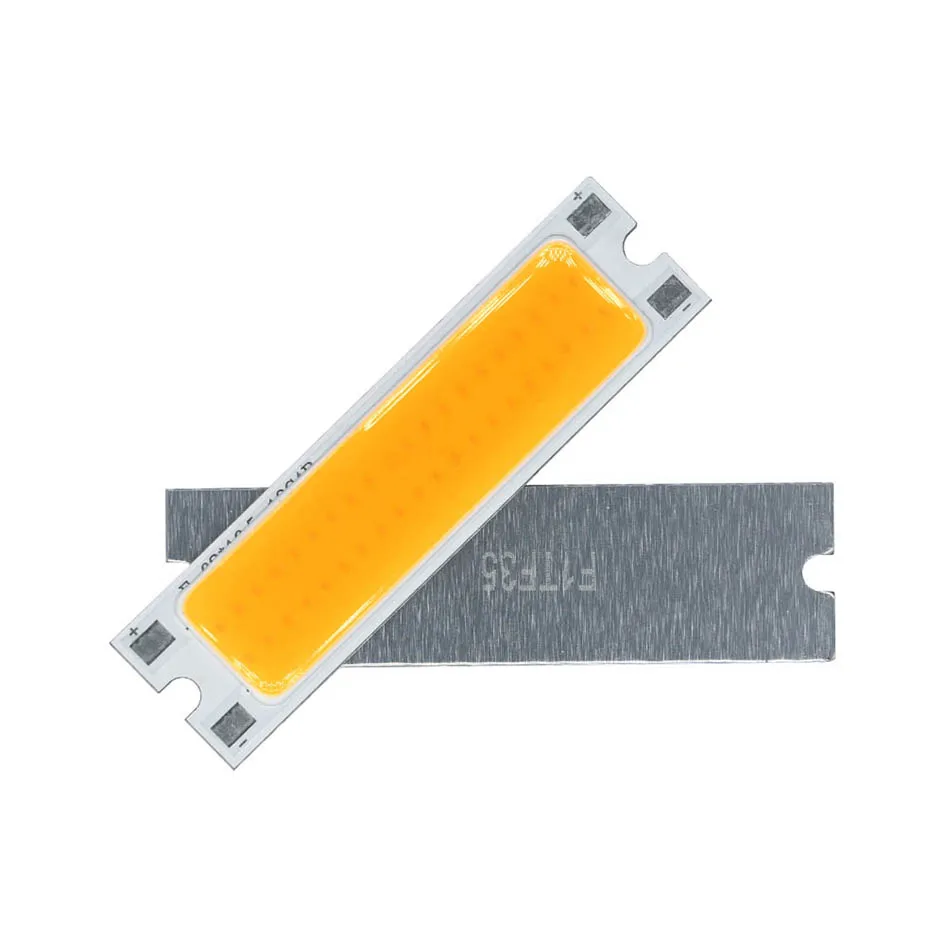

3000k Warm White
Power: 10W
Voltage: DC30-32V
Current: 300mA±5%
Serial and parallel circuit: 10 series and 4 parallel
Size: 62*17mm (2.44*0.67inin)
Light-emitting surface size: 50*20mm
Crystal size: 15*30mil
Number of crystals: 40pcs
Crystal name: Epistar chip
Lumens: 1000LM
Aluminum substrate thickness: 1.2mm (0.0472in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: wall lamp
Conditions of use: heat sink and LED driver are required
Chip temperature does not exceed 65℃
,
