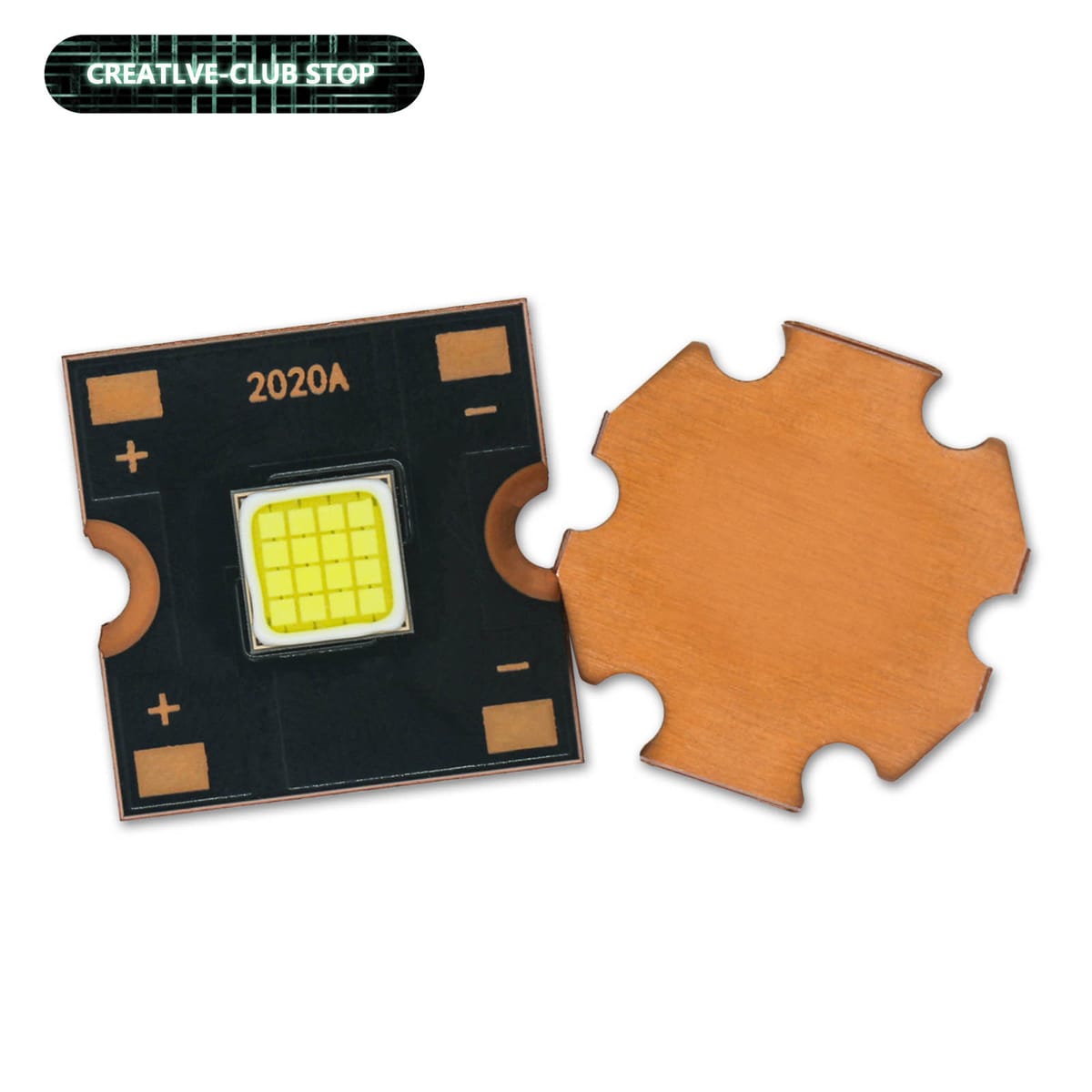

DC12V-14V High Power LED 60W Light Chip Cold White Spot LED Light Bead For Stage Effect Disco DJ Music Party Accessories DIY
Product Details
Power: 60W (Round)
Voltage: DC12-14V
Current: 3.5A±5%
Color: Cold White 6000K
Serial and parallel circuit: 4 series and 4 parallel
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 7*7mm (0.27*0.27in)
Crystal size: 35*35mil
Number of crystals: 16pcs
Crystal name: Epistar chip
Lumens: 4200LM
Copper substrate thickness: 1.5mm (0.0591in)
Thermal conductivity of copper substrate: 4.0W/(m·K)
Application: Motorcycle lights, battery lights
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 60W (Square)
Voltage: DC12-14V
Current: 4.5A±5%
Color: Cold White 6000K
Serial and parallel circuit: 4 series and 4 parallel
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 7*7mm (0.27*0.27in)
Crystal size: 35*35mil
Number of crystals: 16pcs
Crystal name: Epistar chip
Lumens: 4200LM
Copper substrate thickness: 2mm (0.0781in)
Thermal conductivity of copper substrate: 6.0W/(m·K)
Application: Motorcycle lights, battery lights
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 60W (Square)
Voltage: DC12-14V
Current: 4.5A±5%
Color: Warm White 3500K
Serial and parallel circuit: 4 series and 4 parallelSize: 20*20mm(0.78*0.78in)
Light-emitting surface size: 7*7mm (0.27*0.27in)
Crystal size: 35*35mil
Number of crystals: 16pcs
Crystal name: Epistar chip
Lumens: 4200LM
Copper substrate thickness: 2mm (0.0781in)
Thermal conductivity of copper substrate: 6.0W/(m·K)
Application: Motorcycle lights, battery lightsConditions of use: radiator requiredChip temperature does not exceed 65℃
,
