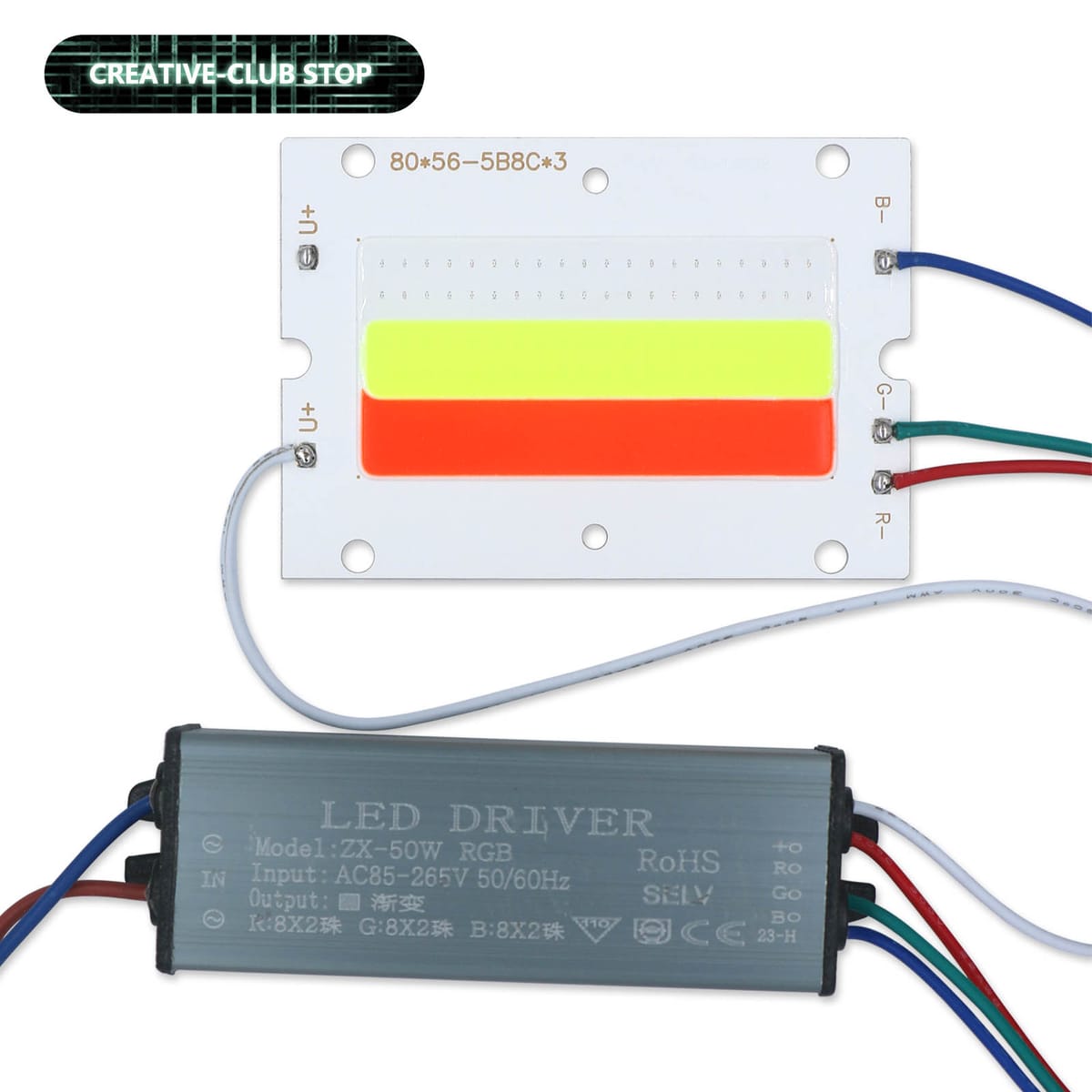

DC 24V LED COB 50W Chip Light Source RGB Three Color Gradient LED Integrated Lamp Beads Indoor Lighting 8056 Aluminum Substrate
Product details

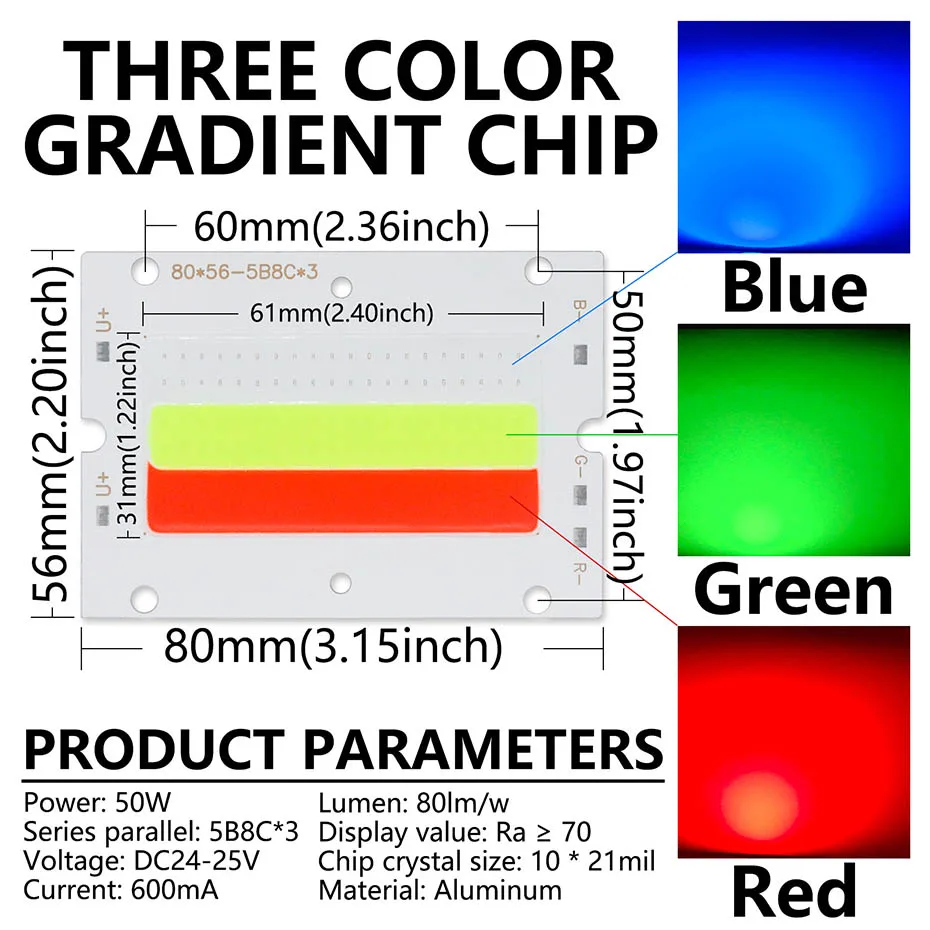

Power: 50W (blue light 15w/red light 15w/green light 15w)
Series parallel: 5B8C * 3
Voltage: DC24-25V
Current: 600mA
Lumen: 80lm/w
Display value: Ra ≥ 70
Chip crystal size: 10 * 21mil
Material: Aluminum
Thickness: 1mm
Thermal conductivity: aluminum plate 2W/M · K
Application location: stage lights, holiday lighting, bars, outdoor landscape lighting
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is less than 2 seconds.
,
