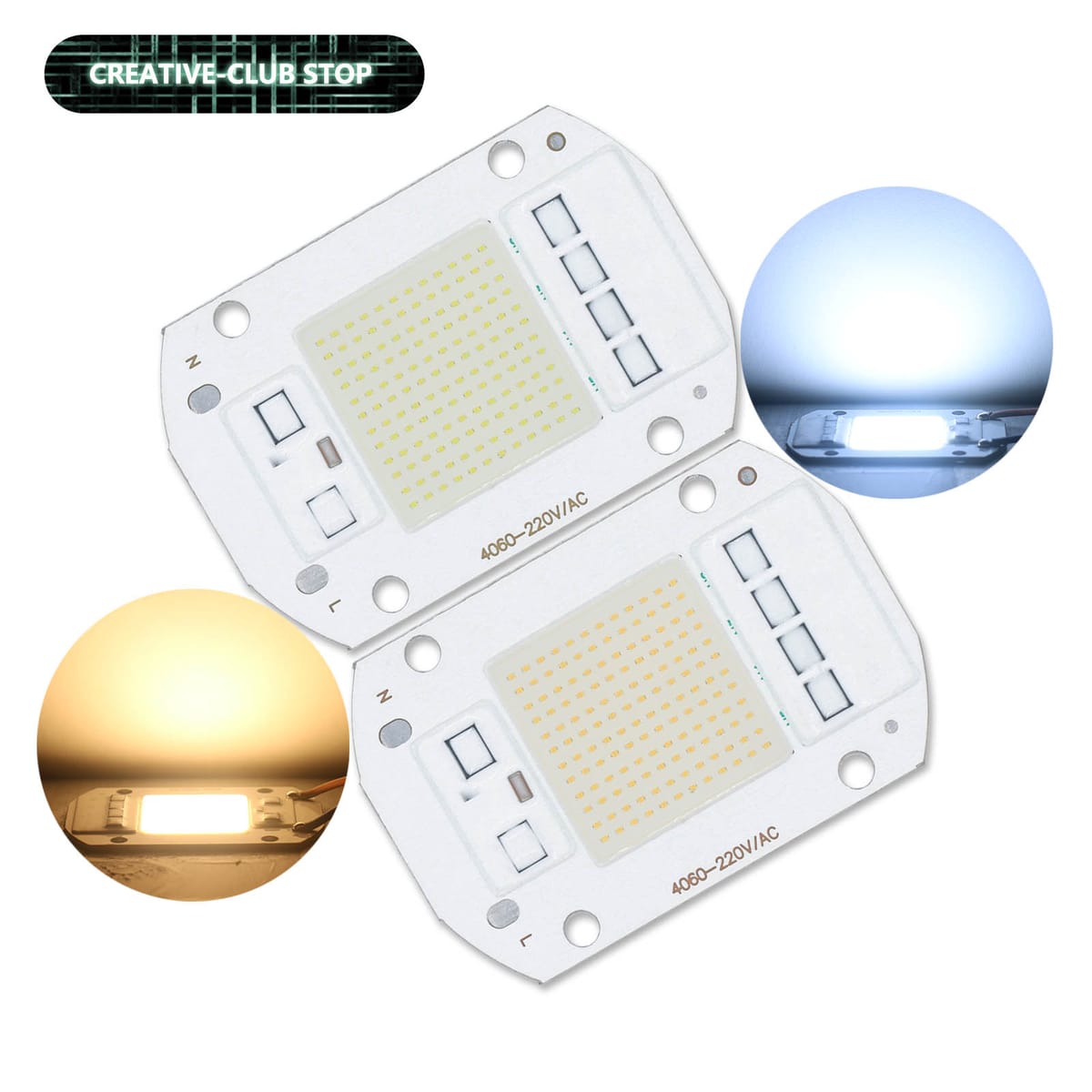

CSP 50W LED COB Chip AC 220V 240V Smart IC No Need Driver Ra70 5000LM DIY Flood light Led Bulb Spotlight Outdoor Chip Lamp Beads

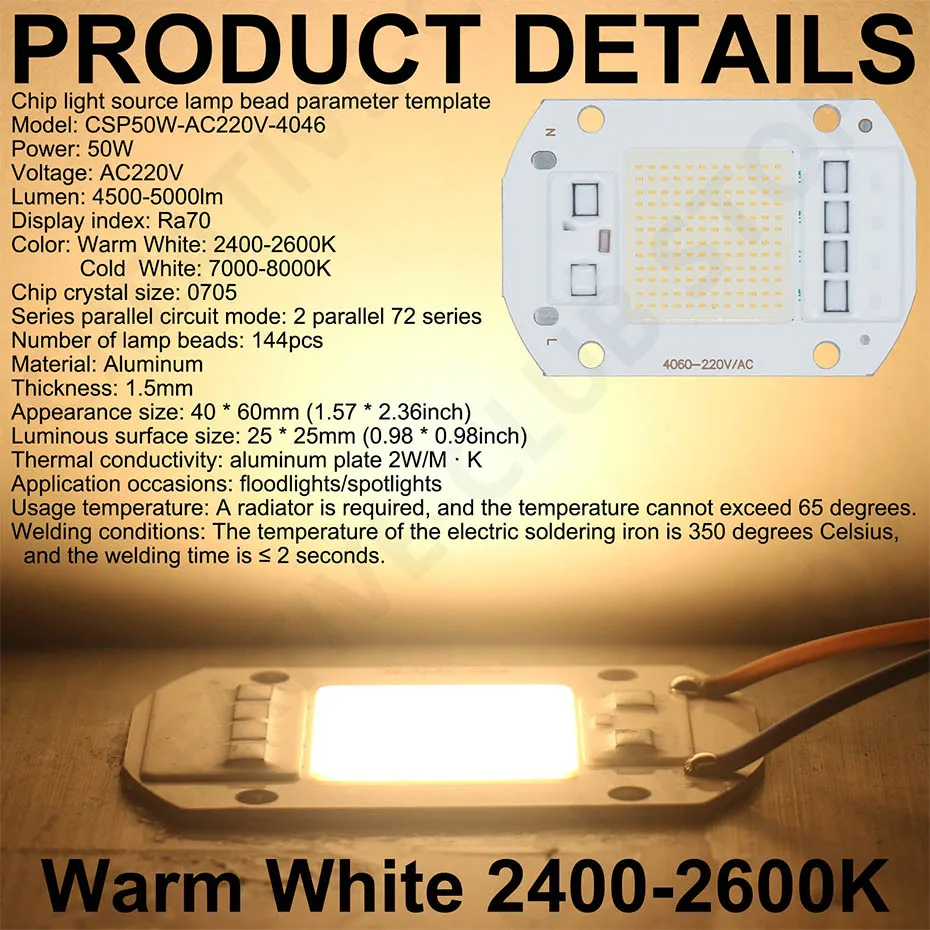

Chip light source lamp bead parameter template

Model: CSP50W-AC220V-4046

Power: 50W

Voltage: AC220V

Color: Warm White 2400-2600K/Cold White 7000-8000K

Lumen: 4500-5000lm

Display index: Ra70

Chip crystal size: 0705

Series parallel circuit mode: 2 parallel 72 series

Number of lamp beads: 144pcs

Material: Aluminum

Thickness: 1.5mm

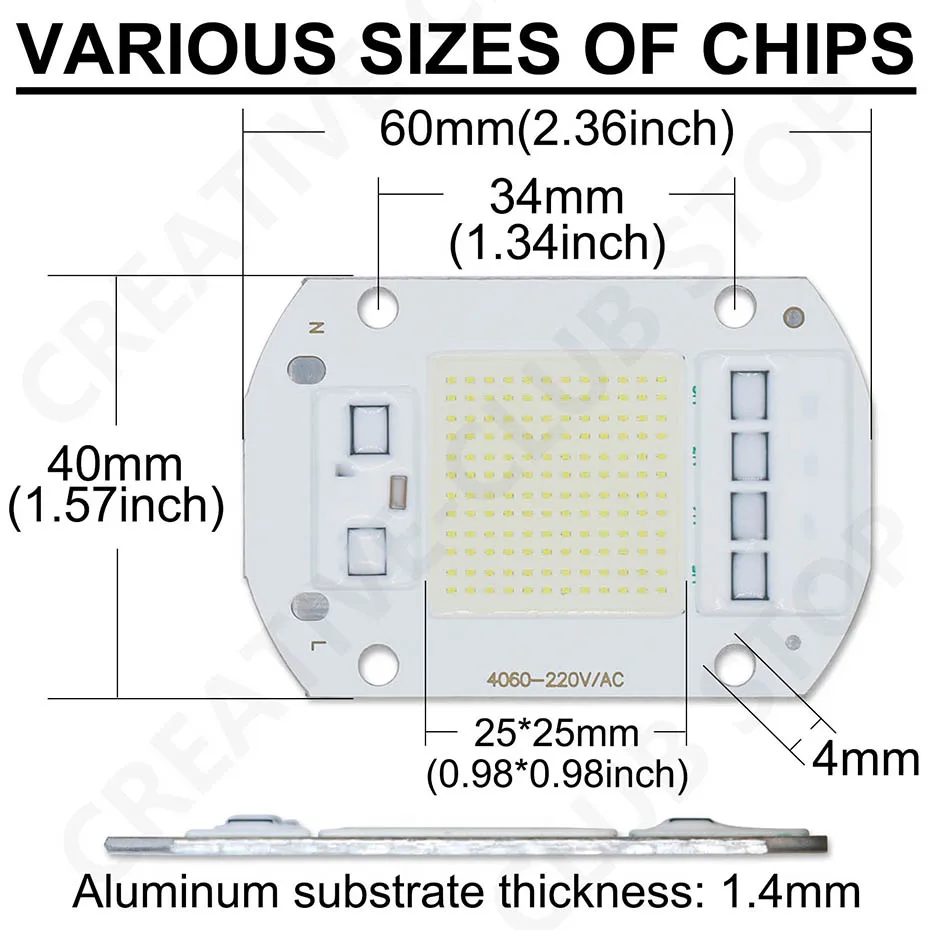

Appearance size: 40 * 60mm (1.57 * 2.36inch)

Luminous surface size: 25 * 25mm (0.98 * 0.98inch)

Thermal conductivity: aluminum plate 2W/M · K

Application occasions: floodlights/spotlights

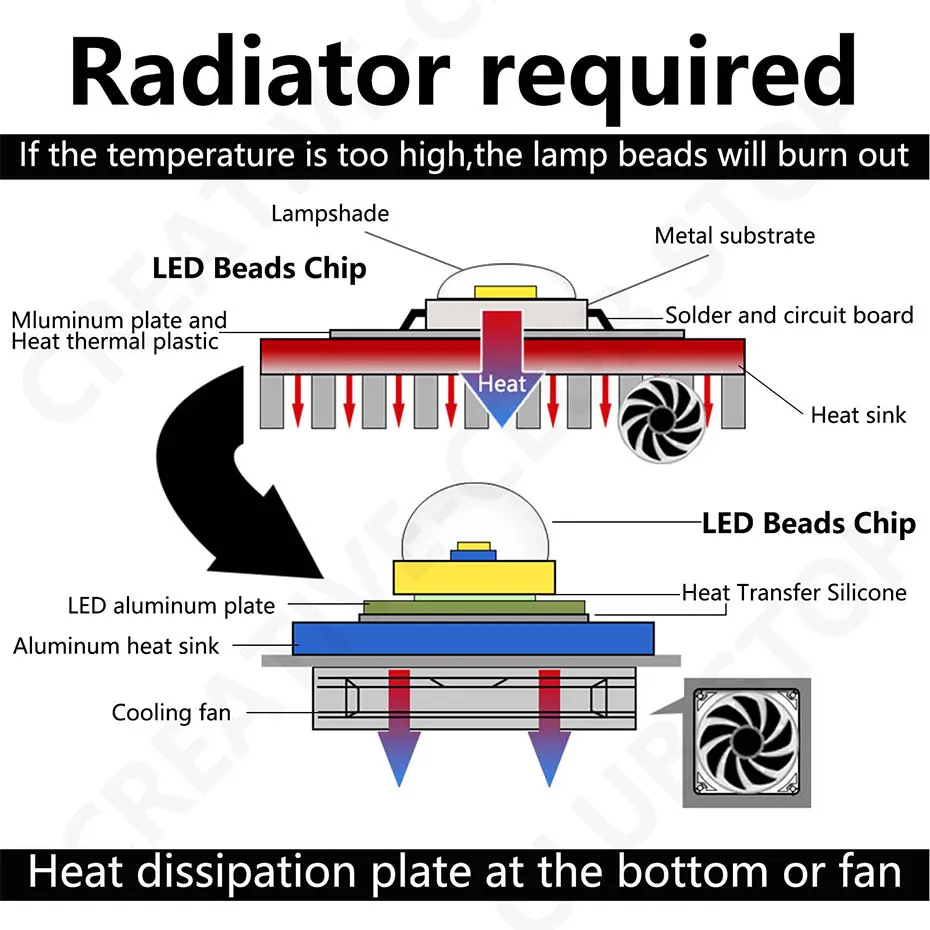

Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.

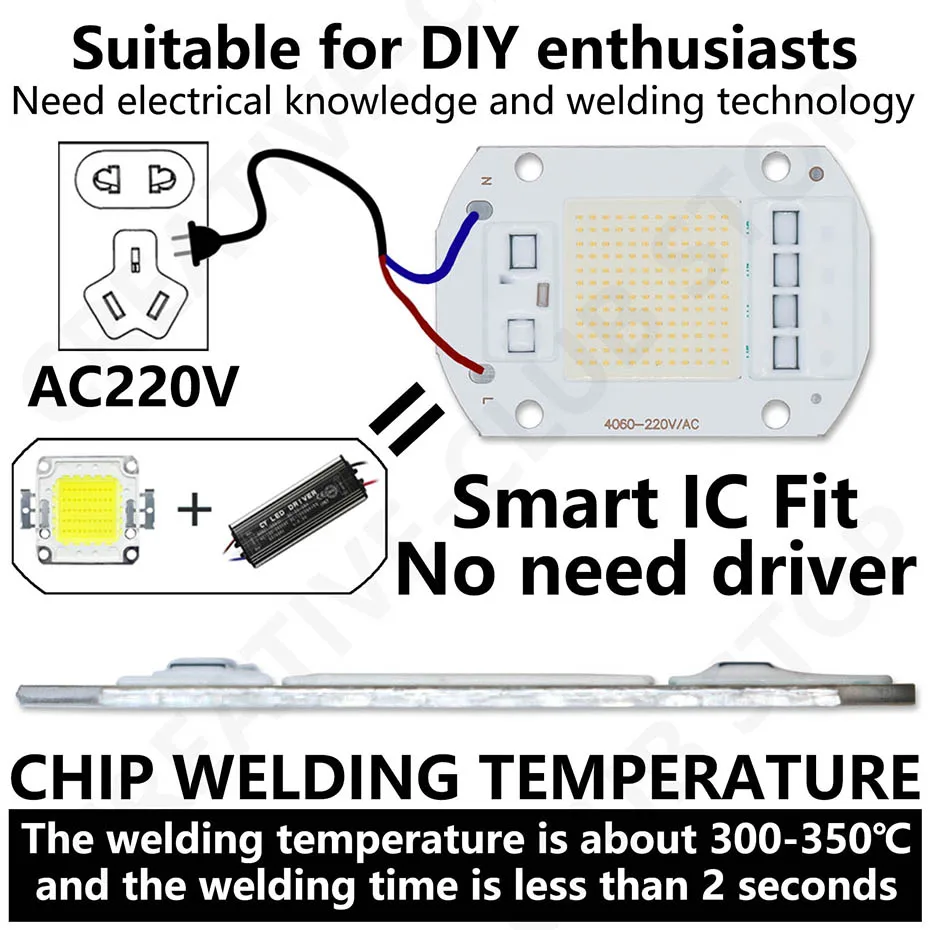

Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is ≤ 2 seconds.

,
