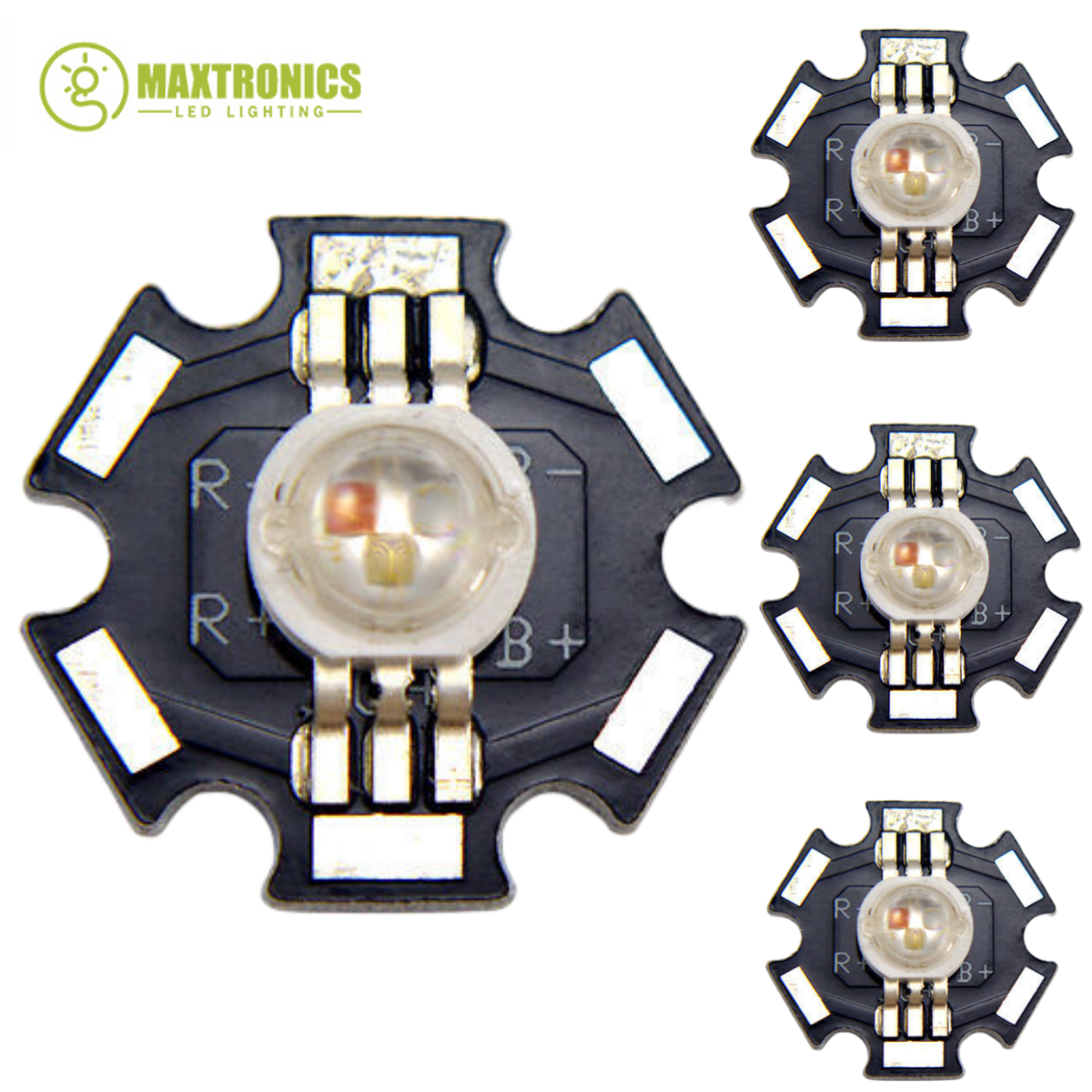

Best Quality 10pcs 3W RGB LED Colorfull Chip with PCB 3-CHIP 6-Pin High Power Super Bright for Stage Lights Beads Free Shipping
Best Quality 10pcs 3W RGB LED Colorfull Chip with PCB 3-CHIP 6-Pin High Power Super Bright for Stage Lights Beads Free Shipping
Features :
- R,G,B three color in one Package;
- High flux per LED
- Very long operating life(up to 100k hours);
- Various colors;
- Good color uniformity;
- More energy efficient than incandescent and most halogen lamps;
- Low Voltage DC operated;
- Instant Light (less than 100ns);
- No UV
Typical Applications
- Reading lights (car , bus , aircraft);
- Portable (flashlight ,bicycle);
- Uplighters/Downlighters;
- Decorative/Entertainment;
- Bollards/Security/Garden;
- Cove/Undershelf/Task;
- Indoor/Outdoor Commercial and Residential Architectural;
- Automotive Ext (Stop-Tail-Turn, CHMSL, Mirror Side Repeat)
- LCD backlights
Specification
Forward Voltage VF (V) : red (min 1.9, typ 2.2, max 3.1),Green/Blue (min 2.8, typ 3.5, max 4.0)
Wavelength λD (nm) : red 620nm-630nm,Green 520nm-530nm,Blue 460nm-470nm
DC Forward Current (mA) : red 385 ,Green/Blue 350
Peak Pulsed Forward Current (mA) : red 550, Green/Blue 500
Average Forward Current (mA) : red 350, Green/Blue 350
LED Junction Temperature () : red 120, Green/Blue 135
Aluminum-core PCB Temperature () : red 105, Green/Blue 105
Storage & Operating Temperature () : red -40 to +105, Green/Blue -40 to +105
Lumious Flux φν (lm) : red 25-30,Green 30-52,Blue 6.3-12
Soldering Temperature () : 260 for 5 second max
Viewing Angle(degrees)2θ1/2 : 140
Note
ProLight maintains a tolerance of ±10% on flux and power measurements
please do not drive at rated current more than 1 second without proper heat sink
package including :

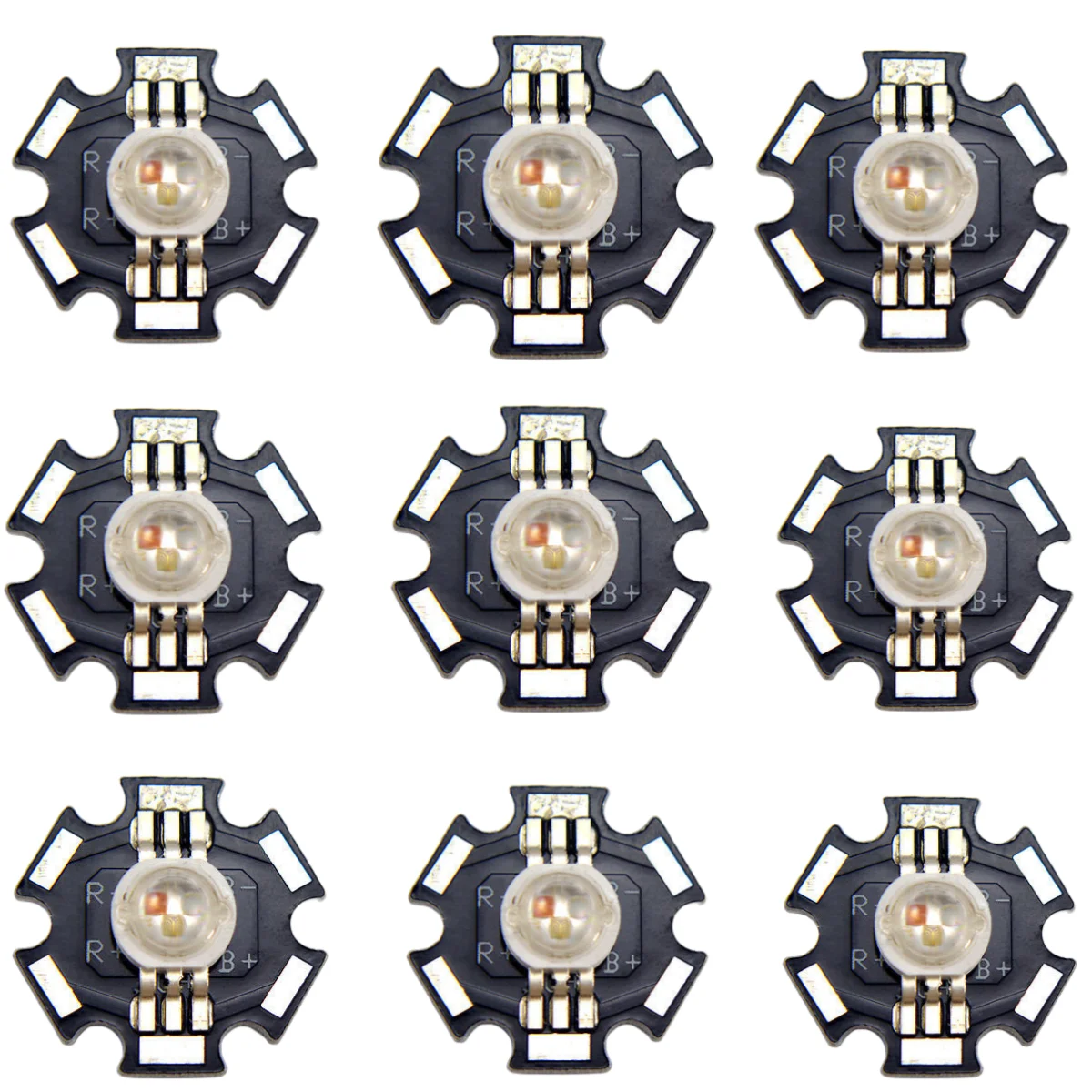

10pcs 3w RGB 6-pin 3-chip led
,
