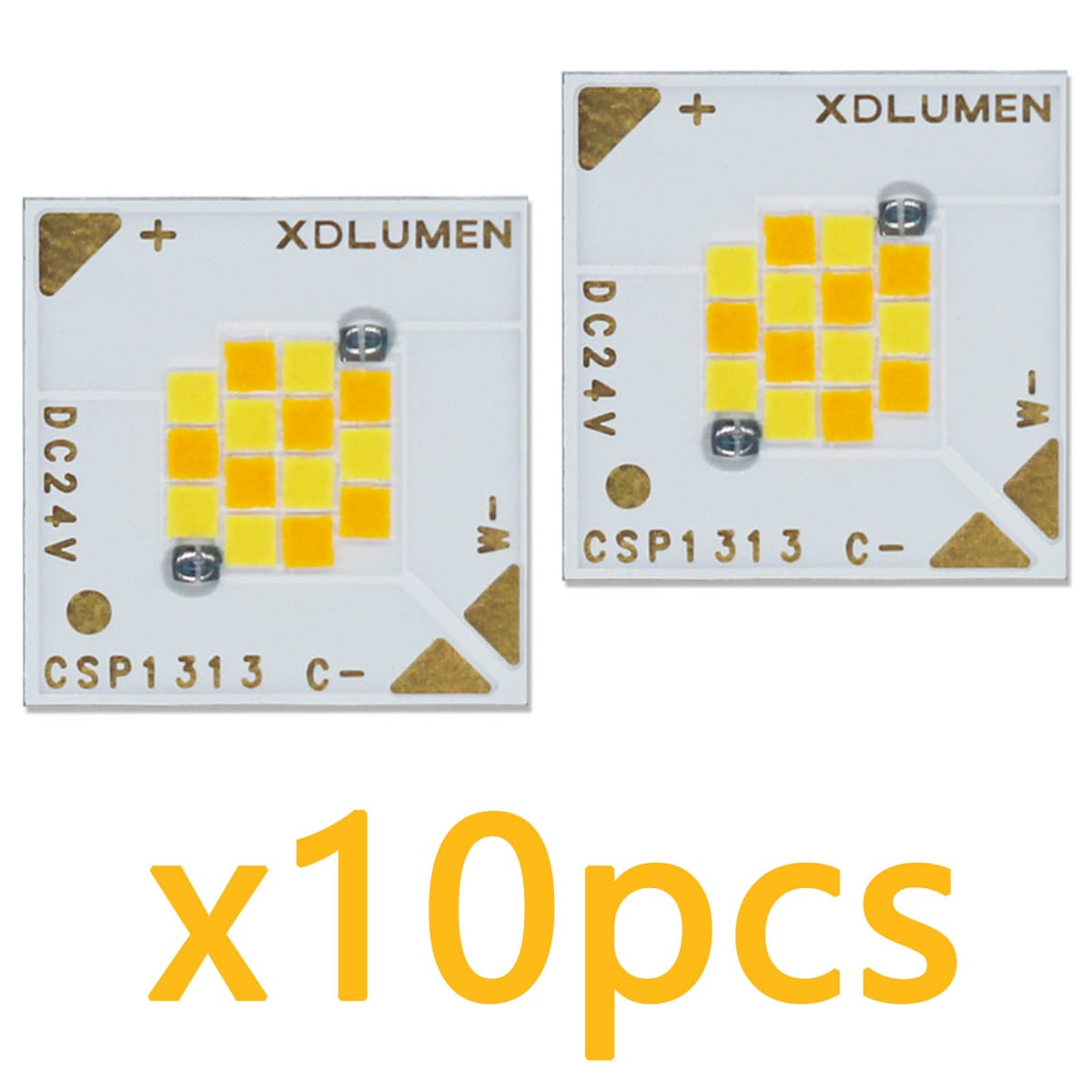

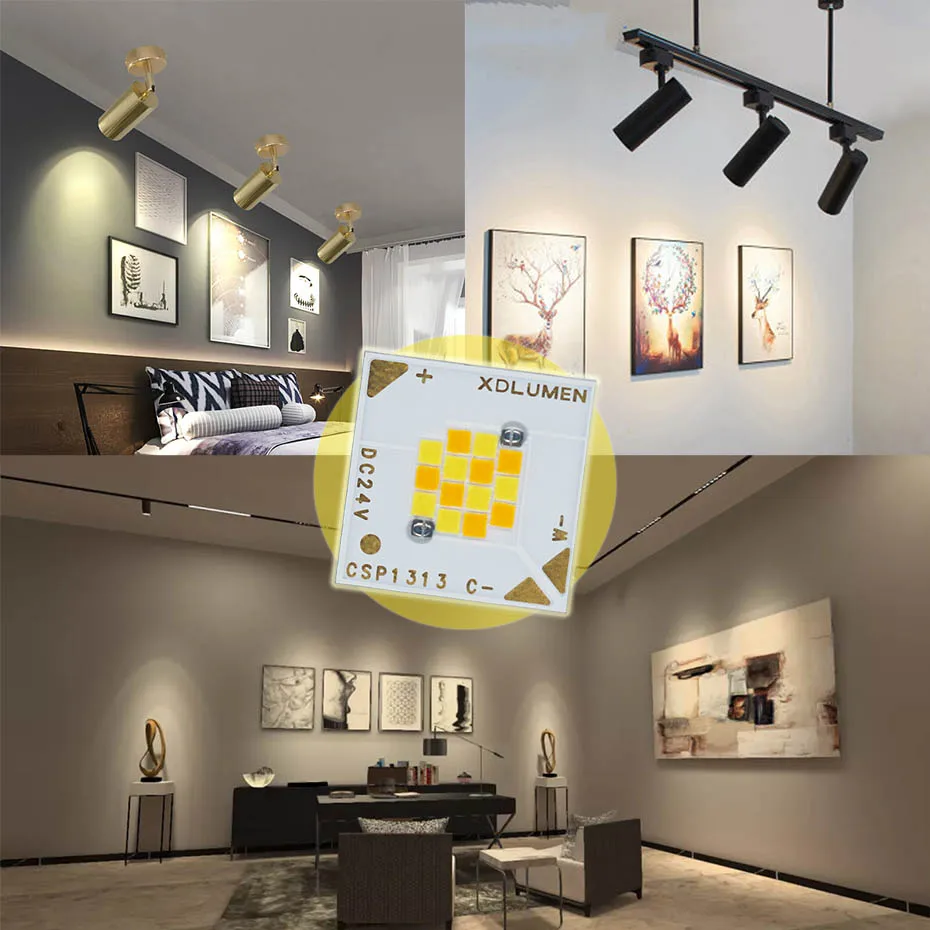

7W 12W LED CSP Dual Color Chip Cold White Warm White DC24V LED COB Aluminum Square Diode Bead 300mA 500mA for Track Light Ra90
Product Introduction
CSP (Chip Scale Package) lamp bead refers to a packaging technology that directly encapsulates the LED chip on the Printed Circuit Board (PCB). Compared with traditional LED packaging methods, CSP lamp beads have a smaller size and higher brightness, which can achieve higher light efficiency and better heat dissipation performance.
Power：7W/12W
Voltage：DC24V
Current：300mA / 500mA
Lumen：
7W=7*110=770LM
12W=12*110=1320LM
Ra：90

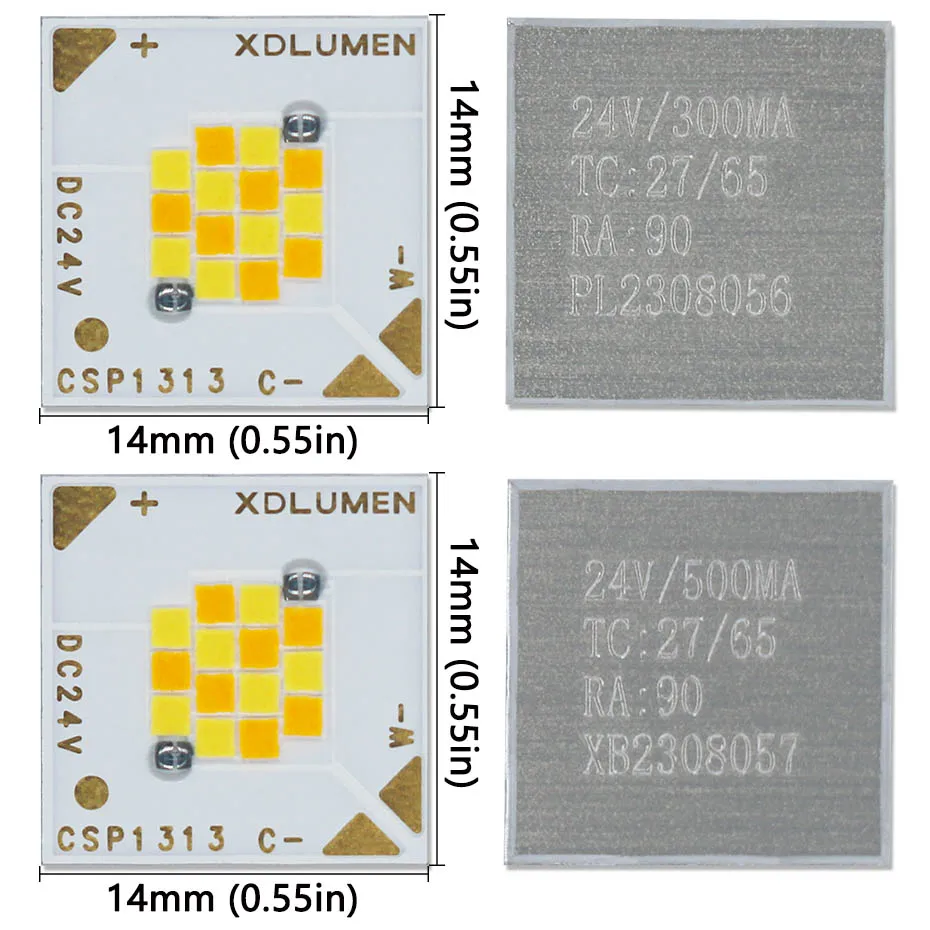

Size：14*14mm
Thickness：1mm

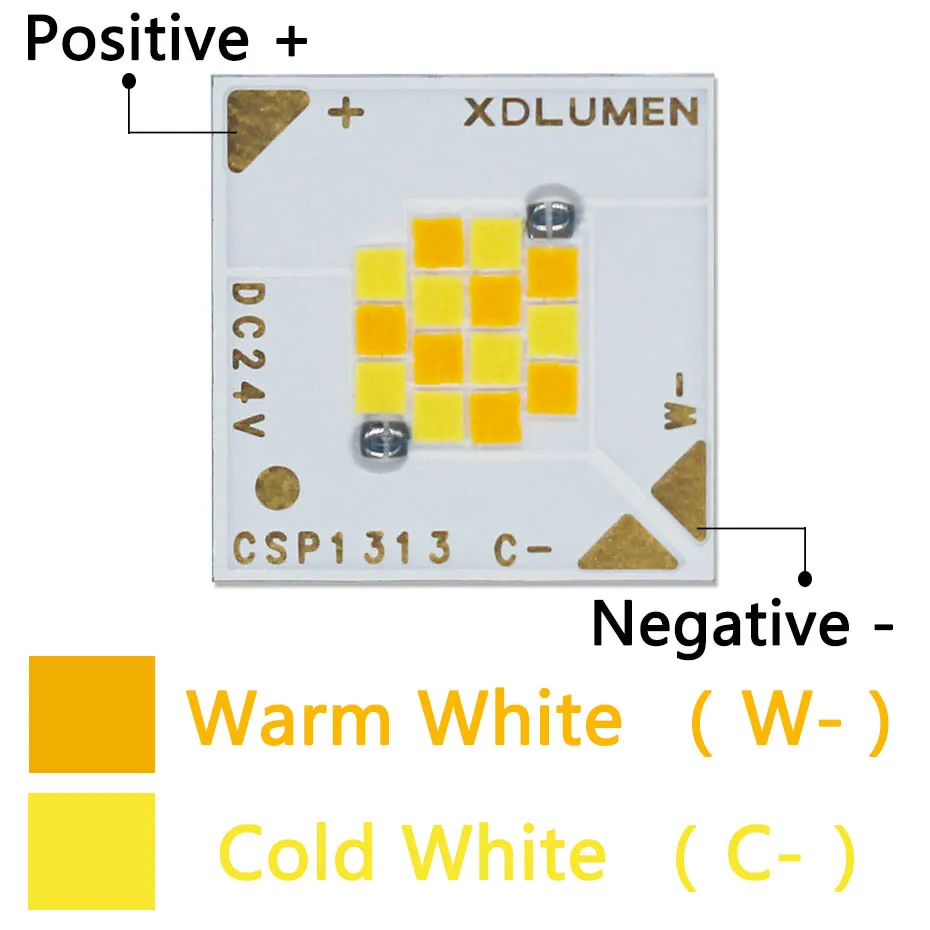

Color temperature: 27=2700K/65=6500K
Usage temperature: LED requires a heat sink, and the center temperature of the lamp beads cannot exceed 100 degrees. The temperature of the aluminum shell of the heat sink cannot exceed 80 degrees.
Welding conditions: The temperature of the electric soldering iron is 450 degrees Celsius, and the welding time is ≤ 2 seconds.
,
