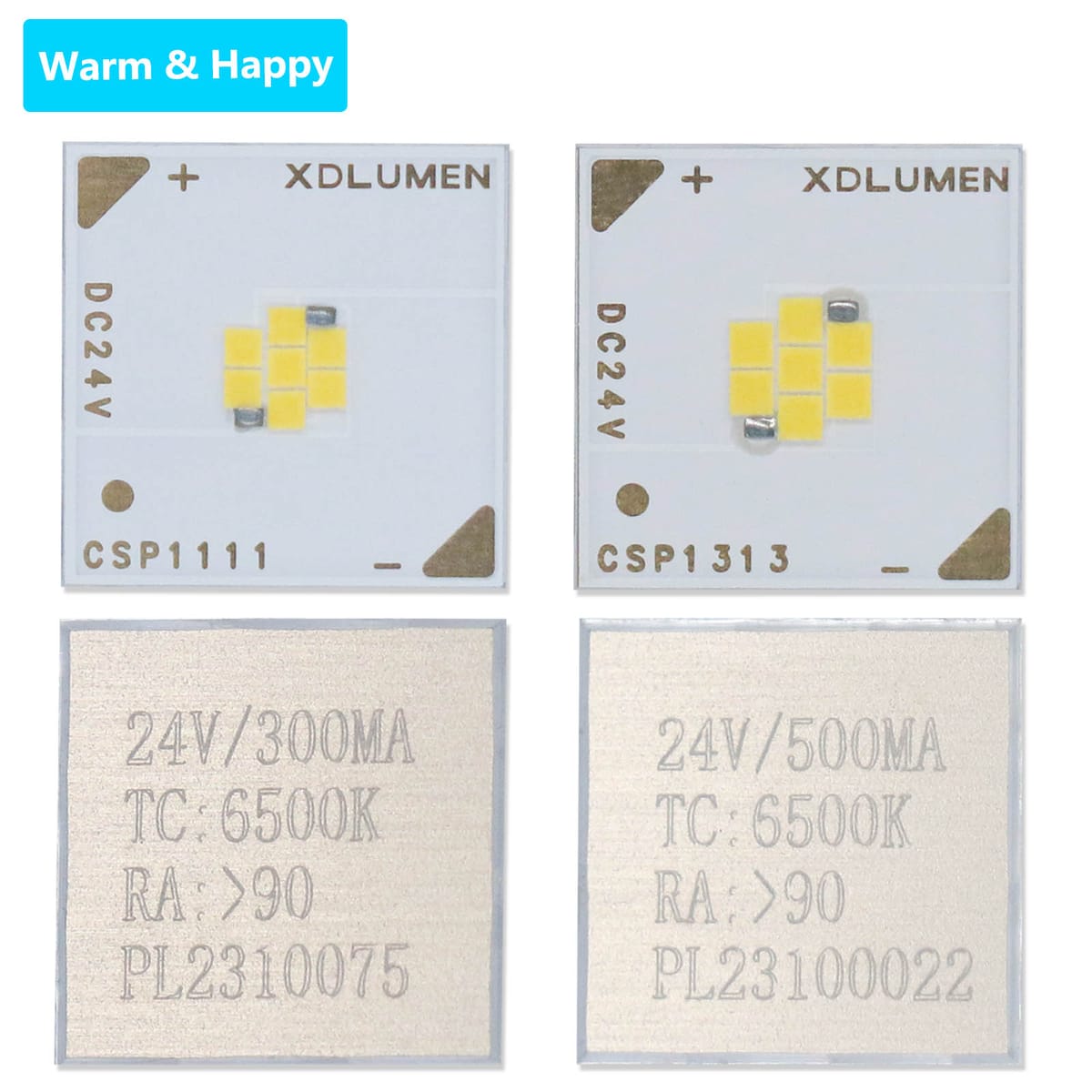

7W 12W CSP1313 1111 Square Bead DC24V 300mA 500mA LED COB Cold White Warm White Diode Chip Spotlight Tube Light Source
Product Introduction
CSP (chip level packaging) beads refer to the packaging technology that directly packages LED chips onto printed circuit boards (PCBs). Compared with traditional LED packaging methods, CSP beads have smaller dimensions and higher brightness, which can achieve higher light efficiency and better heat dissipation performance.
Power: 7W
Voltage: DC24V
Current: 300mA
Brightness: 7W=7 * 110=770LM
Ra: 90

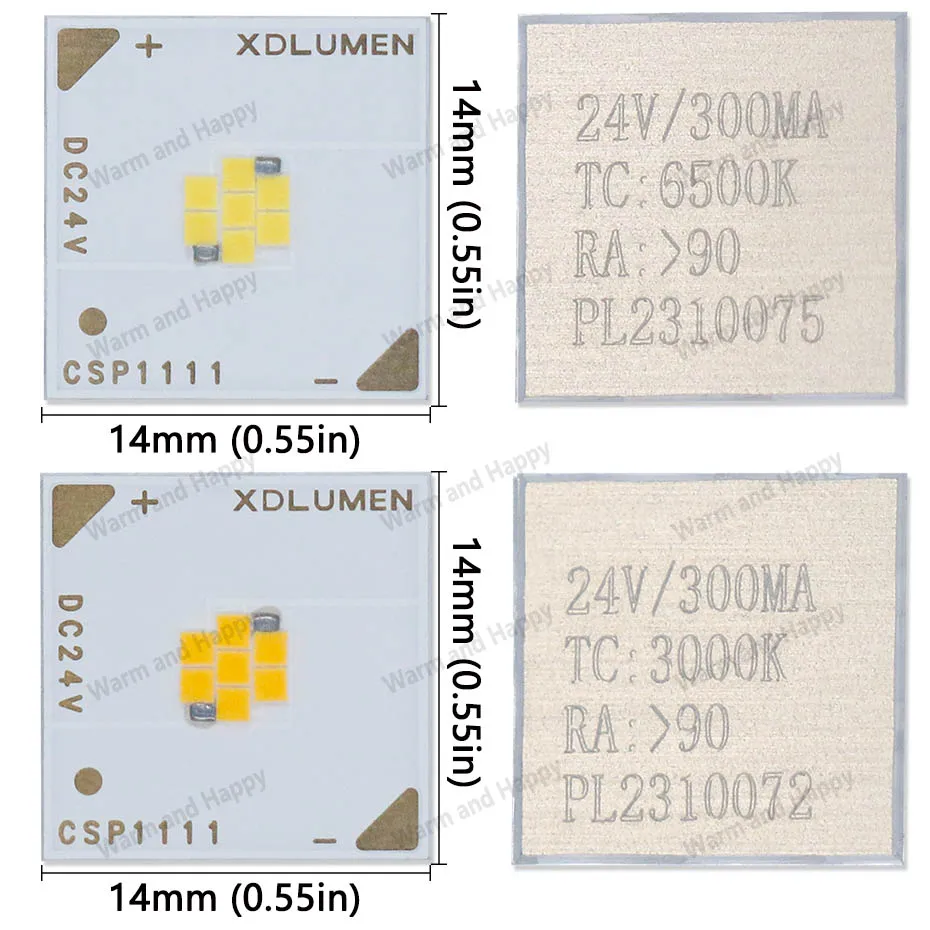

Size: 14 * 14mm
Thickness: 1mm
Usage temperature: LED requires a heat sink, and the temperature at the center of the lamp beads cannot exceed 100 degrees. The temperature of the aluminum shell of the radiator cannot exceed 80 degrees.
Welding conditions: The temperature of the electric soldering iron is 450 degrees Celsius, and the welding time is ≤ 2 seconds.
Power: 12W
Voltage: DC24V
Current: 500mA
Brightness: 12W=12 * 110=1320LM
Ra: 90

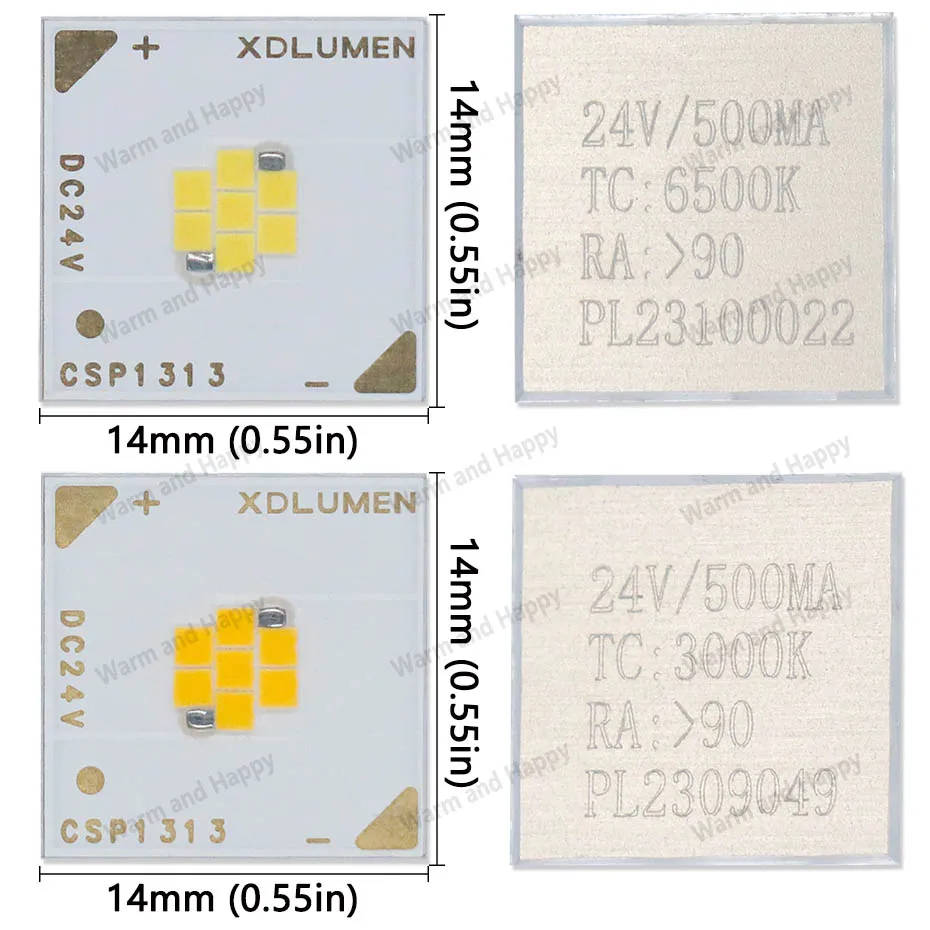

Size: 14 * 14mm
Thickness: 1mm
Usage temperature: LED requires a heat sink, and the temperature at the center of the lamp beads cannot exceed 100 degrees. The temperature of the aluminum shell of the radiator cannot exceed 80 degrees.
Welding conditions: The temperature of the electric soldering iron is 450 degrees Celsius, and the welding time is ≤ 2 seconds.
,
