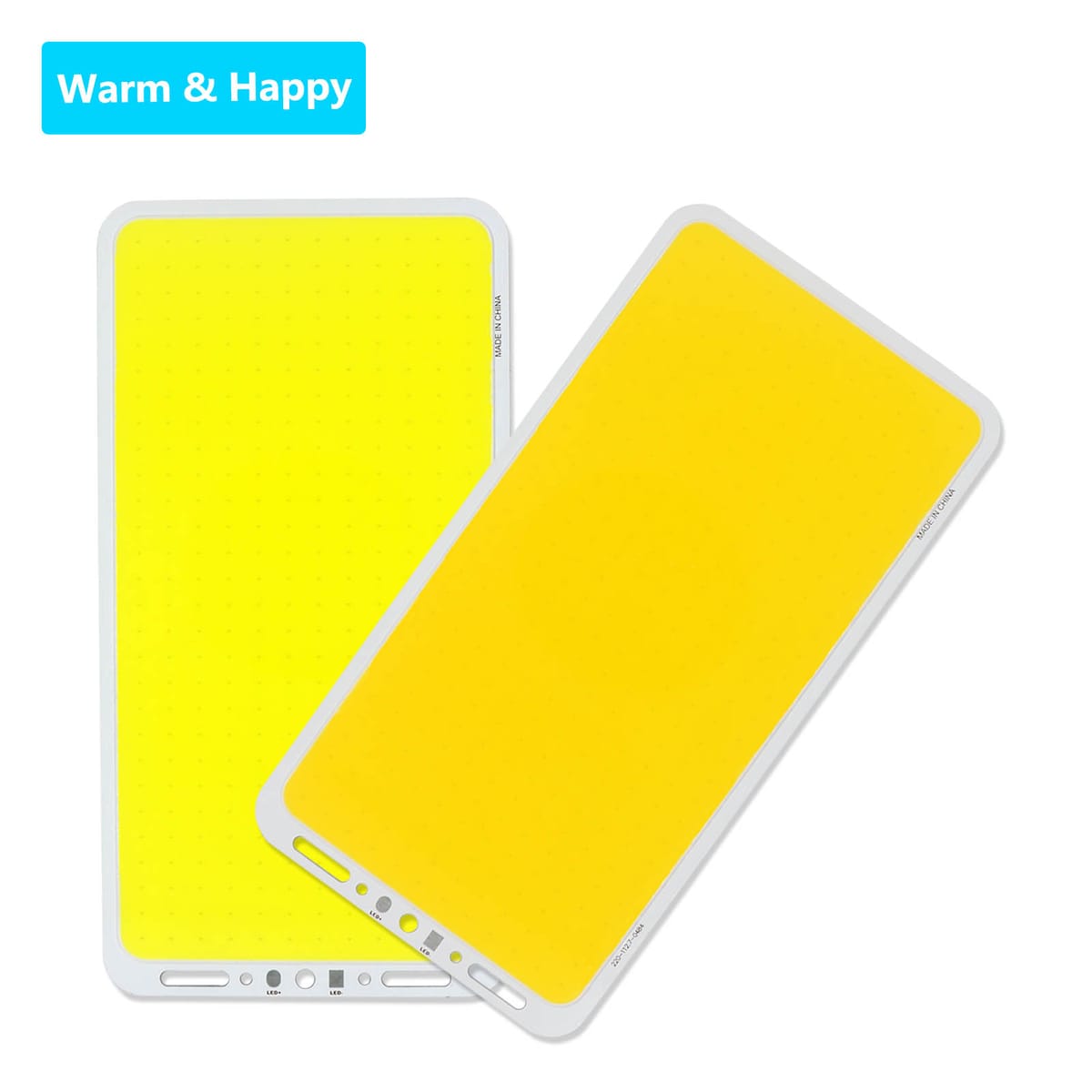

60W High Power LED COB Beads DC12-14V 1000-4000mA Outdoor Lighting Projection Light Source Board Accessories
Product details
Power: 60W
Voltage: DC12-14V
Current: 1000-4000mA
Lumens: 5000LM
Display index: 70 Ra
Series parallel circuit mode: 4 series 84 parallel
Number of lamp beads: 336pcs
Material: Aluminum
Thickness: 1.5mm
Appearance size: 220 * 112MM
Luminous surface size: 205 * 103MM
Thermal conductivity: Aluminum plate 2W/M · K
Application scenario: Floodlights
Usage temperature: A radiator is required, and the temperature cannot exceed 65 degrees.
Welding conditions: The temperature of the electric soldering iron is 350 degrees Celsius, and the welding time is ≤ 2 seconds.
,
