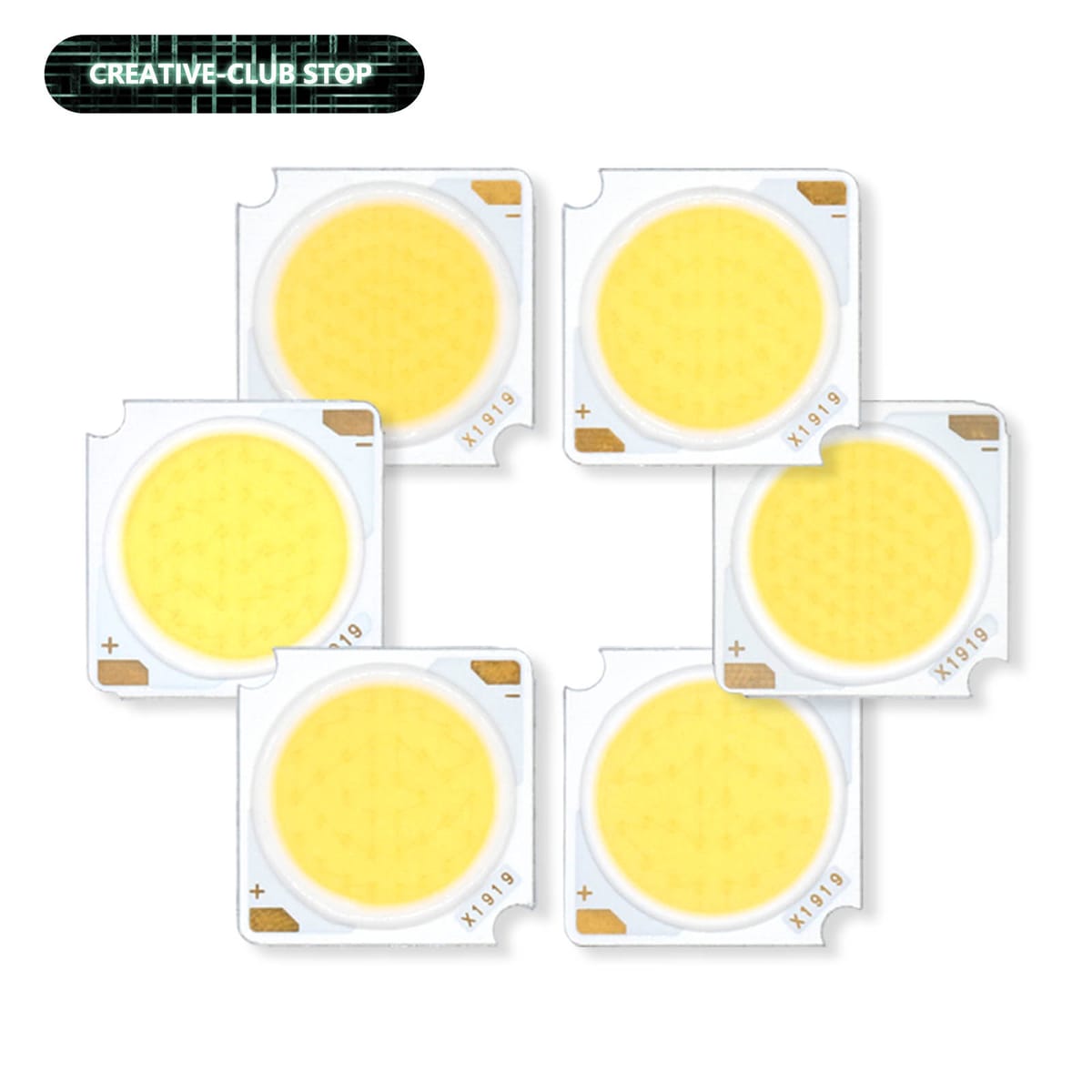

5pcs 12W 18W 24W 30W 36W 42W High Light Efficiency DC36-39V LED Bridgelux Chip 1919 COB Beads Lamp Diode for LED Bulb Spotlight
Product Details

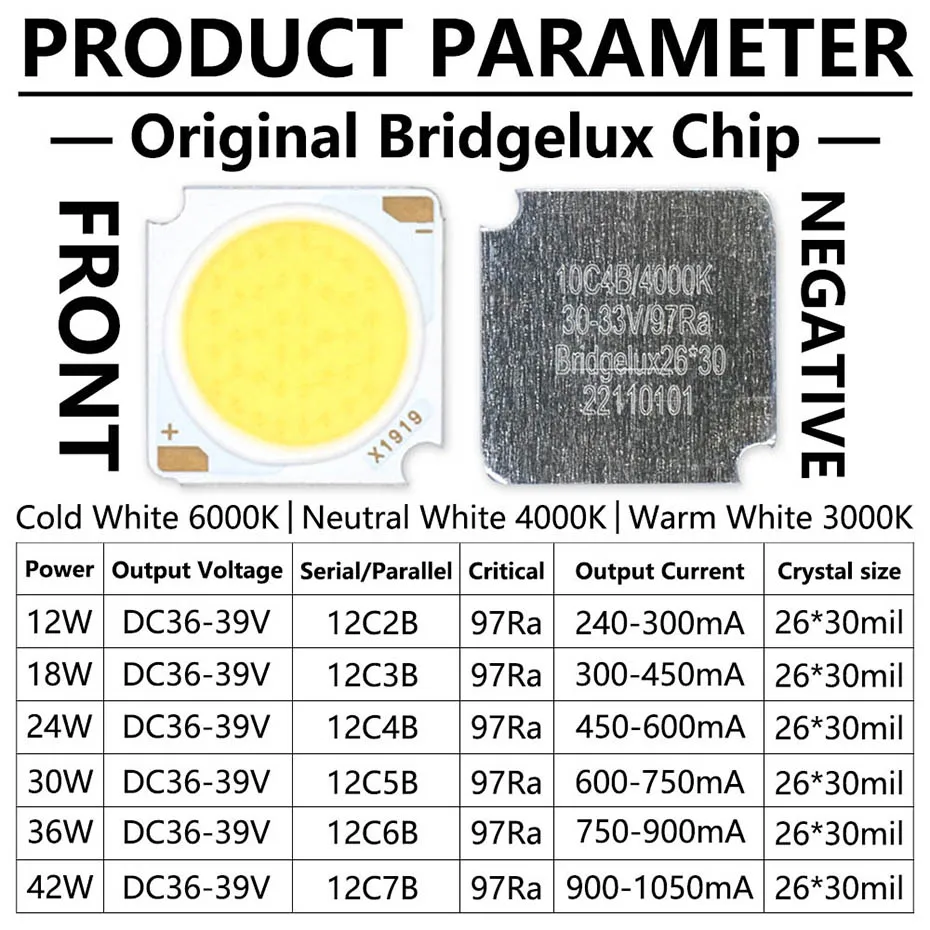

Power: 12W
Voltage: DC36-39V
Current: 240-300mA
Serial and parallel circuit: 12C2B

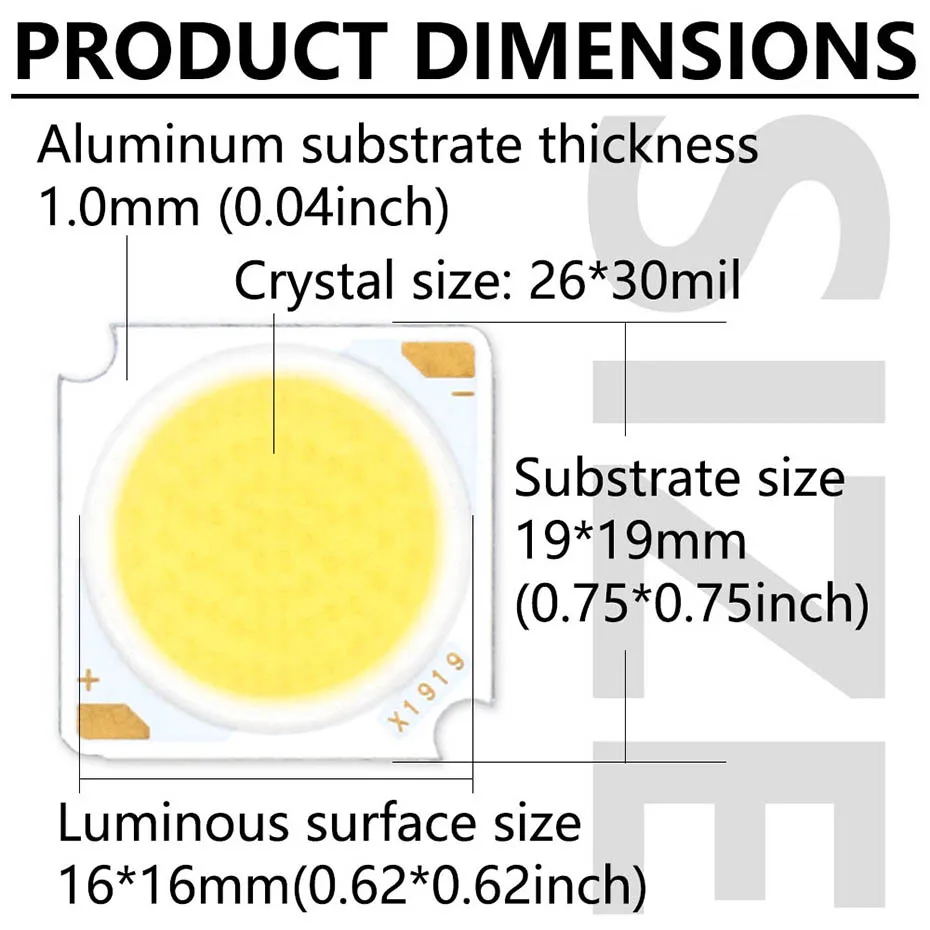

Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)

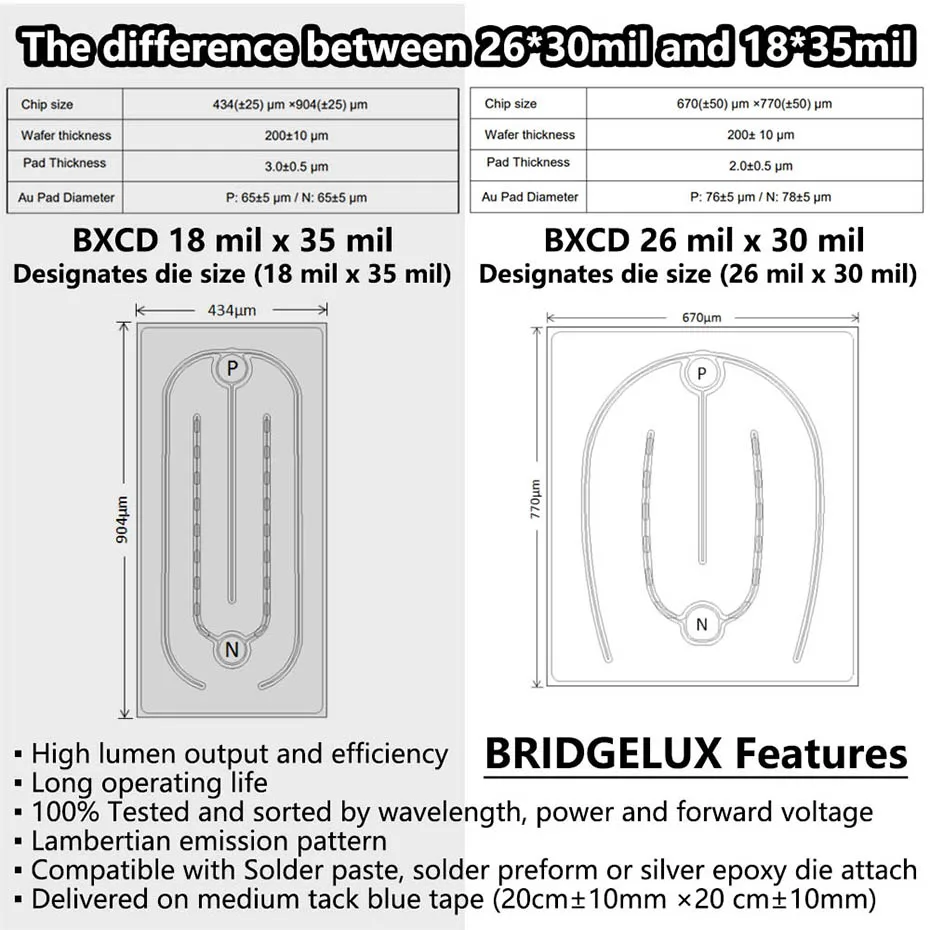

Crystal size: 26*30mil
Number of crystals: 24pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 18W
Voltage: DC36-39V
Current: 300-450mA
Serial and parallel circuit: 12C3B
Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)
Crystal size: 26*30mil
Number of crystals: 36pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 24W
Voltage: DC36-39V
Current: 450-600mA
Serial and parallel circuit: 12C4B
Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)
Crystal size: 26*30mil
Number of crystals: 48pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 30W
Voltage: DC36-39V
Current: 600-750mA
Serial and parallel circuit: 12C5B
Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)
Crystal size: 26*30mil
Number of crystals: 60pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 36W
Voltage: DC36-39V
Current: 750-900mA
Serial and parallel circuit: 12C6B
Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)
Crystal size: 26*30mil
Number of crystals: 72pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
Power: 42W
Voltage: DC36-39V
Current: 900-1050mA
Serial and parallel circuit: 12C7B
Substrate Size: 19*19mm(0.75*0.75inch)
Light-emitting surface size: 16*16mm(0.62*0.62inch)
Crystal size: 26*30mil
Number of crystals: 84pcs
Crystal name: Bridgelux Chip
Aluminum substrate thickness: 1.0mm (0.04in)
Thermal conductivity of aluminum substrate: 2.0W/(m·K)
Application place: Spotlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
,
