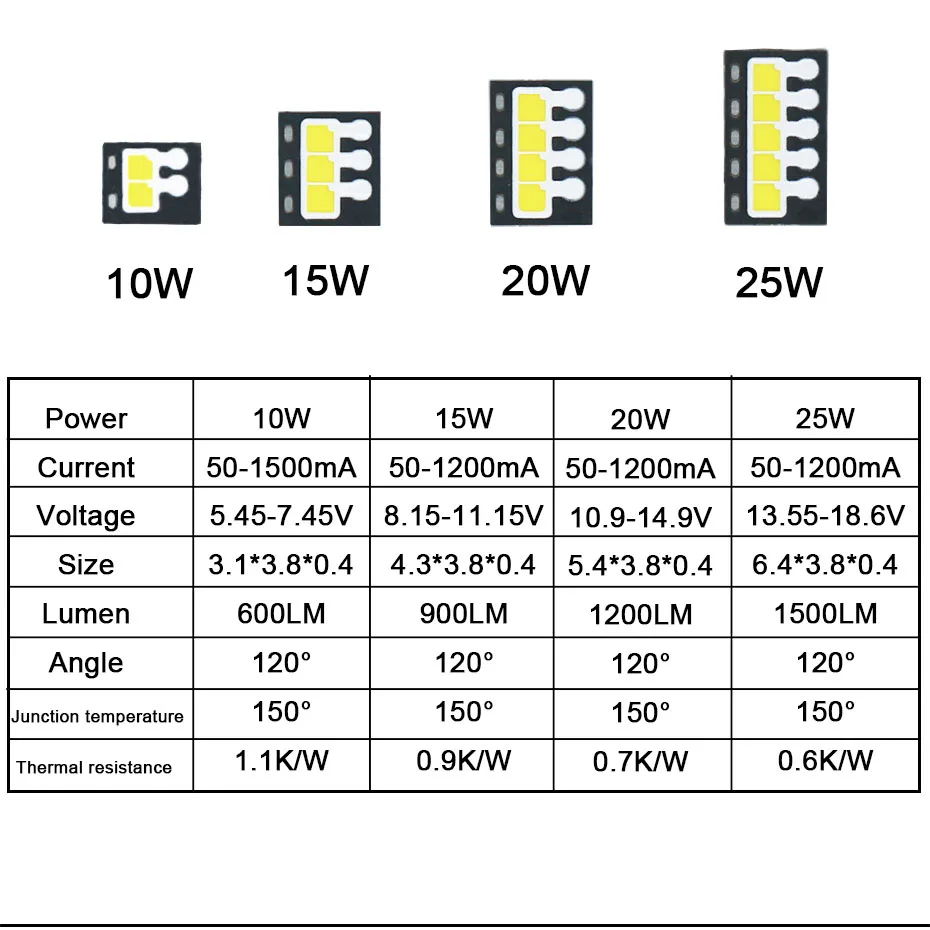

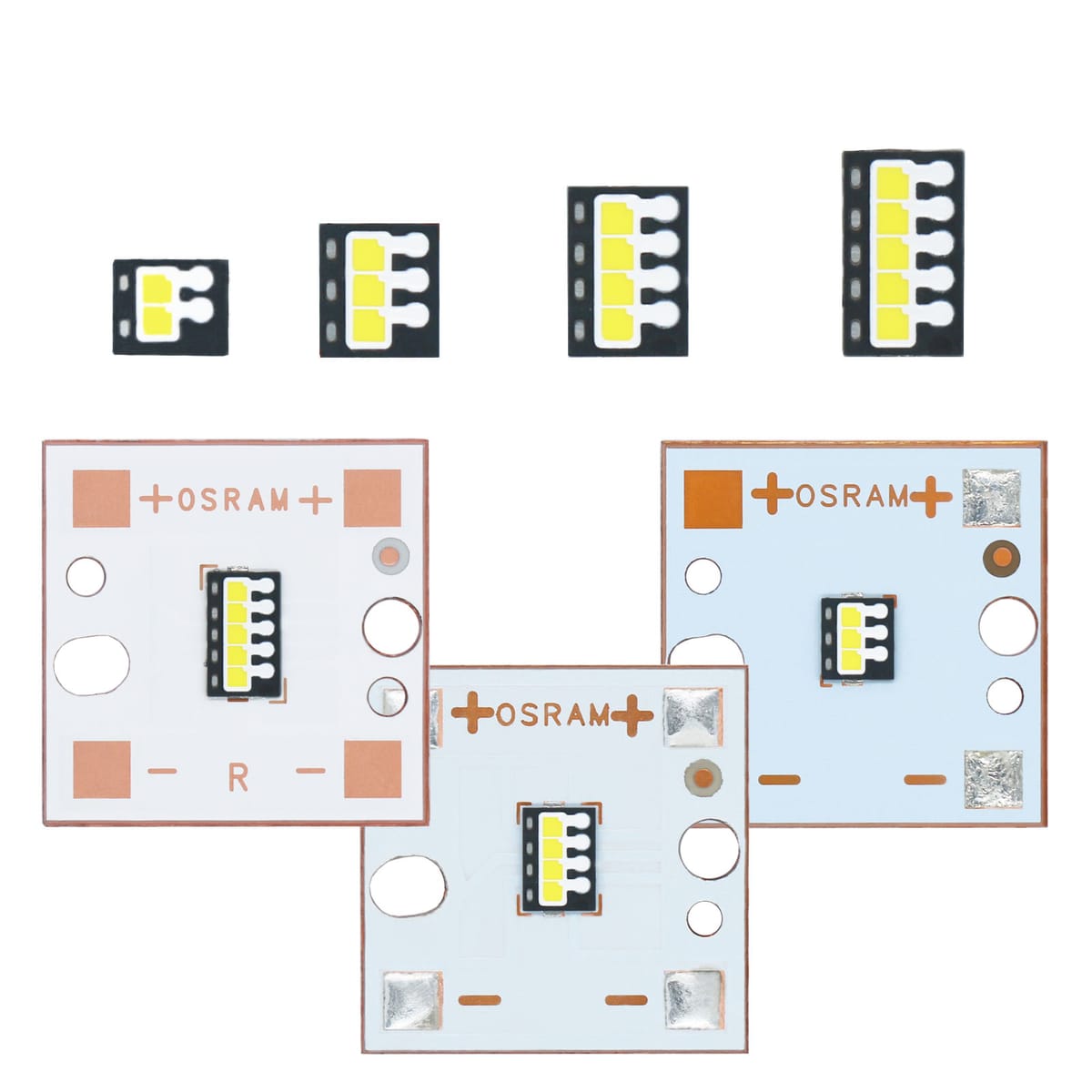

5pcs 10W 15W 20W 25W High Power 9V 12V 15V LED Light SMD Chip LED Beads PCB Substrate Copper For Automotive Car Headlights DIY
LED patch lamp bead

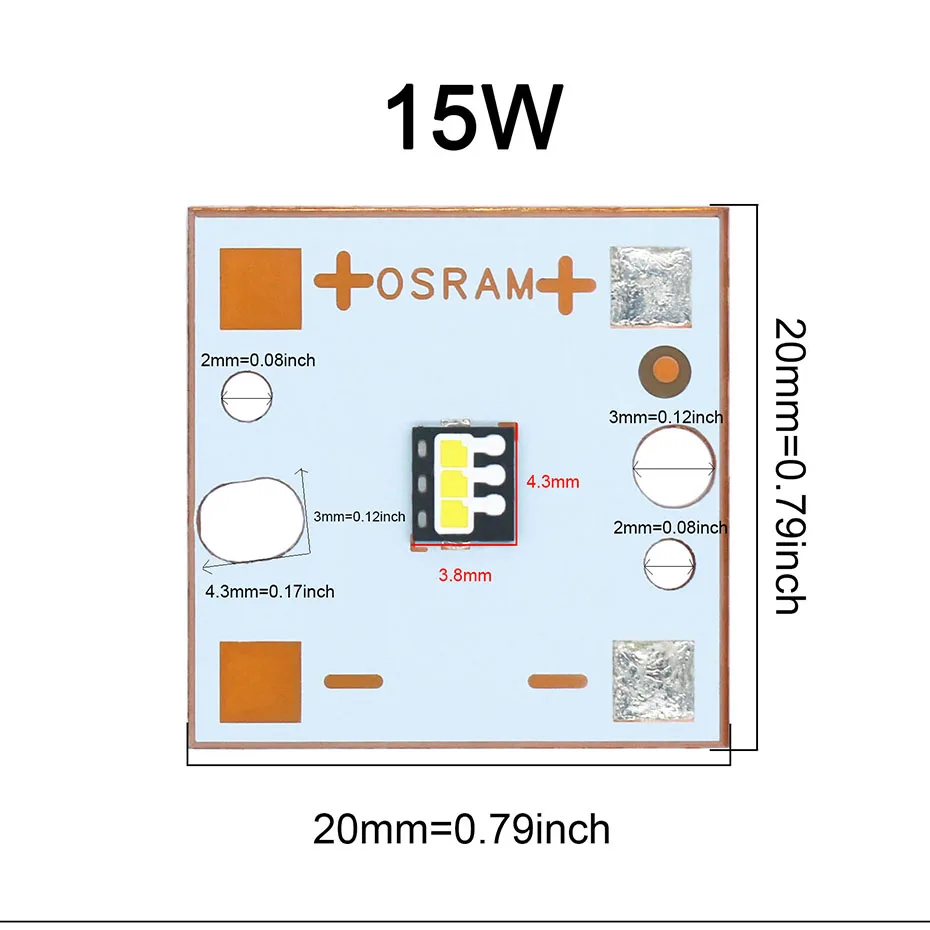

Power: 15W
Voltage: DC9-11V

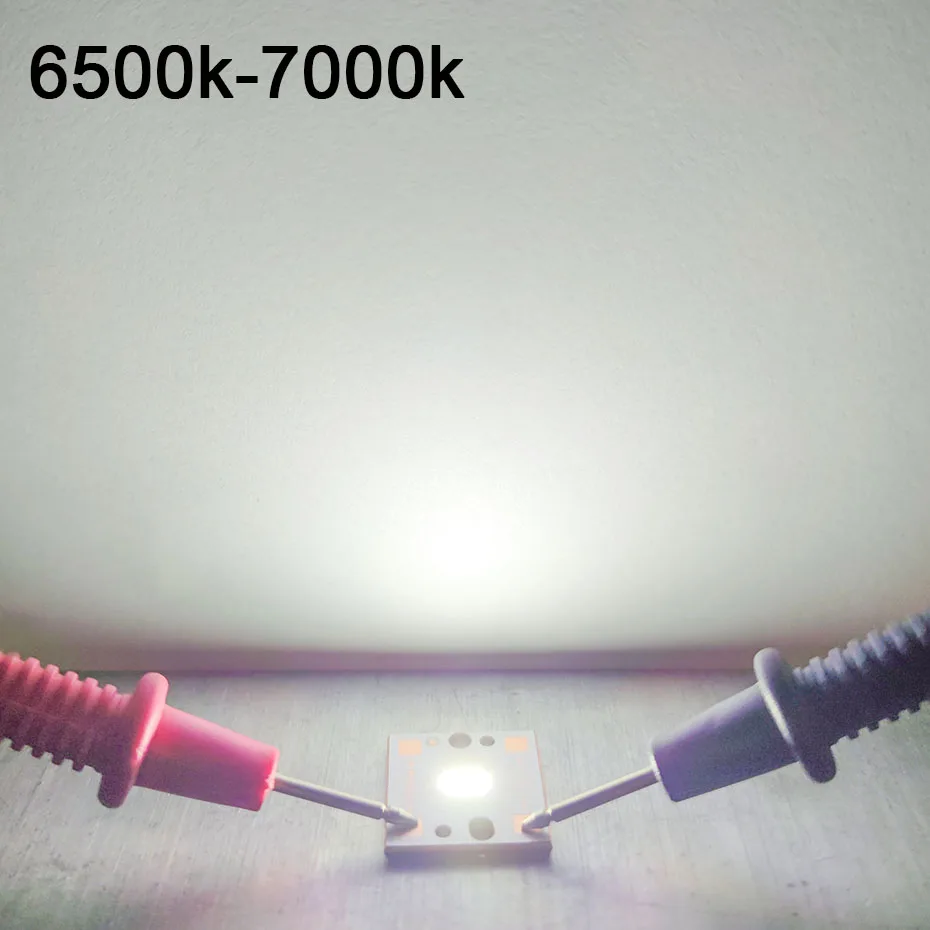

Color：Cold White 6500K-7000K
Current: 1200mA±5%
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 4.3*3.8mm (0.16*0.14in)
Number of crystals: 3-core
Lumens: 110LM/W
Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)

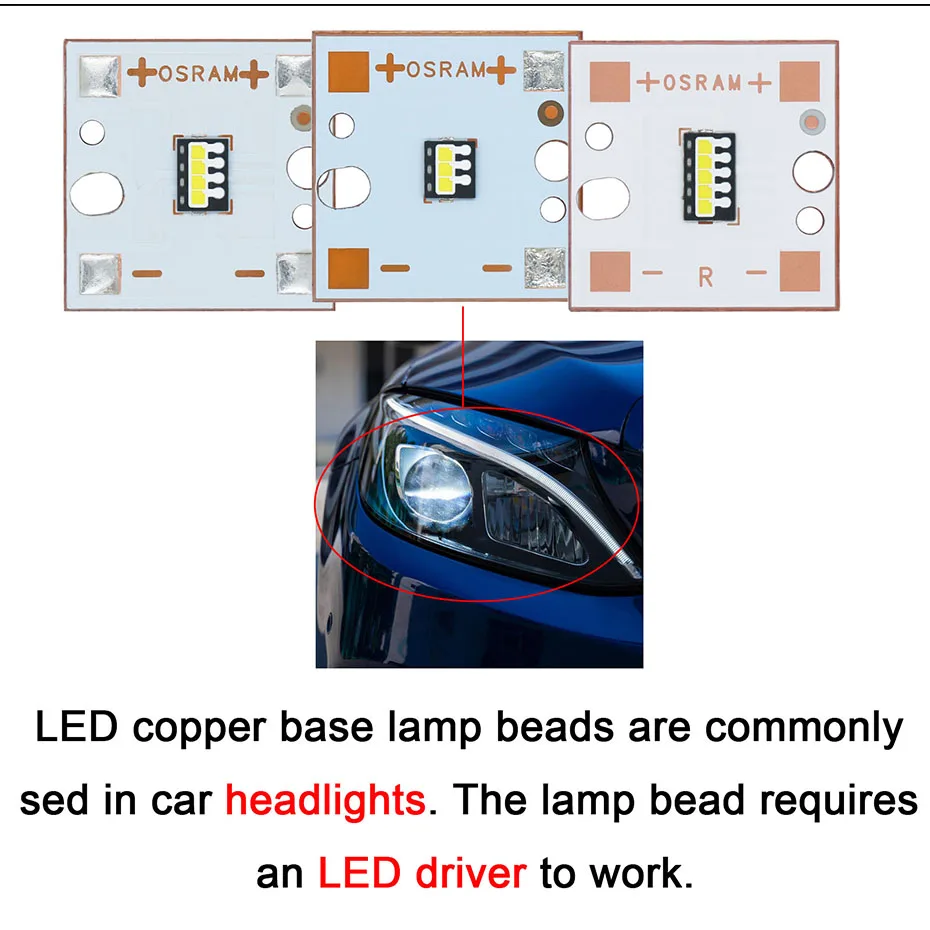

Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

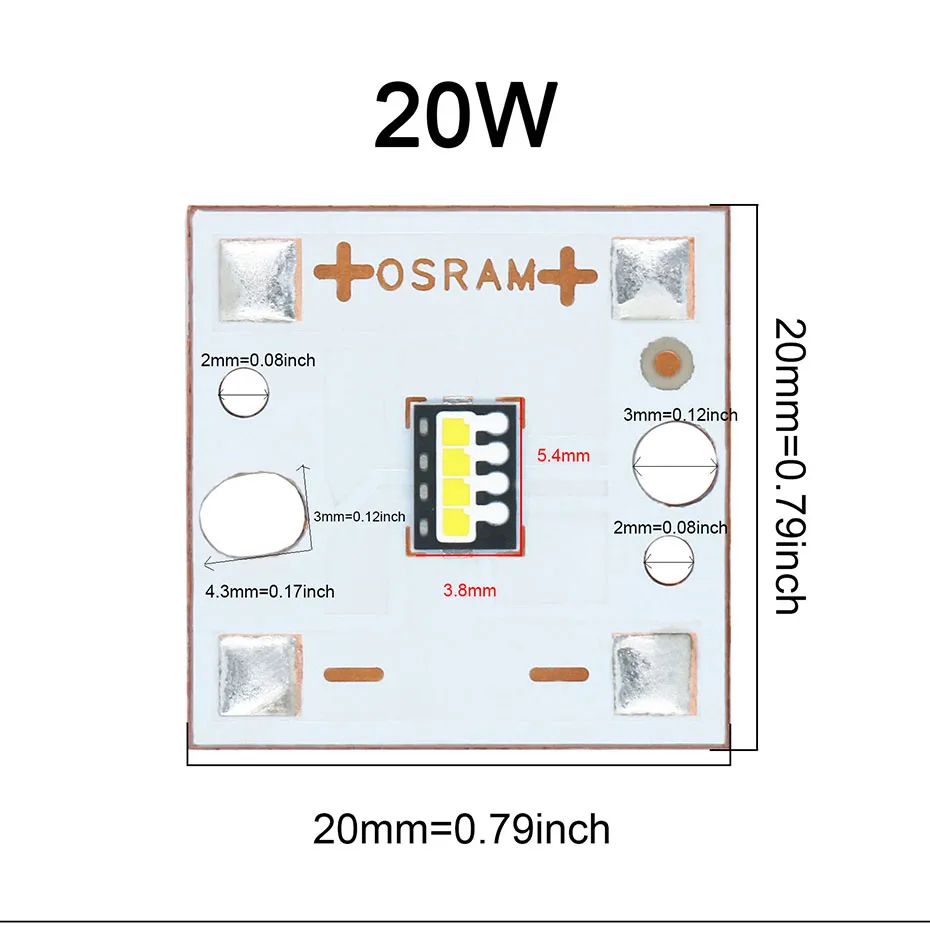

Power: 20W
Voltage: DC12-14V
Color：Cold White 6500K-7000K
Current: 1200mA±5%
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 5.4*3.8mm (0.21*0.14in)
Number of crystals: 4-core
Lumens: 110LM/W
Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)
Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃

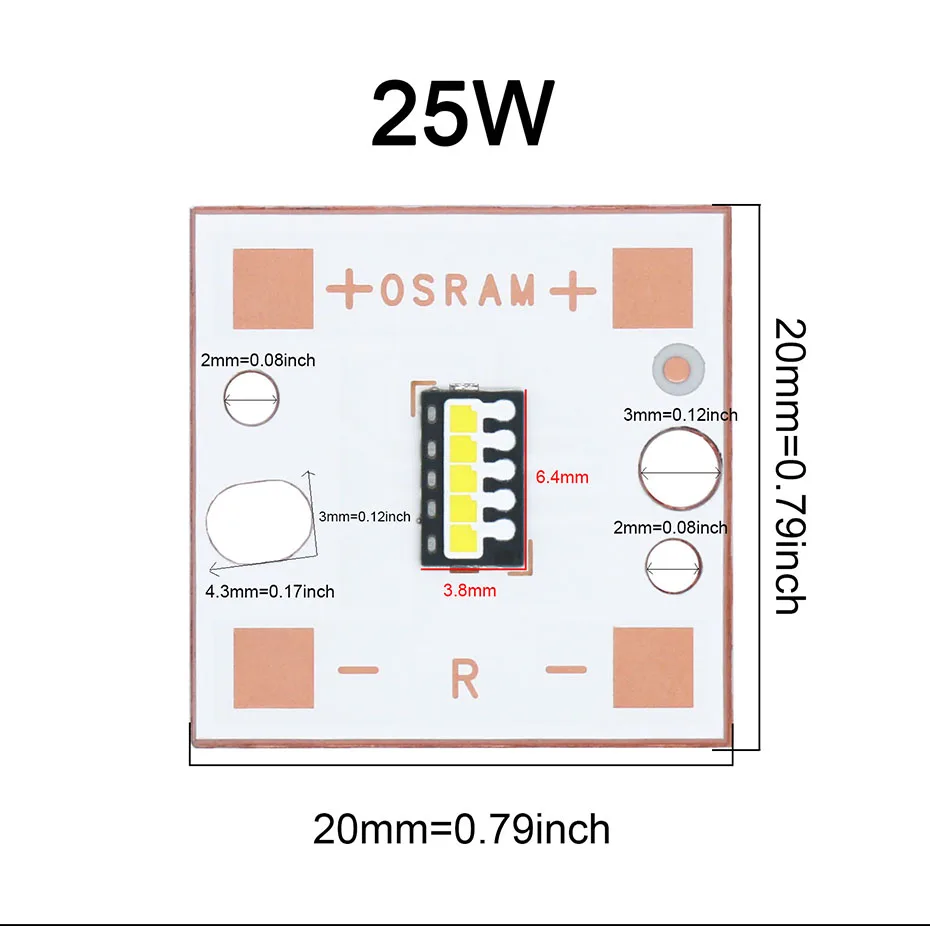

Power: 25W
Voltage: DC15-17V
Color：Cold White 6500K-7000K
Current: 1200mA±5%
Size: 20*20mm(0.78*0.78in)
Light-emitting surface size: 6.4*3.8mm (0.25*0.14in)
Number of crystals: 5-core
Lumens: 110LM/W
Copper substrate thickness: 2.0mm (0.04in)
Thermal conductivity of copper substrate: 8.0W/(m·K)
Application place: car headlight
Conditions of use: radiator required
Chip temperature does not exceed 65℃
,
