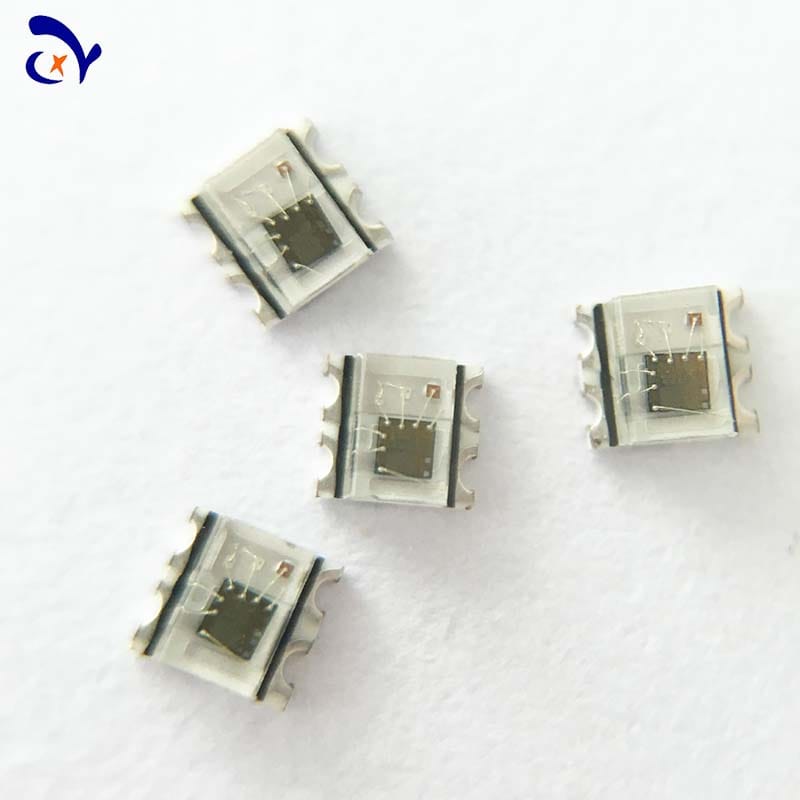

50PCS WS2812C-2020 Lamp Beads DC5V Single Point Single Control SMD Lamp Beads 2020 Small Pitch Phantom Light Beads

Features and Benefits

 The control integrated circuit and the LED share the only power source. 5mA operating current per channel.Control circuit and RGB chip are integrated in a package of 2020 components, to form a complete addressable pixel. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion notaccumulate. Built-in electric reset circuit and power lost reset circuit. Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full colordisplay, and scan frequency is of 2KHz. Cascading port transmission signal by single line. Any two point the distance not more than 5m transmission signal without any increase circuit. When the refresh rate is 30fps, cascade number are not less than 1024 pixels. Send data at speeds of 800Kbps. The color of the light is highly consistent, cost-effective.Applications Full-color module, Full color soft lights a lamp strip. LED decorative lighting, Indoor/outdoor LED irregular screen, game machine and amusement equipment etc.

,
