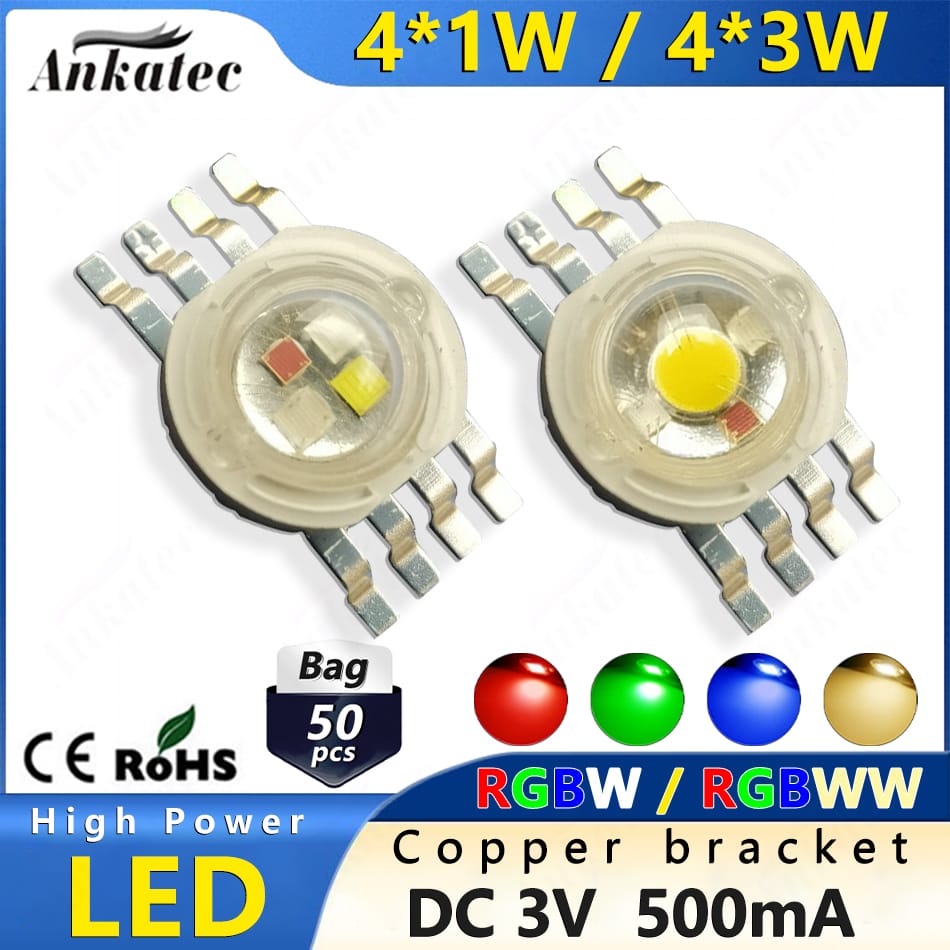

50 Pcs High Power LED Chip RGBW RGBWW 8 pins 4W 12W for Each Color 1 3 Watt Super Bright COB Light Emitter Diode DIY Lamp Beads
50PCS/Lot RGBW RGBWW LED high-power chip SOP-8 color lighting beads
Product features:
●. High quality LED high-power Chip lamp beads,small light decay,high brightness and long service life.
●. Used for DIY lighting fixtures, widely used
●. The lamp bead chip adopts 99.99% gold wire welding and copper bracket, making them easy to dissipate heat. Strong light transmittance
●. With high brightness,low power consumption and long life. Instant start,no strobe,sturdy and shockproof.
●. Allows you to solder it into any configuration you want.
●. Light weight,small size,easy to store and use.
Product specifications:

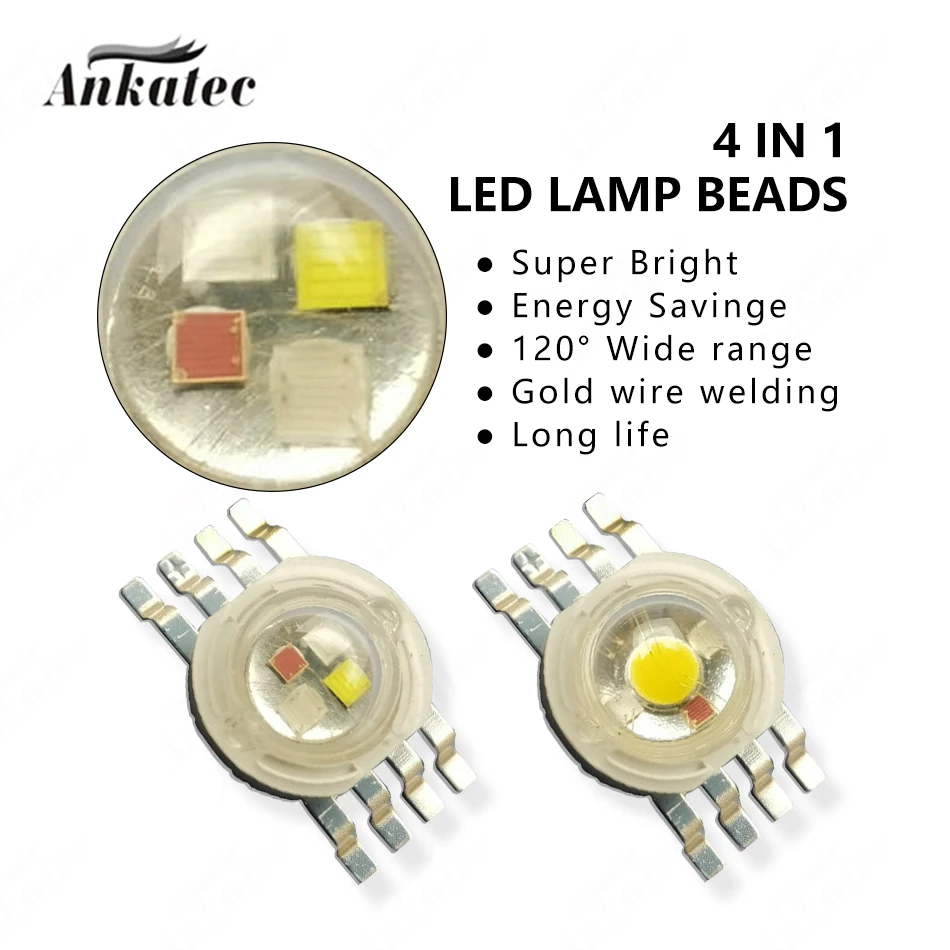

●.Name：4 in1 LED high-power lamp beads
●.Features：8-PIN SMD lumen lamp beads
●.Application：Downlight, spotlight, courtyard light, wall wash light, landscape ●.light, sunset light, stage light

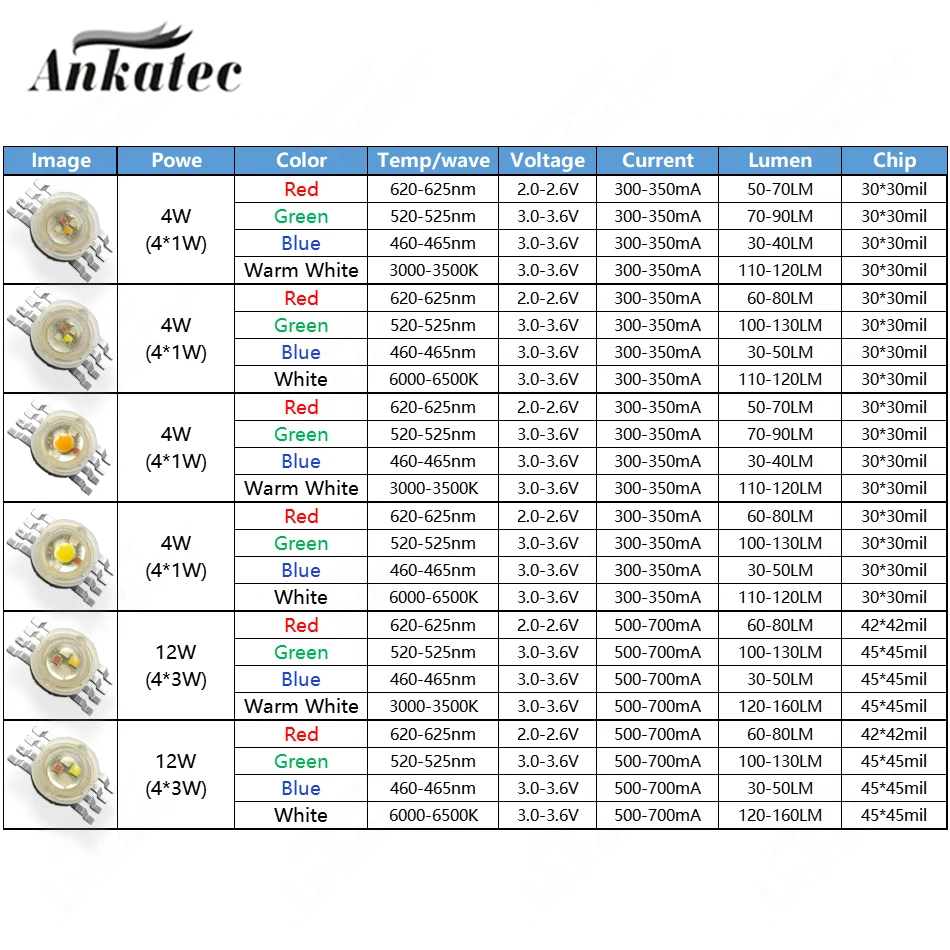

●.Power：4W(4CH*1W); 12W(4CH*3W)
●.Current：350mA/CH(4W); 700mA/CH(12W)
●.Voltage：R:2.0-2.6V; G B W WW : 3.0-3.6V
●.Color：RGBW; RGBWW
●.Beam angle：120 degrees
●.LED chip：30mil (4W); 45mil (12W)

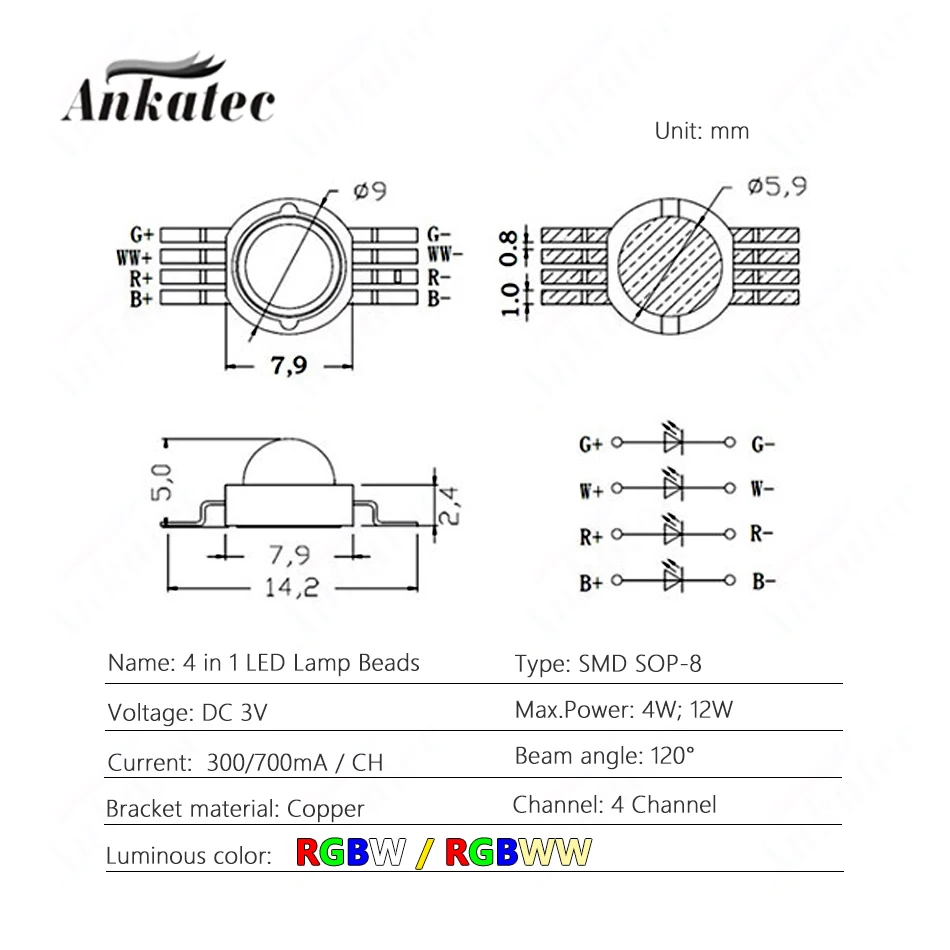

●.Dimension：As shown in the figure

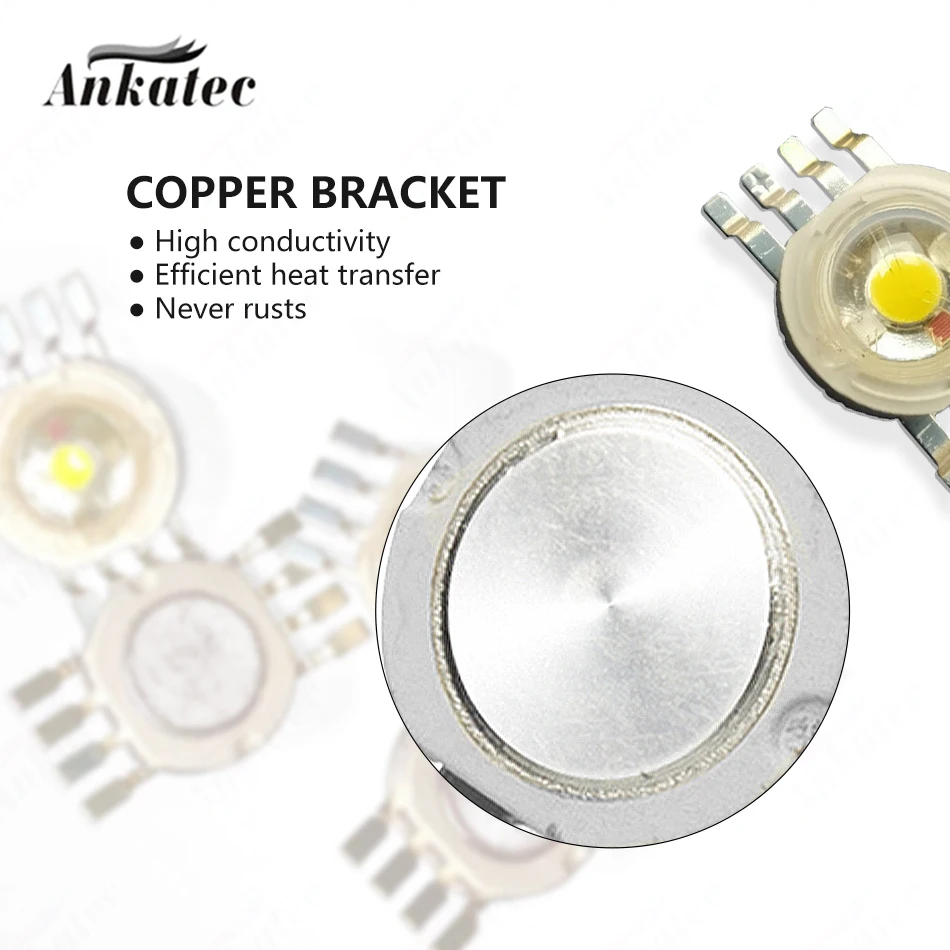

●.Material：With Double Golden Wire (99.99%) and Copper Frame
Kindly Reminder:
●.Light and different monitors may cause the color of the item to be somewhat different from the real thing. The allowable error of measurement is +/-1 mm.
●.Constant current LED drivers are recommended for high power LEDs.
Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.
Please refer to the positive (anode +) and negative (cathode -) sign on Leds.
,
