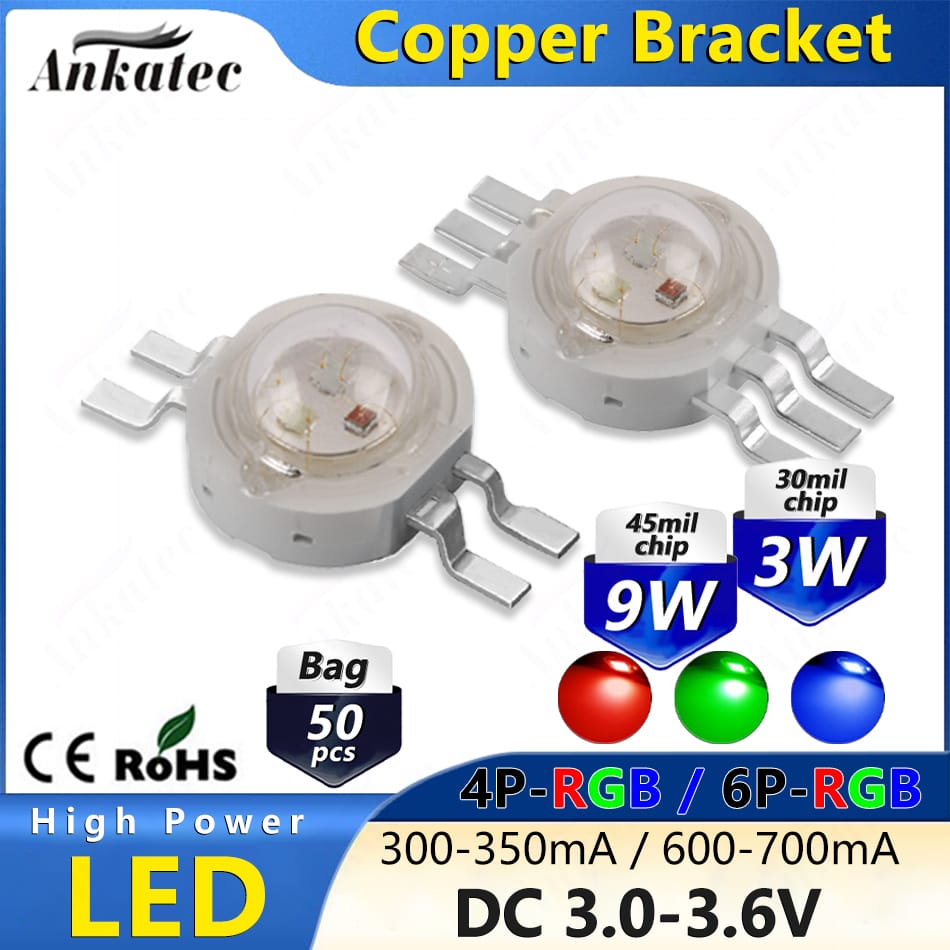

50 Pcs 3W 9W High Power LED Chip Lamp Bead RGB 4 or 6 pin 1W 3W Each Color Super Bright 3 in 1 Light Emitter Diode for DIY Lamp
50 PCS / Lot 3W 9W RGB LED Chip 4 or 6 Pins 3 in 1 Color Lighting High Power Lamp Beads
Product features:
●. High quality LED high-power Chip lamp beads,small light decay,high brightness and long service life.
●. Used for DIY lighting fixtures, widely used

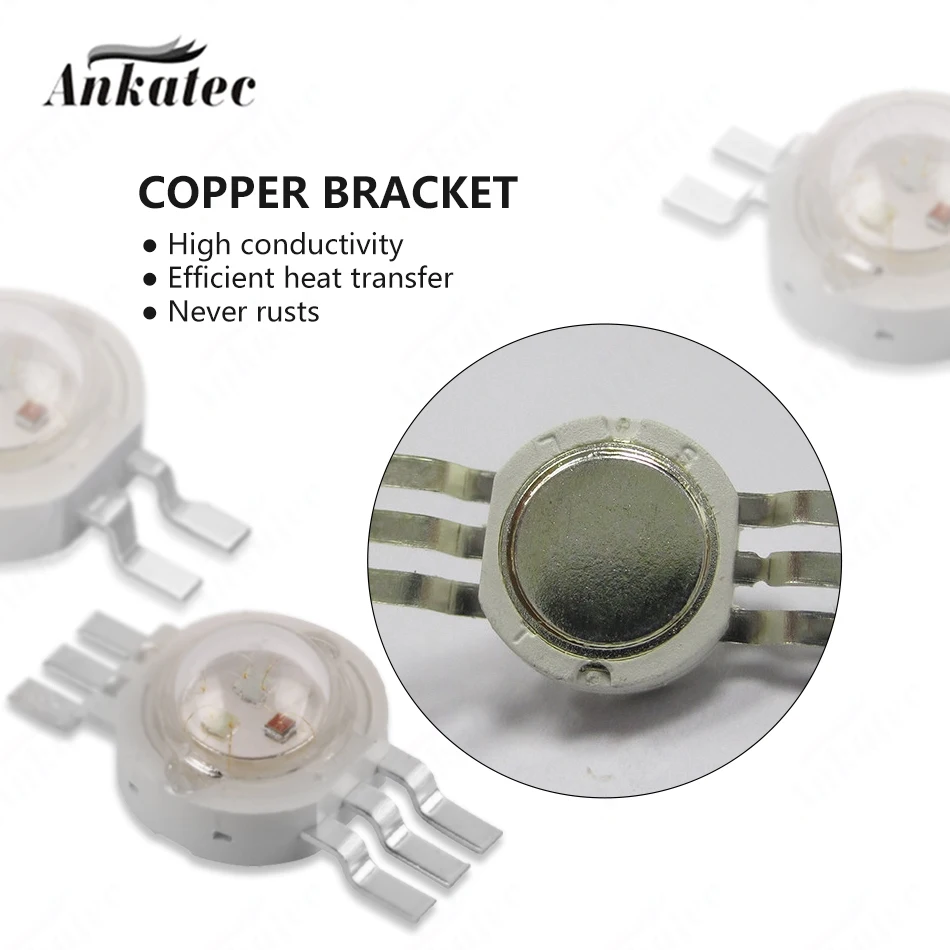

●. The lamp bead chip adopts 99.99% gold wire welding and copper bracket, making them easy to dissipate heat. Strong light transmittance
●. With high brightness,low power consumption and long life. Instant start,no strobe,sturdy and shockproof.
●. Allows you to solder it into any configuration you want.
●. Light weight,small size,easy to store and use.
Product specifications:

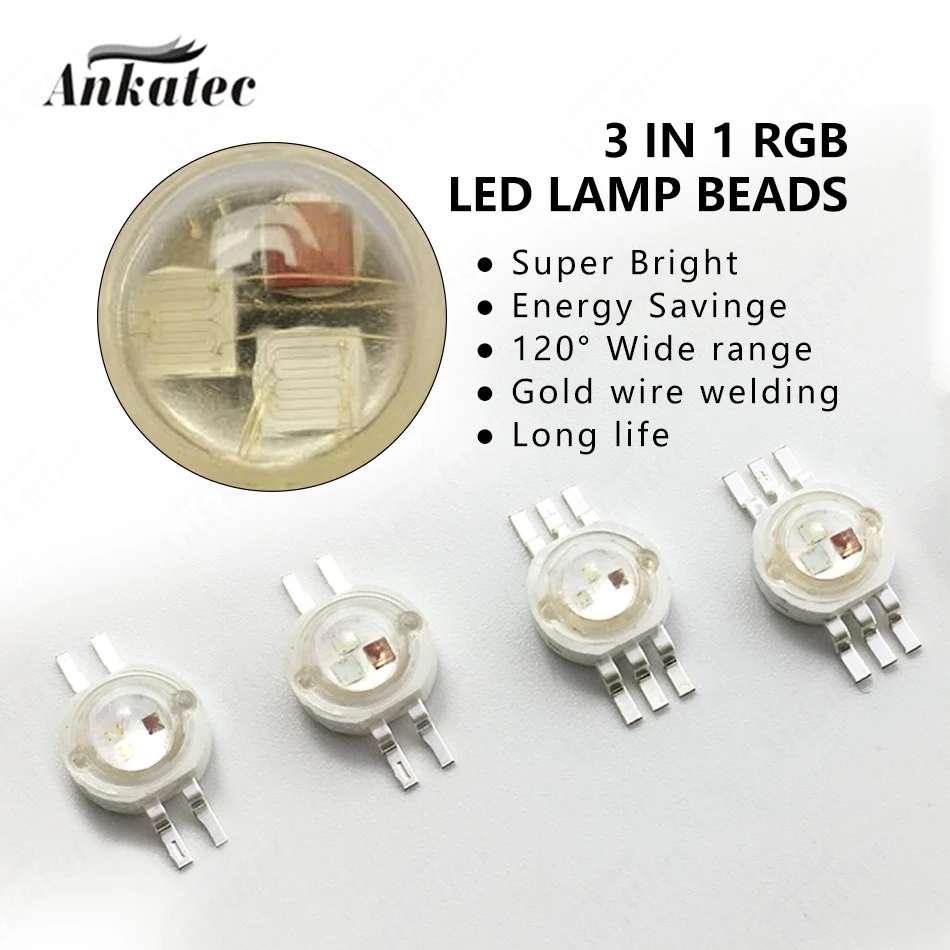

●.Name：3 in1 LED high-power lamp beads
●.Features：4 or 6-PIN SMD lumen lamp beads

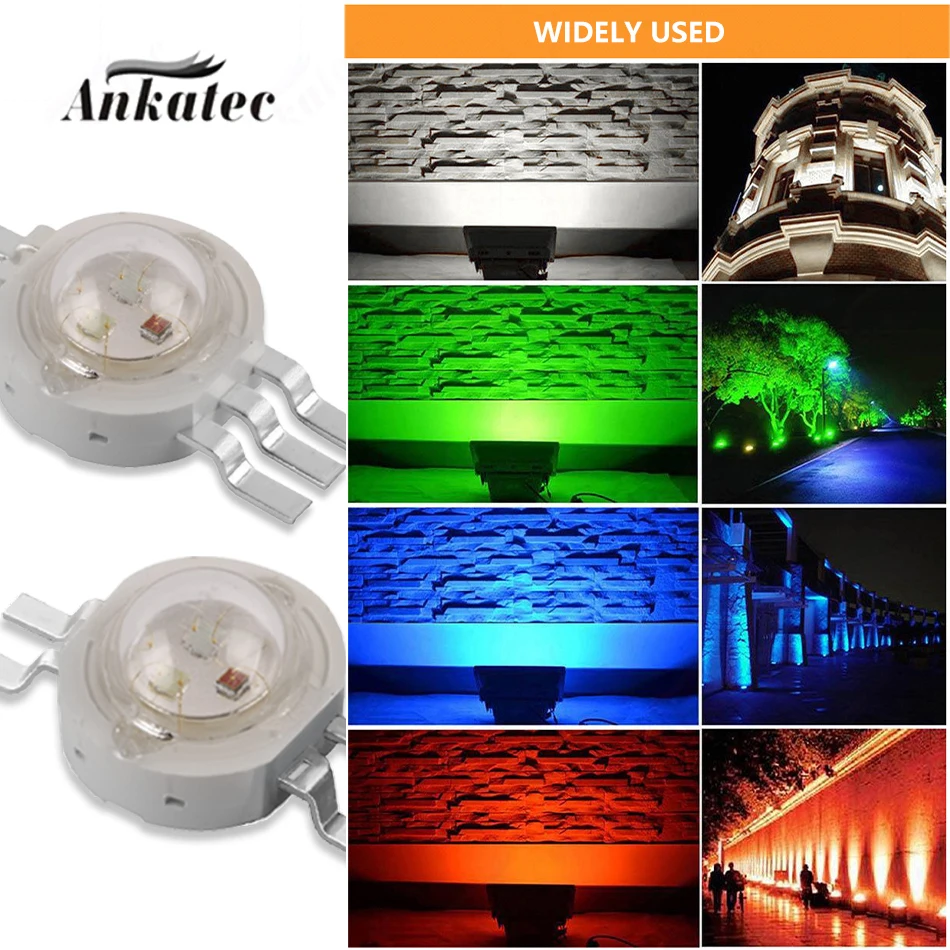

●.Application：Downlight, spotlight, courtyard light, wall wash light, landscape light, sunset light, stage light

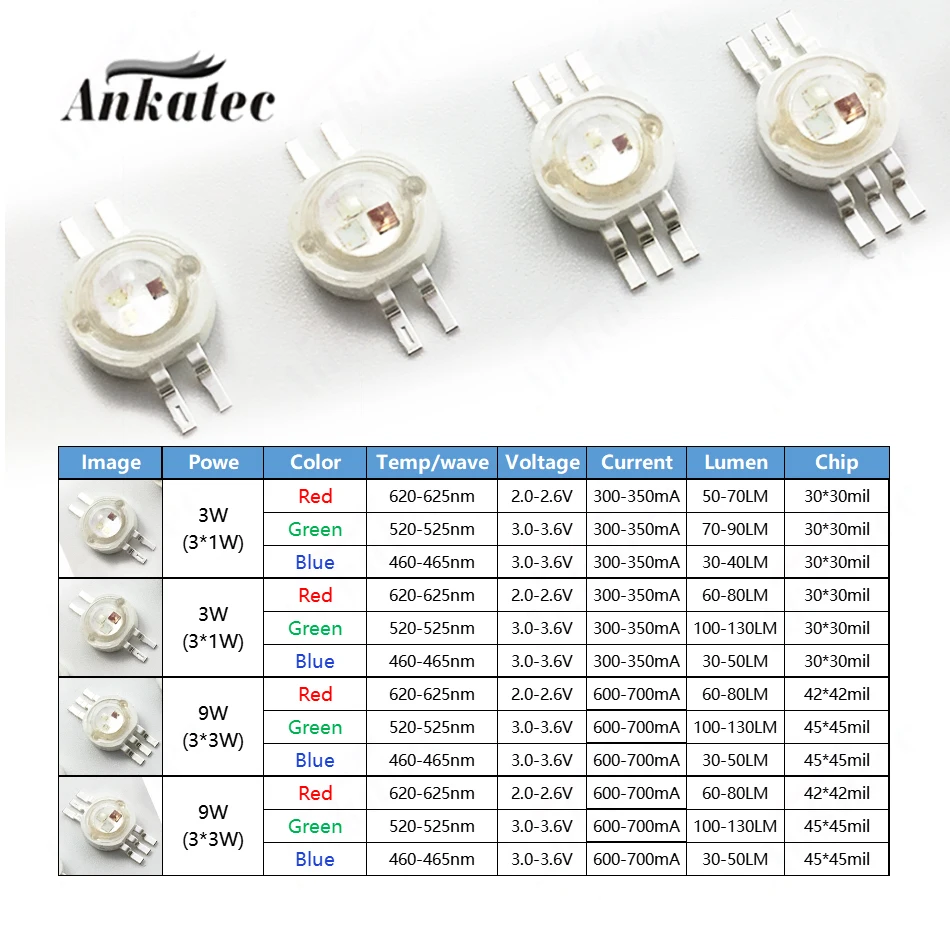

●.Power：3W(3CH*1W); 9W(3CH*3W)
●.Current：350mA/CH(3W); 700mA/CH(9W)
●.Voltage：R:2.0-2.6V; G B : 3.0-3.6V
●.Color：RGB(Red, green, blue)
●.Beam angle：120 degrees
●.LED chip：30mil (3W); 45mil (9W)

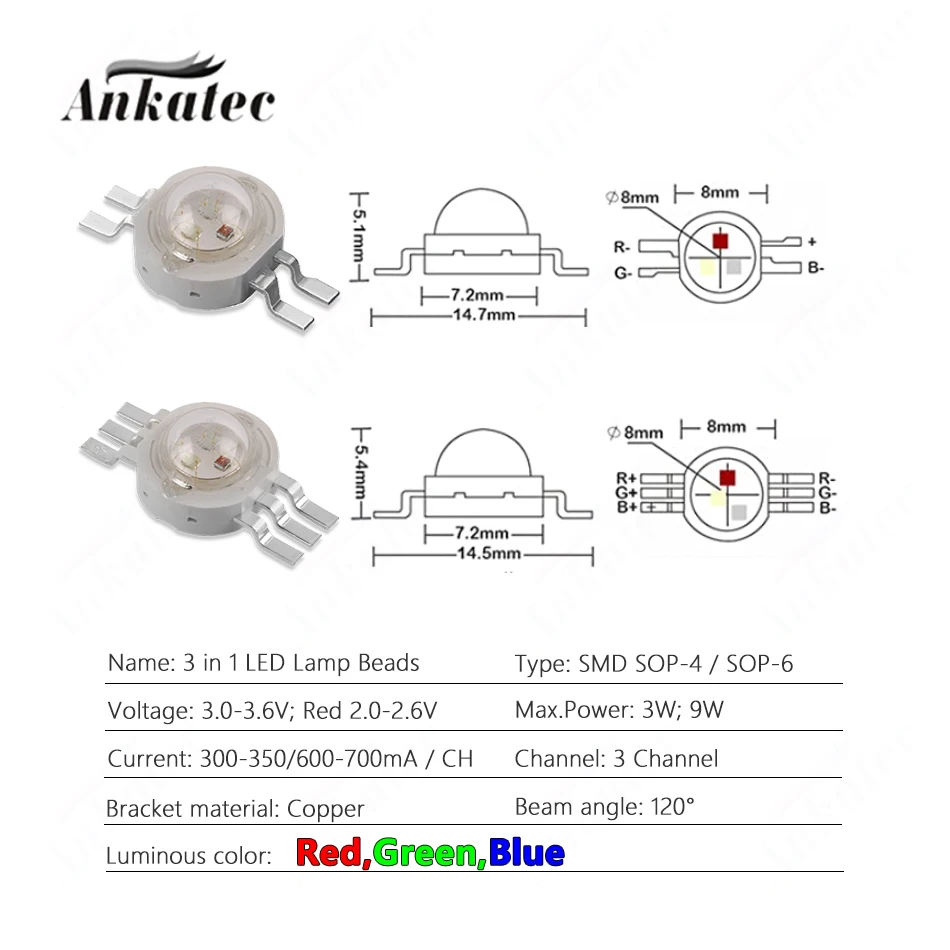

●.Dimension：As shown in the figure
●.Material：With Double Golden Wire (99.99%) and Copper Frame
Kindly Reminder:
●.Light and different monitors may cause the color of the item to be somewhat different from the real thing. The allowable error of measurement is +/-1 mm.
●.Constant current LED drivers are recommended for high power LEDs.
Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.
Please refer to the positive (anode +) and negative (cathode -) sign on Leds.
,
